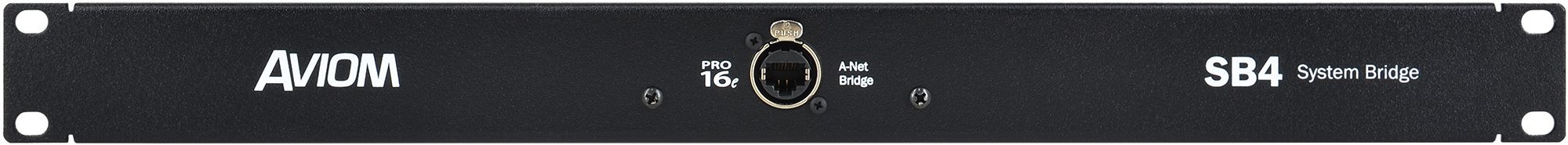

The SB4 System Bridge can be used to combine up to four Pro16® or Pro16e™ A-Net® streams onto a single Cat-5 cable. The rear panel of the SB4 has four A-Net input or output jacks; the front panel features a single A-Net Bridge output. All connections utilize heavy duty locking Neutrik® EtherCon® Cat-5 jacks. Used in conjunction with the D800 A-Net Distributor, the SB4 System Bridge combines up to four synchronous Pro16 A-Net streams for use with A360 Personal Mixers. Designed for use with Pro16 A-Net cards for digital consoles, the SB4 System Bridge brings the number of input sources available to A360 personal mixing systems from the digital domain to 64. The SB4 may also be used in pairs to simplify cabling in Pro16 digital snake systems. Up to four Pro16 input or output devices are connected to an SB4 at the stage and FOH locations, and the main Cat-5 cable run between the stage and FOH mix position is reduced to a single Cat-5 cable. Used in this manner, the SB4 supports configurations up to 64x0, 48x16, or 32x32.

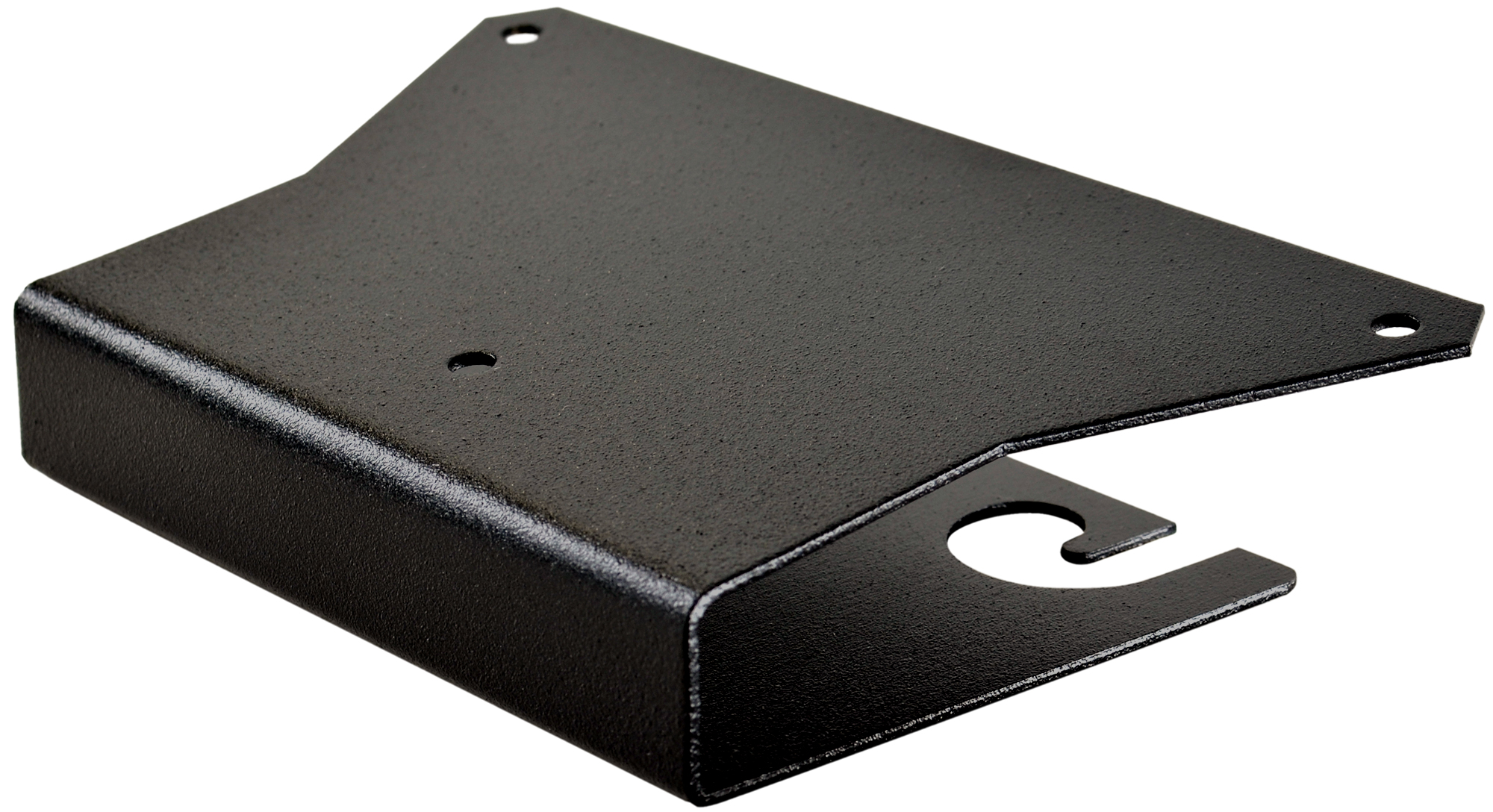

The MT-1a is used to mount an A360 Personal Mixer, A320 Personal Mixer, A-16II Personal Mixer or the A-16CS Control Surface on a standard mic stand.

The KBS-1 is an adjustable On-Stage Stands® keyboard seat with an integrated tactile transducer system. Simply connect the seat to the BOOM-1 using the included locking-type speaker cable.

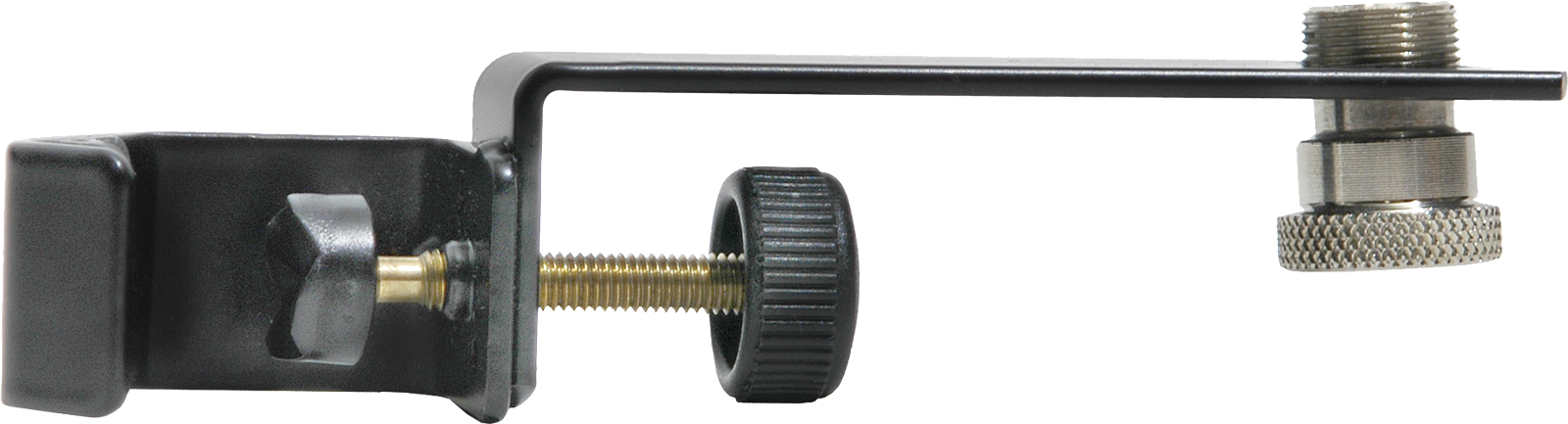

The EB-1 Extension Bracket allows an A-16II, A320 or A360 Personal Mixer to be mounted on the shaft of a standard mic or music stand. The right-angle bracket requires the MT-1a Mic Stand Mount.

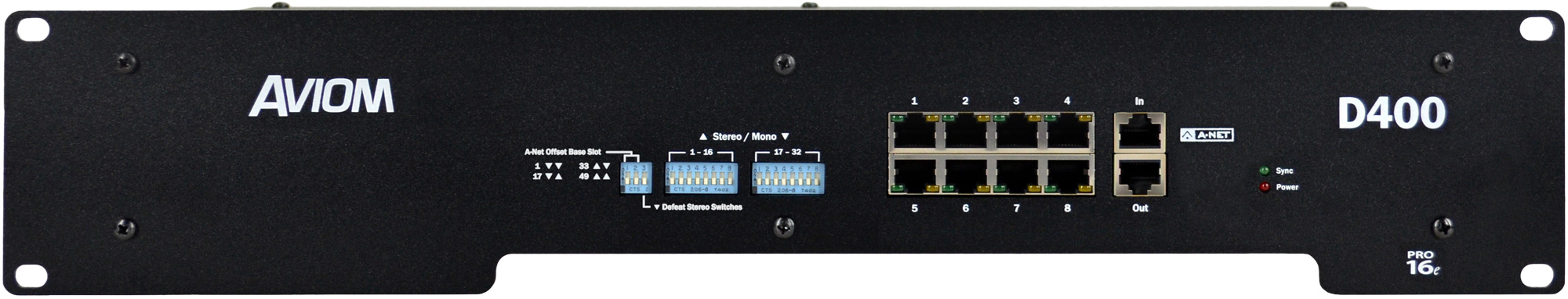

Aviom’s series of D400 A-Net® Distributors provides support for parallel connections of up to eight Pro16® devices, including the A360 and A320 Personal Mixers, and legacy products such as the A-16II and A-16R Personal Mixers, along with additional network connectivity options. The standard D400 includes a Pro16e™ A-Net input, compatible with all Pro16 Series and Pro16e-capable devices. The D400 includes eight A-Net outputs designed for use with Aviom Personal Mixers. These eight outputs also include isolated (floating ground) DC power for providing remote power via Cat-5e to Aviom Personal Mixers. In addition the D400 includes an unpowered A-Net Out, which may be used to connect to additional A-Net Distributors, output modules, or other compatible devices. There is no limit practical to the number of D400, D400-Dante, D800, and D800-Dante A-Net Distributors that can be used in an A-Net network, and all versions of the D400 are compatible with all Pro16 Series devices.

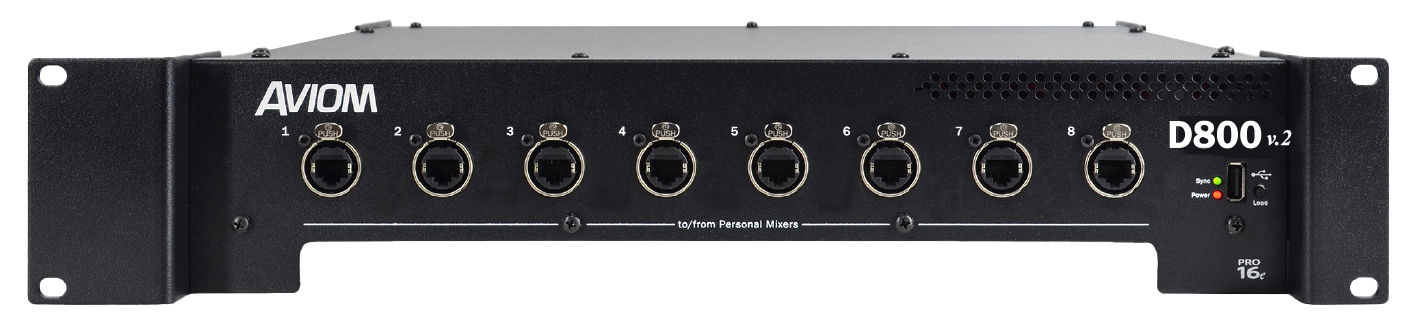

The D800 A-Net Distributor provides support for parallel connections of up to eight Pro16 devices, including the A360 and A-16II Personal Mixers, along with additional network connectivity options. The D800 includes a Pro16e A-Net input, compatible with all Pro16 Series and Pro16e-capable devices. This input port also supports an A-Net Bridge input, allowing up to four synchronous Pro16 A-Net streams to be connected. Used in conjunction with the SB4 System Bridge and Pro16 A-Net console cards, the D800 can be used for sending up to 64 channels directly from a digital console to A360 Personal Mixers. D800 also offers the Network Mix Back™ feature. Network Mix Back sends a digital copy of the stereo mix output from each A360 Personal Mixer connected to the D800 back to an AN-16/o v.4 Output Module for simplified connections to musicians' wireless in-ear transmitters. With Network Mix Back, transmitters for wireless in-ears can easily be set up off stage and cabling for the personal mixers on stage is simplified. In addition the D800s serve as a communications hub for iOS devices connected via an Ethernet WiFi router. The 2U D800 is powered by an internal switching power supply, with a detachable power cord and IEC power inlet on the rear panel. Isolated (floating ground) DC power is supplied to eight A‑Net outputs for providing remote power via Cat-5e to Personal Mixers. All network connections on the D800 use heavy duty locking Neutrik EtherCon connectors. An unlimited number of D800 and D800-Dante A-Net Distributors can be used in an A-Net network, and all versions of the D800 are compatible with all Pro16 Series devices.

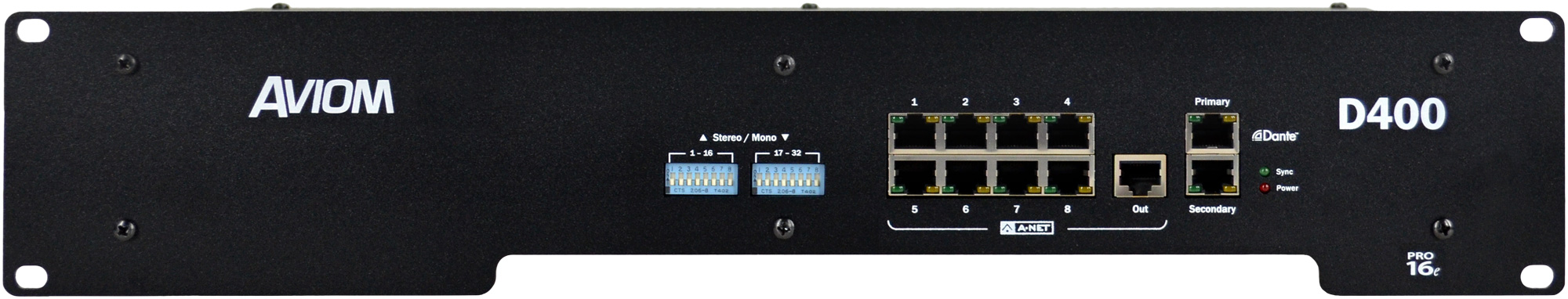

Aviom’s series of D400 A-Net® Distributors provides support for parallel connections of up to eight Pro16® devices, including the A360 and A320 Personal Mixers, and legacy products such as the A-16II and A-16R Personal Mixers, along with additional network connectivity options. The D400-Dante A-Net Distributor adds connectivity for a Dante™ digital audio network, allowing up to 32 channels to be sent directly from a Dante audio network to A320 and A360 Personal Mixers. Any 32 Dante channels may be selected from the Dante network using the Dante Controller software. The D400-Dante includes eight A-Net outputs designed for use with Aviom Personal Mixers. These eight outputs also include isolated (floating ground) DC power for providing remote power via Cat-5e to Aviom Personal Mixers. In addition the D400-Dante includes an unpowered A-Net Out, which may be used to connect to additional A-Net Distributors, output modules, or other compatible devices. There is no limit practical to the number of D400, D400-Dante, D800, and D800-Dante A-Net Distributors that can be used in an A-Net network, and all versions of the D400 are compatible with all Pro16 Series devices.

The D800-Dante A-Net Distributor provides support for parallel connections of up to eight Pro16 devices, including the A360 and A-16II Personal Mixers, along with additional network connectivity options. The D800-Dante includes a Pro16e A-Net input, compatible with all Pro16 Series and Pro16e-capable devices. This input port also supports an A-Net Bridge input, allowing up to four synchronous Pro16 A-Net streams to be connected. Used in conjunction with the SB4 System Bridge and Pro16 A-Net console cards, the D800-Dante can be used for sending up to 64 channels directly from a digital console to A360 Personal Mixers. In addition to that the D800-Dante A-Net Distributor also provides connectivity for a Dante™ digital audio network, allowing up to 64 channels to be sent directly from a Dante audio network to A360 Personal Mixers. The D800-Dante may be set to use either its Dante interface or its A-Net In as the source of audio for the Personal Mixers. The D800-Dante is ideal for connecting Aviom Personal Mixers to a Yamaha® CL Series console with Rio I/O racks. D800-Dante also offers the Network Mix Back™ feature. Network Mix Back sends a digital copy of the stereo mix output from each A360 Personal Mixer connected to the D800-Dante back to an AN-16/o v.4 Output Module for simplified connections to musicians' wireless in-ear transmitters. With Network Mix Back, transmitters for wireless in-ears can easily be set up off stage and cabling for the personal mixers on stage is simplified. In addition the D800s serve as a communications hub for iOS devices connected via an Ethernet WiFi router. The 2U D800-Dante is powered by an internal switching power supply, with a detachable power cord and IEC power inlet on the rear panel. Isolated (floating ground) DC power is supplied to eight A‑Net outputs for providing remote power via Cat-5e to Personal Mixers. All network connections on the D800-Dante use heavy duty locking Neutrik EtherCon connectors. An unlimited number of D800 and D800-Dante A-Net Distributors can be used in an A-Net network, and all versions of the D800 are compatible with all Pro16 Series devices.

The CTT-1 Clamp-On Tactile Transducer has a universal mount that makes connecting a tactile transducer to the stem of most drum thrones or stools easy. At the heart of the CTT-1 is a premium ButtKicker® transducer, and an integrated locking speaker cable ensures a solid connection to the BOOM-1 processor.

The PLF-1 Platform is a portable performance platform that is the perfect solution for those performers—especially bass players, guitarists and vocalists—who stand on stage. The sturdy 71 x 81cm platform uses a premium ButtKicker tactile transducer and is designed with an opening in the front to allow convenient positioning of mic and music stands. Simply connect the platform to the BOOM-1 using the included locking-type speaker cable.

The PFS-1 Performance Stool combines a sturdy QuikLok® performance stool with a built-in tactile transducer system. The stool has an adjustable seat, back, and foot rest that allows it to be customized to suit any player. Simply connect the stool to the BOOM-1 using the included locking-type speaker cable.

The BOOM-1 is designed to dramatically enhance a performer’s personal mixing experience by adding optimally-processed low-frequency tactile information to an in-ear or headphone monitor mix. Adding a well processed low-frequency tactile transducer (also known as a ‘bass shaker’) to a drum throne, keyboard seat, performance platform, or even to the floor of a stage, allows the body to feel bass frequencies; this adds realism to the mix. Being able to hear and feel the mix can significantly improve the user experience when using in-ear monitors and headphones, providing powerful sound usually achieved only with large, high-quality speaker cabinets. Tactile transducers are especially beneficial to those using electronic drum kits, as well as guitar and bass amp simulators. The combination of personal mixers, IEMs/headphones, and tactile transducers allows performers to achieve powerful, exciting monitor mixes at lower in-ear levels. This reduces sound-level-induced fatigue allowing longer, more enjoyable performances, while also promoting long-term hearing health. The BOOM-1 brings Aviom-optimized DSP to the tactile experience. Designed by the personal monitor experts, it’s easy to use and provides a natural low-frequency extension to your monitoring experience. Compatible with Aviom’s industry standard A360, A320, and all other Personal Mixers, the BOOM-1 can be connected easily to the line- or headphone-level audio outputs of a performer’s Personal Mixer. It’s simple: Connect the TRS stereo headphone output from a Personal Mixer to the BOOM-1 headphone-level input. Connect the Transducer Out to your tactile transducer. Connect earbuds or headphones to the headphone Thru jack. The simple Strength setting controls how much of the source signal from your mix is sent to the tactile transducer. Use the Feel control to choose a setting from Tight to Loose that best suites you and your music.

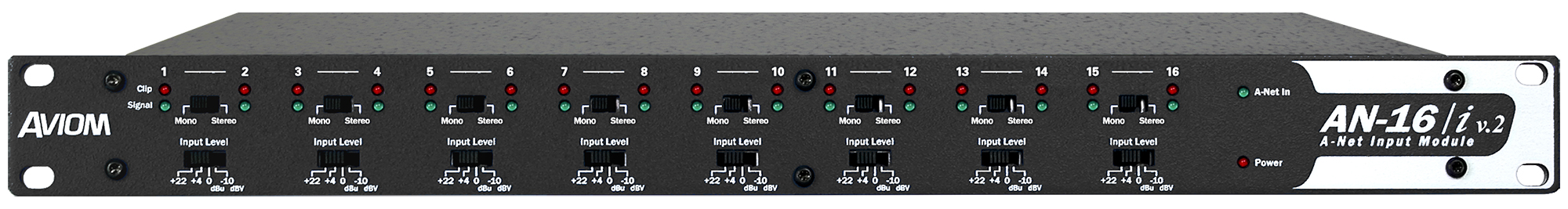

The AN-16/i v.2 Input Module provides sixteen channels of analog-to-digital conversion as the head end for Aviom’s industry standard personal mixing system and modular digital snake products. The module converts sixteen line-level analog audio channels into uncompressed 24-bit, 48kHz digital audio data. The AN-16/i v.2 includes an A-Net® Input jack for connecting up to three additional Pro16® Series input devices. The AN-16/i v.2 merges its analog inputs with the incoming A-Net stream, creating the expanded Pro16e digital audio stream utilized by Aviom’s A360 Personal Mixer. The digital audio data is output on standard Cat-5e cables. The AN-16/i v.2 front panel has eight four-position input level/gain sensitivity switches, stereo channel link switches for every channel pair, and per-channel signal present and clip LEDs. Digital network connections on the rear panel include one A-Net In jack and one A-Net Out jack. The rear panel of the AN-16/i v.2 also features 16 analog audio inputs with balanced ¼” TRS jacks. An audio Thru jack for each input allows the AN-16/i v.2 to be inserted seamlessly into an existing audio signal path. The AN-16/i v.2 can be used with any line-level analog audio signal such as console direct outs, inserts, or aux sends. The AN-16/i v.2 is equally at home with Aviom’s modular Pro16 digital snake and audio distribution system products, supporting a range of flexible configurations including: 16x0, 32x0, 48x0, 64x0, 16x16, 32x16, 32x32, and 48x16. All configurations support an unlimited number of digital splits, with no loss in audio quality.

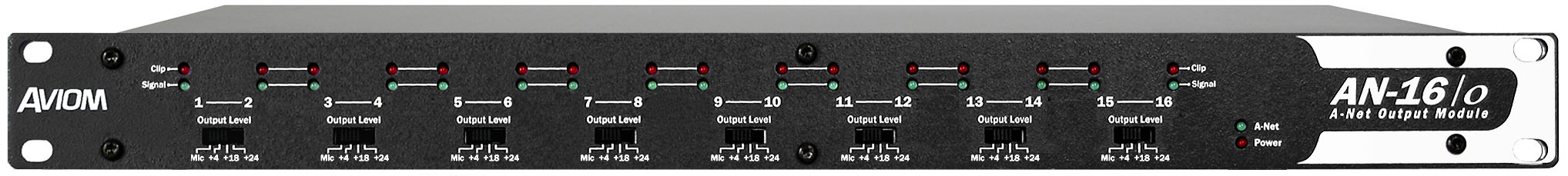

The AN-16/o v.4 Output Module is a 1U rack-mount 16-channel digital-toanalog converter for Pro16® digital snake and audio distribution systems. Digital audio is input on standard Cat-5e cable, via Aviom’s A-Net® Pro16 digital audio transmission protocol, and converted to analog using 24-bit, 48kHz converters. Sixteen balanced outputs are provided on the rear panel via multipin connectors. Designed to be compatible with a wide range of signal level requirements, each pair of channels has a four-position output level switch with settings for +24, +18, and +4dBu line-level, or mic-level output. Each channel features front-panel LEDs for signal present and clip. The AN-16/o v.4 features rugged DB25 multipin connectors for analog audio outputs, reducing set-up time and adding the security of a locking connection. All network connections utilize heavy duty locking Neutrik® EtherCon® connectors. Digital connections include A-Net In, A-Net Out, and A-Net Expansion. The A-Net Out jack provides a lossless digital split of the A-Net In audio data stream, while the A-Net Expansion jack allows two 16-channel A-Net streams to be combined onto a single Cat-5e cable. With the optional AN-16SBR System Bridge, up to 64 channels can be combined onto a single Cat-5e cable in a variety of confi gurations (16x0, 32x0, 48x0, 64x0, 16x16, 32x16, 32x32, and 48x16). The AN-16/o v.4 can be used with any Pro16 input module or console interface card, with no limit to the number of output modules in a single system. The AN-16/o v.4 can be connected to a Pro64® audio network by adding the ASI A-Net Systems Interface.

The A640 is the next-generation flagship model of Aviom’s personal mixer product line. It brings a new levels of user control and customization and a streamlined interface with features that provide flexible options to performers both on stage and in the recording studio. It’s powered by Aviom’s award winning, high speed, low latency A-Net® digital audio transport protocol, the world’s only protocol that is purpose-built for personal monitoring applications. The A640 Personal Mixer fits seamlessly into audio environments using Dante-based audio networks, analog consoles, and digital mixers. It is also compatible with all Aviom personal mixing products, allowing easy updates and expansions to existing systems. The A640 Personal Mixer combines a powerful mix engine with an intuitive user interface that doesn't get in your way while performing. The A640's color hi-res display has three Mix Views showing all the details about the mix without sacrificing editing simplicity. The dedicated View button provides fast control at any time. Channel View provides detail about an individual channel's settings (volume, pan, treble, bass, and effects). The Mix View shows the volume level of every channel in the mix, and the Names View displays each channel by name along with its volume level. Editing is easy, even while singing and playing. Channel names can be automatically synced from a Dante network or entered manually. Custom channel layouts and per-channel controls for treble, bass, and effects are available to suite each performer needs. The dedicated mono Aux Mix output can send any or all of its mix channels to bass shakers, subs or wedges for a better music experience. And each A640 can send any or all of its mix channels to the dedicated mono Aux Mix output to easily add bass shakers, subs or wedges. When used with Aviom’s powerful D800 products, the A640’s Intercom allows direct communication with other A640 users with just the touch of a button. A640 can store up to sixteen mix presets that are instantly available during performance. Entire band’s configurations can be saved to a USB memory stick for easy recall in shared systems.

Aviom’s A320 Personal Mixer brings new levels of control and customization to personal mixing and is the perfect solution for controlling musicians’ monitors on stage or in the studio. Ideal for use with in-ear monitors and headphones, the A320 delivers breakthrough features for more precise mix control and more musical monitoring, while also preserving the simplicity required for use while performing. All mixing features are instantly available—no menus to navigate, no complex programming, no computer required—so customizing and adjusting a mix is fast and intuitive, even in the middle of performing. The A320 includes an advanced 32-channel mix engine which can be used to mix up to 16 mono or stereo channels. The innovative Stereo Placement™ pan-spread feature controls both sides of a stereo channel’s image simultaneously, significantly improving the user experience with in-ear monitors and headphones. Each A320 can store up to eight mix snapshots—saved in the first eight channel button locations. The master output section includes Bass and Treble tone controls, plus the unique Enhance™ control designed to provide more presence for users of in-ear monitors. Audio is delivered to the A320 using Aviom’s A-Net® digital audio protocol. A-Net ensures that audio signals are delivered in real time and provides for simple plug-andplay setup without addressing. The A320 is compatible with existing Pro16 Series devices and monitor systems. Additionally, the A320 can use an enhanced version of the protocol, Pro16e™, which supports expanded channel capacity in the Pro16 audio stream.

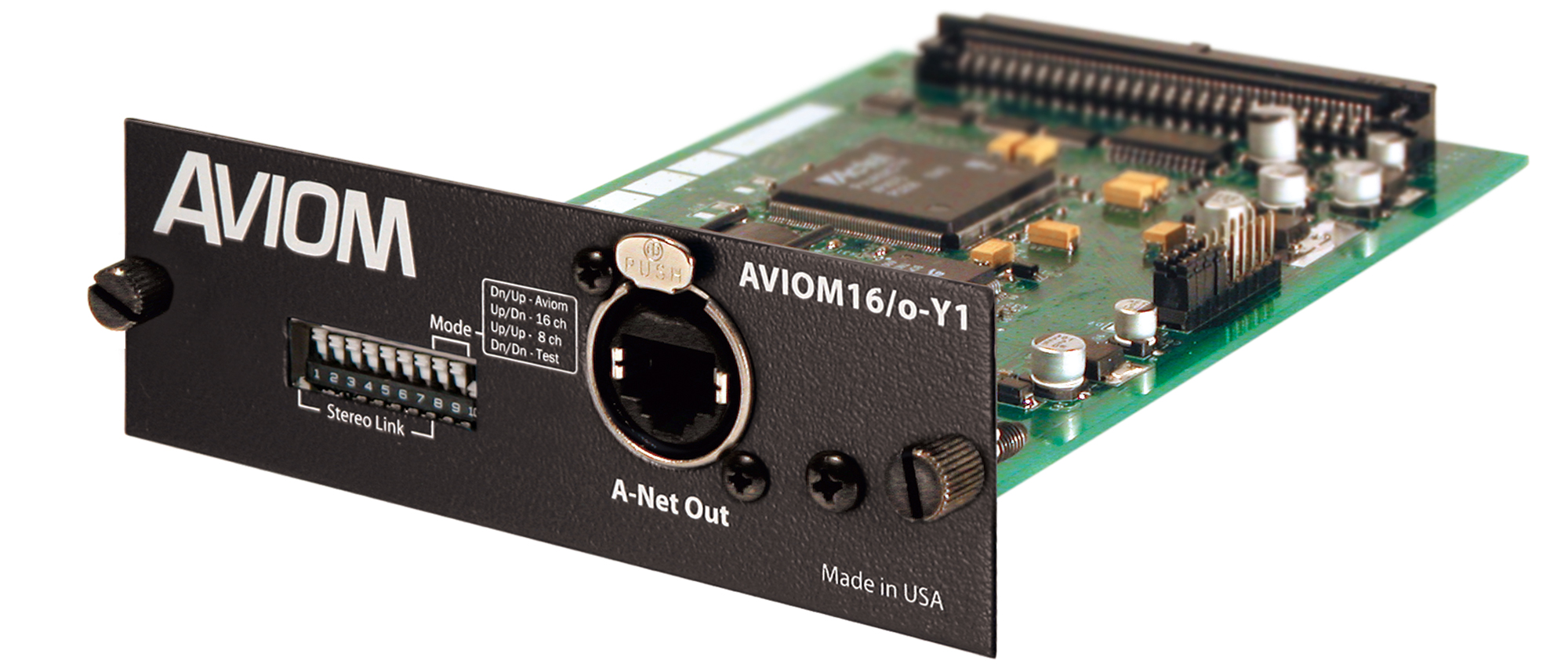

The A-16/0-Y1 A-Net® Card is an output expansion card for Yamaha® products supporting the mini-YGDAI (MY) format. The Y1 A-Net card provides seamless direct digital connectivity between Yamaha digital devices and Aviom Pro16® products. Compatible products include the A-16II and A-16R Personal Mixers, A-16D and A-16D Pro A-Net Distributors, and the AN-16/o Output Module. Y1 A-Net cards fi t into any available expansion slot in the rear of Yamaha’s digital consoles. The Y1 card is also compatible with the DME24N and DME64N Digital Mixing Engine products, used to expand the audio processing and routing capabilities of Yamaha’s digital consoles. Multiple Y1 cards can be used simultaneously in a single console, extending the creative possibilities for both monitoring and signal distribution. Each Y1 card outputs up to 16 channels of 24-bit, 48kHz audio over a single Cat-5e cable. Up to 64 channels can be combined onto a single cable using Aviom’s AN-16SB System Bridge. Channel pairs can be linked for stereo mixing on Pro16 Personal Mixers using a set of eight external DIP switches. Additionally, mode switches are provided for selecting 16-channel (MY16) and 8-channel (MY8) operation as required by the slot specification of the Yamaha console.
