BMA2
Art.-Nr.: 910-3200-201-I
Color: White
Request now
Project consulting B2B-Login

ClearOne is a global company that designs, develops and sells conferencing, collaboration, and network streaming & signage solutions for voice and visual communications. The performance and simplicity of its advanced, comprehensive solutions offer unprecedented levels of functionality, reliability and scalability.

Overview

Beamforming Microphone Array 2

ClearOne’s second-generation Beamforming Mic Array is the professional-grade microphone array with beamforming and adaptive steering, ClearOne’s next-generation Acoustic Echo Cancellation and Noise Cancellation. The ultra-sleek design fits into any conferencing environment and delivers the clearest audio pickup available with its Acoustic Intelligence.

This solution works with CONVERGE Pro 2 DSP mixers through native P-link connection and it can connect with other P-link units like the DIALOG 20 2-channel Wireless Mic System.

Product Details

  • Beamforming & adaptive steering technology
  • Most advanced Acoustic Echo Cancellation & Noise Cancellation
  • Acoustic Intelligence with adaptive ambience
  • Replaces 9 to 12 traditional microphones
  • Daisy-chain up to 3 mic arrays per CONVERGE Pro 2 unit
  • Zero-consumption of analog inputs in CONVERGE Pro 2
  • Single cable for power, audio, & control (Cat 5e oder Cat 6)
  • Daisy-chain with DIALOG 20 Wireless Mic System
  • Four operation modes - ceiling, wall, table & auto
  • Two power options: P-link, PoE
  • Color: Black, white
Audio
Microphones
24
Input
1 Channel In (does not use any input channels in CONVERGE Pro 2)
Number of Beams
5 in Ceiling mode, 6 in Table mode, 5 in Wall mode
Polar Pattern
Custom
Frequency Response
150Hz – 16kHz, +/- 3dB
Dynamic Range
150Hz – 16kHz, >70dB
LED & Touch Sensor
Sensor Type
2 Capacitive Touch Button for Mute
LED (2x
one on each end of a unit): Power On, Power On & Unmuted: Blue, Muted: Red, Power Off: No light
Configuration (over Converge Pro 2 DSP software)
Beam
enable/disable (single Beam)
Mounting mode selection
Auto, Ceiling, Wall, Table
Acoustic Echo Cancellation (AEC)
on/off
Noise Cancellation (NC)
on/off
Filters
All Pass, Low Pass, High Pass, Notch, PEQ
Automatic Level Control (ALC)
on/off
Gain
adjust
Mute
on/off
Gate
Auto/Manual
USB
- For future use
P-Link Peripheral Bus
P-Link In & Out
Proprietary Peripheral Bus
Ports Type
RJ-45
Cable
Solid core 24AWG, factory terminated Cat 5e or Cat 6
Distance
Up to 60m
Sub-standard
Mode B
Daisy-Chain
Up to 3 Beamforming Microphone Array 2 units with each supported CONVERGE Pro 2 unit in the same chain, Up to 3 Beamforming Microphone Array 2 units and up to 3 DIALOG 20 Wireless Receiver units with each supported CONVERGE Pro 2 unit in the same chain, Up to 6 Beamforming Microphone Array 2 units in the same chain with 2 supported CONVERGE Pro 2 units connected through C-Link (future software/firmware upgrade)
Long Distance P-Link
Increases P-Link distance from 60m to 200m maximum cable distance between any two units, Cat6, 550 MHz, 23 AWG, solid conductor cable, Available only for BFM2 peripheral units, 48V PoE Midspan Mode B power injector for 1 BFM2 unit, 56V PoE Midspan Mode B power injector for 3 BFM2 units
Power Selection Switch
Sensor Type
Slide Switch, P-Link/PoE
Mounting

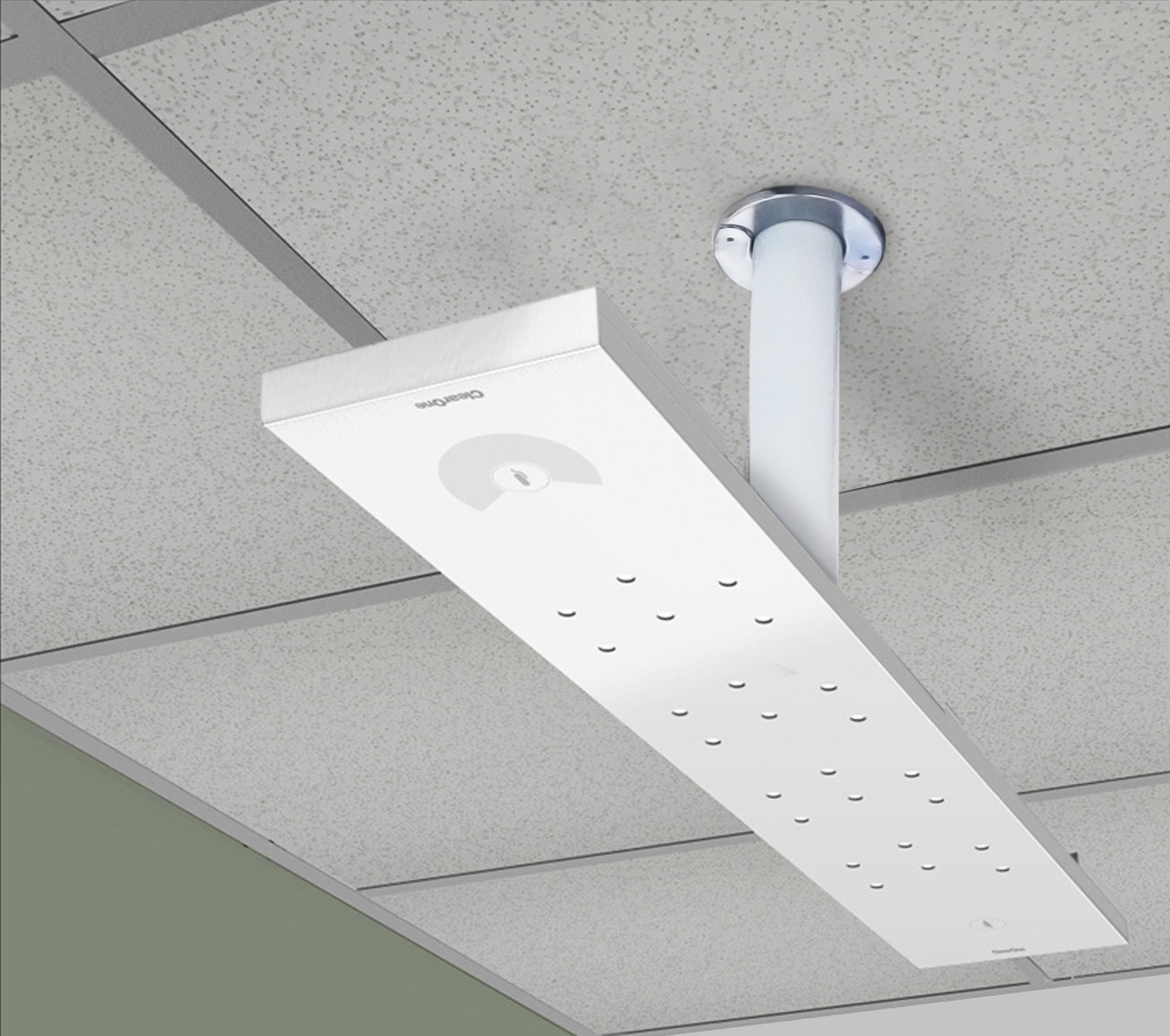

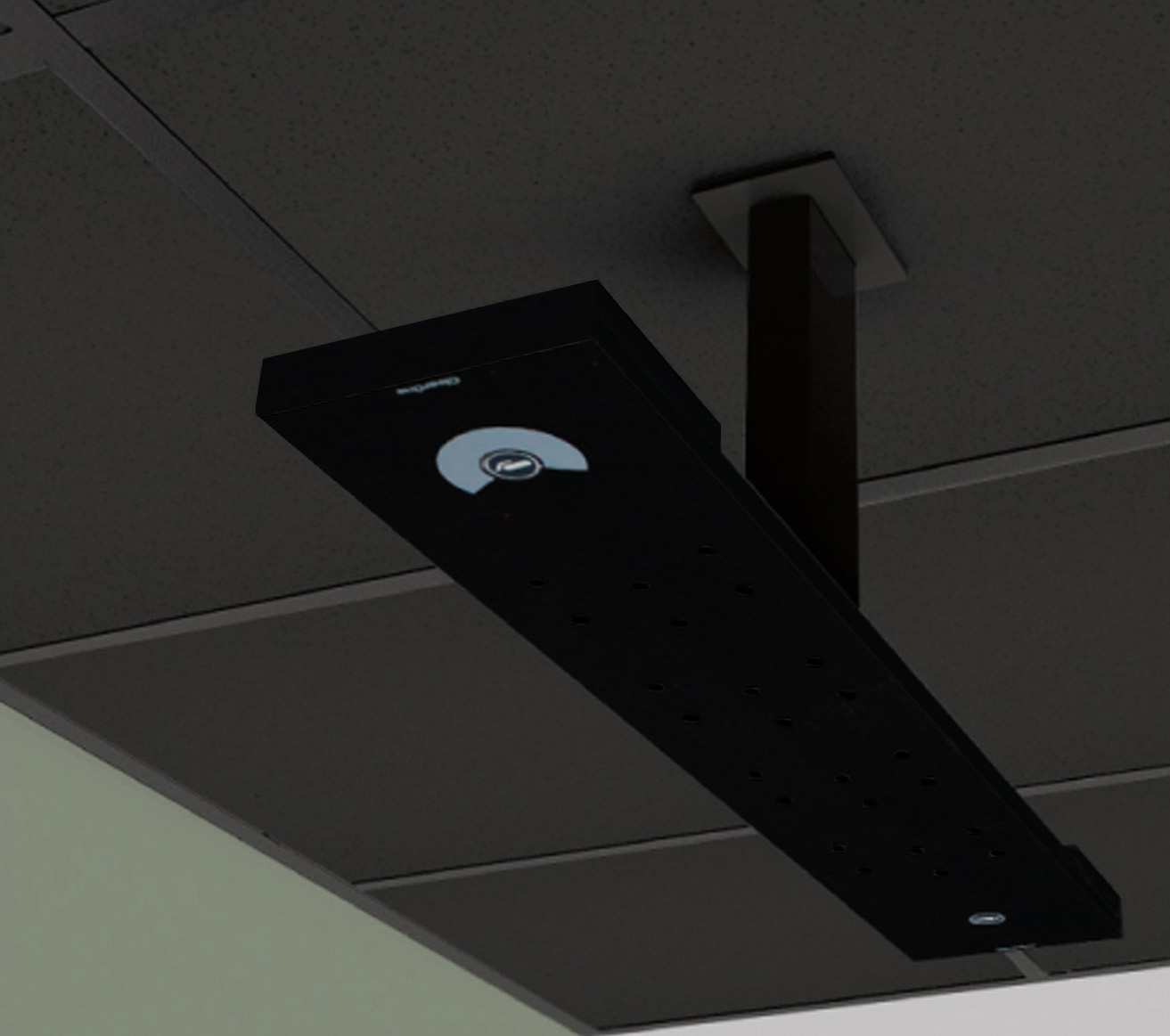

Ceiling mount kit

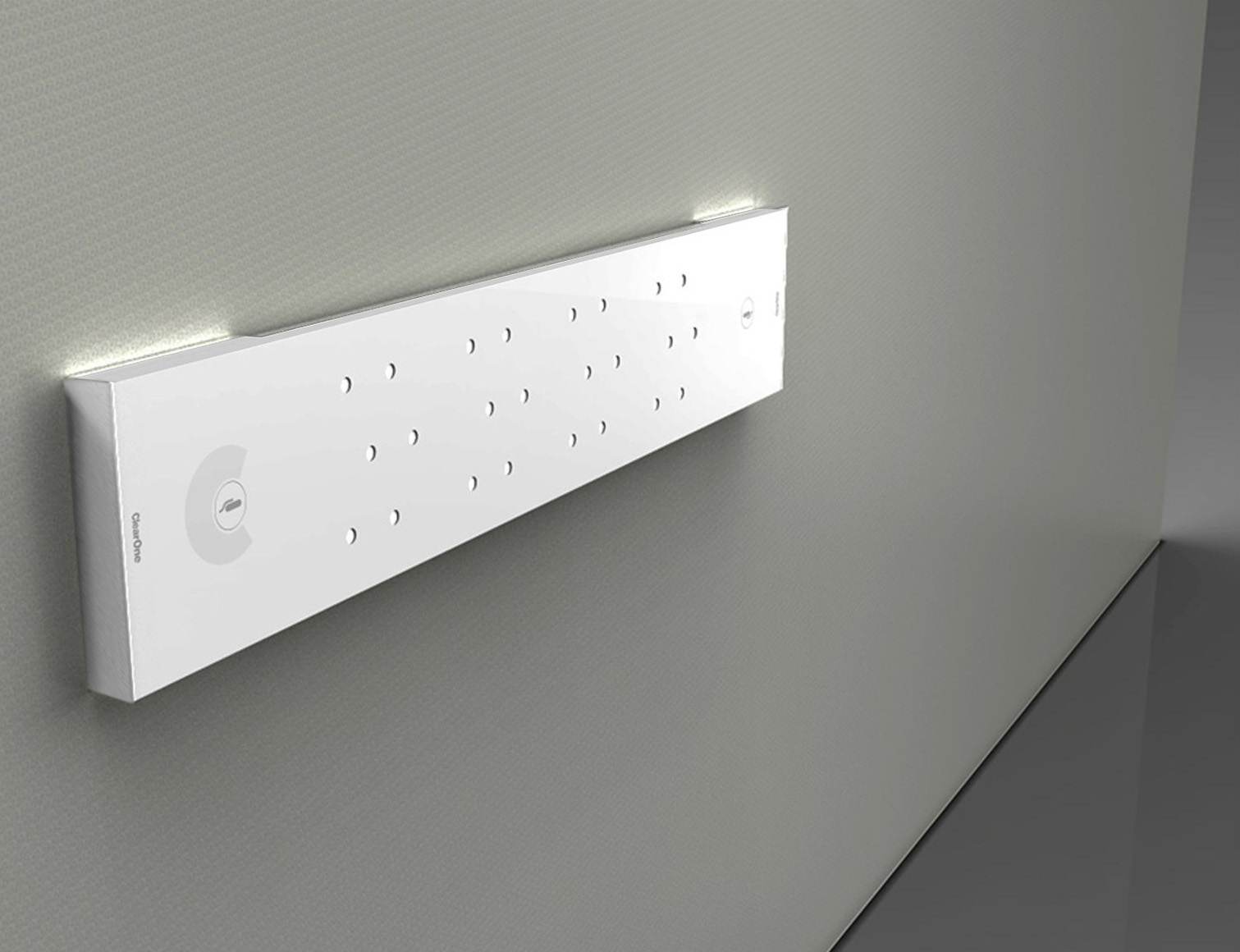

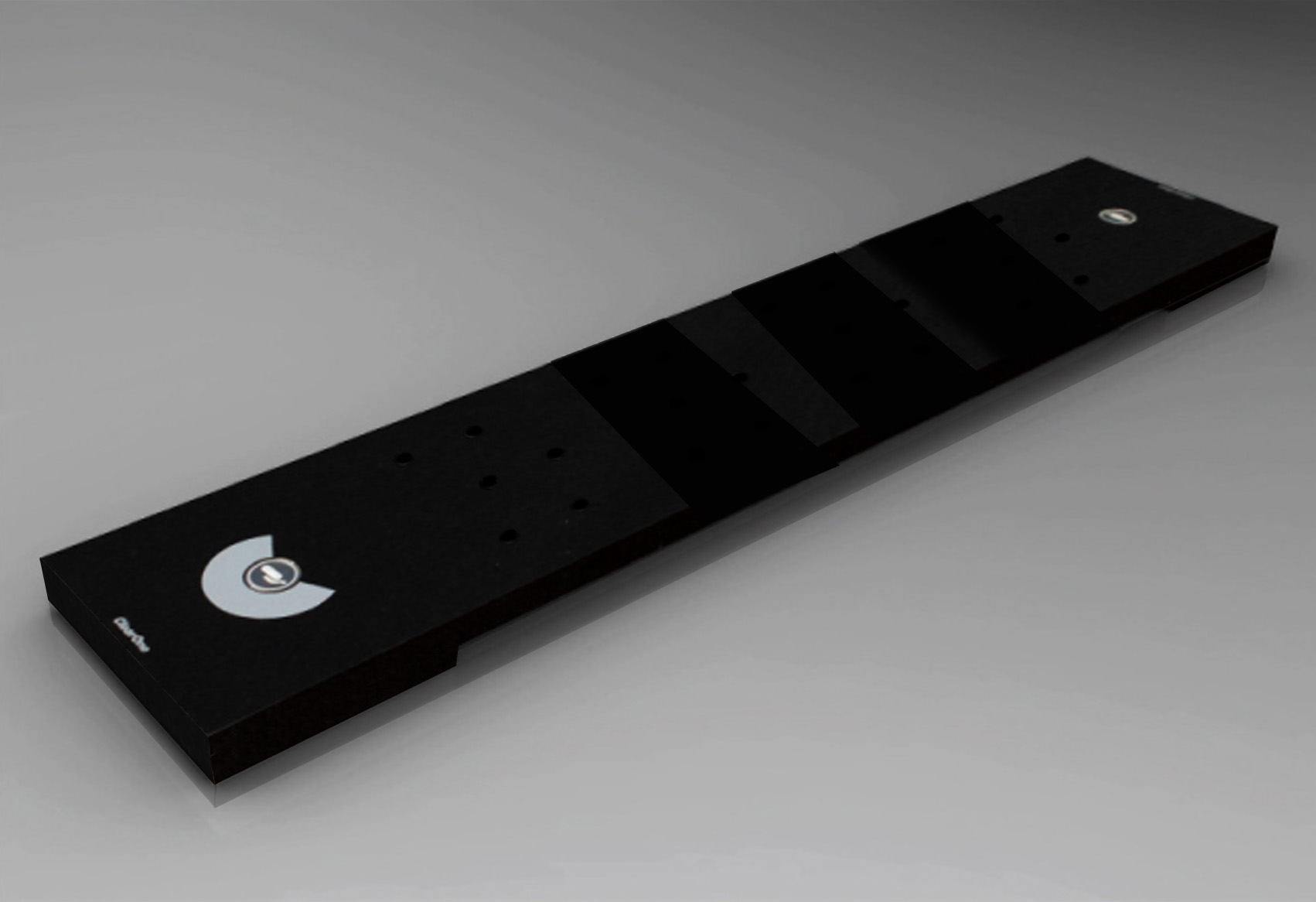

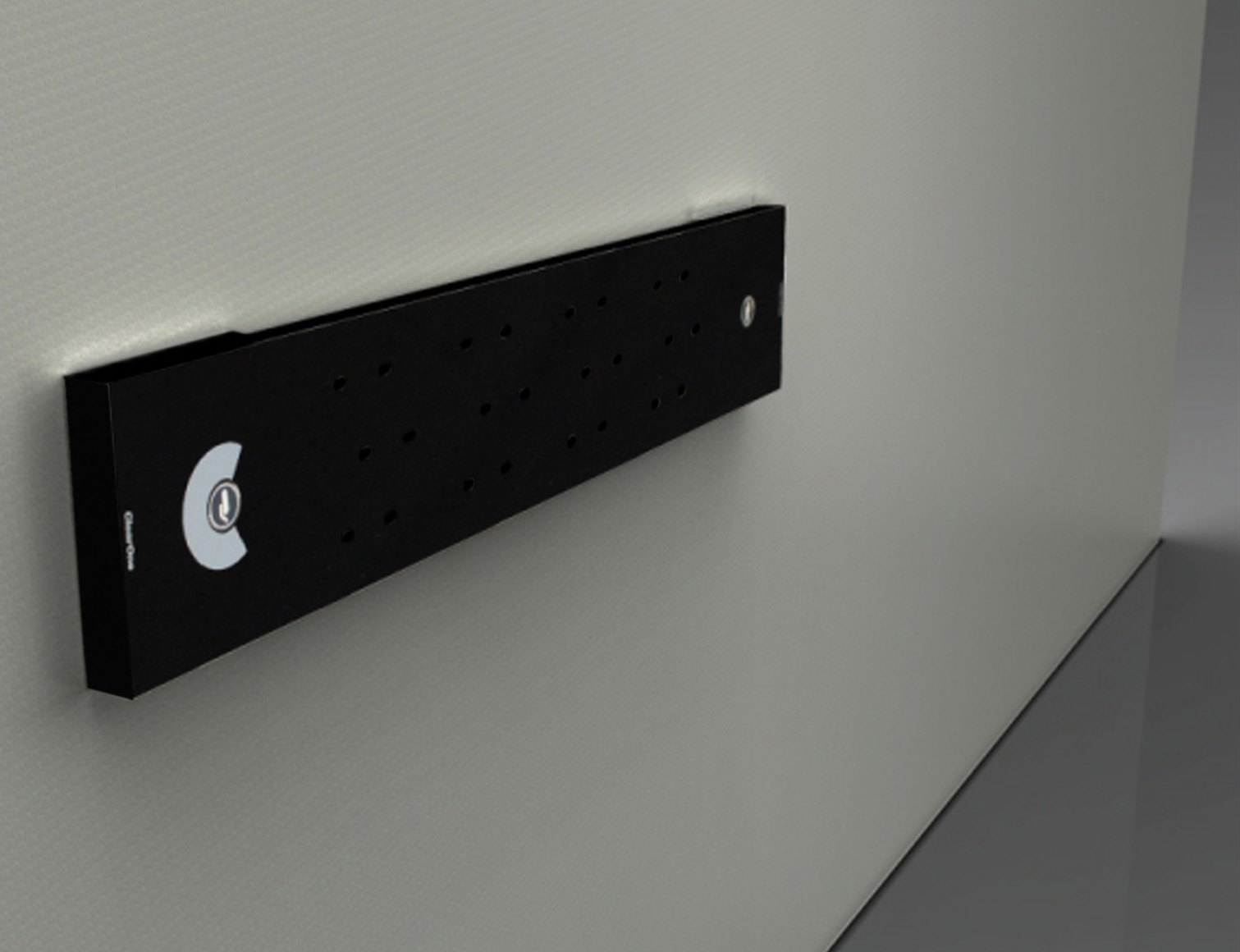

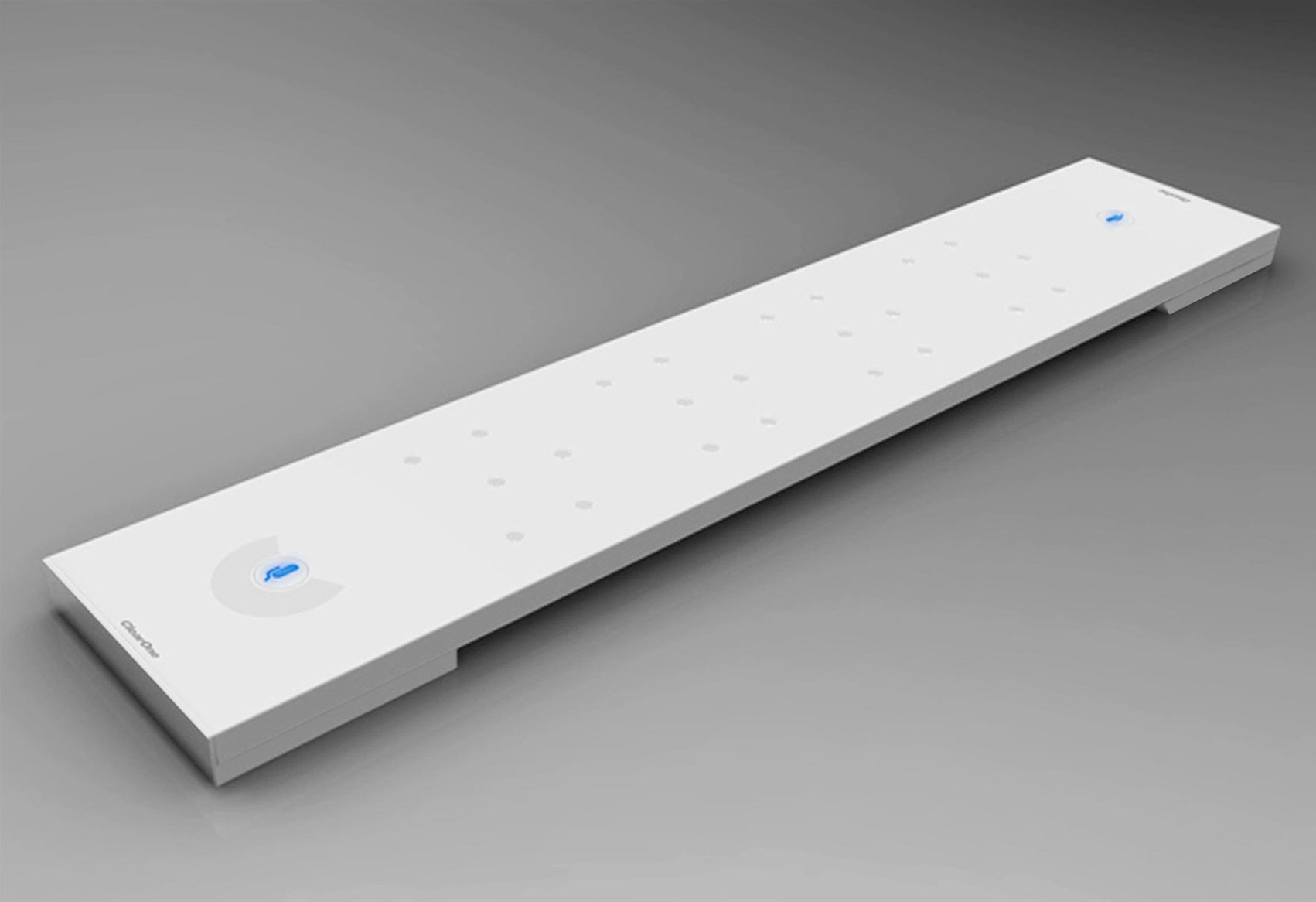

30cm, 61cm, 91cm, and 122cm suspension column, Wall mount kit, Table mount
Power & Thermal
Power Type
PoE
Port Type
RJ-45
Power Source
P-Link or PoE Injector
PoE In
PoE IEEE 802.3at
Mains Voltage
100-240VAC, 50/60Hz, AC Power Consumption: 12W Typical, DC Power Consumption: 5.26W Typical
Thermal
40.95 BTU/Hr
Operating Temperature
-10° C to 40° C ambient temperature
Dimension & Weight
Dimension (WxHxD)
762 x 25.4 x 146mm
Weight
2.0kg
