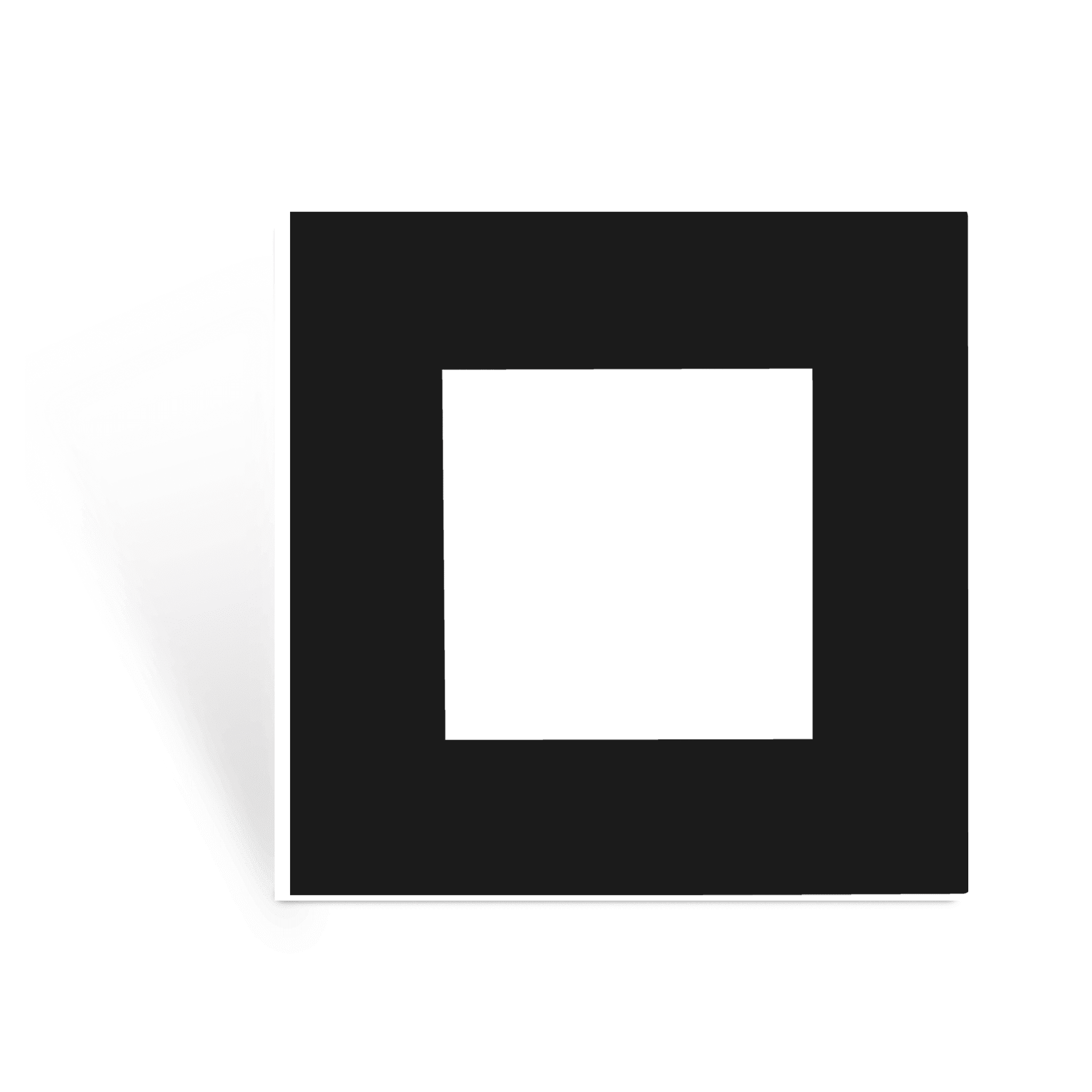

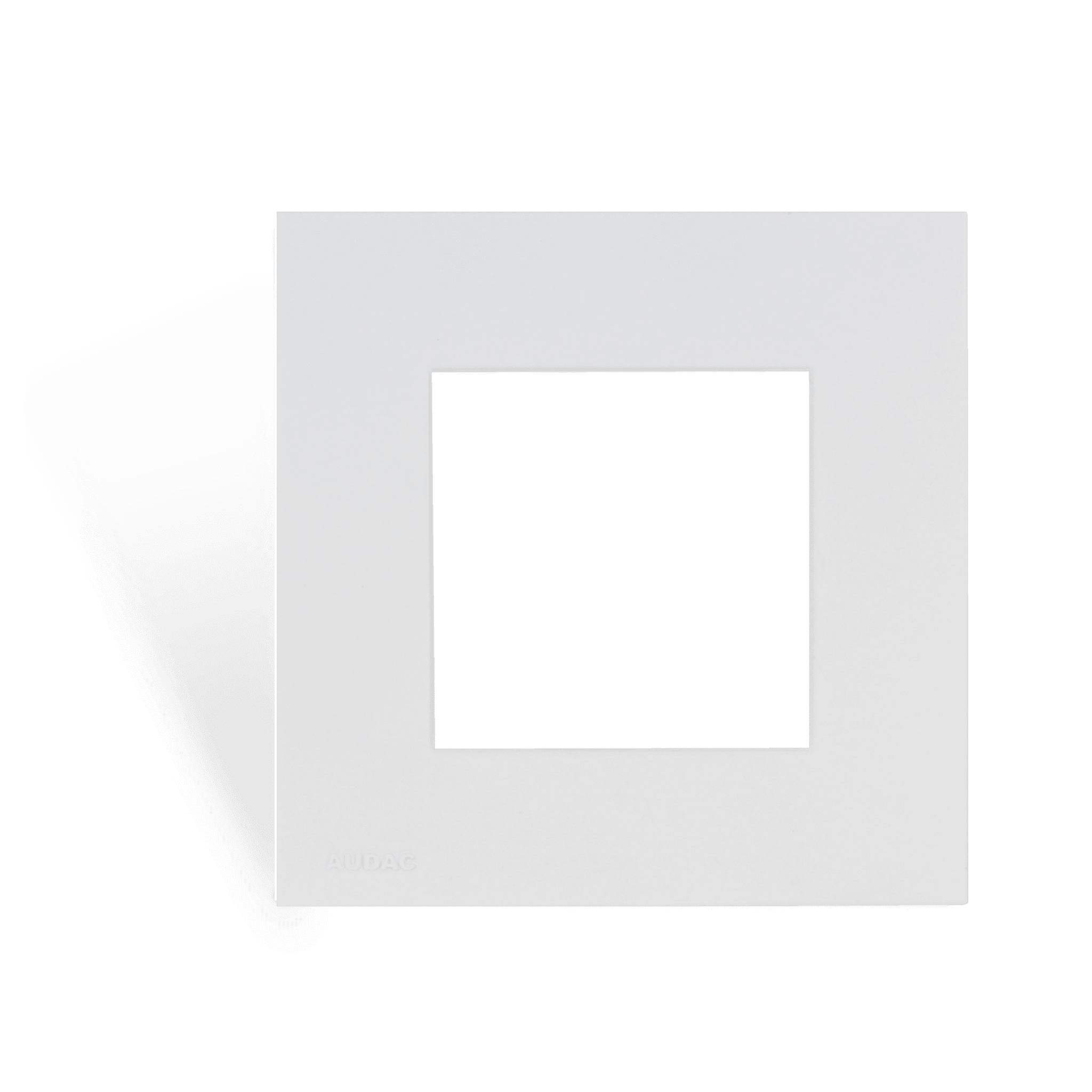

The CF45 cover frames allow flush mount installation for any 45 x 45 mm standard sized product such as matrix control panels, volume controllers, connection plates, ... They come including a metal subframe(s) and are available in single (CF45S) and double (CF45D) unit size. They are available in black (/B) and white (/W).
Product Details
Cover frame
45 x 45 mm product format
Single and double frames
Colors: black and white
Dimensions (W x H x D)
79,6 x 79,6 x 20,2 mm (single), 150,6 x 79,6 x 20,7 mm (double)

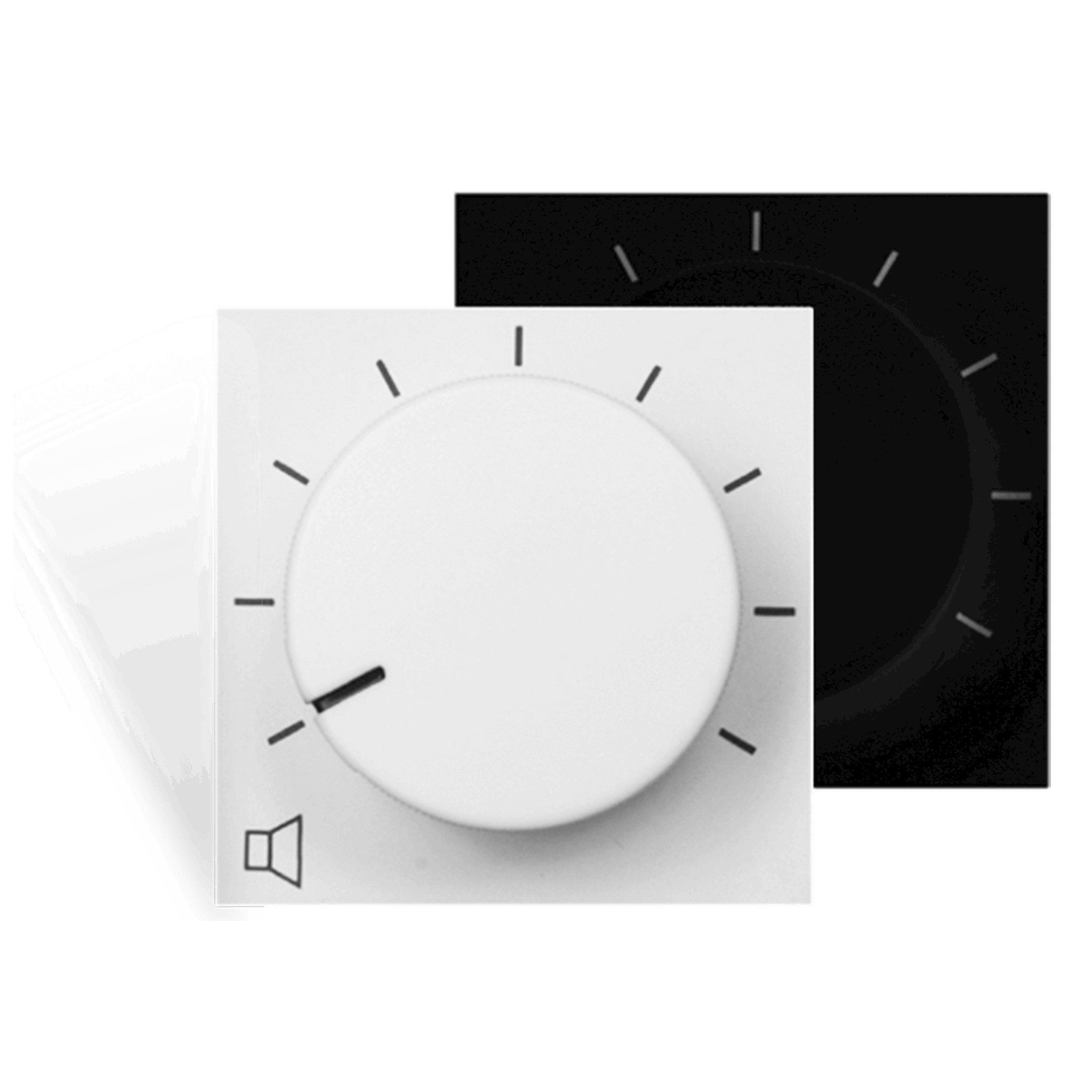

The VCxx08 is a flush mount wall controller for volume regulation of voltage controlled amplifiers such as the AMP20MK2. The volume is fluently controllable using the rotatable dial with potentiometer. The connection between the amplifier and the regulator is made using twisted pair CAT5e (or better) cabling fitted with a pluggable terminal block connector. The 45 x 45 mm size is compatible with AUDAC, Niko, Legrand and other standard 45 x 45 mm Mounting frames and cover plates.

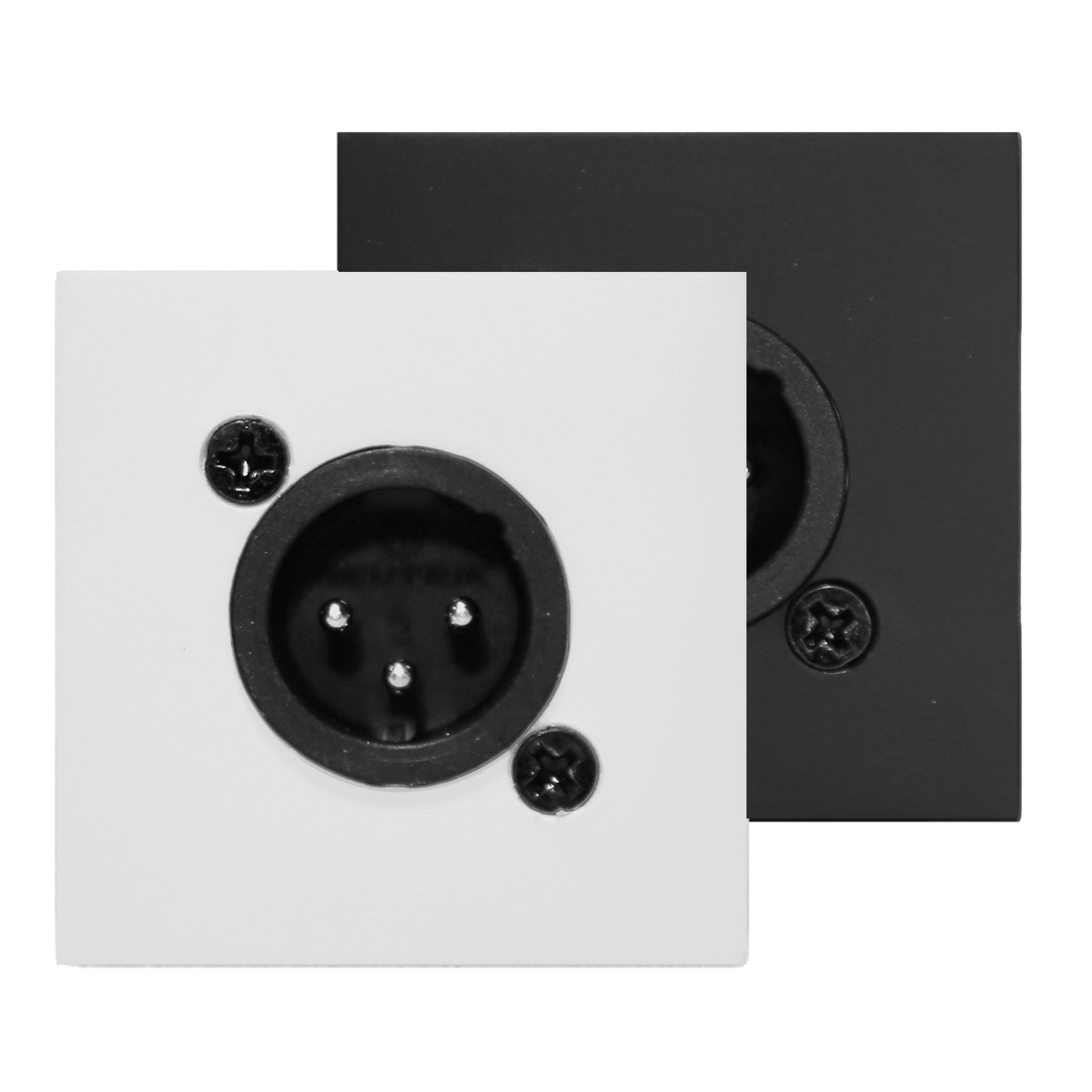

Connection plate with D-size 3-pole male XLR connector, designed to be used with electrical flush mounting boxes for 45 x 45 installation materials. Available in Black (/B) & White (/W). (Mounting frame and cover plate not included)

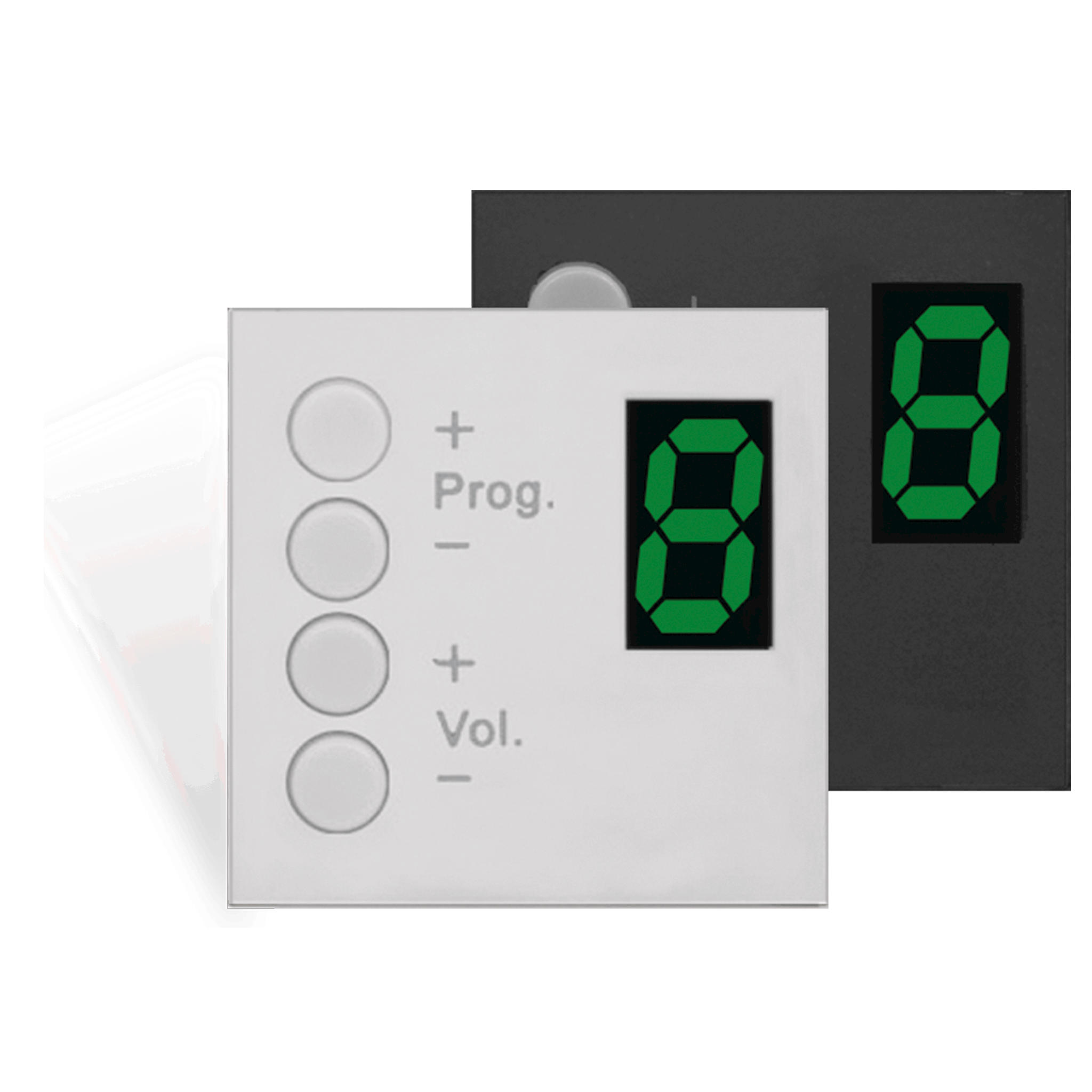

The DW3020 is a flush mount wall panel controller designed to work in combination with the R2 or M2 amplifier. It can be installed in a separate zone, and gives the possibility to select the desired audio source and adjust the volume for the zone that it’s applied to. The connection between the amplifier and the controller is made by using a standard 4-pin terminal block connector. The 45 x 45 mm size is compatible with AUDAC, Niko, Legrand and other standard 45 x 45 mm Mounting frames and cover plates.
The VC3036 is a flush mount wall volume controllers for 100V PA installations. It is compatible with AUDAC and Niko installation materials. The volume is adjustable with a rotatable dial in ten steps of 3 dB and the maximum power rating is 36 Watt. A built-in relay makes it possible to build priority circuits between several controllers. Available in Black (B) and White (W). The 45 x 45 mm size is compatible with AUDAC, Niko, Legrand and other standard 45 x 45 mm Mounting frames and cover plates.

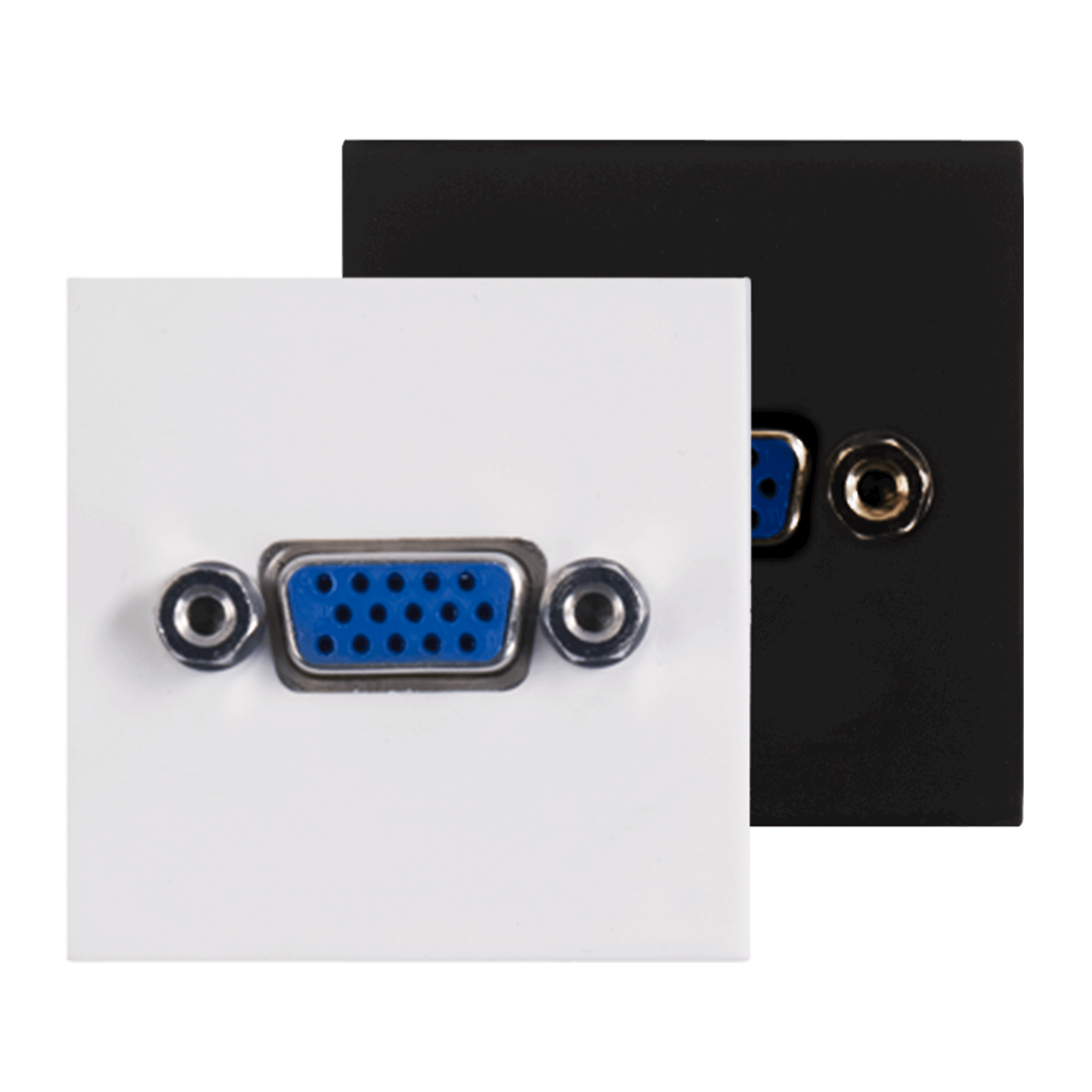

Connection plate with Female VGA connector, designed to be used with AUDAC, Niko or standard 45 x 45 or 43 x 43 Biticino installation materials. Available in Black (/B) & White (/W). (Mounting frame and cover plate not included)

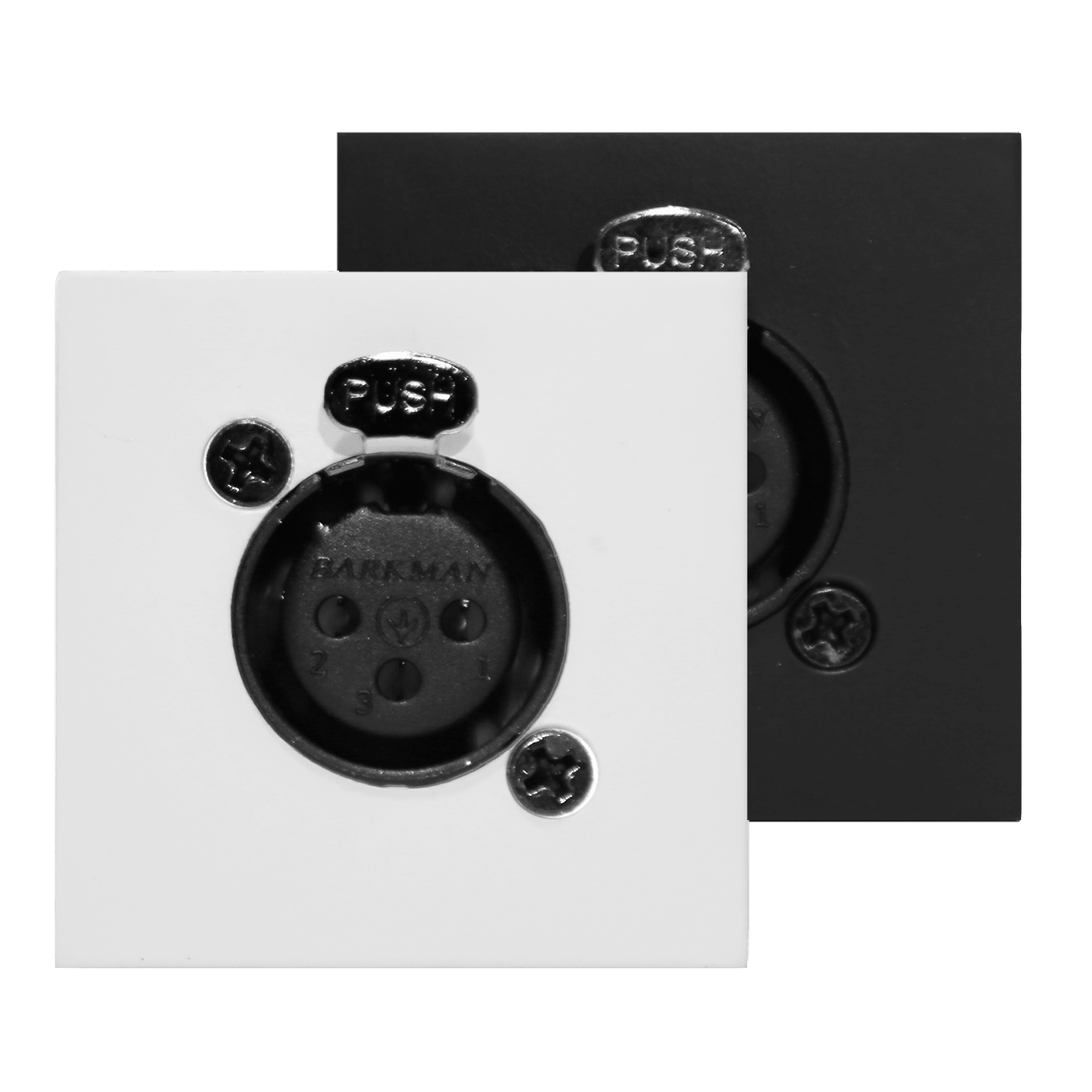

Connection plate with D-size 3-pole Female XLR connector, designed to be used with electrical flush mounting boxes for 45 x 45 installation materials. Available in Black (/B) & White (/W). (Mounting frame and cover plate not included)
The MWX45 are wall panel controllers to be used in combination with the AUDAC MTX series multi-zone audio matrix systems and the AUDAC AMP523MK2. It provides the possibility to select the desired audio source and control the volume for one zone. The 7 segment LED display indicates the current selected audio source (1-8) or volume. The connection between the wall panel and the matrix system is achieved by using standard CAT5 UTP cable which should be connected to the terminal block connector on the back side of the wall panel. The wall panels are available in 45 mm, this version is compatible with AUDAC, Niko, Legrand and other standard 45 x 45 mm installation materials. Thanks to its slim and good looking design, these wall panel controllers will blend into all kinds of different environments or interiors. Available in black (/B) and white (/W). There are two different AUDAC cover frames with metal subframe available, for 1 or 2 units, which are also available in black (/B) or white (/W).

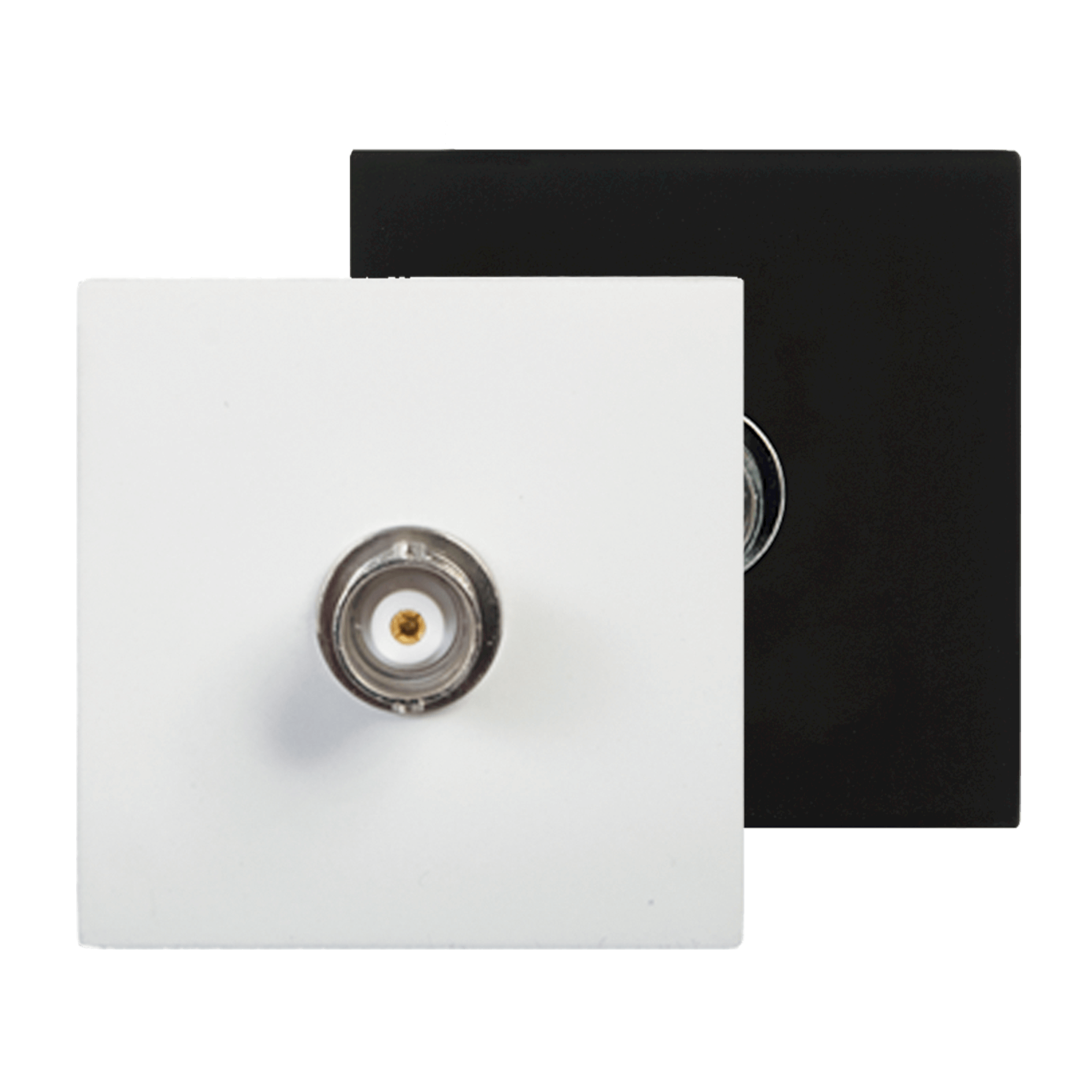

Connection plate with Female BNC connector, designed to be used with AUDAC, Niko or standard 45 x 45 or 43 x 43 Biticino installation materials. Available in Black (/B) & White (/W). (Mounting frame and cover plate not included)

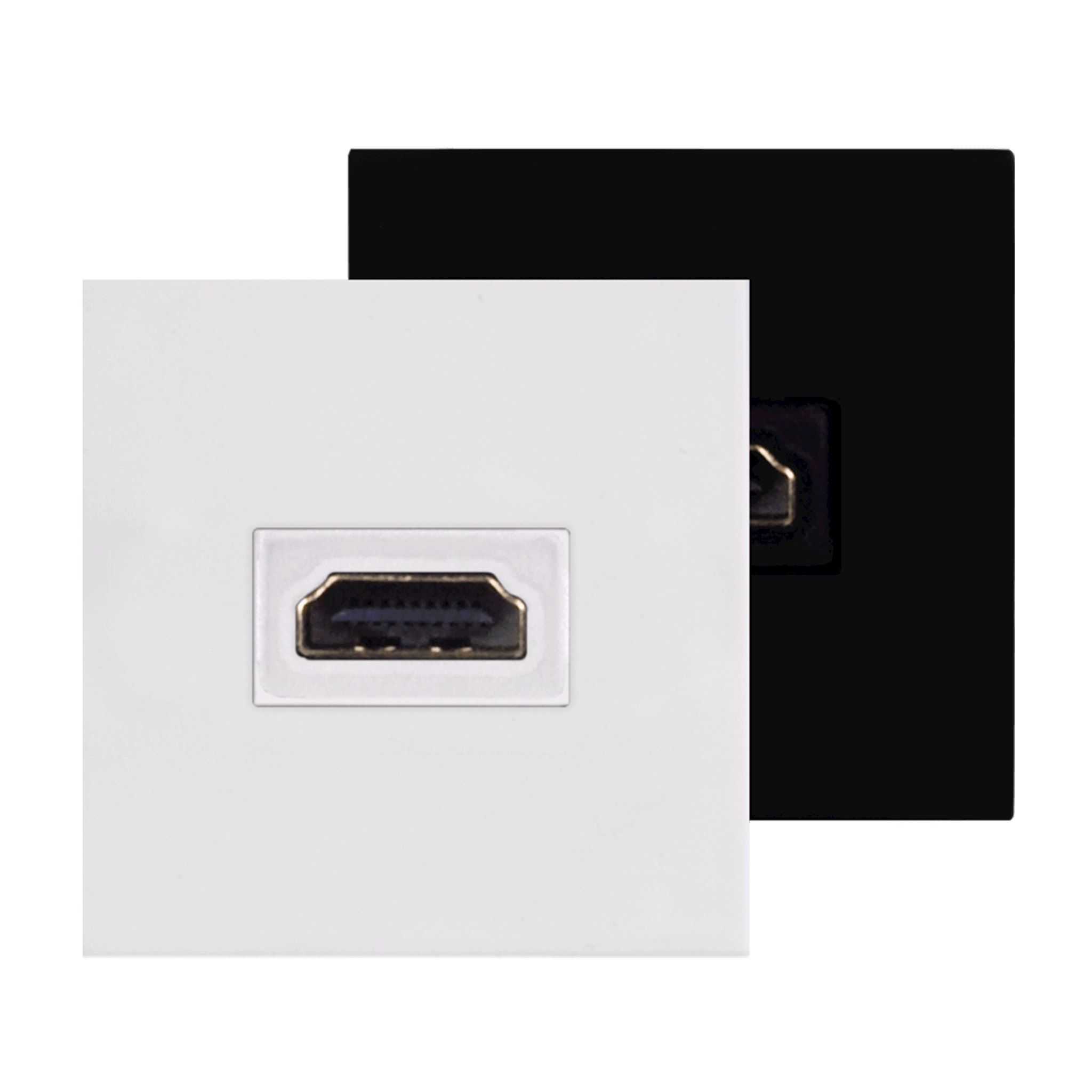

The CP45HDM is a 45 x 45 mm HDMI Connection plate, available in black or white. Each CP45HDM ships with a matching PROCAB BSP602, a female - female HDMI Pigtail. The 45 x 45 mm size is compatible with AUDAC, Niko, Legrand and other standard 45 x 45 mm Mounting frames and cover plates.

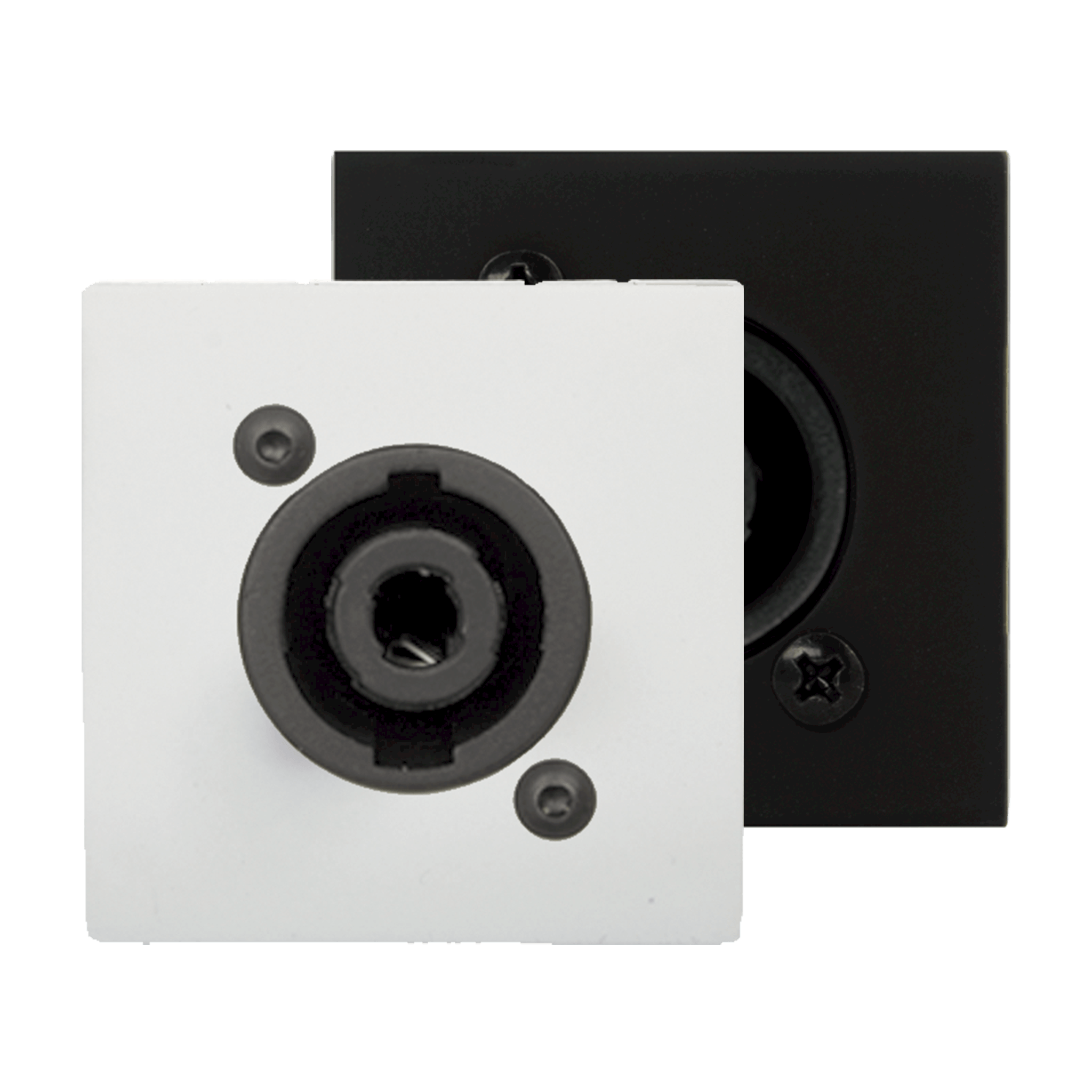

Connection plate with Neutrik Speakon connector, designed to be used with AUDAC, Niko or standard 45 x 45 or 43 x 43 Biticino installation materials. Available in Black (/B) & White (/W). (Mounting frame and cover plate not included)

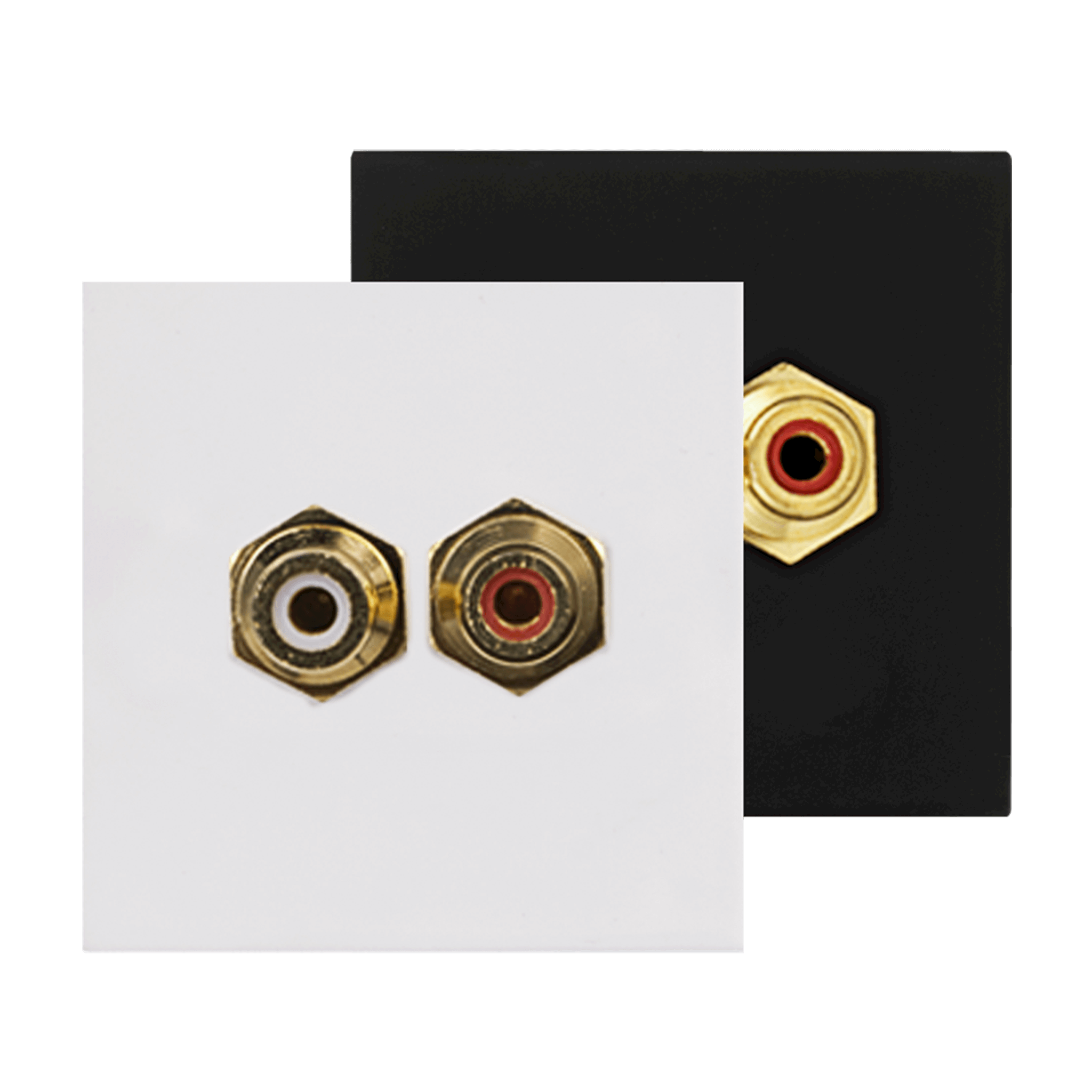

Connection plate with 2 x Female RCA connectors, designed to be used with AUDAC, Niko or standard 45 x 45 installation materials. Available in Black (/B) & White (/W). (Mounting frame and cover plate not included)

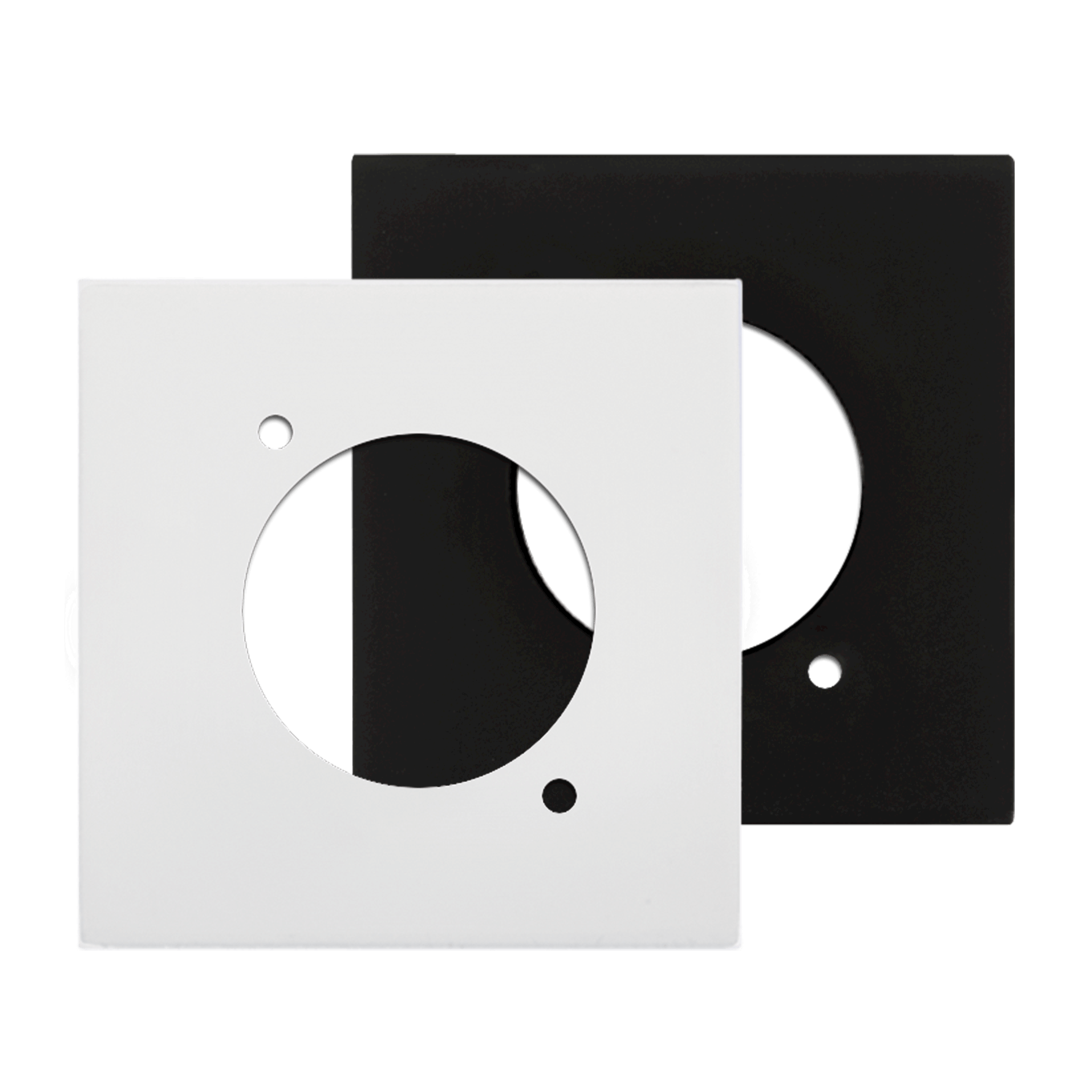

Connection plate with a standard D-size hole, designed to fit any type or brand of D-size connector. Compatible with AUDAC, Niko or other 45 x 45 installation materials. (mounting frame and cover plate not included)
The CP4xARx allows you to attach one APM paging console on the front, while the phoenix connector on the back lets you route the signal to a next paging console or junction box. It can offer 24V power to the APM console and is also equipped with 2 jumpers to terminate the audio -or databus. CP4xARx is available in two sizes: 43 x 43 mm and 45 x 45 mm and compatible with AUDAC, Niko, Legrand, Bticino and other standard Mounting frames and cover plates.

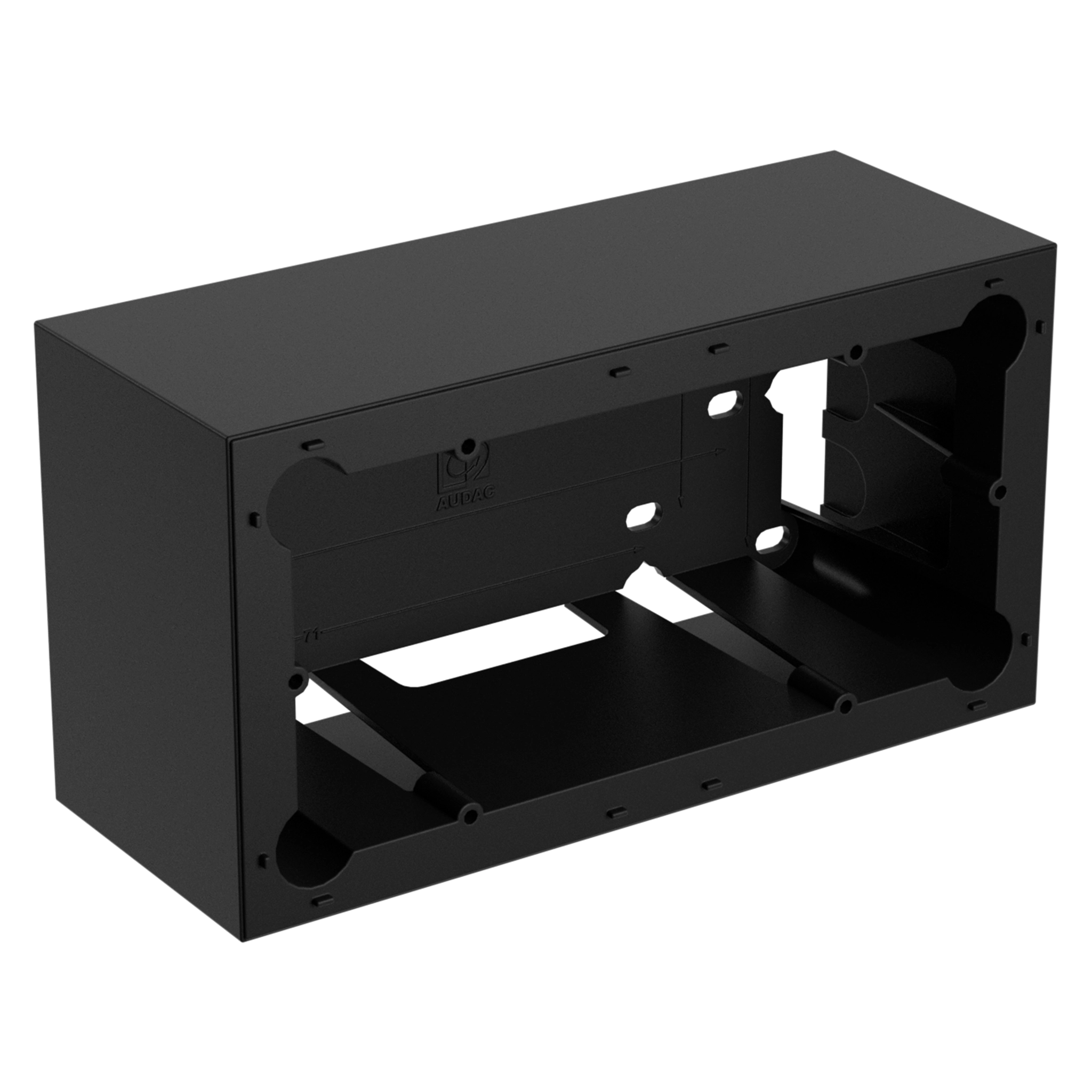

The WB220/S is a surface-mount wall box designed for the AUDAC NWP222 wall panel. It offers a secure and professional installation solution for panels measuring 151 x 80 mm, ensuring a clean and reliable setup in a wide range of environments. In addition to surface mounting, the WB220/S supports integration with the new CF45I versions of cover frames, allowing for flush mount installation of any standard 45 x 45 mm sized device, such as matrix control panels, volume controllers or connection plates.
