CLD635A
Art.-Nr.: CLD635A/20
Length: 20 m
Request now
Project consulting B2B-Login

Over the years, a highly specialized team of cabling and electronic engineers was assembled to assure that PROCAB remains at the forefront of innovation. This group of enthusiastic audiophiles dedicate their insight and relentless effort to satisfy anyone from the average home users to the most demanding professionals. The result is a wide range of unique connectors, audio, video, digital and power cables, which are available pre-assembled and bulk.

Overview

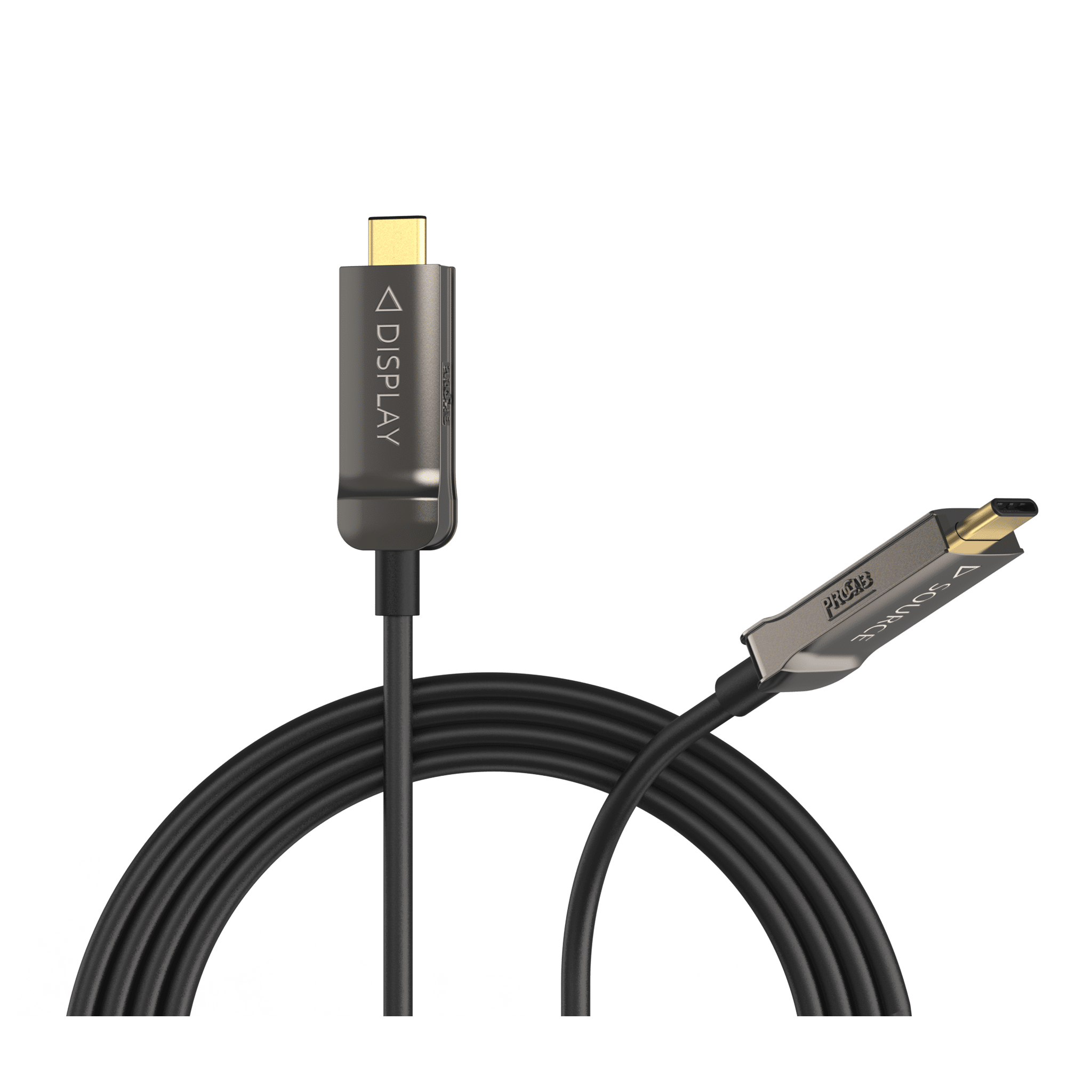

USB Type-C - USB Type-C - Active optical - 4K@60 Hz Displayport 1.2 Alt

CLD635A is a USB Type-C active optical cable, capable of handling DisplayPort Alt Mode signals. This allows your USB Type-C DisplayPort Alt supporting source device directly to a display device with a USB Type-C input connection. These slimline cables can go up to 4K@60Hz with a bandwidth of 21.6 Gbps. Due to its Hybrid (fiber and copper) active optical cable, it has superior performance in speed as well as distance.

As the CLD635A is a Hybrid (fiber and copper) active optical cable it has superior performance in speed as well as distance. The cable doesn’t require any additional power supplies, and the compact construction with high-quality finishing and Low Smoke & Halogen-free outer jacket makes it suitable for AV integration in permanent installations. The supporting features are including HDCP and EDID.

HDCP (High Definition Copy Protection) is developed to prevent illegal copying of digital media files. It ensures that the source and other devices are authorized and protected against illegal copying. HDCP is necessary if you want to stream Netflix, Blu-Ray players and receivers such as 4K TVs and 4K monitors. The EDID (Extended Display Identification Data) emulator solves video communication problems that can arise between your HDMI video source and display. EDID contains important information that your TV or projector needs to deliver the best picture quality and above all it's easy to install.

So shortly it means that the digital audio and video content sent over DVI, DisplayPort or HDMI connections are protected.

Product Details

  • Only for video connections
  • USB Type C directional cable
  • Resolutions up to ultra HD 4K 2160p (4096 x 2160) 4:4:4 at 60 Hz
  • Displayport 1.2 Alt mode
  • 21.6 Gbps bandwidth
  • HDCP / EDID Compatible
  • No external power needed
  • Hybrid (fiber and copper) active optical cable
  • True plug & play solution
  • LSHF jacket

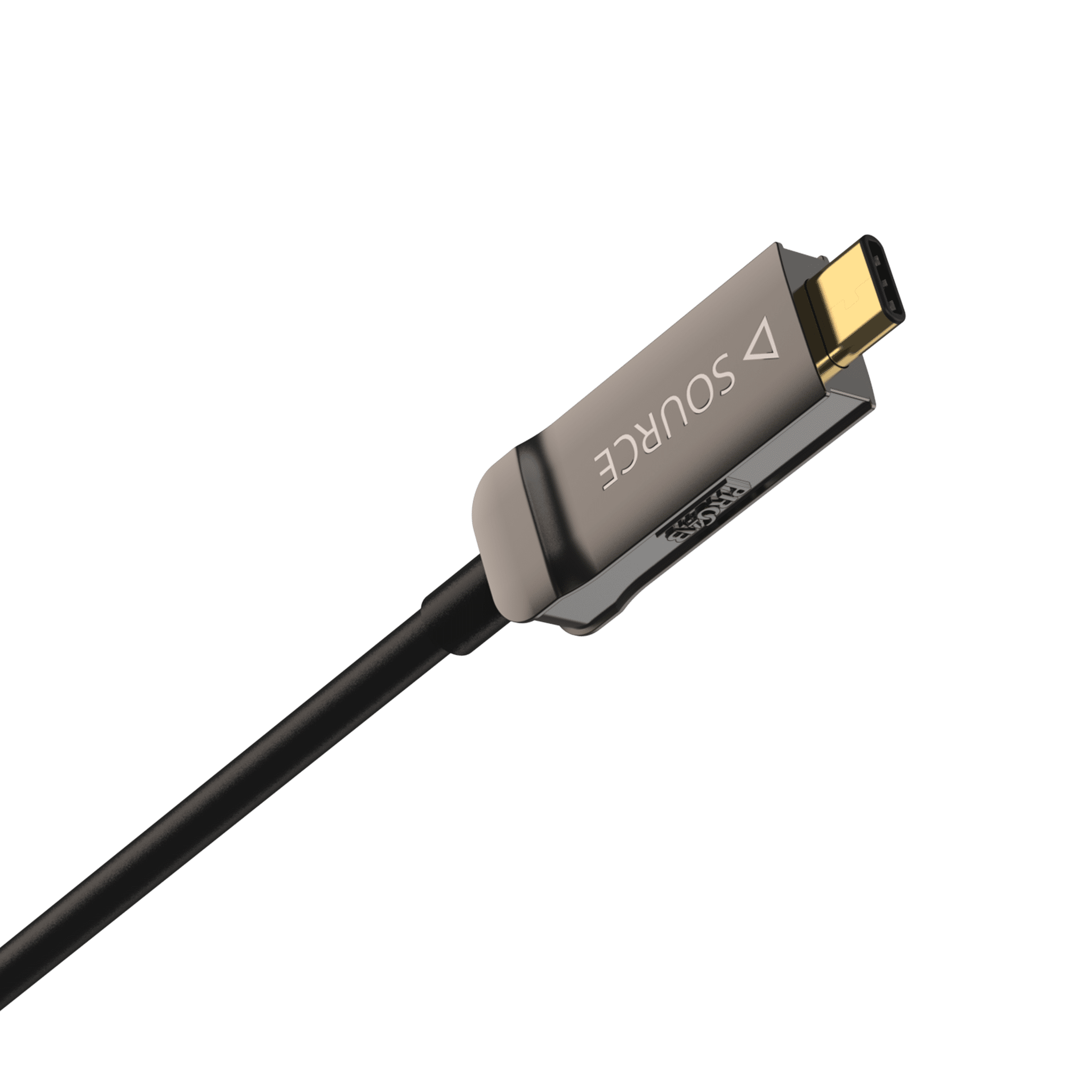

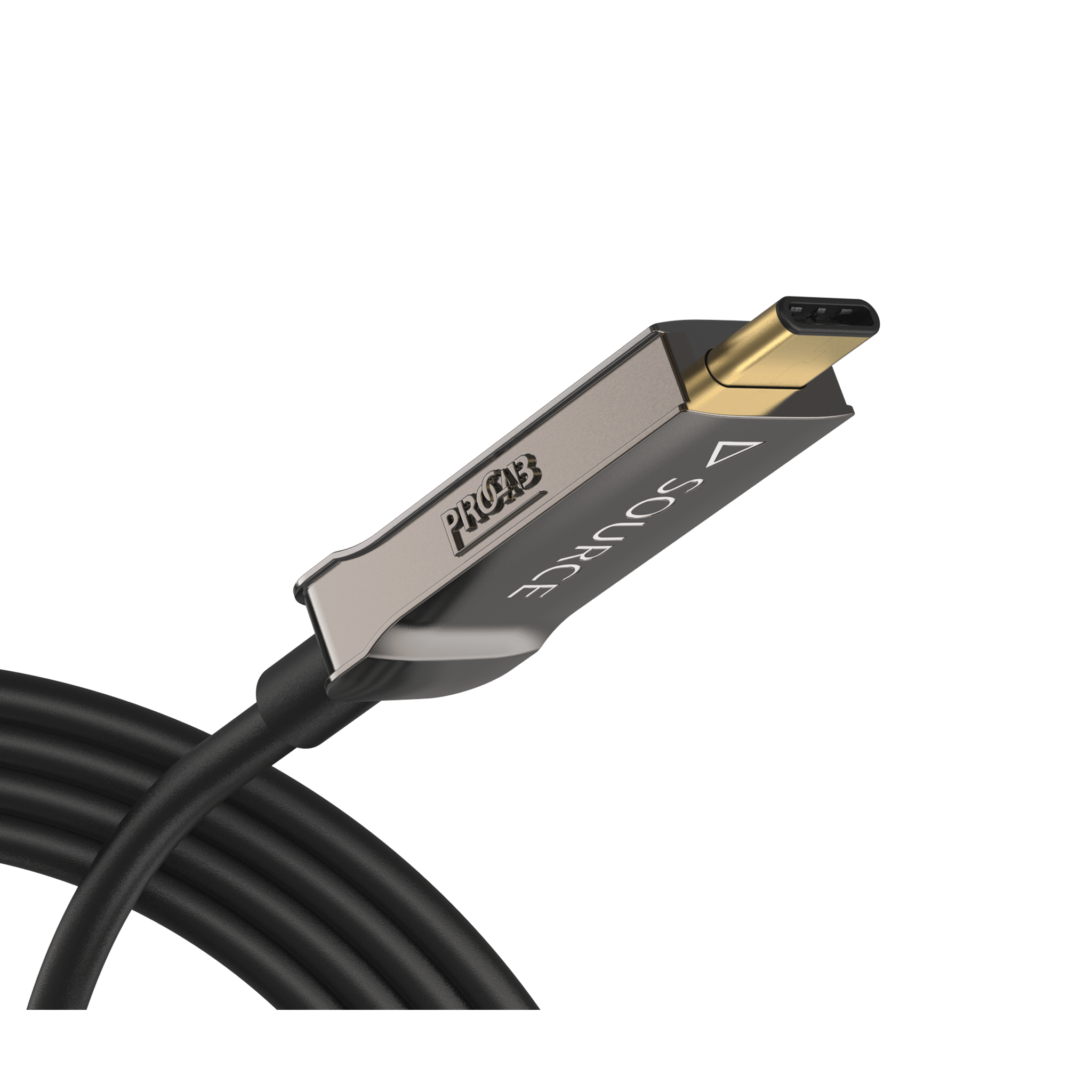

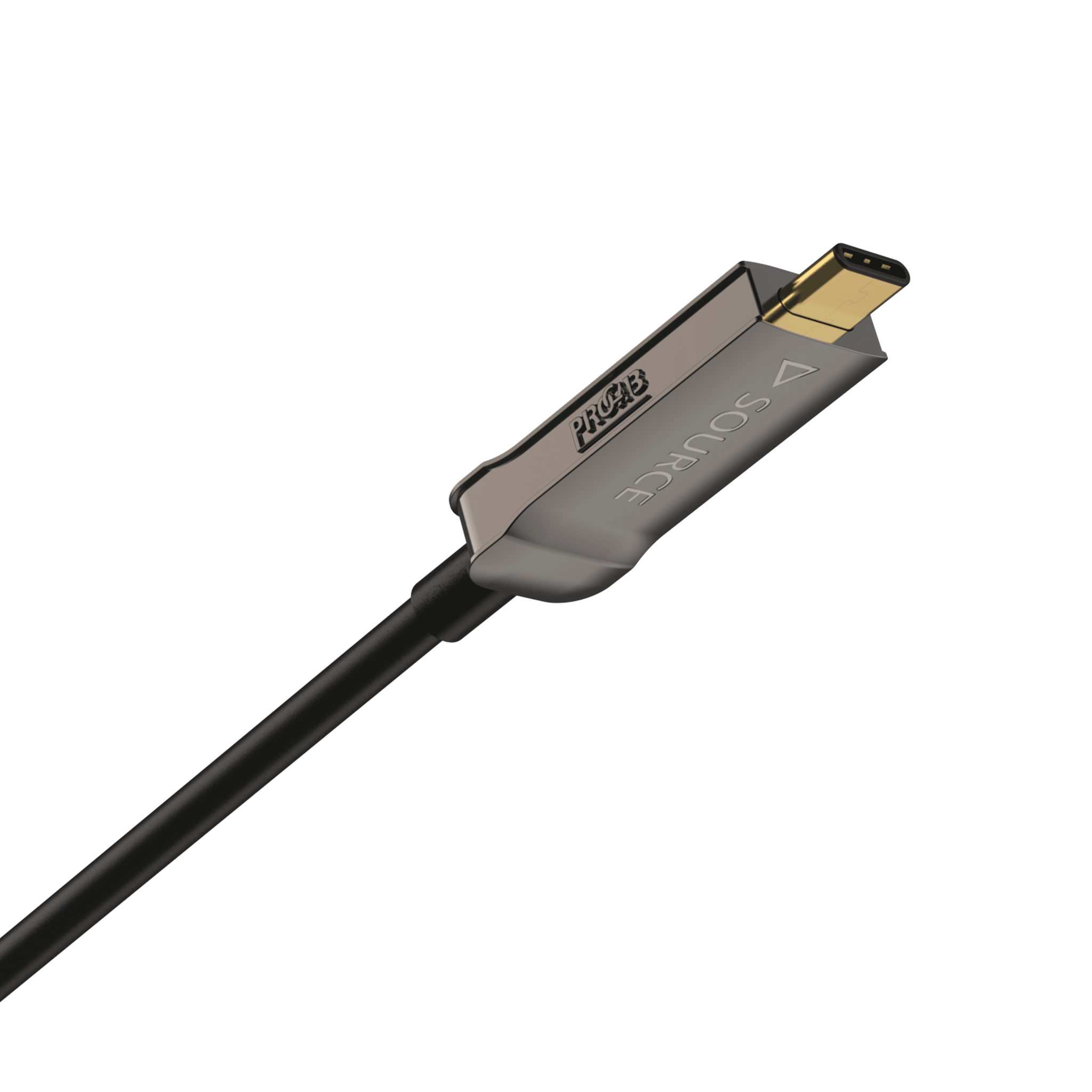

Connectors
USB-C - USB-C
Resolutions up to ultra HD 4K 2160p (4096 x 2160) 4
4:4 at 60 Hz
- Displayport 1.2 Alt mode
- 21.6 Gbps bandwidth
Outer Jacket
LSHF 4.6mm (Ø)
