CX261
Art.-Nr.: CX261
Request now Project consulting

Cloud Electronics is a solely-owned British company based in Sheffield that designs, engineers and manufactures high- quality audio mixers, zoners, multi-channel amplifiers, and headphone distribution systems including the DCM-1 Digitally Controlled Mixer and the renowned VTX series of amplifiers. The company’s commercial audio products are designed with installation applications in mind and all are built and tested to the most exacting professional standards, to ensure outstanding reliability and consistent performance. Cloud Electronics products are distributed worldwide under the “Cloud” Brand.

Overview

Single Zone Mixer

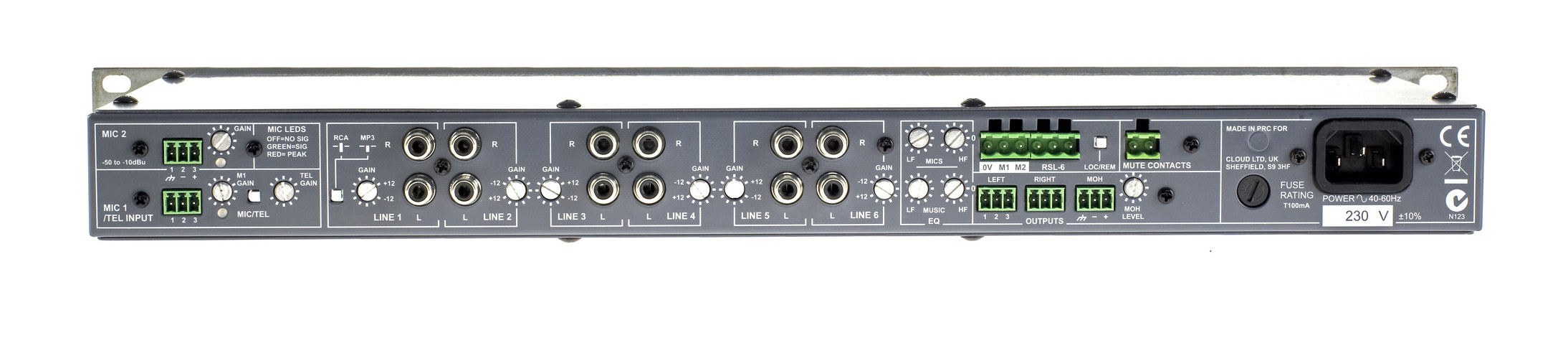

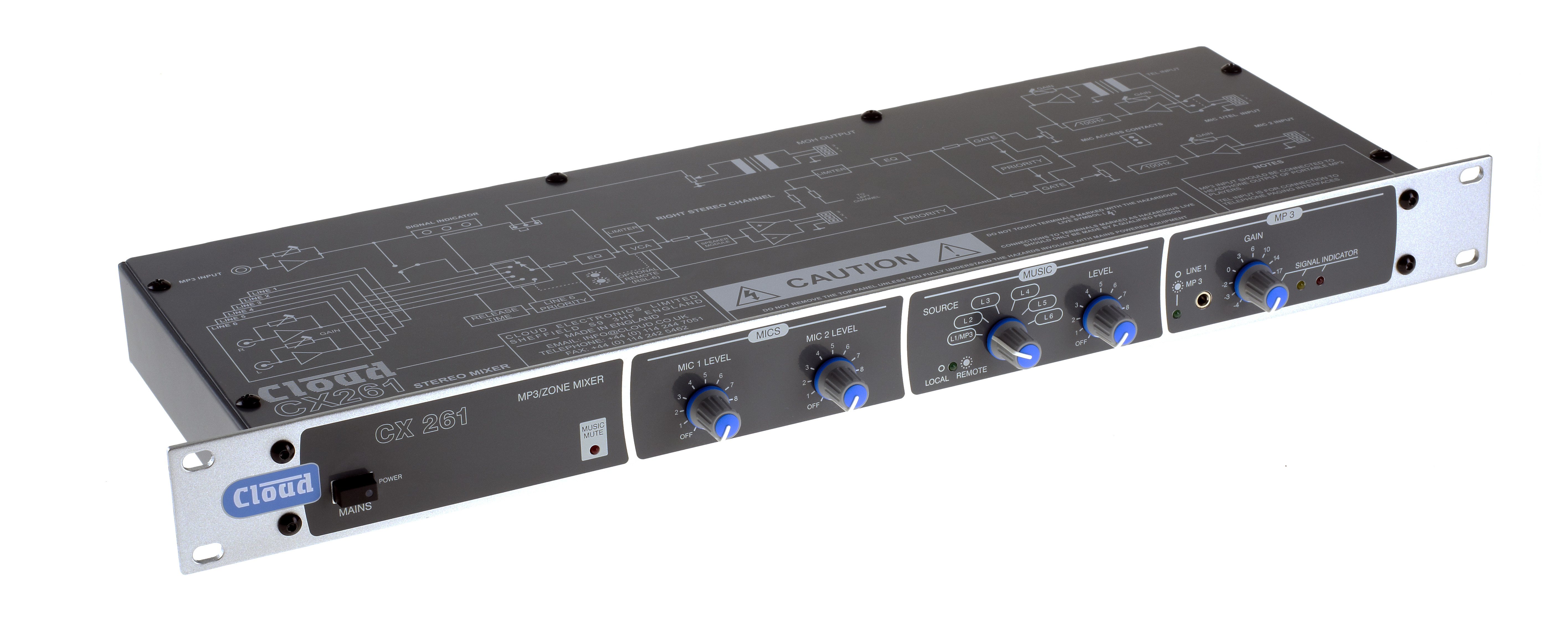

The Cloud CX261 is a 1U rack-mounting audio mixer ideal for use in bars, restaurants and other leisure sector premises, also offices, hotels and other multi-use areas where simple control of high quality background music needs to be combined with a flexible range of paging options.

Product Details

  • Six (unbalanced) stereo line inputs with individual gain control
  • Two electronically-balanced mic inputs
  • Front panel control of music source/level and mic level
  • Front panel input (3.5mm jack) for MP3 player
  • HF & LF EQ adjustment for music and mic inputs
  • MIC 1 input configurable as transformer-isolated line input
  • MIC 1 priority over MIC 2 (selectable)
  • Short-to-ground access connector
  • Selectable LINE 6 priority with choice of release times
  • Music mute control input (NO or NC)
  • Compatible with standard Cloud remote control panels
  • Electronically-balanced stereo main output
  • Transformer-isolated mono auxiliary output
  • Aux output source selection (internal jumper)
  • Optional Bose EQ cards available
  • 1U 19'' rack mounting unit
Line Inputs
Frequency Response
20 Hz-22 kHz, +0.5 dB
Distortion
1kHz, < 0.05%
Sensitivity
-12 dBu to +12 dBu
Gain Range
24 dB
Input Impedance
48 kOhms
Headroom
>20 dB
Noise
-85dB A-weighted
EQ-LF
+/-10 dB @ 50 Hz
EQ-HF
+/-10 dB @ 10kHz
MP3 Inputs
ConnectionType
3.5mm stereo jack socket
Frequency Response
20 - 20kHz +/-5dB
Distortion
1kHz < 0.05%
Sensitivity
-22dBu to +2dBu
Microphone Input
Frequency Response
100 Hz -3 dB (filter), 20 kHz < -0.5 dB
Distortion
< 0.05%, 100 Hz - 200 kHz
Gain Range
10 dB to 50 dB
Common Mode Rejection
1 kHz >70 dB
Headroom
>20 dB
Noise
A-weighted 150Ohms, -125 dB EIN
EQ-LF
+/-10 dB @ 100 Hz
EQ-HF
+/-10 dB @ 5 kHz
Tel Input
Frequency Response
100Hz -3dB to 200kHz < -0.5dB
Sensitivity
-20dBu to +4dBu
Headroom
>20dB
Distortion
200Hz - 20kHz < 0.05%
Outputs
Output Level
0 dBu (775 mV)
Minimum load impedance
1.2 kOhms / 600 ohms (MOH)
Maximum output level
+20 dBu / 0 dB (MOH)
General
Power Requirements
230 V +/-10%
Dimensions (W x H x D)
482.60 x 44.00mm x 152.5mm
Weight
2.15 kg
