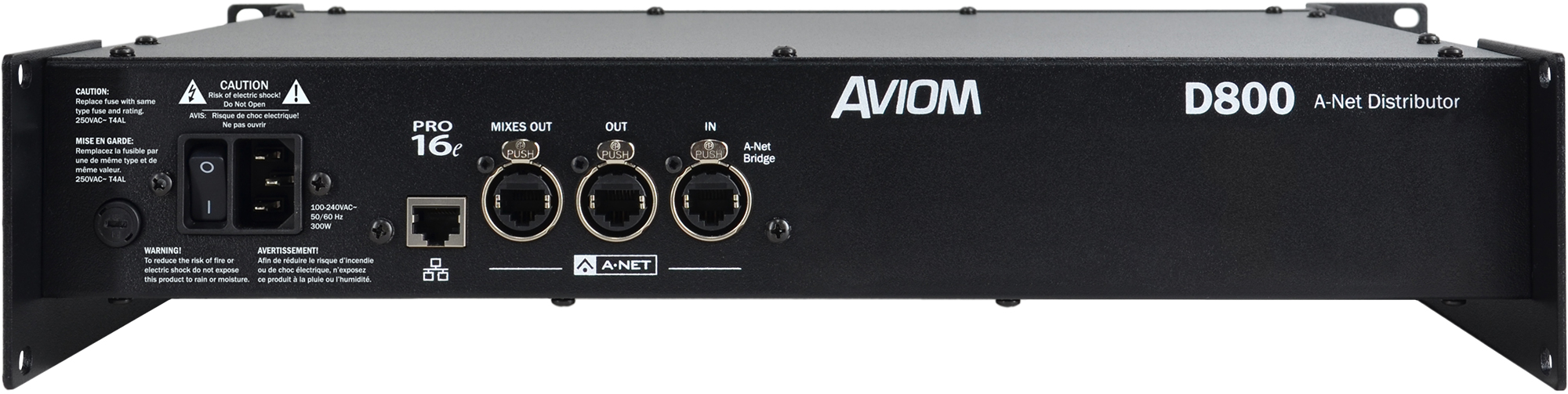

D800
Art.-Nr.:
D800v2
Best known for changing the face of monitor mixing with its Pro16® Monitor Mixing System, Aviom offers a full line of audio networking products, powered by A-Net®, Aviom's innovative high speed digital audio transport technology. With its second generation of A-Net products, the Pro64® Series, Aviom has simplified system design while enhancing control, flexibility, and performance. All Aviom products are designed and manufactured in the US.
Related Products
productBadge.normal
Aviom
AN-16/iv2
The AN-16/i v.2 Input Module provides sixteen channels of analog-to-digital conversion as the head end for Aviom’s industry standard personal mixing system and modular digital snake products. The module converts sixteen line-level analog audio channels into uncompressed 24-bit, 48kHz digital audio data.
The AN-16/i v.2 includes an A-Net® Input jack for connecting up to three additional Pro16® Series input devices. The AN-16/i v.2 merges its analog inputs with the incoming A-Net stream, creating the expanded Pro16e digital audio stream utilized by current Aviom’s Personal Mixer. The digital audio data is output on standard Cat-5e cables.
The AN-16/i v.2 front panel has eight four-position input level/gain sensitivity switches, stereo channel link switches for every channel pair, and per-channel signal present and clip LEDs. Digital network connections on the rear panel include one A-Net In jack and one A-Net Out jack.
The rear panel of the AN-16/i v.2 also features 16 analog audio inputs with balanced ¼” TRS jacks. An audio Thru jack for each input allows the AN-16/i v.2 to be inserted seamlessly into an existing audio signal path. The AN-16/i v.2 can be used with any line-level analog audio signal such as console direct outs, inserts, or aux sends.
productBadge.normal
Aviom
A320
Aviom’s A320 Personal Mixer brings new levels of control and customization to personal mixing and is the perfect solution for controlling musicians’ monitors on stage or in the studio. Ideal for use with in-ear monitors and headphones, the A320 delivers breakthrough features for more precise mix control and more musical monitoring, while also preserving the simplicity required for use while performing.
All mixing features are instantly available—no menus to navigate, no complex programming, no computer required—so customizing and adjusting a mix is fast and intuitive, even in the middle of performing.
The A320 includes an advanced 32-channel mix engine which can be used to mix up to 16 mono or stereo channels. The innovative Stereo Placement™ pan-spread feature controls both sides of a stereo channel’s image simultaneously, significantly improving the user experience with in-ear monitors and headphones.
Each A320 can store up to eight mix snapshots—saved in the first eight channel button locations.
The master output section includes Bass and Treble tone controls, plus the unique Enhance™ control designed to provide more presence for users of in-ear monitors.
Audio is delivered to the A320 using Aviom’s A-Net® digital audio protocol. A-Net ensures that audio signals are delivered in real time and provides for simple plug-andplay setup without addressing.
The A320 is compatible with existing Pro16 Series devices and monitor systems. Additionally, the A320 can use an enhanced version of the protocol, Pro16e™, which supports expanded channel capacity in the Pro16 audio stream.
productBadge.normal
Aviom
A640
The A640 is the next-generation flagship model of Aviom’s personal mixer product line. It brings a new levels of user control and customization and a streamlined interface with features that provide flexible options to performers both on stage and in the recording studio. It’s powered by Aviom’s award winning, high speed, low latency A-Net® digital audio transport protocol, the world’s only protocol that is purpose-built for personal monitoring applications.
The A640 Personal Mixer fits seamlessly into audio environments using Dante-based audio networks, analog consoles, and digital mixers. It is also compatible with all Aviom personal mixing products, allowing easy updates and expansions to existing systems.
The A640 Personal Mixer combines a powerful mix engine with an intuitive user interface that doesn't get in your way while performing. The A640's color hi-res display has three Mix Views showing all the details about the mix without sacrificing editing simplicity. The dedicated View button provides fast control at any time. Channel View provides detail about an individual channel's settings (volume, pan, treble, bass, and effects). The Mix View shows the volume level of every channel in the mix, and the Names View displays each channel by name along with its volume level. Editing is easy, even while singing and playing. Channel names can be automatically synced from a Dante network or entered manually.
Custom channel layouts and per-channel controls for treble, bass, and effects are available to suite each performer needs. The dedicated mono Aux Mix output can send any or all of its mix channels to bass shakers, subs or wedges for a better music experience.
The A640's innovative Audiogram EQ can be used to address a user's hearing loss by automatically creating a custom set of DSP filters based directly on the results of a standard hearing test. Two intuitive controls allow the user to adjust their correction in a natural way.
And each A640 can send any or all of its mix channels to the dedicated mono Aux Mix output to easily add bass shakers, subs or wedges.
When used with Aviom’s powerful D800 products, the A640’s Intercom allows direct communication with other A640 users with just the touch of a button.
A640 can store up to sixteen mix presets that are instantly available during performance. Entire band’s configurations can be saved to a USB memory stick for easy recall in shared systems.
productBadge.normal
Aviom
SB4
The SB4 System Bridge can be used to combine up to four Pro16® or Pro16e™ A-Net® streams onto a single Cat-5 cable. The rear panel of the SB4 has four A-Net input or output jacks; the front panel features a single A-Net Bridge output. All connections utilize heavy duty locking Neutrik® EtherCon® Cat-5 jacks.
Used in conjunction with the D800 A-Net Distributor, the SB4 System Bridge combines up to four synchronous Pro16 A-Net streams for use with A640 Personal Mixers. Designed for use with Pro16 A-Net cards for digital consoles, the SB4 System Bridge brings the number of input sources available to A640 personal mixing systems from the digital domain to 64.
The SB4 may also be used in pairs to simplify cabling in Pro16 digital snake systems. Up to four Pro16 input or output devices are connected to an SB4 at the stage and FOH locations, and the main Cat-5 cable run between the stage and FOH mix position is reduced to a single Cat-5 cable. Used in this manner, the SB4 supports configurations up to 64x0, 48x16, or 32x32.
productBadge.normal
Aviom
AN-16/ov.4
The AN-16/o v.4 Output Module is a 1U rack-mount 16-channel digital-toanalog converter for Pro16® digital snake and audio distribution systems. Digital audio is input on standard Cat-5e cable, via Aviom’s A-Net® Pro16 digital audio transmission protocol, and converted to analog using 24-bit, 48kHz converters. Sixteen balanced outputs are provided on the rear panel via multipin connectors.
Designed to be compatible with a wide range of signal level requirements, each pair of channels has a four-position output level switch with settings for +24, +18, and +4dBu line-level, or mic-level output. Each channel features front-panel LEDs for signal present and clip.
The AN-16/o v.4 features rugged DB25 multipin connectors for analog audio outputs, reducing set-up time and adding the security of a locking connection. All network connections utilize heavy duty locking Neutrik® EtherCon® connectors.
Digital connections include A-Net In, A-Net Out, and A-Net Expansion. The A-Net Out jack provides a lossless digital split of the A-Net In audio data stream, while the A-Net Expansion jack allows two 16-channel A-Net streams to be combined onto a single Cat-5e cable.
The AN-16/o v.4 can be used with any Pro16 input module or console interface card, with no limit to the number of output modules in a single system.
Alternatives
productBadge.normal
Aviom
D800-Dante
The D800-Dante A-Net Distributor provides support for parallel connections of up to eight Personal Mixer, like the the A640 and A320, along with additional network connectivity options.
The D800-Dante includes a Pro16e A-Net input, compatible with all Pro16 Series and Pro16e-capable devices. This input port also supports an A-Net Bridge input, allowing up to four synchronous Pro16 A-Net streams to be connected. Used in conjunction with the SB4 System Bridge and Pro16 A-Net console cards, the D800-Dante can be used for sending up to 64 channels directly from a digital console to Aviom Personal Mixers.
In addition to that the D800-Dante A-Net Distributor also provides connectivity for a Dante™ digital audio network, allowing up to 64 channels to be sent directly from a Dante audio network to A640 Personal Mixers. The D800-Dante may be set to use either its Dante interface or its A-Net In as the source of audio for the Personal Mixers. The D800-Dante is ideal for connecting Aviom Personal Mixers to Dante-capable Mixing Systems.
D800-Dante also offers the Network Mix Back™ feature. Network Mix Back sends a digital copy of the stereo mix output from each A640 Personal Mixer connected to the D800-Dante back to an AN-16/o v.4 Output Module for simplified connections to musicians' wireless in-ear transmitters. With Network Mix Back, transmitters for wireless in-ears can easily be set up off stage and cabling for the personal mixers on stage is simplified. In addition, the D800-Dante serves as a communications hub for iOS devices connected via an Ethernet WiFi router.
The 2U D800-Dante is powered by an internal switching power supply, with a detachable power cord and IEC power inlet on the rear panel. Isolated (floating ground) DC power is supplied to eight A‑Net outputs for providing remote power via Cat-5e to Personal Mixers. All network connections on the D800-Dante use heavy duty locking Neutrik EtherCon connectors.
An unlimited number of D800 and D800-Dante A-Net Distributors can be used in an A-Net network, and all versions of the D800 are compatible with all Pro16 Series devices.
