DLM-1 | Black | DLM-1B

DLM-1

Art.-Nr.: DLM-1B

Color: Black

Cloud Electronics is a solely-owned British company based in Sheffield that designs, engineers and manufactures high- quality audio mixers, zoners, multi-channel amplifiers, and headphone distribution systems including the DCM-1 Digitally Controlled Mixer and the renowned VTX series of amplifiers. The company’s commercial audio products are designed with installation applications in mind and all are built and tested to the most exacting professional standards, to ensure outstanding reliability and consistent performance. Cloud Electronics products are distributed worldwide under the “Cloud” Brand.

Overview

Remote Dante™ Mic/Line Input Modules

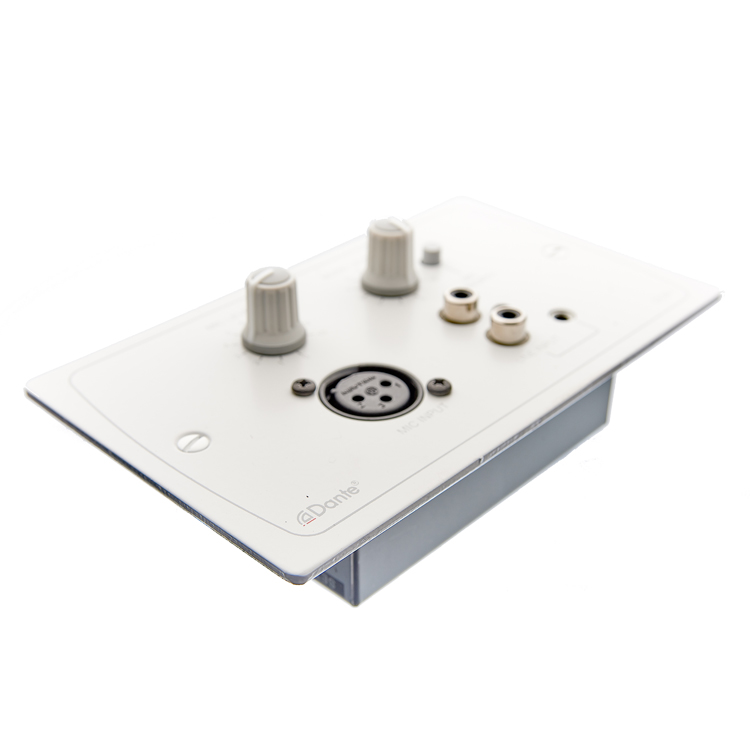

The DLM-1 Series is a range of remote mic/line input modules for use in a Dante-compatible network audio system. A DLM-1 module
allows a microphone and/or a stereo music (or other line level) source to be connected at a remote location. The music input is
mixed with the mic signal and the resulting output appears as a mono Dante channel at a standard RJ45 Ethernet port. Typically,
the Dante channel will then be routed via the Dante network to the audio system (a Dante-equipped amplifier or mixer) feeding
the speakers in the area where the module is fitted. Selectable mic-over-music priority is provided.The DLM-1 can be used in any Dante network, or Dante-compatible network. This includes the Cloud CA Series and CV Series of advanced multichannel power amplifiers when they are fitted with
a CDI-CA or CDI-CV Dante interface card.

Product Details

Remote mic/line input module, for use with all Dante-compatible
networks
AES67 compliant for interoperability with alternative (non-Dante) networks
Easy connection to network via RJ45 and standard Cat 5 cable
Powered via PoE – no local PSU required
Network speed and activity LEDs (on RJ45)
Balanced mic input (XLR) with level control
Stereo, unbalanced line level input (phonos/RCA), with
independent level control
Alternative line input on 3-pole 3.5 mm jack socket
Active mixing of mic and line signals

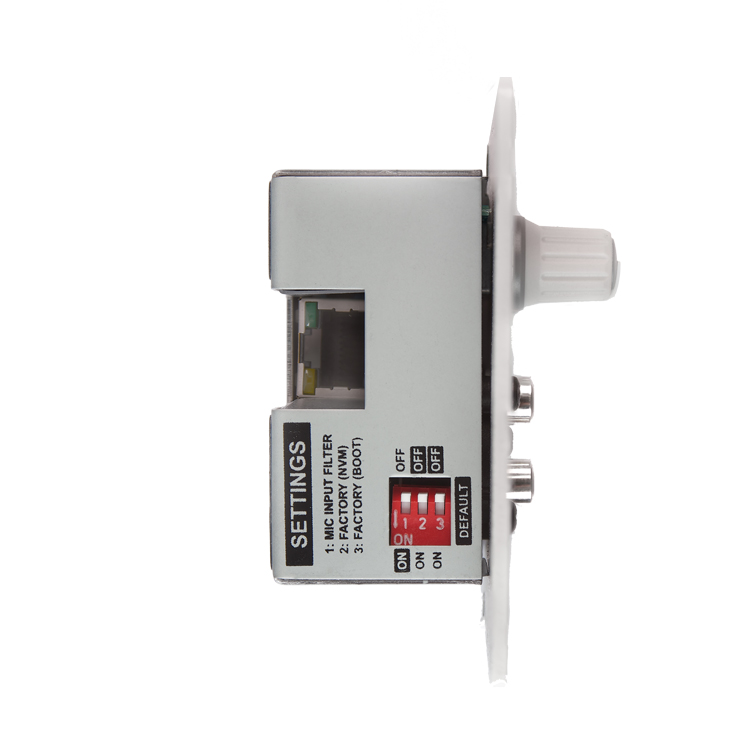

Selectable mic-over-music priority
Selectable hi-pass filter on mic input to reduce handling
noise, etc.
Multiple DLM-1s

XLR-F, balanced; 2 x phono RCA; 3.5mm jack; RJ45

20 to 40dB

HP-Filter 120Hz, 12dB/octave

- Noise Gate

2 transmit and 2 receive channels; sample rates 44.1/48kHz; AES67 48kHz

Via PoE A Class 1, power consumption < 1 W

145 x 85 x 50 mm

black or white
