EX-USB3-100-10

Art.-Nr.: EX-USB3-100-10

Netvio is reshaping professional AV applications by combining high-performance hardware with advanced, license-inclusive software. The british brand’s carefully curated portfolio includes premium AV distribution solutions—enabling complete, end-to-end solutions for a wide range of applications. Designed to simplify complex integrations, Netvio makes both installation and day-to-day operation more efficient. A key advantage is seamless compatibility with major third-party control systems, alongside the company’s own integrated platforms, NETVIO360, AppBuilder and NetvioGo. This dual approach guarantees maximum freedom of choice—whether incorporating Netvio into an existing ecosystem or deploying it as a fully standalone solution.

Overview

USB 3.2 Gen 1 (5 Gbps) Extender over HDBaseT with 100m (328ft) Range, PoC

The Netvio EX-USB3-100-10 is a professional USB 3.2 Gen 1 extender designed to deliver full 5 Gbps SuperSpeed connectivity up to 100 m (328 ft.) over Cat6A cabling.

With support for a wide range of peripherals including webcams, PTZ cameras, interactive displays, and external storage, it provides the bandwidth and reliability required for today’s high-performance AV and IT environments.

Featuring dual-mode PoC, installers can power the system from either the transmitter or receiver for added flexibility. Compact, plug-and-play, and fully backward compatible with USB 2.0/1.1, the EX-USB3-100-10 is the ideal solution for extending USB in conferencing, education, enterprise, and pro AV installations.

Product Details

USB 3.2 Gen 1 SuperSpeed Extension – Delivers full 5 Gbps USB performance up to 100 m (331 ft) over Cat6, Cat6aA (70 m over Cat6).
Plug & Play Simplicity – No drivers or software required; hardware acceleration ensures stable performance across Windows, macOS, and Linux.
Flexible Power Options – Dual-mode PoC design allows power from either the transmitter (TX) or receiver (RX) with the included 24 V / 2 A PSU.
Versatile USB Connectivity – Receiver provides 2 × USB-A and 2 × USB-C ports, each with dedicated 1.0 A & 1.5 A power outputs for peripherals and charging.
RS-232 & FSYNC Pass-Through – Ensures seamless device control and synchronization for advanced AV/IT integration.
Durable, Professional Design – Compact metal enclosure built for reliability in residential, commercial, and IT environments.
Universal Applications – Ideal for video conferencing, PTZ cameras, interactive classrooms, digital signage, storage expansion, and professional AV systems.
Broad Compatibility – Fully backwards compatible with USB 3.1, 3.0, 2.0, and 1.1 devices, supporting a wide range of peripherals.

USB

USB 3.2 Gen 1 (5 Gbps), Backwards compatible with USB 3.1, 3.0, 2.0 & 1.1

Transmission

up to 100 m (331 ft) over Cat6A

up to 70 m (231 ft) over Cat6

yes

Connectivity:

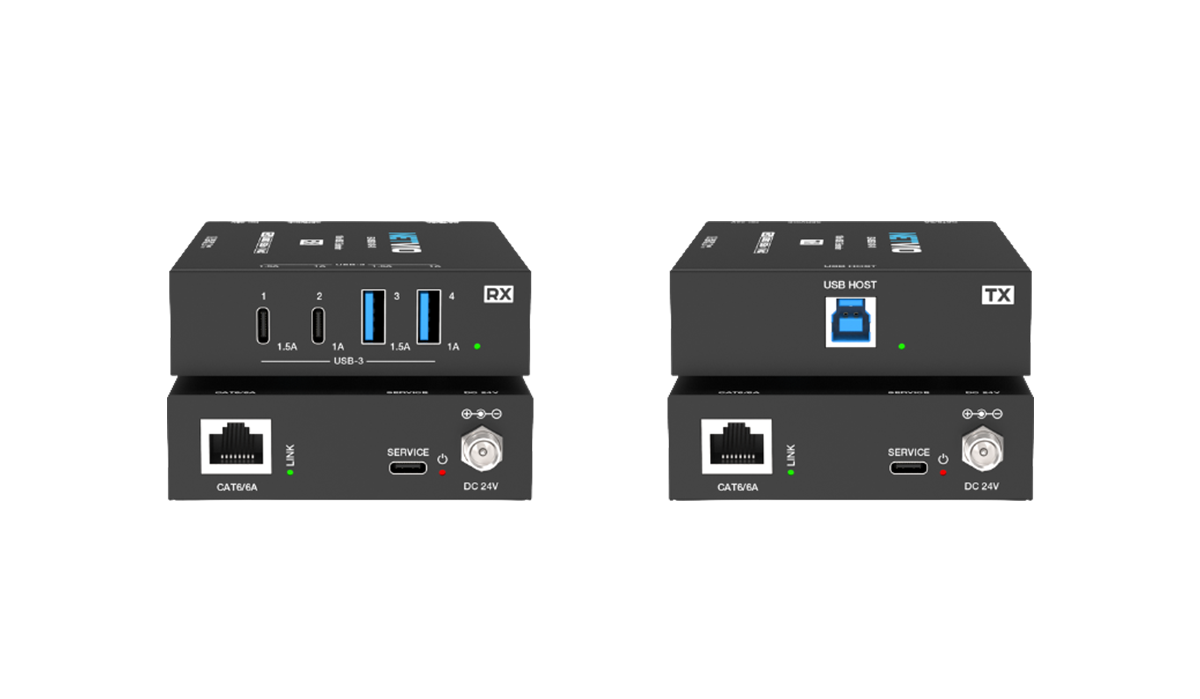

1 × USB-B host input, 1 × HDBaseT (RJ45) output, 1 × RS-232 (3-pin Phoenix), 1 × USB-C service/update port

1 × HDBaseT (RJ45) input, 2 × USB-A ports (1.0 A & 1.5 A), 2 × USB-C ports (1.0 A & 1.5 A), 1 × RS-232 (3-pin Phoenix), 1 × USB-C service/update port

Power

100–240 V AC, 50/60 Hz

24 V DC / 2 A (PSU included)

power from either TX or RX

up to 40 W

Mechanical

Metal, black finish

100 × 85 × 25.5 mm (3.94 × 3.35 × 1.0 in) [TX & RX]

TX 253 g / RX 260 g

255 × 155 × 80 mm; ~1.05 kg

Environmental

0–40 °C (32–104 °F)

–20–60 °C (–4–140 °F)

20–90% RH, non-condensing

±8 kV (air gap), ±4 kV (contact)

Compliance

CE, UKCA, RoHS

What's included

1 × Transmitter (TX), 1 × Receiver (RX), 1 × USB-B to USB-C cable (0.25 m), 1 × 24 V / 2 A power adapter, 2 × Phoenix connectors (RS-232 & FSYNC), 1 × Mounting hardware kit (4 ears, 8 screws), 1 × User Information
