M-1 | Black

M-1

Art.-Nr.: M-1B

Color: Black

Request now

Project consulting B2B-Login

Cloud Electronics is a solely-owned British company based in Sheffield that designs, engineers and manufactures high- quality audio mixers, zoners, multi-channel amplifiers, and headphone distribution systems including the DCM-1 Digitally Controlled Mixer and the renowned VTX series of amplifiers. The company’s commercial audio products are designed with installation applications in mind and all are built and tested to the most exacting professional standards, to ensure outstanding reliability and consistent performance. Cloud Electronics products are distributed worldwide under the “Cloud” Brand.

Overview

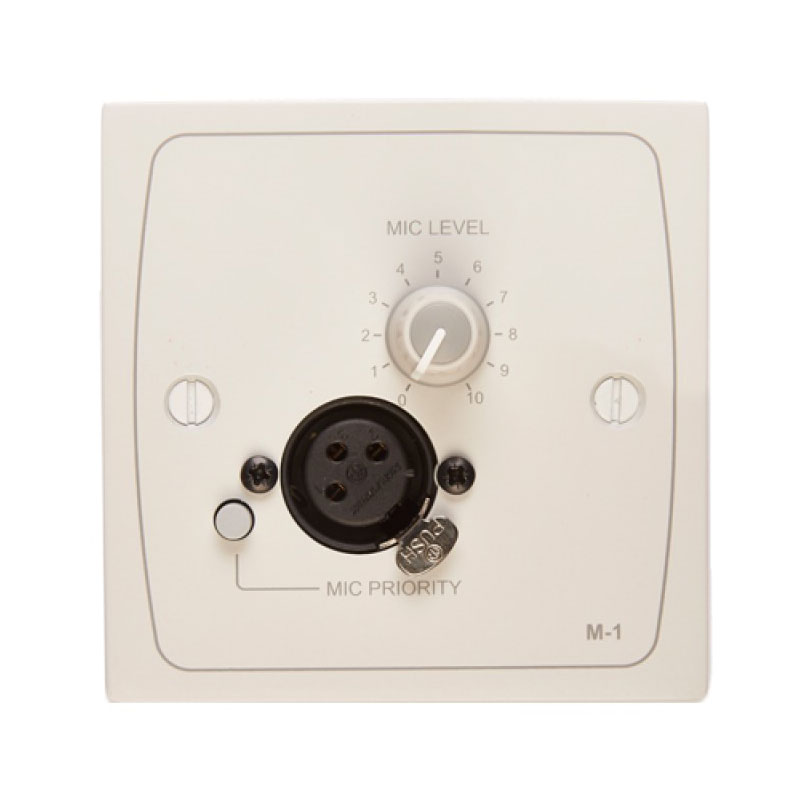

Remote Mic Input Module

The M-1 is an Active Microphone Input Plate allowing for easy connection of a single Microphone within a remote Zone. The M-1 works with any Cloud product supporting a FACILITY PORT connector(Z-Series (MK2, MK3, MK4), 46-120-Series, 46-50, 46-80, MPA120MKll, MPA240MKll & select MA40/MA80 Mini Amps). Can be used with FPA-1 Adaptor if Facility Port connector is not available.

The M-1 is a cut-down derivative of the LM-2 Mic/Line Active Input Plate and is regularly used for presentations in seminar and conference suites, hotel ballrooms, multipurpose hospitality application, outdoor events, health and fitness application or lecturers in a classroom situation.

With a working range of 1 km via CAT5/6 cable, it provides balanced Mic source from almost anywhere.

Product Details

Single-zone remote microphone input module for Cloud host units equipped with an RJ45 Facility Port
Easy connection to host unit via screened Cat 5 cable (up to 1000 m)
Balanced mic input on XLR connector
MIC LEVEL control: gain range +50 to -88 dB
User-selectable MIC PRIORITY function gives microphone priority over background music: music ducks by 30 dB when MIC PRIORITY is active
Color: Black, White

XLR-F

RJ-45 (Facility Port)

gain range +50 to -88 dB

1000 m (CAT 5, shielded)

86 x 86 x 35 mm

M_1_datasheet_en
