MA40

Art.-Nr.: MA40

Cloud Electronics is a solely-owned British company based in Sheffield that designs, engineers and manufactures high- quality audio mixers, zoners, multi-channel amplifiers, and headphone distribution systems including the DCM-1 Digitally Controlled Mixer and the renowned VTX series of amplifiers. The company’s commercial audio products are designed with installation applications in mind and all are built and tested to the most exacting professional standards, to ensure outstanding reliability and consistent performance. Cloud Electronics products are distributed worldwide under the “Cloud” Brand.

Overview

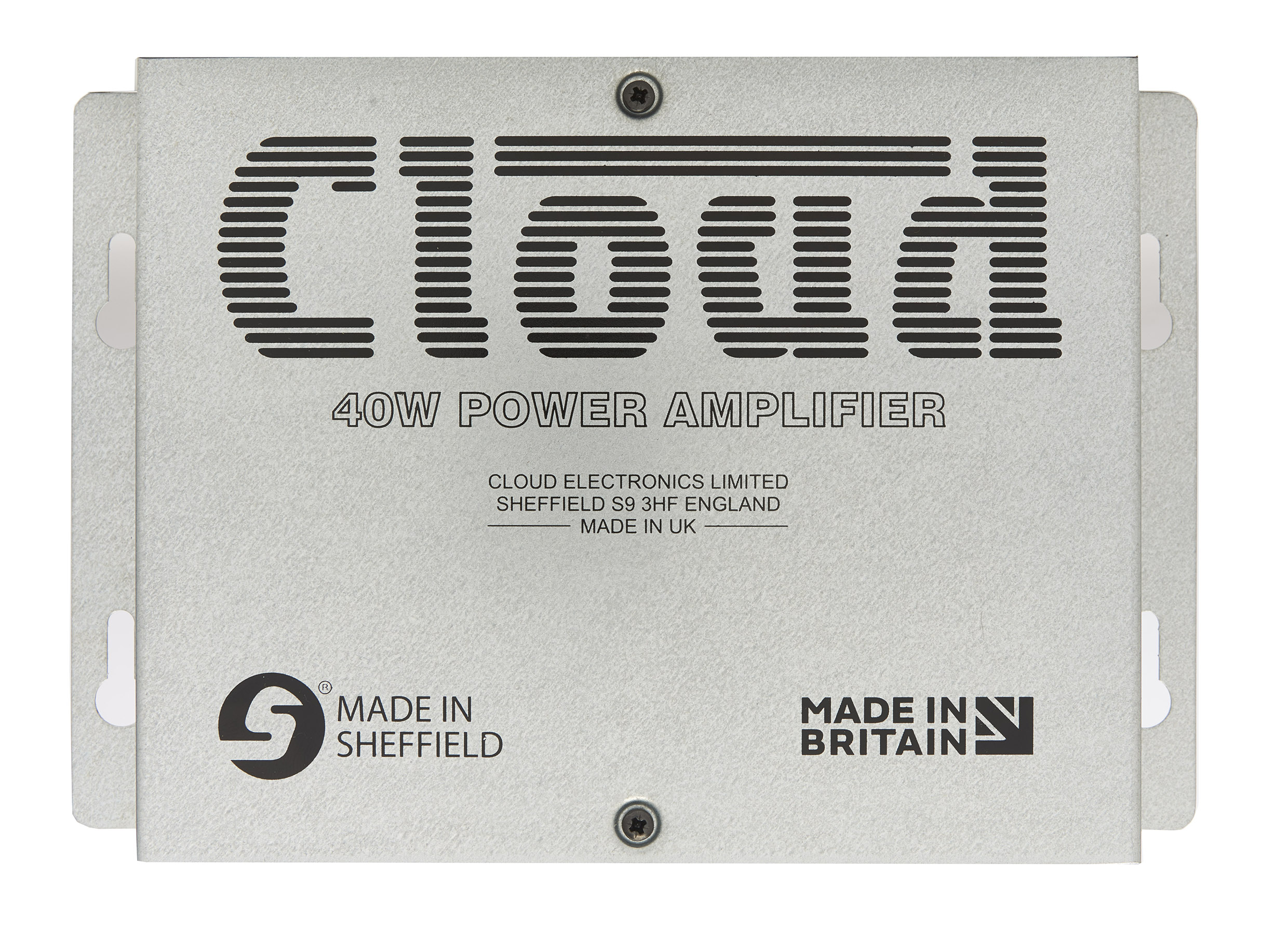

40W Mini Amplifier

The MA40 is a very compact mono amplifiers designed for integration into audio and AV systems where de-centralised installation is advantageous. It is intended as “install-and-forget” components, and is small enough to be fitted into wall or ceiling voids or in any convenient location adjacent to projectors, flat screen displays or loudspeakers. A simple set of controls and configuration options makes it easy to integrate it into any audio system. IT is highly suitable for use with in-store digital signage, gallery and museum exhibits and fixed or mobile tour guide systems.

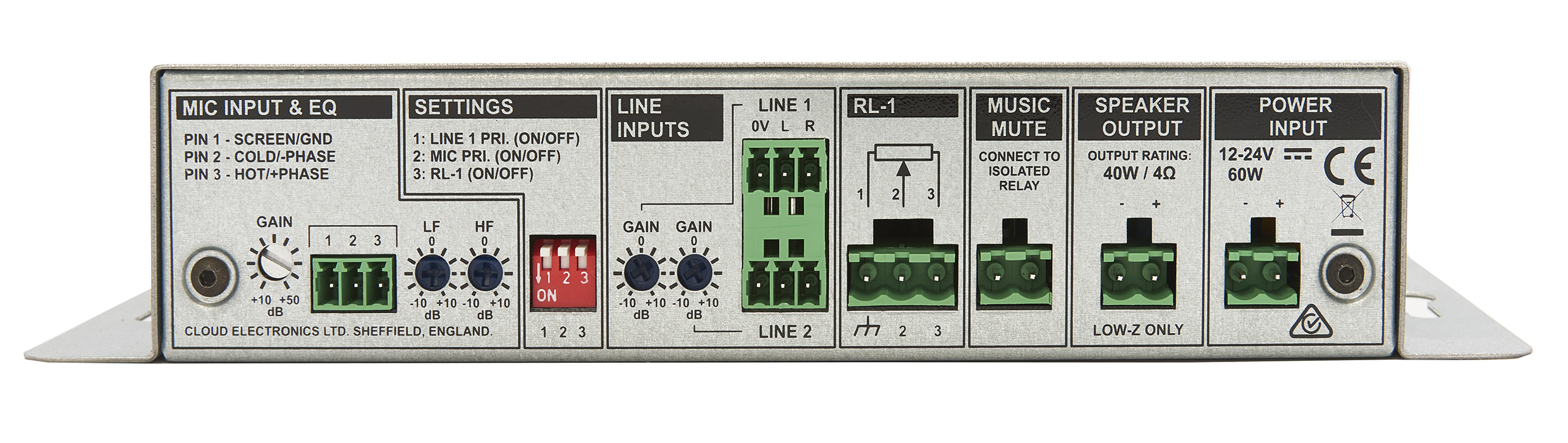

The MA40 is a mini amplifier providing 40W output at 4Ω (low impedance). It is fitted with a microphone input with EQ and input gain adjustment, a further two line inputs, an RL-1 remote wall plate connection, music mute connection and dip switch settings providing Line 1 priority and mic priority switching in addition to switching on/off of the RL-1 functionality.

The MA40 is powered via 12-24V external power supply, making it extremely suitable for transport applications, digital signage applications and de-centralised solutions.

Product Details

Compact mono amplifier module for “install-and-forget” situations
Two (unbalanced) line inputs with individual sensitivity trims
Electronically-balanced mic input with separate gain control
Phantom power selectable by internal jumper
Front panel control of music level and mic levels
Front Panel HF & LF EQ adjustments for music sources
Rear panel HF & LF EQ adjustment for mic input
Selectable MIC-over-LINE priority
Selectable LINE 1-over-LINE 2 priority
40 W power amplifier with low-impedance (4 ohms) output
Remote level control port; compatible with Cloud RL Series plates
Music Mute control input (N/O or N/C) for interface to emergency system
Automatic power-down function
Convection cooled - silent in operation
Power requirements: 12 to 24 V DC, 47 W (1 W in sleep mode)

Line inputs

20 Hz to 20 kHz (+/- 1dB)

< 0.1 %

-12 dBu to +8 dBu

20 dB range

10 k ohms (unbalanced)

>12 dB

< -90 dB

LF: ±10 dB @ 50 Hz, HF: ±10 dB @ 10 kHz

Microphone input

-3dB @ 120 Hz (filter) to 20 kHz (+/- 1 dB)

< 0.1%

10 dB to 50 dB

>2 k ohms (balanced)

>12 dB

< -90 dB

+12 V (internal jumper)

Output

40 W (DC input >18 V)

General

12 V to 24 V DC / 47 W

100 V to 240 V

220 x 41 x 144.5 mm

750 g
