MX-H2-0404-10 | MX-H2-0404-10

MX-H2-0404-10

Art.-Nr.: MX-H2-0404-10

Netvio is reshaping professional AV applications by combining high-performance hardware with advanced, license-inclusive software. The british brand’s carefully curated portfolio includes premium AV distribution solutions—enabling complete, end-to-end solutions for a wide range of applications. Designed to simplify complex integrations, Netvio makes both installation and day-to-day operation more efficient. A key advantage is seamless compatibility with major third-party control systems, alongside the company’s own integrated platforms, NETVIO360, AppBuilder and NetvioGo. This dual approach guarantees maximum freedom of choice—whether incorporating Netvio into an existing ecosystem or deploying it as a fully standalone solution.

Overview

4×4 HDMI 2.0 18Gbps Matrix Switcher with 4K60 HDR, Scaling, Audio De-Embedding & ARC

The Netvio MX-H2-0404-10 is a 4×4 HDMI 2.0 Matrix Switcher designed for professional AV distribution across corporate, education, broadcast, and residential environments. With 18Gbps HDMI 2.0b bandwidth and full HDCP 2.2/1.4 compliance, it routes up to four HDMI sources to four independent displays, delivering uncompromised 4K60 4:4:4 HDR performance.

Each output can be individually downscaled to 1080p, ensuring seamless compatibility in mixed display systems. Integrated audio de-embedding provides analog stereo and coaxial digital outputs, while ARC support enables display audio return via coaxial. Advanced EDID management guarantees reliable operation across diverse sources and displays.

Control is simple via front panel, IR, RS-232, or built-in TCP/IP web interface, while end-users benefit from license-inclusive NetvioGo for intuitive switching functionality on iOS and Android devices.

Product Details

4×4 HDMI 2.0 Matrix Switching – Route any of four HDMI sources to any of four displays
True 4K60 UHD Performance – 18Gbps bandwidth, 4:4:4 color, HDR10, HDR10+, Dolby Vision, and HLG support
Independent Output Scaling – Downscale 4K to 1080p per output for mixed-display compatibility
Audio De-Embedding – Extract HDMI audio to both analog stereo (L/R) and coaxial digital outputs
ARC Support – Return display audio to coaxial outputs for flexible audio integration
Advanced EDID Management – Preset, copy, and user-defined EDID options for system reliability

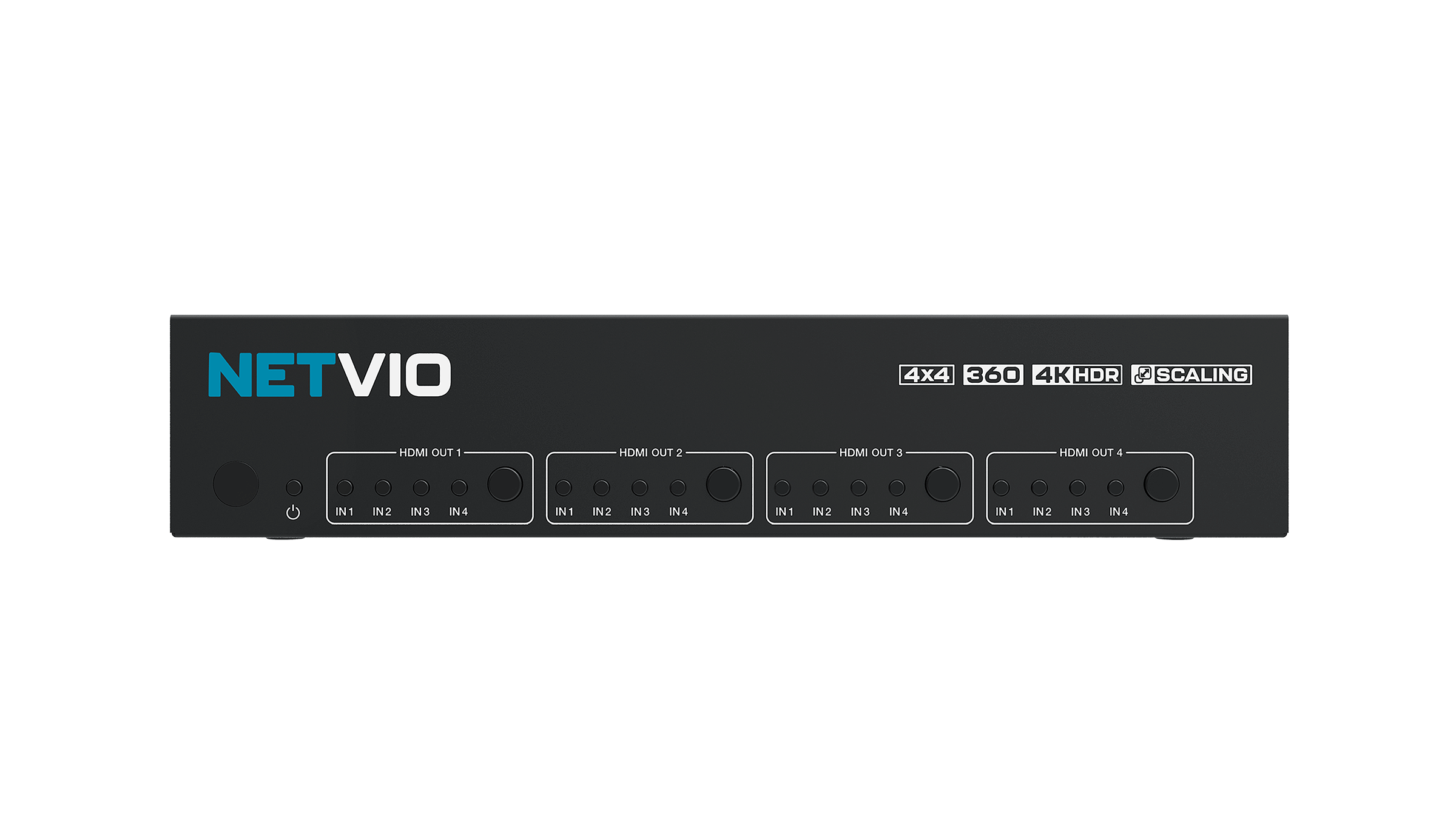

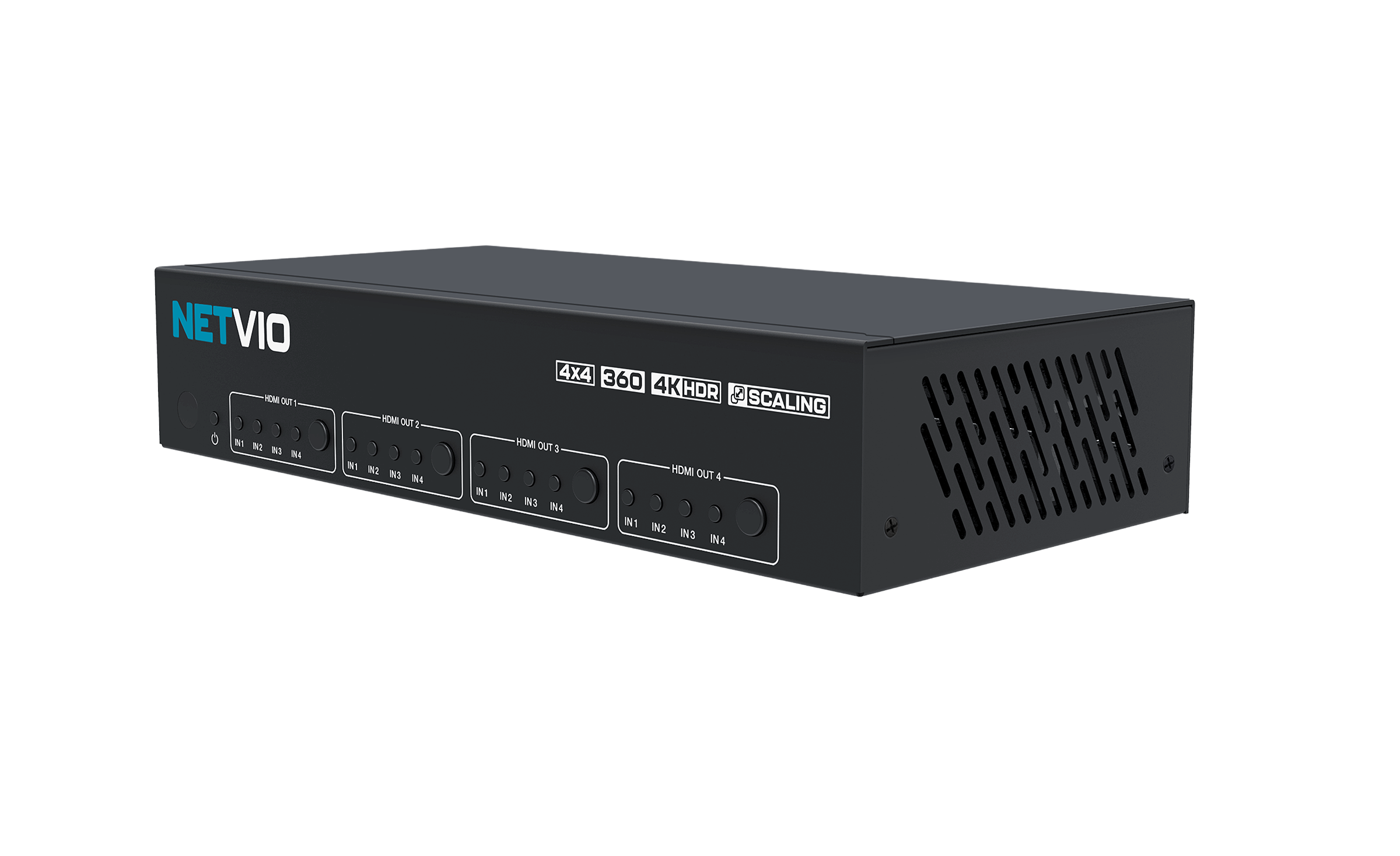

Flexible Control Options – Front panel buttons, IR remote, RS-232, and built-in TCP/IP web GUI
License-Inclusive NetvioGo – Free iOS/Android app for intuitive end-user source switching

Video

HDMI 2.0b, HDCP 2.2 / 1.x

18Gbps uncompressed

Up to 3840×2160 @60Hz 4:4:4, 8/10/12-bit

RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0

HDR10, Dolby Vision, HLG

Audio

LPCM 2.0 / 5.1 / 7.1, Dolby Digital, DTS

Stereo L/R (RCA) – PCM 2.0

Dolby Digital, DTS 5.1, PCM 2.0

Independent selection and volume control

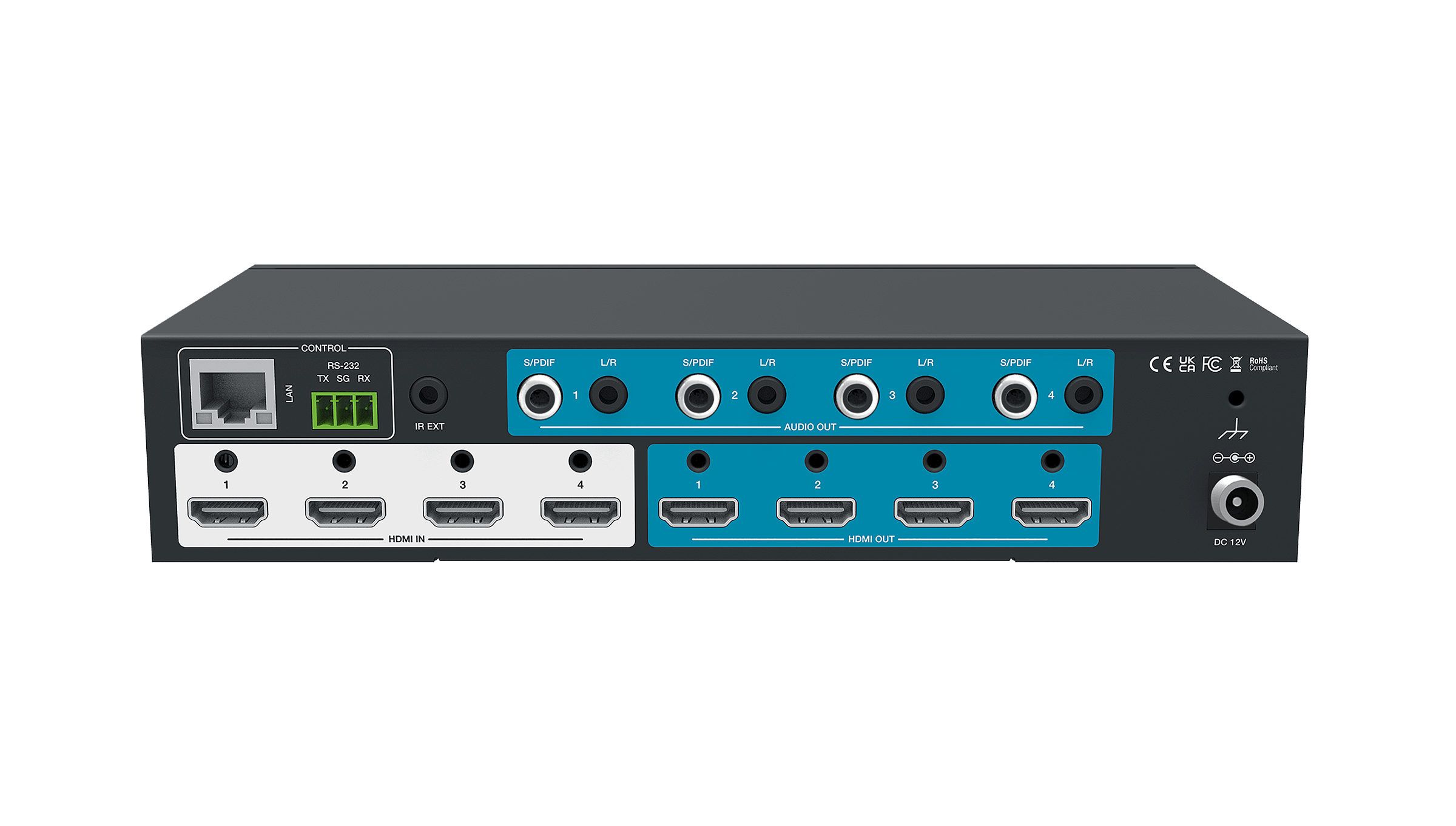

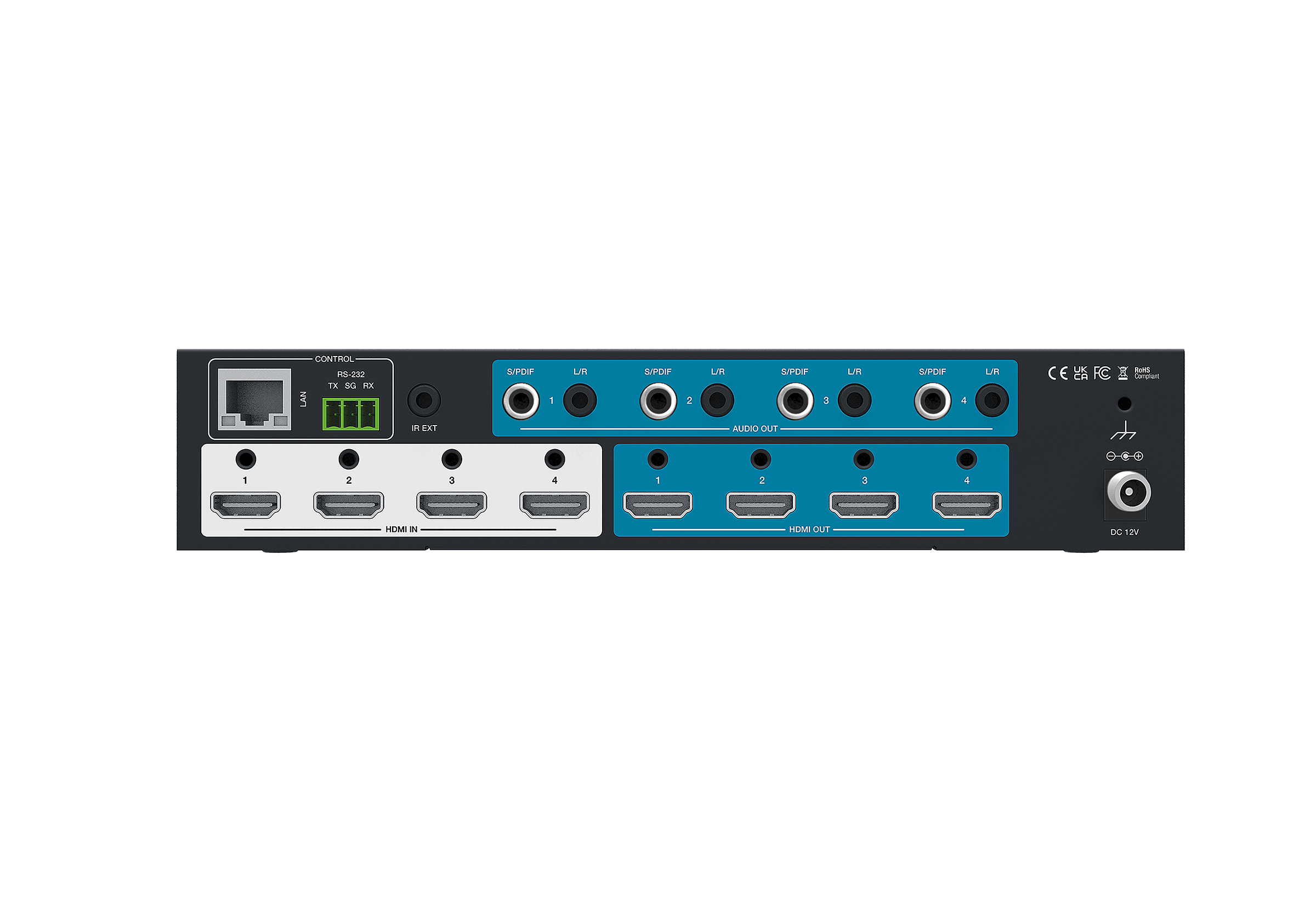

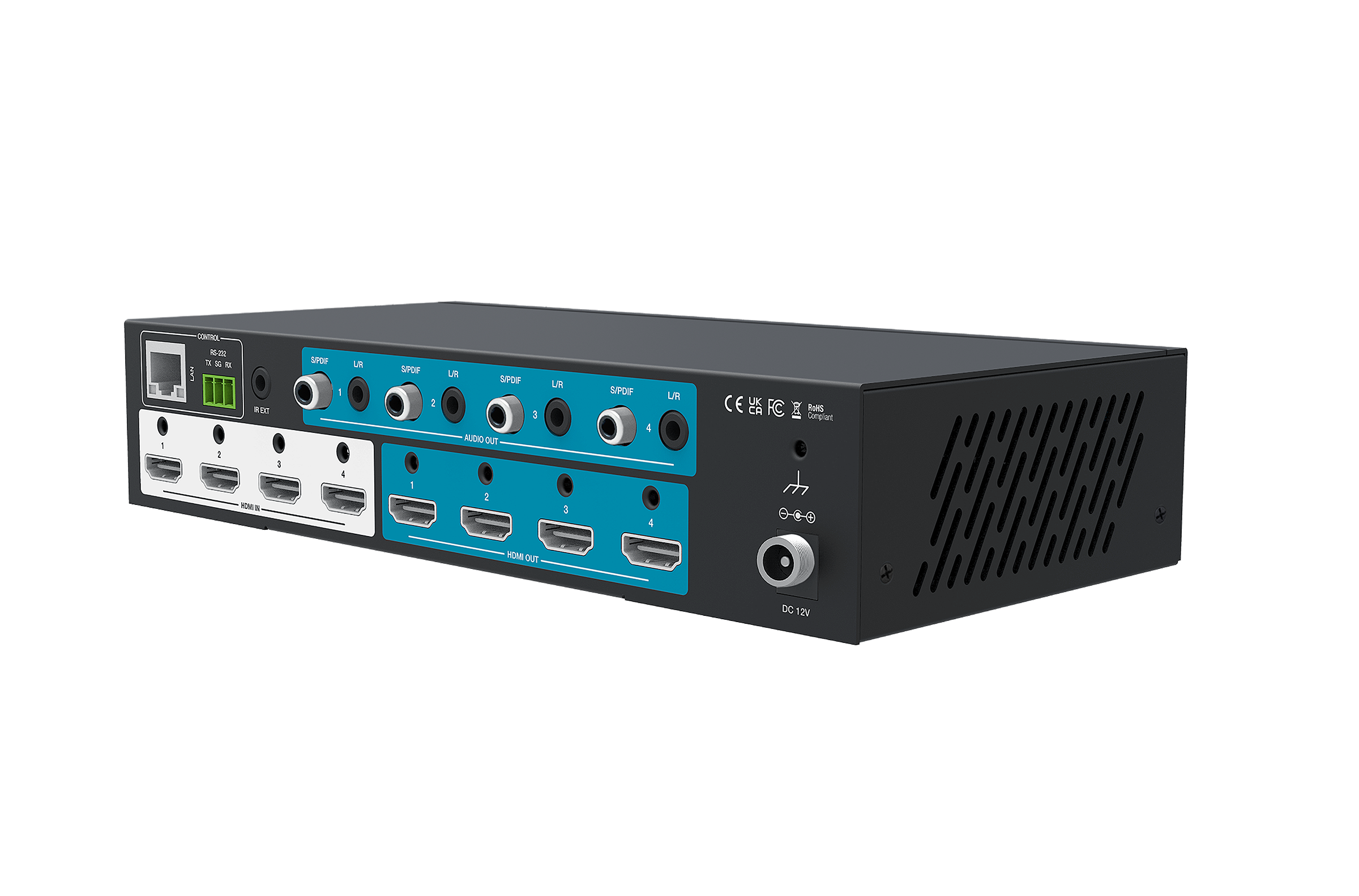

Inputs / Outputs

4× HDMI Type-A (female)

1× HDMI Type-A (female)

1× L/R RCA, 1× Optical S/PDIF

2× USB 2.0 Device, 3× USB 3.0 Device (shared with KVM)

Environmental

0–40°C / 32–104°F

-20–60°C / -4–140°F

20–90% RH (non-condensing)

Power

12V DC (locking connector)

< 20W

What's in the box

1× MV-H2-0401-10 HDMI Multiviewer

1× 19″ Rack Mount Kit (rack ears & screws for smart rack presentation)

1× IR Remote Control

1× 12V DC Locking Power Supply

1× User Manual

1× Set of Mounting Accessories

4× USB Cable (USB 3.0 Type-A to Type-B, 1.8m)

Control

Front panel buttons, IR remote, OSD navigation

RS-232 (3-pin phoenix)

Netvio AppBuilder, NetvioGo (license-inclusive)

Crestron, Q-Sys drivers

Multiview Modes

Single, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)

Seamless switching with border and aspect ratio adjustment

Mechanical

220mm × 100mm × 44mm (8.66″ × 3.94″ × 1.73″)

443g (0.98 lbs)

Metal enclosure

19″ rack ears included in the box (smart rack presentation)
