PRD953

Art.-Nr.: PRD953/1

Length: 1 m

0,5 m

1 m

1,5 m

3 m

5 m

10 m

15 m

20 m

Request now

Project consulting B2B-Login

Over the years, a highly specialized team of cabling and electronic engineers was assembled to assure that PROCAB remains at the forefront of innovation. This group of enthusiastic audiophiles dedicate their insight and relentless effort to satisfy anyone from the average home users to the most demanding professionals. The result is a wide range of unique connectors, audio, video, digital and power cables, which are available pre-assembled and bulk.

Overview

Balanced digital cable DMX AES/ EBU cable -XLR male - XLR female - HighFlex™

The PRD953 is a 110 Ohm DMX-AES/ EBU cable constructed using the PMX222 cable and fitted with Neutrik 3-pin XLR connectors. The 22 AWG (0.34 mm²) tinned copper braiding with a double (Al-foil + TC braiding) shielding makes it perfectly suited for professional use in highly demanding applications. The stranded conductors and smooth flexing outer jacket provide a great flexibility with a solid feel. The dark grey outer jacket and the attached shrink sleeve allow to distinguish 110 Ohm cables from others while custom labeling is possible for easy identification. It comes in different length:s from 0.5 meters to 20 meters, providing solutions for all applications.

Product Details

22 AWG stranded conductors
HighFlex™ solid & flexible jacket
6.5 mm (Ø) outer diameter
Oxygen free copper
60 mm transparent shrink sleeve
Silver contacts, black metal XLR housing

Physical Characteristics

White, Red

Aluminium foil, Al-mylar, 100% coverage - 25% Overlap

TC 16 x 8 x 0.1 mm (Ø) (OFC)

HighFlex PVC 6.5 mm diameter

Dark grey

110 Ω DMX-AES cable

TC 17 x 0.16 mm diameter (OFC)

0.342 mm²

yes

XLR-3 Male to XLR-3 Female

1 x Neutrik NC3MXX-BAG, 1 x Neutrik NC3FXX-BAG

Mechanical Characteristics

Fixed installation - 40 °C till + 80 °C, Flexible installation - 25 °C till + 70 °C

Fixed installation 6 x outer diameter, Flexible installation 8 x outer diameter

Electrical Characteristics

79 pF / m @ 1 MHz

50 pF / m @ 1 MHz

52 Ohm / 100 meter

110 Ohm +- 3 Ohm)

Accessories

productBadge.normal

PROCAB

BST115/B

Hook & loop cable ties - 12 x 150 mm, black

productBadge.normal

PROCAB

BST115/B

The ACV Series are Re-usable cable ties which provide an excellent solution for temporary applications. They can be used for holding rolled-up cables together as well as standard fastening, wire bundling and cable organizing purposes.

productBadge.normal

PROCAB

BST124/B

Hook & loop cable ties - 13 x 240 mm, black

productBadge.normal

PROCAB

BST124/B

productBadge.normal

PROCAB

BST112/B

Hook & loop cable ties - 12 x 125 mm, black

productBadge.normal

PROCAB

BST112/B

productBadge.normal

PROCAB

BST125/B

Hook & loop cable ties - 21 x 250 mm, black

productBadge.normal

PROCAB

BST125/B

Related Products

PROCAB

PLP150/0.25

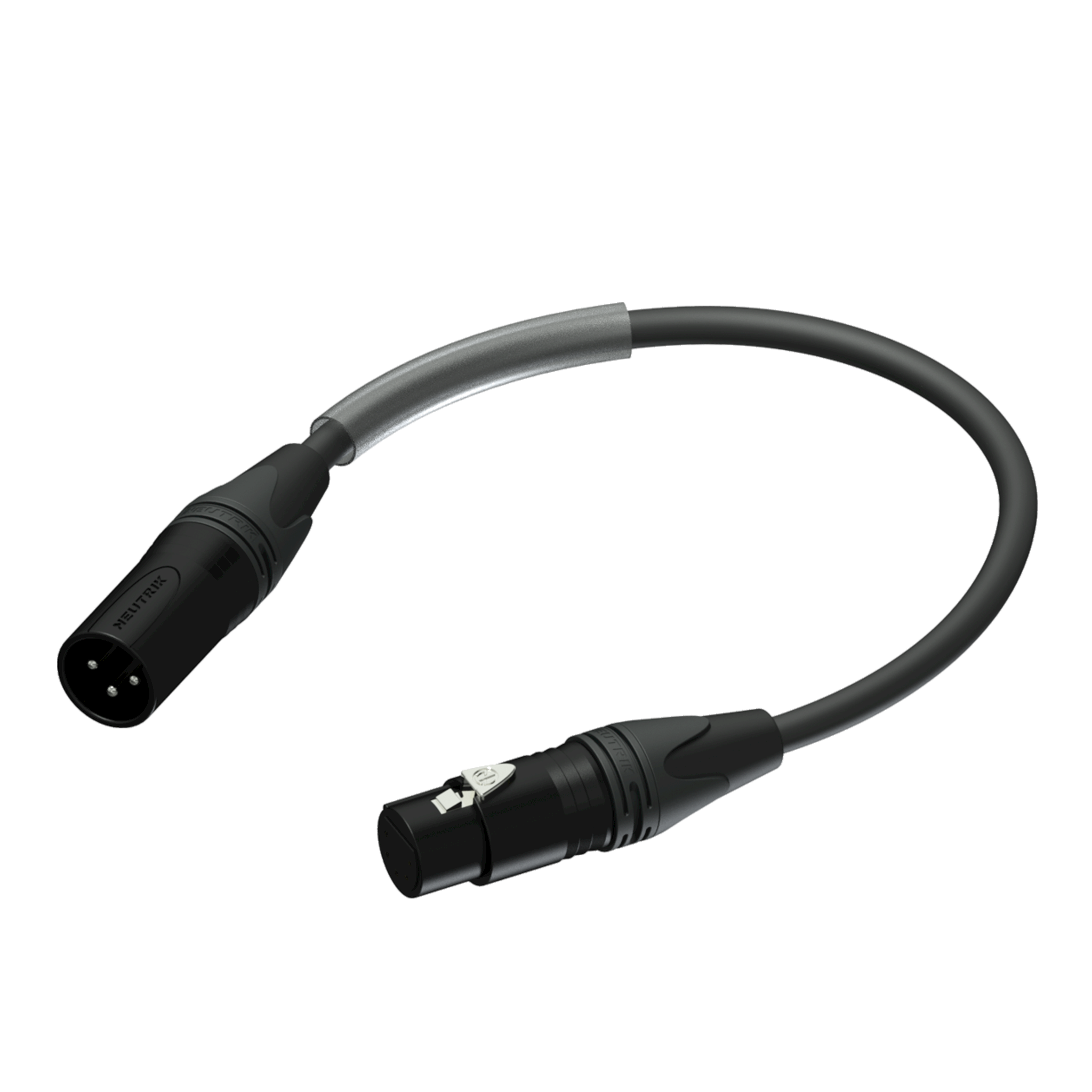

DMX adapter - 3-pin XLR male - 5-pin XLR female - HighFlex™, length: 0.25 meter

PROCAB

PLP150/0.25

The PLP150 is a 110 Ohm DMX-AES 3-pin (male) to 5-pin (female) adapter cable, fitted with Neutrik XLR connectors and constructed using PMX222 cable.Some DMX controllers or lighting fixtures feature 5-pin connections, while others are fitted with 3-pin connections. This might cause troubles when the connectors and wiring of your entire system is not matching and the deadline of your production is approaching. Because of this, PROCAB designed the PLP150 and PLP155 adapters. The Neutrik connections in combination with Prime quality cabling guarantees a lifetime service life, while the short cable avoids tension and damage to the connections of your precious equipment. These adapter cables are true problem-solvers and a must for any production company of lighting engineers’ toolbox.

EOL

PROCAB

CLP146

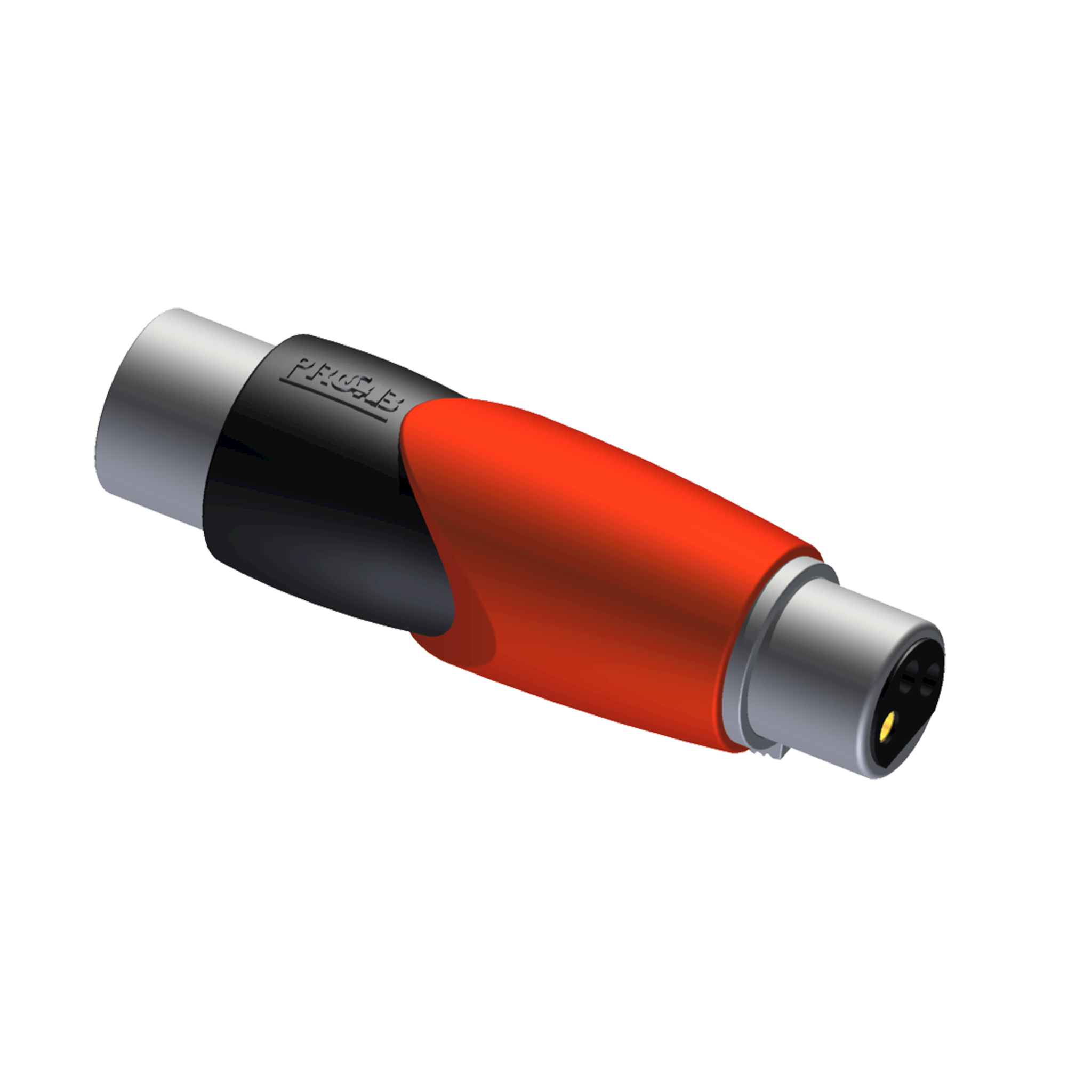

Adapter - XLR male - XLR female - Phase shift

EOL

PROCAB

CLP146

The CLP146 is a female XLR to male XLR adaptor with a phase shifter for connecting cables that lack the right connection for your audio device. The firm molding over the connector ensures an isolation from the ground and gives a solid feel.

PROCAB

PLP155/0.25

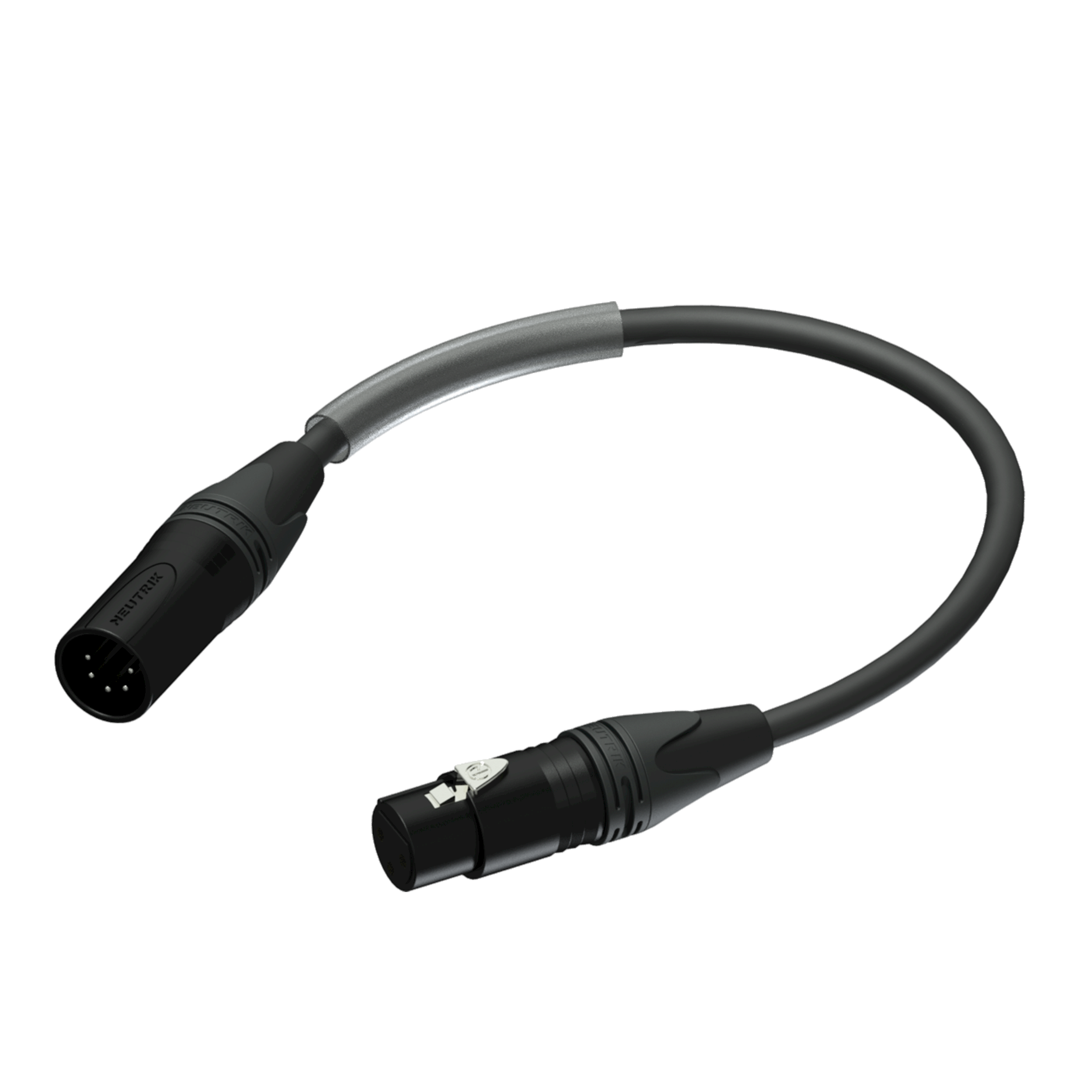

DMX adapter - 5-pin XLR male - 3-pin XLR female - HighFlex™, length: 0.25 meter

PROCAB

PLP155/0.25

The PLP155 is a 110 Ohm DMX-AES 5-pin (male) to 3-pin (female) adapter cable, fitted with Neutrik XLR connectors and constructed using PMX222 cable.Some DMX controllers or lighting fixtures feature 5-pin connections, while others are fitted with 3-pin connections. This might cause troubles when the connectors and wiring of your entire system is not matching and the deadline of your production is approaching. Because of this, PROCAB designed the PLP150 and PLP155 adapters. The Neutrik connections in combination with Prime quality cabling guarantees a lifetime service life, while the short cable avoids tension and damage to the connections of your precious equipment. These adapter cables are true problem-solvers and a must for any production company of lighting engineers’ toolbox.

PROCAB

CLP157

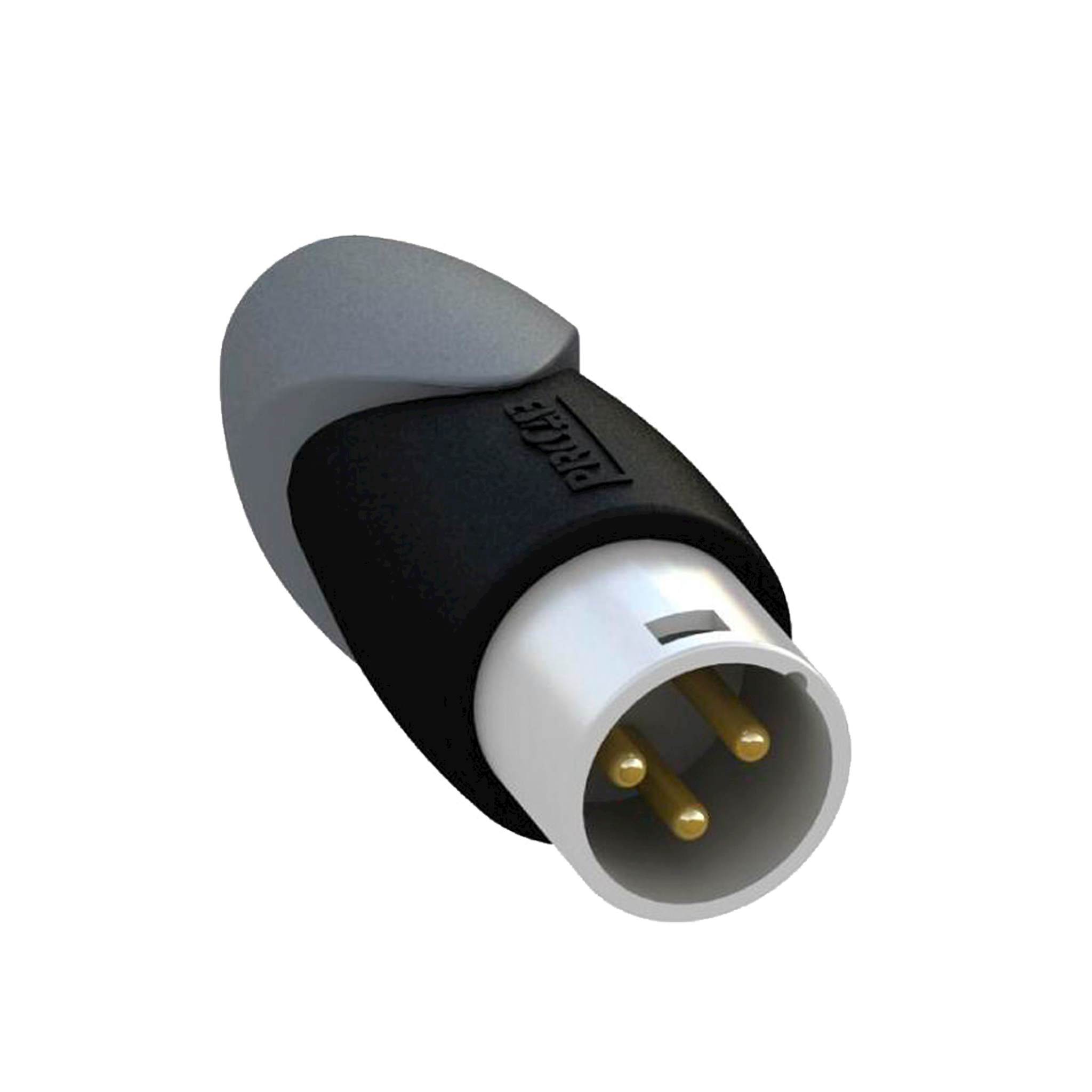

110 ohm DMX terminator - 3 pin male XLR
