RX-HT2-40-20

Art.-Nr.: RX-HT2-40-20

Netvio is reshaping professional AV applications by combining high-performance hardware with advanced, license-inclusive software. The british brand’s carefully curated portfolio includes premium AV distribution solutions—enabling complete, end-to-end solutions for a wide range of applications. Designed to simplify complex integrations, Netvio makes both installation and day-to-day operation more efficient. A key advantage is seamless compatibility with major third-party control systems, alongside the company’s own integrated platforms, NETVIO360, AppBuilder and NetvioGo. This dual approach guarantees maximum freedom of choice—whether incorporating Netvio into an existing ecosystem or deploying it as a fully standalone solution.

Overview

40m (131ft), 4K60 (4:4:4) Matrix Receiver, ARC, IR, RS-232

The Netvio RX-HT2-40-20 is a professional HDBaseT receiver designed for seamless integration with Netvio HT2 series matrix switchers. Compatible with MX-HT2-0404-10 and MX-HT2-0808-10, it delivers 18Gbps HDMI 2.0b, HDCP 2.2/1.4 compliance with full 4K60 4:4:4 video up to 40m (131ft) or 1080p60 up to 70m (230ft) over a single CAT6 cable.

The receiver supports ARC (Audio Return Channel) when paired with a compatible ARC-enabled matrix output. ARC audio is available via HDMI ports, while the SPDIF output is provided for displays that do not support ARC. Additional audio breakout is available via analog stereo output.

With HDR support, bi-directional IR, RS-232, and CEC pass-through, and PoC (Power over Cable), the RX-HT2-40-20 ensures complete functionality for residential, corporate, and commercial AV projects.

Product Details

HDBaseT HDMI Receiver – Designed for use with Netvio MX-HT2-0404-10 and MX-HT2-0808-10 matrices.
ARC Support – ARC available via HDMI ports when paired with a compatible ARC matrix output.
SPDIF Audio Output – Provided only for displays that do not support ARC.
Long-Distance Transmission – 40m (131ft) at 4K60 4:4:4, 70m (230ft) at 1080p60 over CAT6a/7.
18Gbps Bandwidth – HDMI 2.0b, HDCP 2.2/1.4 compliant.
HDR Formats – HDR10, HDR10+, and Dolby Vision supported.
Audio Breakout – Stereo (3.5mm mini-jack) and SPDIF for flexible integration.
Bi-Directional Control – IR, RS-232, and CEC pass-through.
PoC (Power over Cable) – Requires power at only one end of the link.
Compact Design – Installer-friendly metal housing.

Video

HDMI 2.0b

HDCP 2.2 / 1.x

18Gbps

4K@60Hz 4:4:4 (up to 40m via CAT6a/7), 1080p@60Hz (up to 70m via CAT6a/7)

HDR10, HDR10+, Dolby Vision

8-bit, 10-bit, 12-bit

RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0

Audio

PCM 2.0/5.1/7.1, Dolby Digital, Dolby TrueHD, DTS-HD MA, DSD

Supported on HDMI ports when paired with compatible ARC-enabled MX-HT2 matrix output (0404-10, 0808-10)

Available only when connected to displays without ARC function

Stereo (3.5mm mini-jack)

Power

DC 24V/1A (locking connector, supplied with TX), PoC Supported

13W (max)

What's in the box

1× RX-HT2-40-20 HDBaseT Receiver

1× IR Blaster Cable (1.5m)

1× IR Receiver Cable (1.5m)

1× 3-pin Phoenix Connector (RS-232)

1× Set of Mounting Ears with Screws

1× User Information

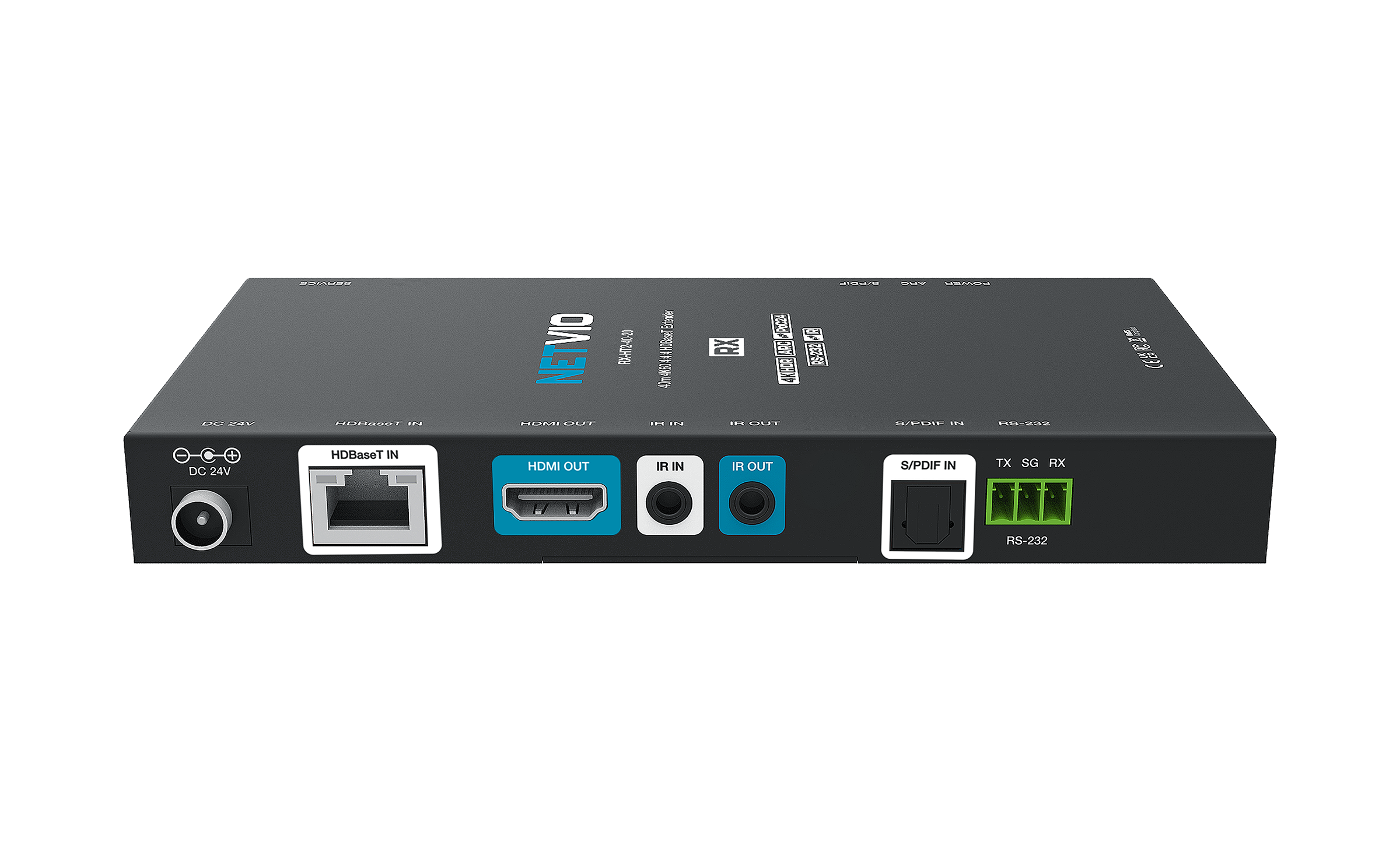

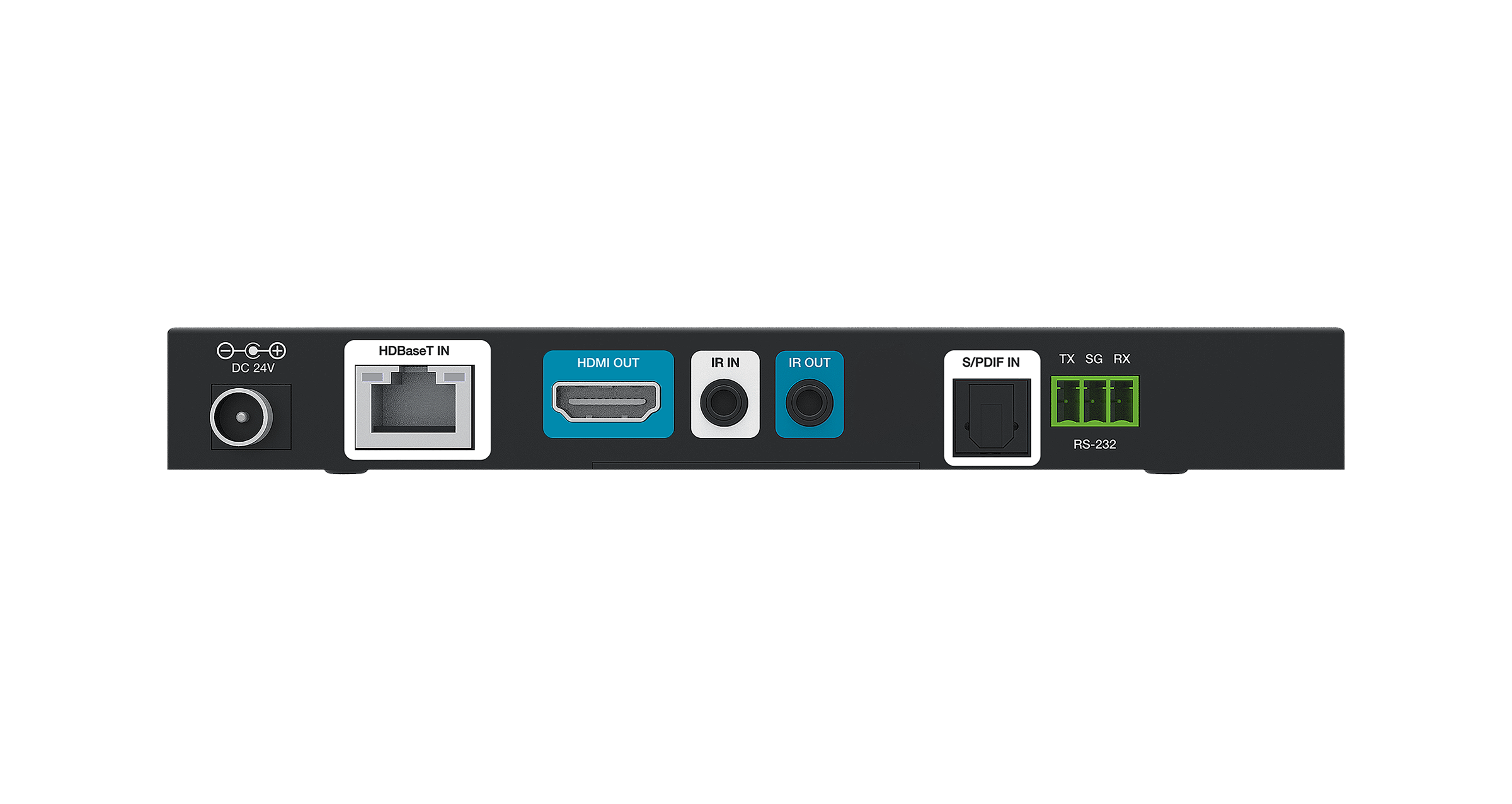

Inputs / Outputs

1× HDBT IN (RJ45), 1× S/PDIF IN

1× HDMI OUT (Type-A), 1× Stereo Audio OUT (3.5mm), 1× S/PDIF OUT

1× IR IN (3.5mm), 1× IR OUT (3.5mm), 1× RS-232 (3-pin Phoenix), 1× Micro-USB (service)

Mechanical

165 × 88.3 × 20 mm (6.49″ × 3.47″ × 0.79″)

165g (0.36 lbs)

Metal, black finish

Environmental

0–40°C (32–104°F)

–20–60°C (–4–140°F)

20–90% RH, non-condensing

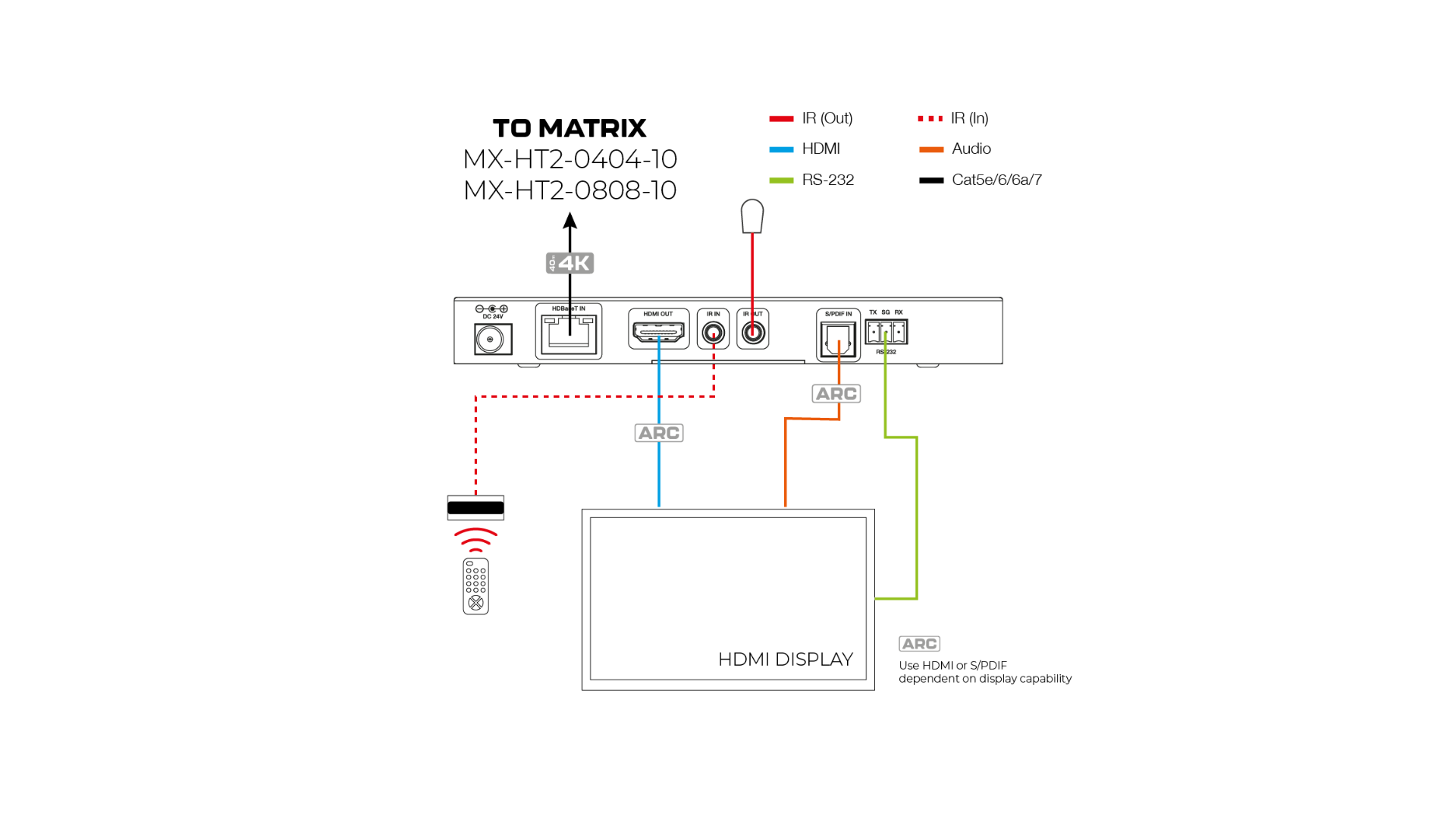

MX-HT2-0404-10 | All outputs 40m/131ft with ARC, MX-HT2-0808-1010 | All outputs 40m/131ft with ARC

RX_HT2_40_20_datasheet_EN
