S6L-24C | 4935-00735-00

S6L-24C

Art.-Nr.: 4935-00735-00

Rental Pool

VENUE is a revolutionary line of digital live sound systems that deliver amazing sound quality, reliability, flexibility, and ease-of-use. Designed with direct input from leading mix engineers, VENUE brings innovation and intuitive workflows to live mixing, answering the complexities of today’s live sound applications while empowering efficiency and creativity. From studiograde plug-in processing support and seamless Pro Tools® integration to customizable options that fit a variety of interface needs, VENUE is shaping the future of live sound, and is the choice for concert tours, clubs, houses of worship, theaters, and broadcast events.

Overview

Surface

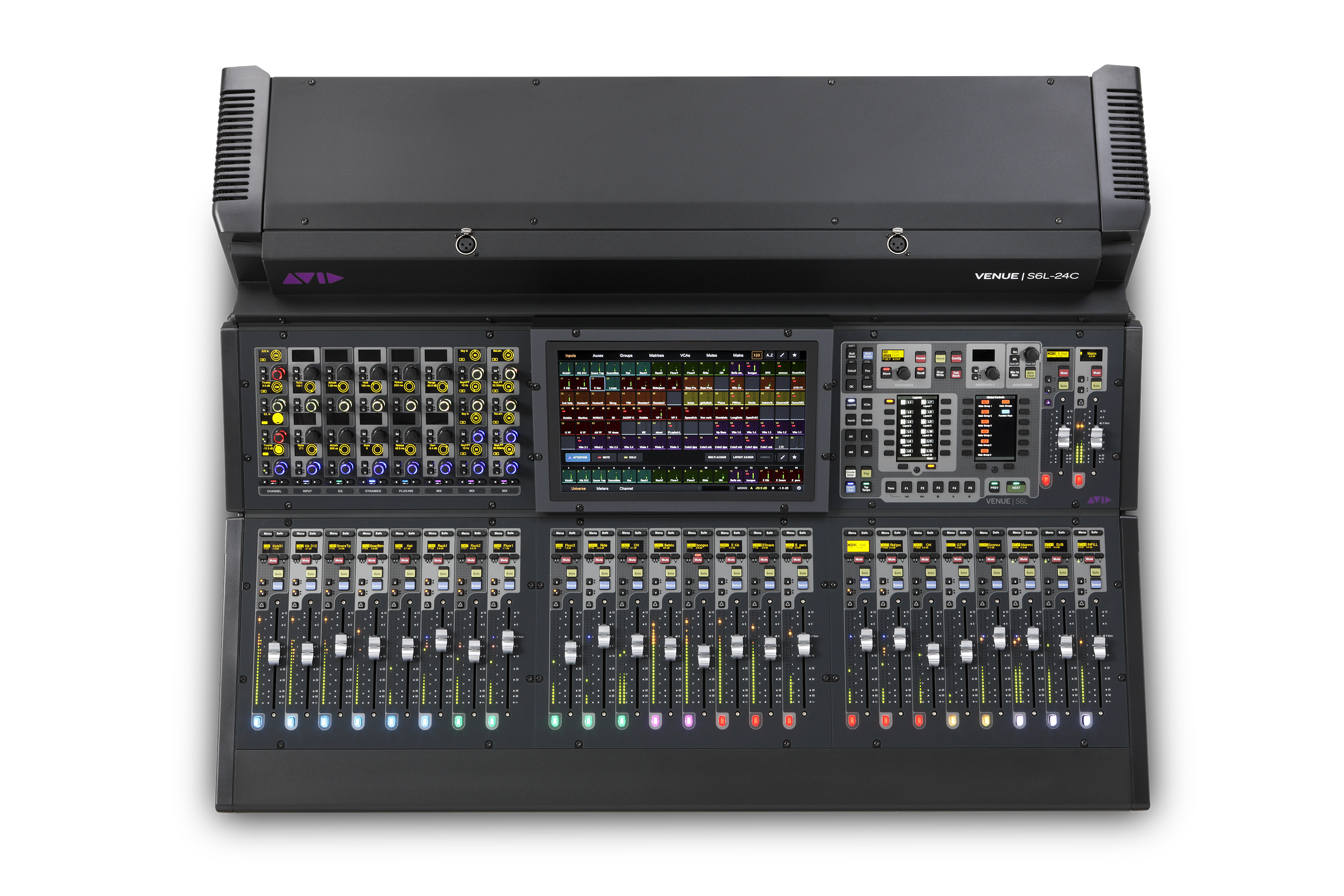

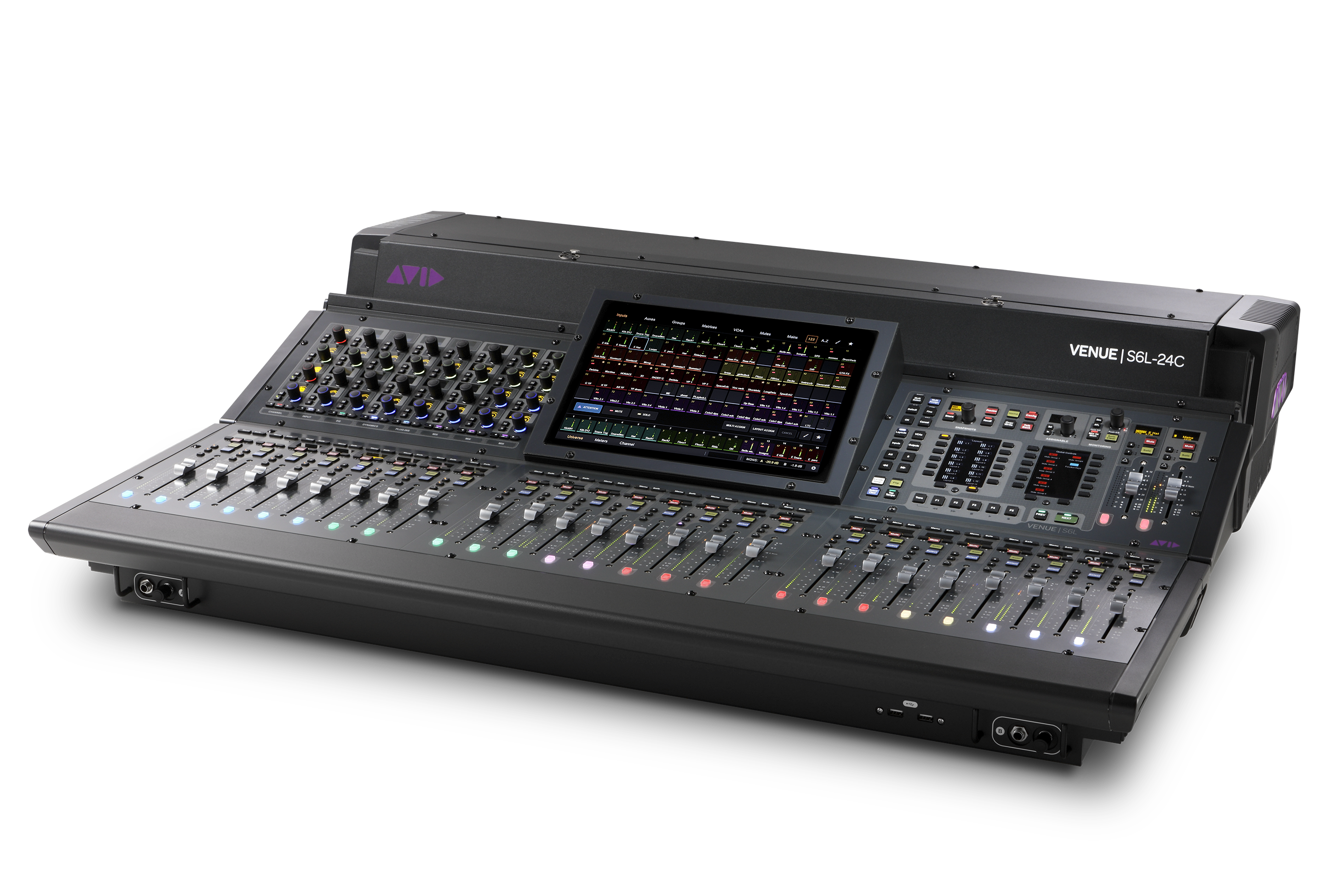

Digital control surface with 24+2 faders and a 12.1" touchscreen that can be read in daylight, as well as Master Live Module (MLM). The user interface has 32 (1 x 32) rotary encoders (push encoders), each with a high-resolution OLED.

Product Details

24+2 faders, 32 assignable encoders, 1x master touch screen, redundant power supplies
Incl. 3 years Avid Advantage Elite Live Support
Compact design compared to the S6L-xxD series
All the strengths of the S6L system in a small footprint

1 x 12,1"

24 + 2

1 x 32, incl. OLEDS and 3-colour function display

Graphic TFTs with soft keys; configurable "touch and turn" encoder; 2 configurable faders; monitor, layout and snapshot control; transport control and function keys

30-segment/channel, with pre- and post-fader metering; nominal meter, expander/gate status and compressor/limiter gain reduction metering

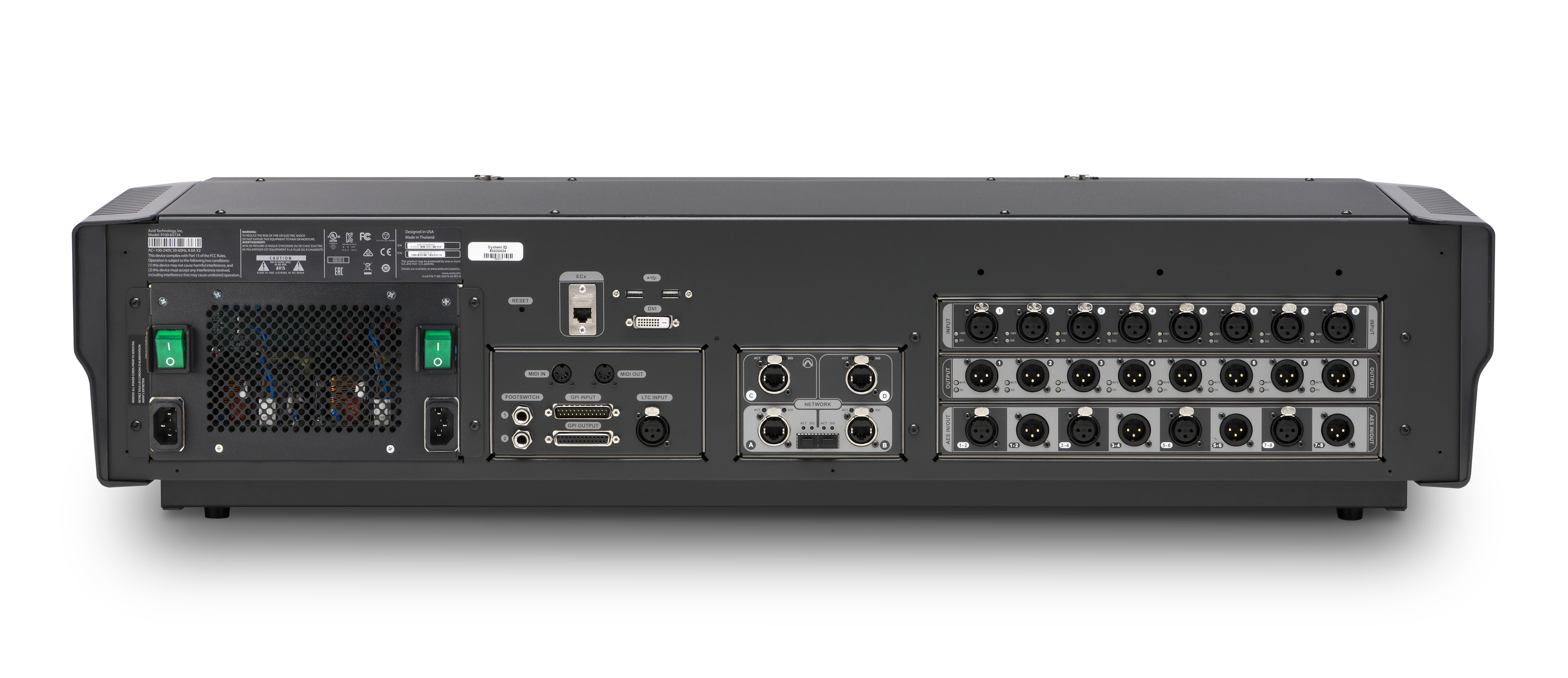

8 XLR inputs (Mic/Line) with 48 V and LEDs for signal indication

4 x XLR AES/EBU (8 channels total)

8 XLR outputs with LEDs indicating mute and present signals

4 x XLR AES/EBU (8 channels total)

2 x 6.35 mm TRS stereo jacks (independent)

2 x copper (etherCON), 2x either copper (etherCON) or fibre optic (SFP); redundant ring topology; supports Luminex GigaCore 26i and GigaCore 10 AVB switches for redundant star configuration

1 x DVI-D / 5 x USB 2.0 / 1 x ECx-Ethernet / 8 x GPIO / 2 x foot switch / LTC in / MIDI I/O

2 x redundant

989 x 91.2/205 x 787 mm

38 kg
