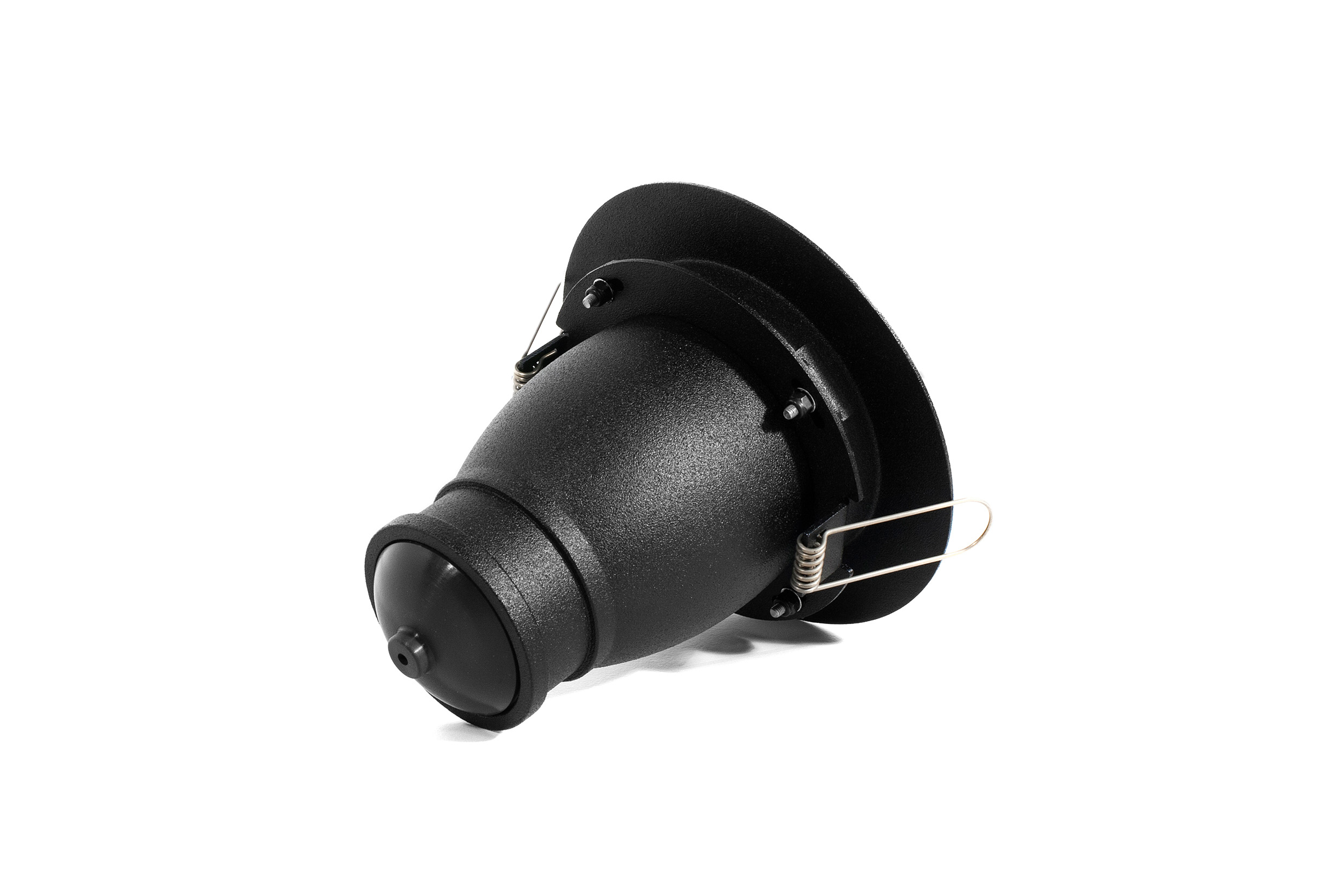

2" point source multipurpose ceiling mount loudspeaker, black
The Tornado series is a miniature sound source designed for high-quality distributed systems. Housed in a compact aluminium enclosure, the Tornado is suitable for space sensitive and architectural design installations. The Tornados are a turn-key loudspeaker solution; designed as passive speakers that can be easily converted into self-powered devices by inserting the KA1-T2 12V/24V amplifier module.
Tornados have a proprietary 2” high efficiency drive unit with a neodymium magnet structure and a suspension engineered for maximum linear excursion and minimum residual transducer interference. The cone transducer delivers an impressive maximum peak SPL of 107dB, and has a wide operating frequency range from 150 Hz to 18 kHz with very low distortion.
With its ability to effortlessly reproduce both speech and music, it makes an excellent choice for fixed applications such as theatre, museum displays, restaurants, portable systems for corporate AV presentations, department stores, and in hidden locations such as chancel steps in houses of worship.
The Tornado-KT2C and Tornado-KT2CW come with ceiling brackets for ceiling mounts.
Product Details
High performance-to-size ratio
Single 2” long excursion full range driver
Wide-range frequency response
Integrated 4-pin Phoenix connector
Double voice-coil driver for variable impedance 8-32Ω
Compact aluminium ultra strong chassis
Weather resistant IP54
Ceiling brackets for ceiling mounts
EN54-24 certified
Optional amplifier module available (KA1-T2H)
Color: black (RAL 9005)
Acoustics
Speaker power handling
18 W (AES)
Impedance
8Ω - 32Ω (settable)
Frequency range (-10 dB)
150 – 18 kHz
SPL (max)
101 dB (cont.) – 107 dB (peak)
Coverage
Horizontal
90°
Vertical
90°
Crossover
Type
External crossover required
Frequency
150Hz 24dB/Oct minimum required
Transducers
Full-range
2” Neodymium magnet Woofer with 2 voice coils of 0.8”
