TRM024
Art.-Nr.: TRM024/B
Color: Black
Request now
Project consulting B2B-Login

It is what we experience through the senses that makes life meaningful. In fact, it can be said that through the qualities in speech and music we experience, we become familiar with the higher values of life. This is just one of the reasons why at AUDAC you will find a passion for sound. Each speaker, audio matrix or amplifier solution we develop expresses that same inspiration and quality that exceeds users’ expectations, making it no coincidence our success results from exploring new methods and ideas beyond conventional boundaries.

Overview

70/100V transformer module for VEXO108 or VEXO208 - 240W & 120W power taps

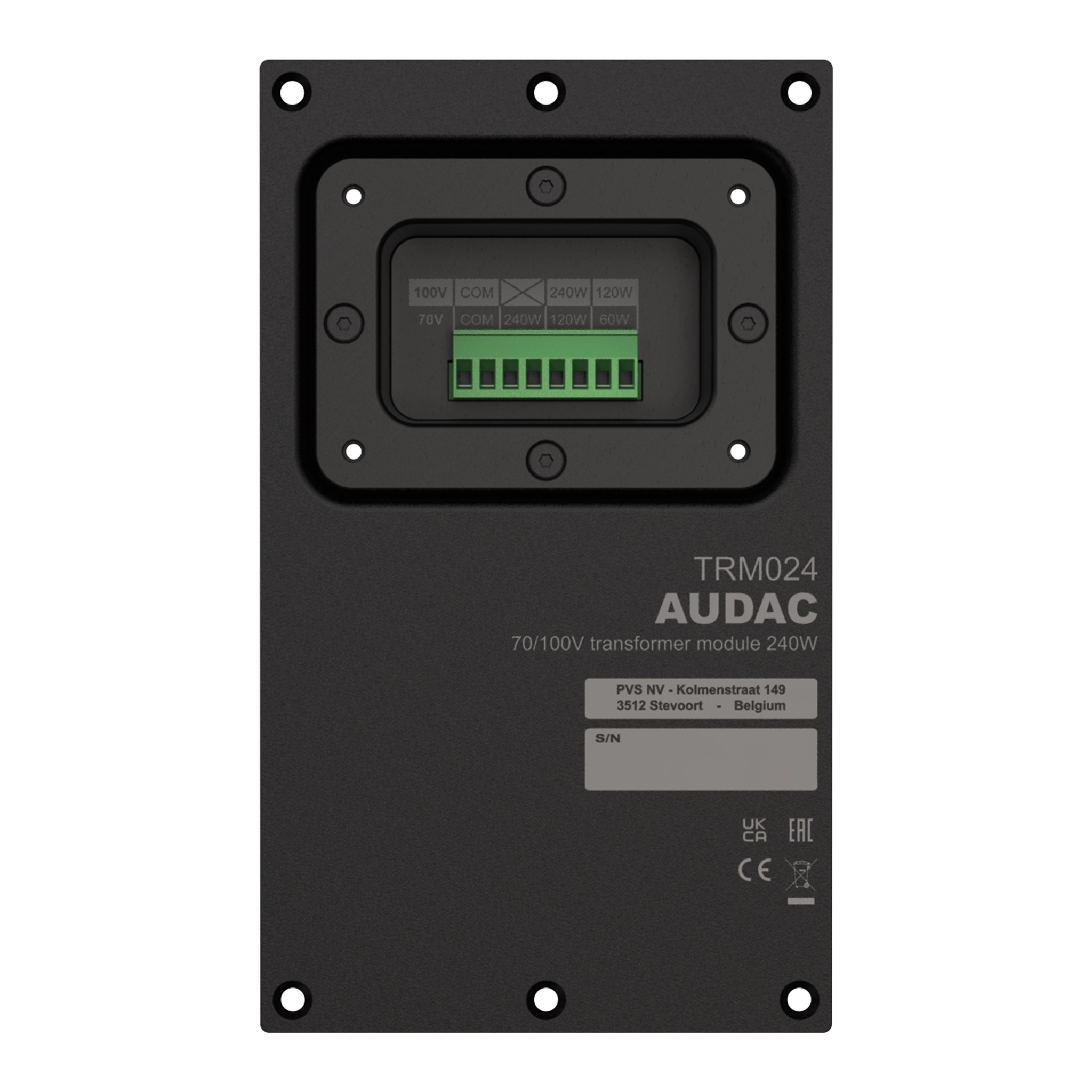

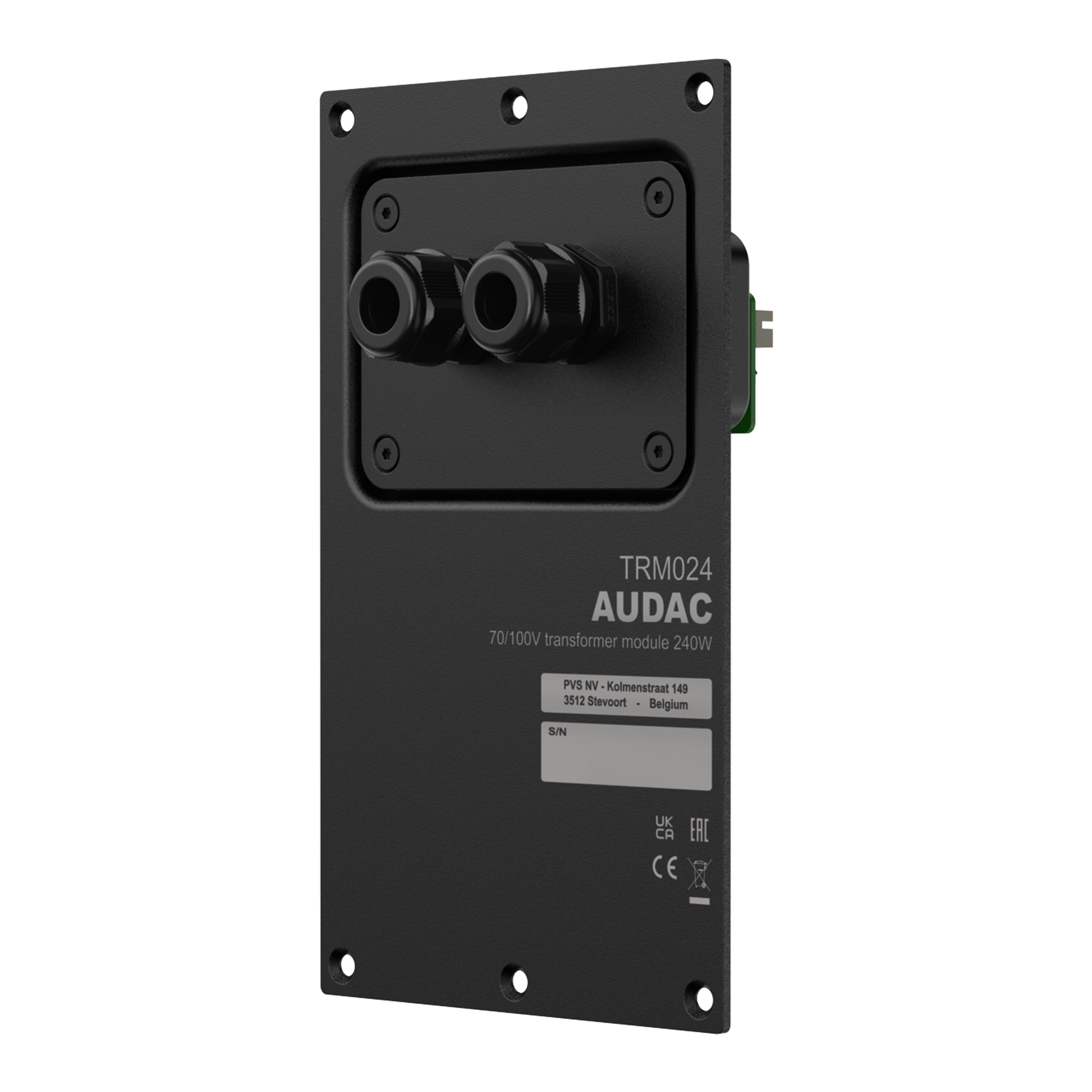

The TRM series are 70/100V line transformers that can be optionally implemented in the passive variants of the VEXO series. Installation is done by removing the backplate of the VEXO series (passive variants only) and replacing it with a 70/100V backplate on which the module is integrated. Like this, the high-performance loudspeaker can be implemented in 70/100V systems.

Product Details

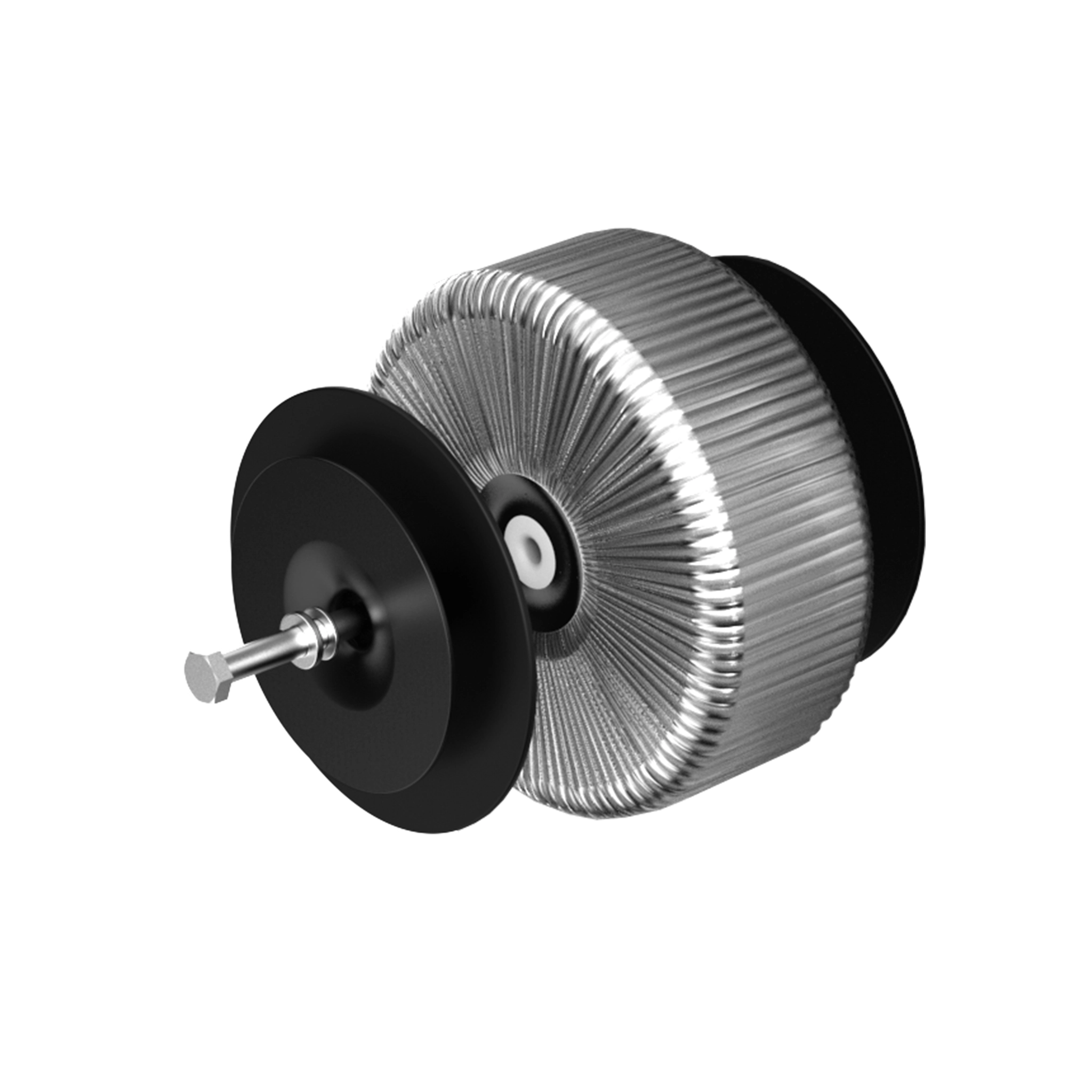

  • Toroidal transformer for audio lines
  • 70V and 100V connections
  • Aluminum rear panel
  • Compatible with VEXO108 and VEXO208
Hi-Z tabs
70V and 100V
Power
120W@100V, 240W@100V
Impedance
8 Ω or 4 Ω (secondary)
External connection (to the amplifier)
8-pin terminal strip
Internal connection (to the loudspeaker)
3-pin connection
Frequency response (+-3dB)
50 Hz - 20 kHz
