WX502MK2/O (Paar) | Black

productBadge.normal

WX502MK2/O (Paar)

Art.-Nr.: WX502MK2/OB

Color: Black

Request now

Project consulting B2B-Login

It is what we experience through the senses that makes life meaningful. In fact, it can be said that through the qualities in speech and music we experience, we become familiar with the higher values of life. This is just one of the reasons why at AUDAC you will find a passion for sound. Each speaker, audio matrix or amplifier solution we develop expresses that same inspiration and quality that exceeds users’ expectations, making it no coincidence our success results from exploring new methods and ideas beyond conventional boundaries.

Overview

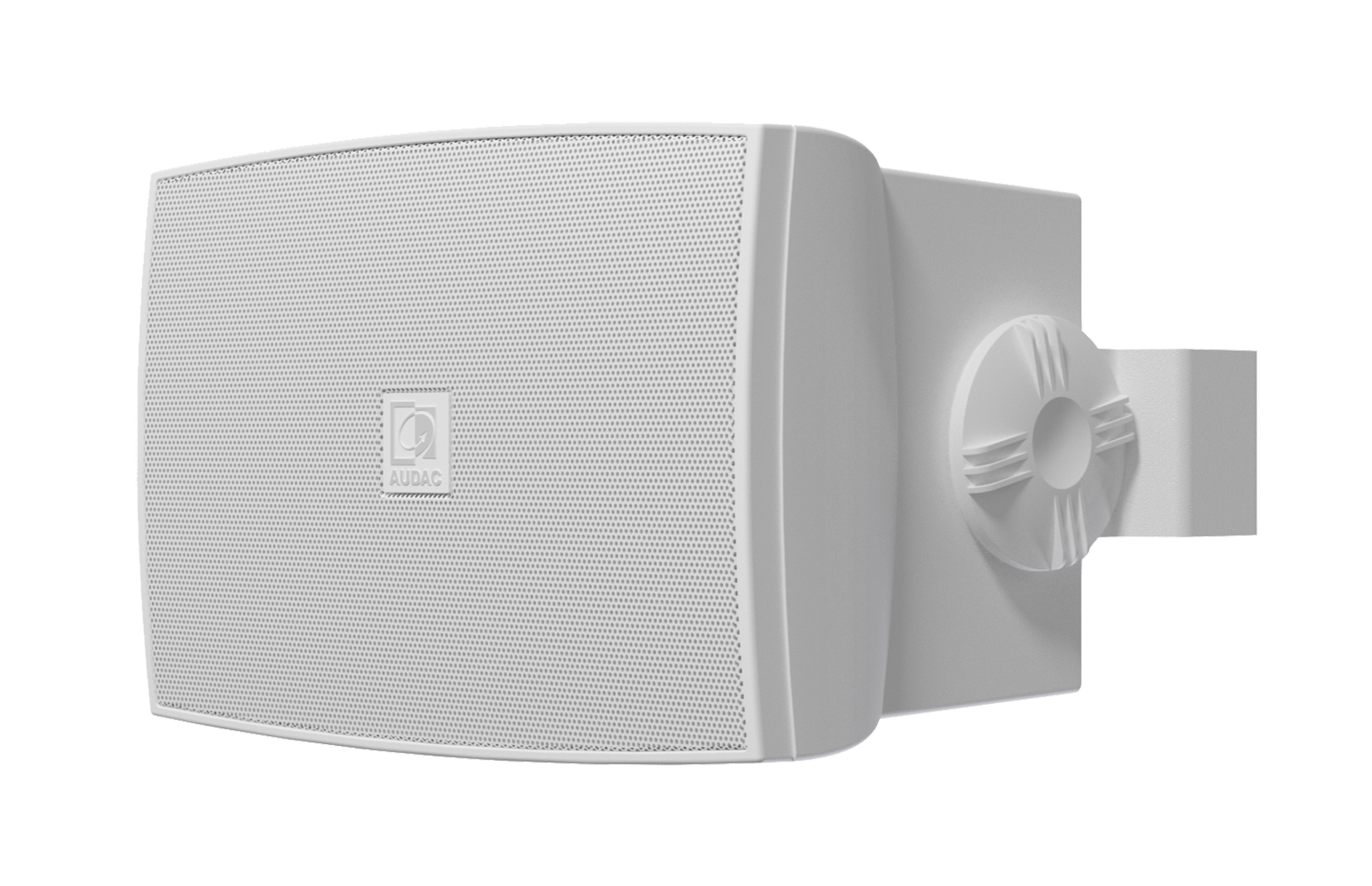

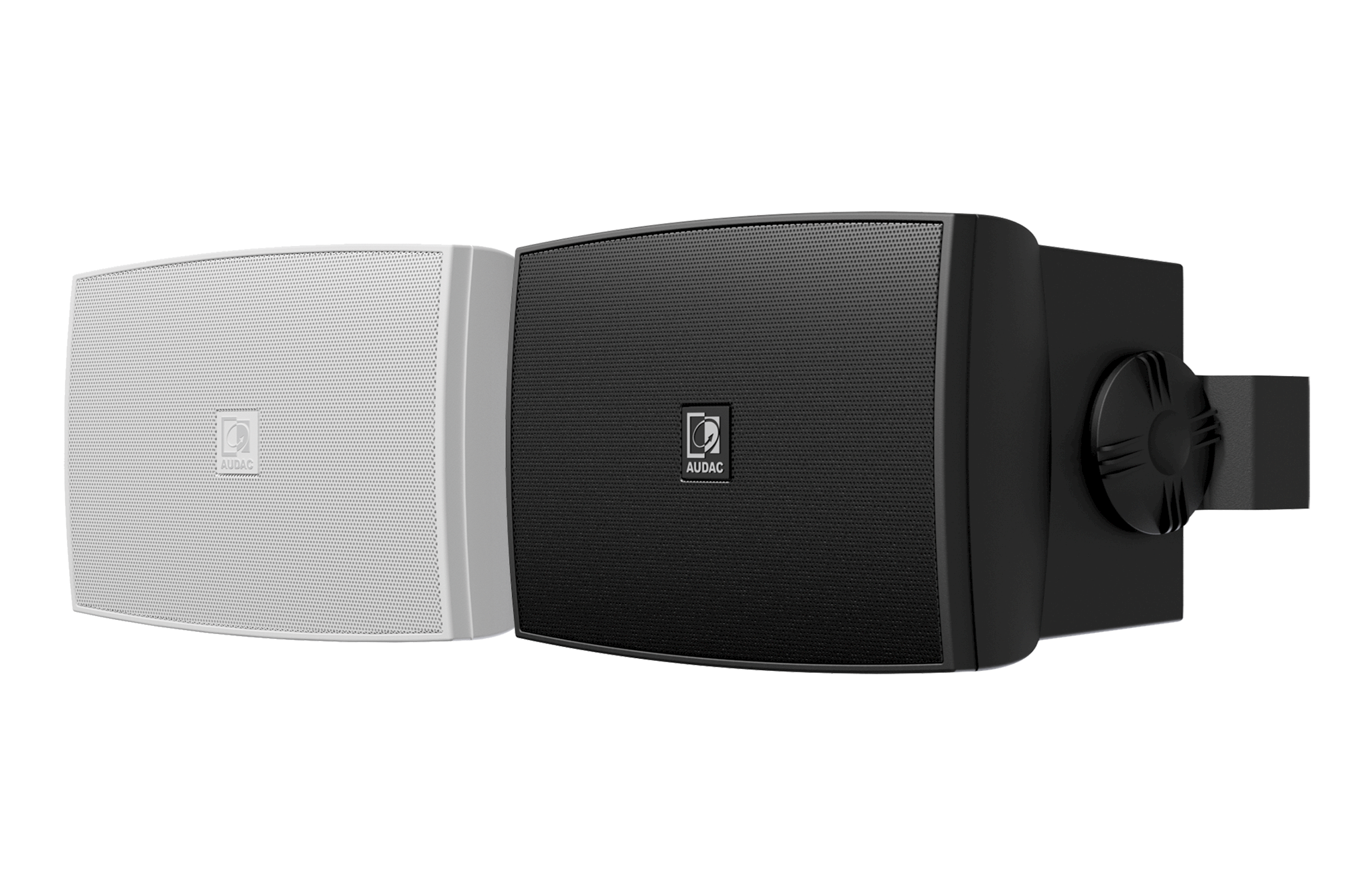

Outdoor Universal Wall Speaker 5 1/4" / 100 V

The WX502/O is a powerful 2-way performance speaker which is specially designed for outdoor use, ensuring true-to-nature, high fidelity reproduction of music and speech. It is fitted with a 1” dome tweeter and a 5 1/4”low-frequency loudspeaker, capable of delivering a power of 50 Watt. It can be used in standard 8 Ohm systems but also in 100V PA systems with power taps for 40 Watt, 20 Watt and 10 Watt.

The material used for the mounting bracket on the outdoor versions has been improved by using aluminum, making the WX series MK2 even more resistant to extreme weather conditions. The bracket allows users to mount the WX502/O vertically as well as horizontally.

Special treatment with powder coating provides the necessary protection for all weather conditions. Because of this, the brackets can pass the 96 hours salt-spray test. A drain hole behind the aluminum grill allows water to flow out and the rotatable 5 pole waterproof connector with power tap selection makes sure that the speaker meets the IP55 standard. The included mounting bracket allows horizontal and vertical mounting as well as focusing of the speaker, and an integrated advanced protection network protects the tweeter against overload.

Product Details

1" Dome tweeter
5 1/4" Low frequency loudspeaker
Vertical and horizontal mounting (rotatable logo)
Aluminum grill
Aluminum mounting bracket
100V and low impedance connection possibility
Multi-tapping 100V line transformer
AWX5™ waterproof connector
Colors: Black (RAL9005), White (RAL9003)

Waterproof AWX-5 connector

2.5 kHz

Passive built-in

HF: 1", LF: 5 1/4"

55 Hz - 20 kHz

70 Hz - 18 kHz

8 Ω

IP55

40 W / 250 Ω, 20 W / 500 Ω, 10 W / 1000 Ω

100 W

87 dB

@ 100 V: 102 dB, @ 8 Ω: 104 dB

2-way

50 W

Horizontal: 110°, Vertical: 110°

212 x 147 x 136 mm (W x H x D)

2.54 kg

-25 °C - 70 °C

ABS

Mounting bracket

Aluminium grill

Black (RAL9005) (WX502MK2/OB), White (RAL9003) (WX502MK2/OW)

Mounting bracket, 5-pin connection cable (70 cm)

Accessories

AUDAC

AWC07

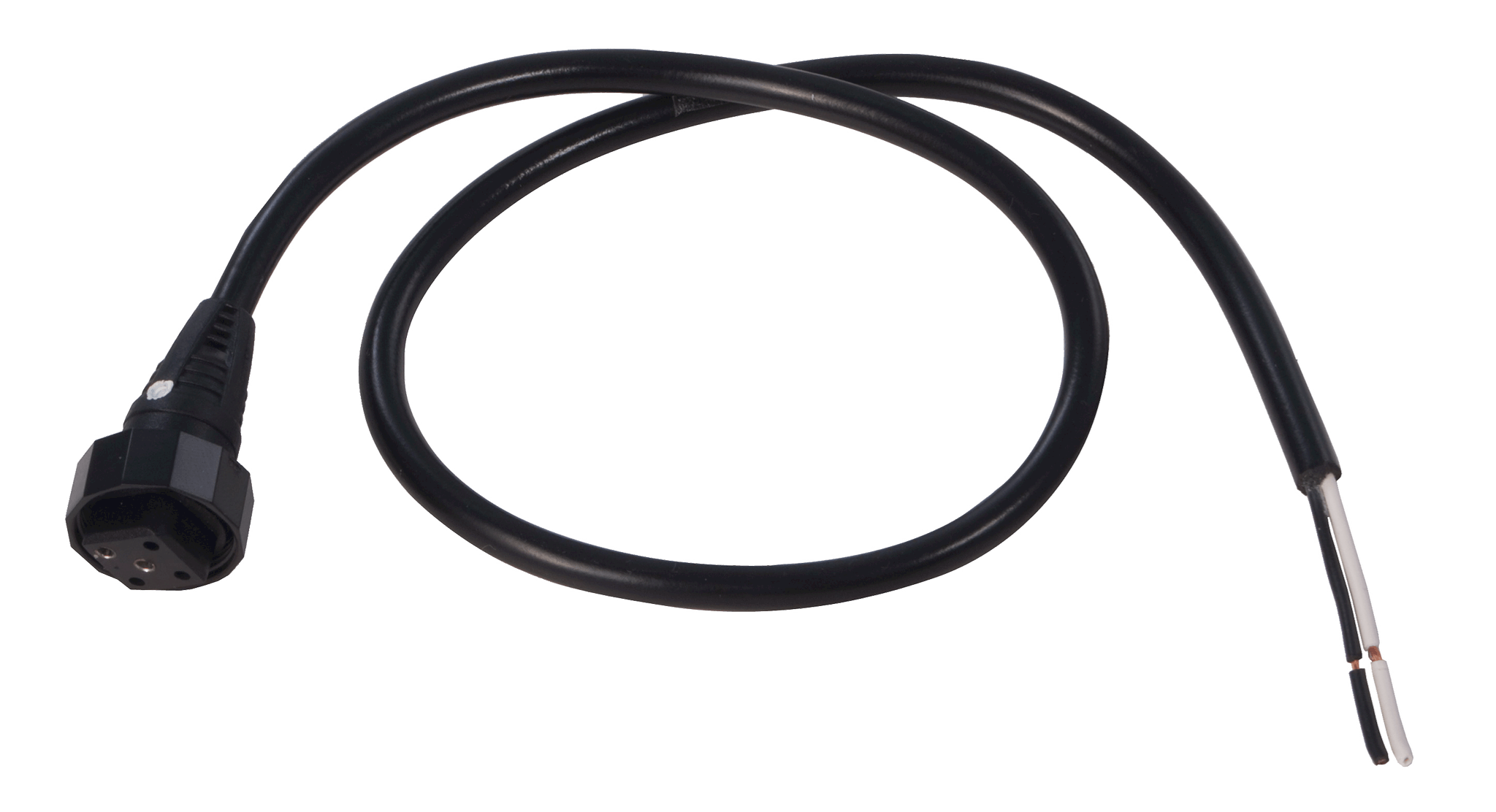

Outdoor Connection Cable with 5-Pin AWX5 Connector

+6 Variants

AUDAC

AWC07

Connection cable with a waterproof AWX5 5-pin terminal, for use with outdoor WX series, AXIR and HS121 loudspeakers. Available in several lengths and both black & white colour.

Length: 0,7 m | Color: Black

Length

0,7 m

2,5 m

5 m

Color

AUDAC

MBK556/B

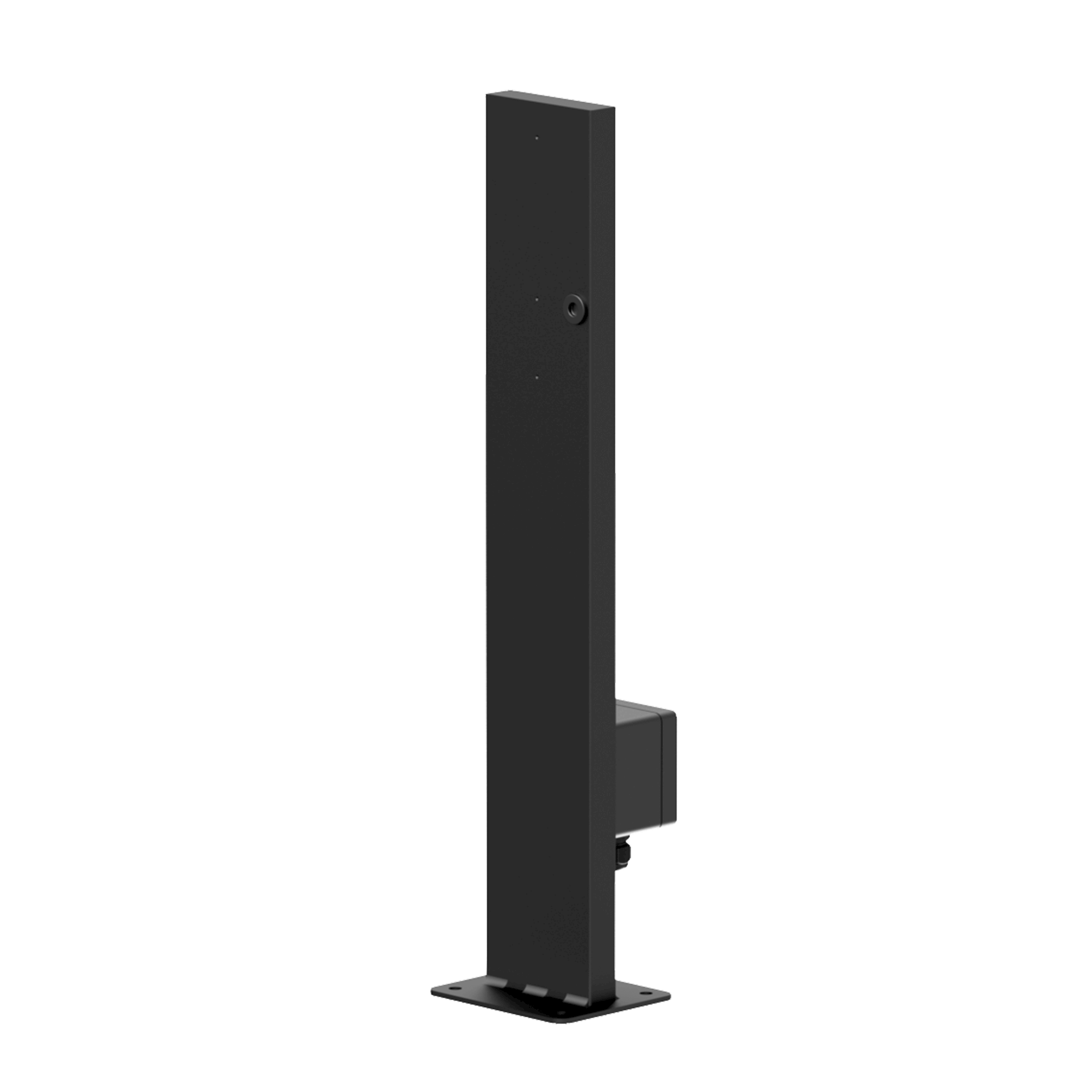

Mounting pole for outdoor speaker - 600 mm height

AUDAC

MBK556/B

The MBK556 is a slim and durable bi-directional mounting solution designed specifically for the AUDAC WX series outdoor loudspeakers. Two WX series loudspeakers can be mounted on opposite sides, creating optimal coverage in all directions. The construction is made out of aluminum materials and finished with a textured and weather resistant black powder coating. A weatherproof junction box with an access hole for the internal wiring to the loudspeaker(s), allows it to be installed in permanent outdoor installations, while cable guiding throughout its structure results in a very elegant end result. The base plate allows durable installation on any kind of solid surface while pre-drilled installation holes for WX302 and WX502 series loudspeakers provide the optimal installer convenience.
