XENO8 | Creme | XENO8/C

XENO8

Art.-Nr.: XENO8/C

Color: Creme

It is what we experience through the senses that makes life meaningful. In fact, it can be said that through the qualities in speech and music we experience, we become familiar with the higher values of life. This is just one of the reasons why at AUDAC you will find a passion for sound. Each speaker, audio matrix or amplifier solution we develop expresses that same inspiration and quality that exceeds users’ expectations, making it no coincidence our success results from exploring new methods and ideas beyond conventional boundaries.

Overview

Full range speaker 8" 120 W

The XENO series is a loudspeaker range specifically designed for fixed audio installations in modern environments, offering two different sizes of contemporary and elegant designed products. What makes them so unique is their full range audio design, allowing them to be used without additional bass cabinet.

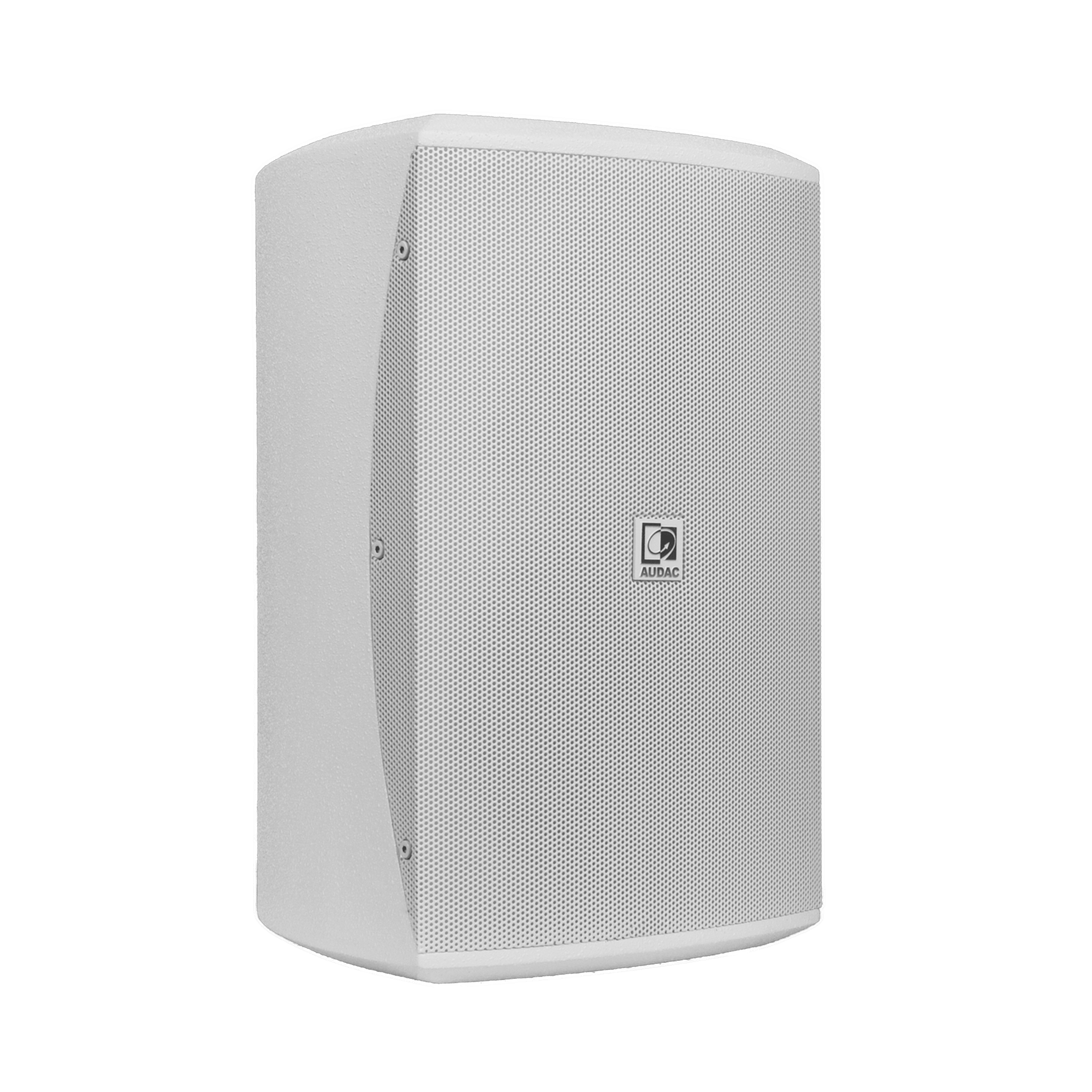

The XENO8 is the 8” version, with a 1” dome tweeter and an 8” Mid /Low-frequency driver, ensuring a true-to-nature, high-fidelity reproduction of music and speech. This wooden cabinet is fitted with a slim and elegant front grill. This makes the loudspeaker suitable for environments where the music is the key element, but without making any compromises on its design. This ranges from modern and trendy clubs to pubs and dance bars where that little extra punch and depth in the music is appreciated.

The sleek and elegant design guarantees the loudspeaker to blend in with any environment. It delivers a powerful full-range sound with an RMS rating of 120 Watt and a maximum of 240 Watt. The advanced integrated protection circuit avoids tweeter damaging when an overload occurs.

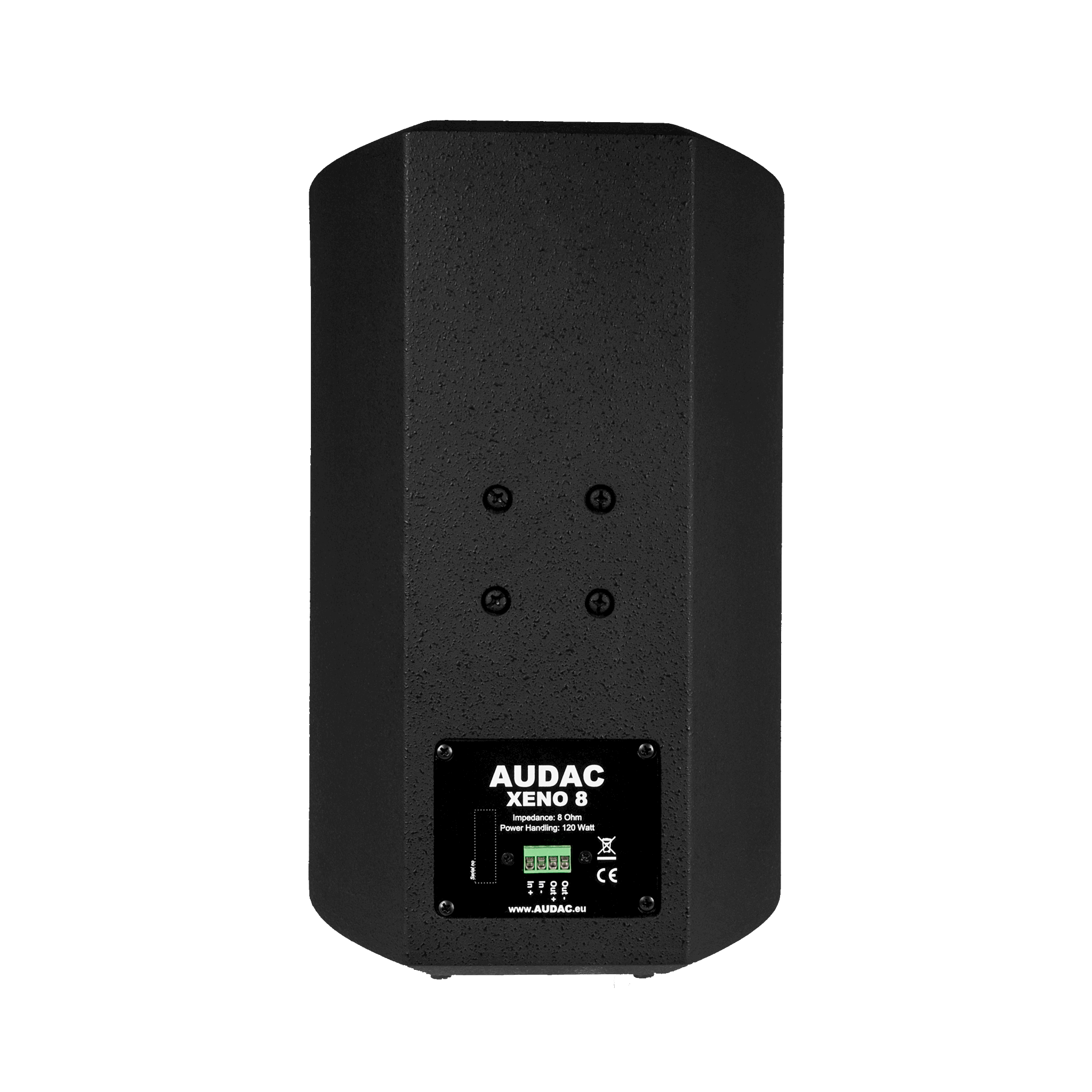

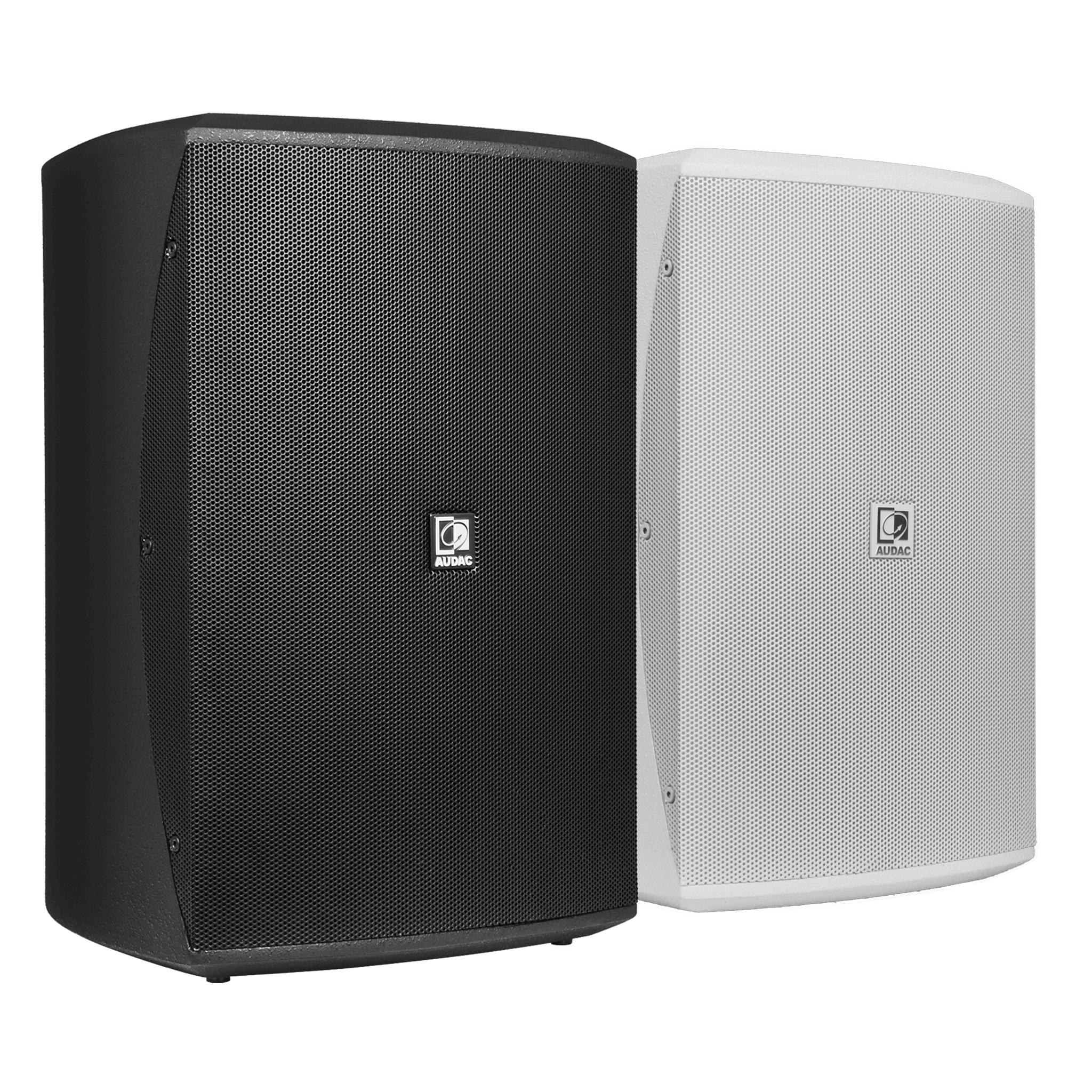

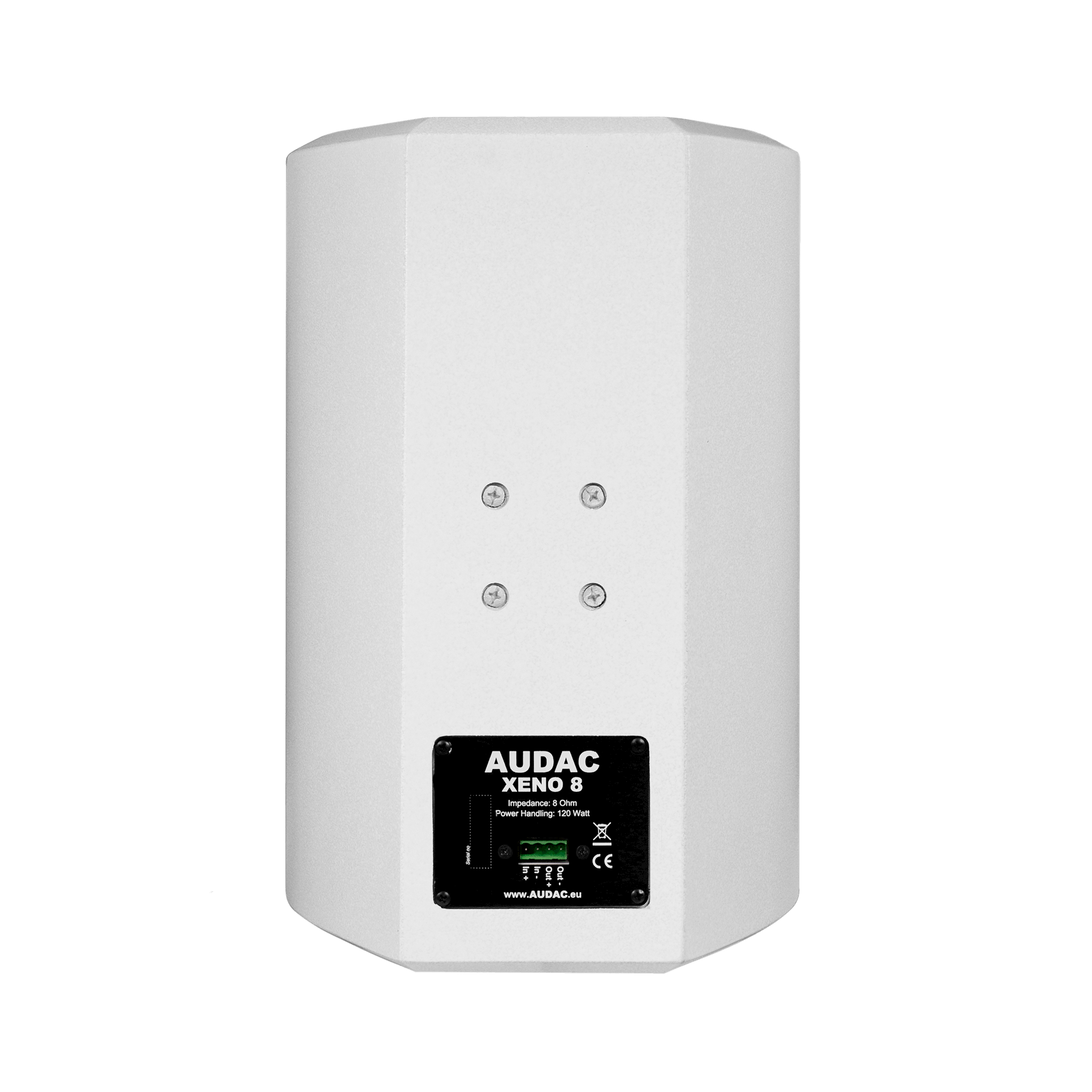

The included mounting bracket makes it possible to mount the loudspeaker in both horizontal and vertical position, up to 20°, making it suitable for every application. The connections can be made on the rear side of the loudspeaker with a Euro Terminal block connector. Ships with 2mm safety cable with a PVC jacket. All XENO series speakers are available in black (/B), white (/W) or creme (/C)

Product Details

Vertical and horizontal mounting (rotatable logo)
Zinc alloy mounting bracket included
Terminal block connection
1" Dome tweeter
8" Low frequency loudspeaker

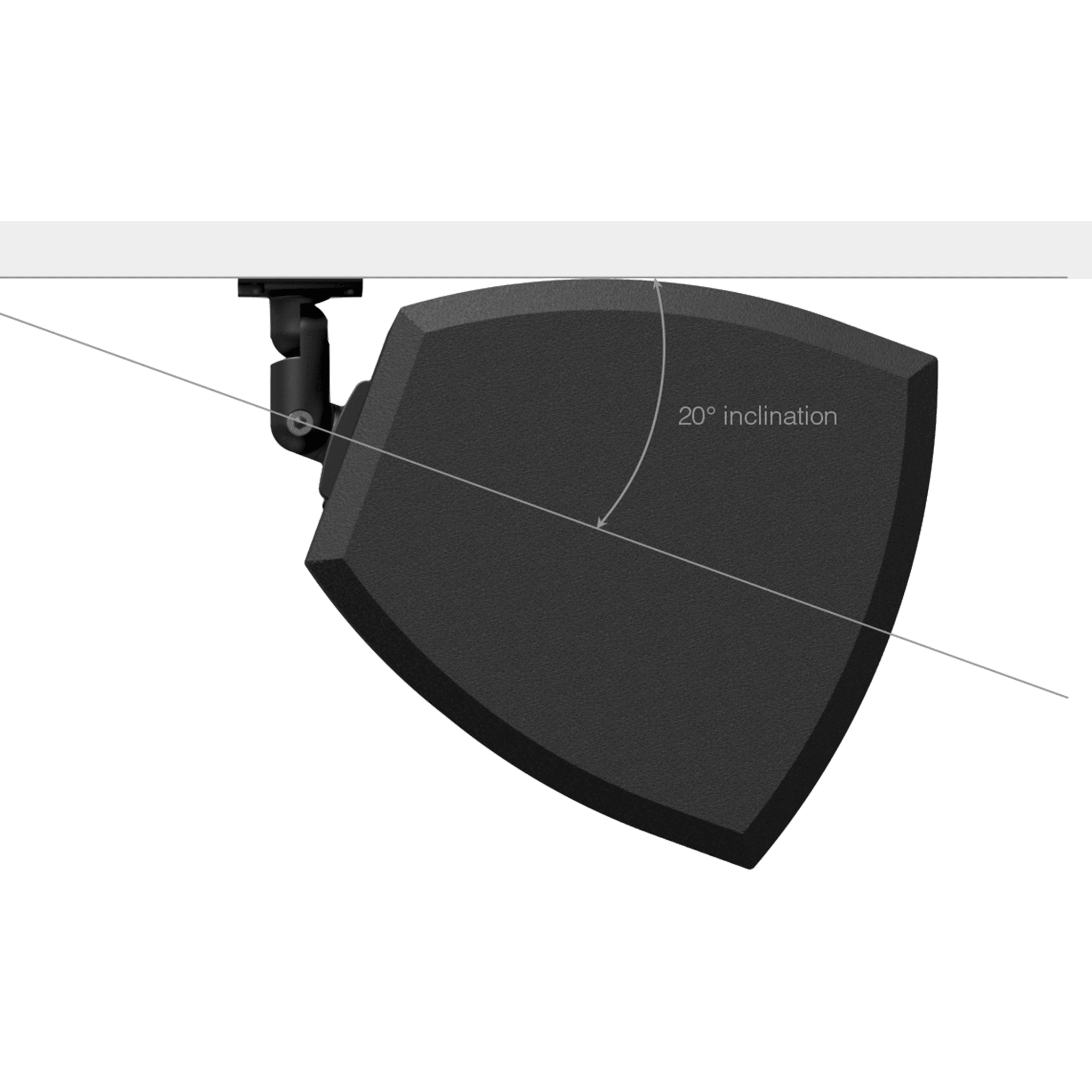

20° incline angle
Colors: Black (RAL9004), White (RAL9003), Creme

2-way

240 W

120 W

8 Ω

89 dB

110 dB

60 Hz - 18 kHz

50 Hz - 20 kHz

2.5 kHz

Passive built-in

Horizontal: 120°, Vertical: 120°

4-pin Euroblock

1" Dome tweeter, 8" MF / LF Woofer

250 x 380 x 262 mm (W x H x D)

7.8 kg

-20 °C - 60 °C

Medium Density Fibreboard with structured coating

Steel grill

2-way Revolving mounting bracket

Black (RAL9004) (XENO8/B), White (RAL9003) (XENO8/W), Creme (XENO8/C)

4-pin Euroblock, 2-way Revolving mounting bracket

Related Products

PROCAB

CLA530

Loudspeaker cable - terminal block - terminal block (2p-5.08mm)

+4 Variants

PROCAB

CLA530

This cable is especially designed for time-saving purposes when wiring-up equipment racks for complex installations. The connectors are fitted with a grip for easy plugging and unplugging which acts at the same time as a strain relief. The cable is on both sides terminated with a 2-pin Terminal Block connector with a pitch of 5.08 mm and has a conductor section of 2 x 1mm². This makes it suitable for many interconnections between devices such as Amplifiers and Matrix systems to Output Transformer Modules. Some examples of equipment using this kind of connections are the preamplifiers and amplifiers from the audio brand AUDAC.

Length: 0,5 m

Length

0,5 m

1 m

1,5 m

2 m

Accessories

AUDAC

WBP100/B

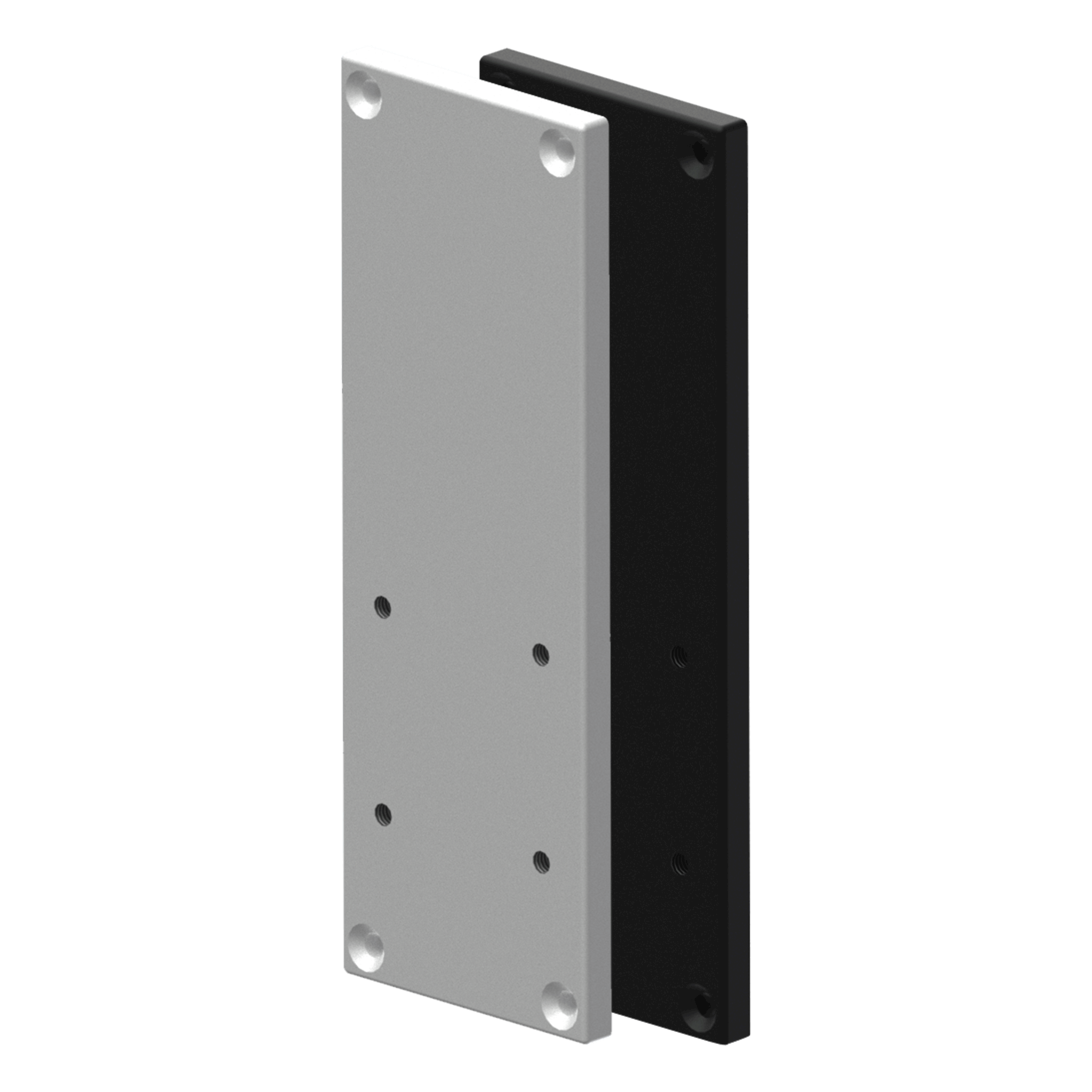

Wall bracket plate for XENO/VEXO speaker, black
