Cloud Electronics is a solely-owned British company based in Sheffield that designs, engineers and manufactures high- quality audio mixers, zoners, multi-channel amplifiers, and headphone distribution systems including the DCM-1 Digitally Controlled Mixer and the renowned VTX series of amplifiers. The company’s commercial audio products are designed with installation applications in mind and all are built and tested to the most exacting professional standards, to ensure outstanding reliability and consistent performance. Cloud Electronics products are distributed worldwide under the “Cloud” Brand.

Overview

4 Zone Integrated Mixer Amplifier

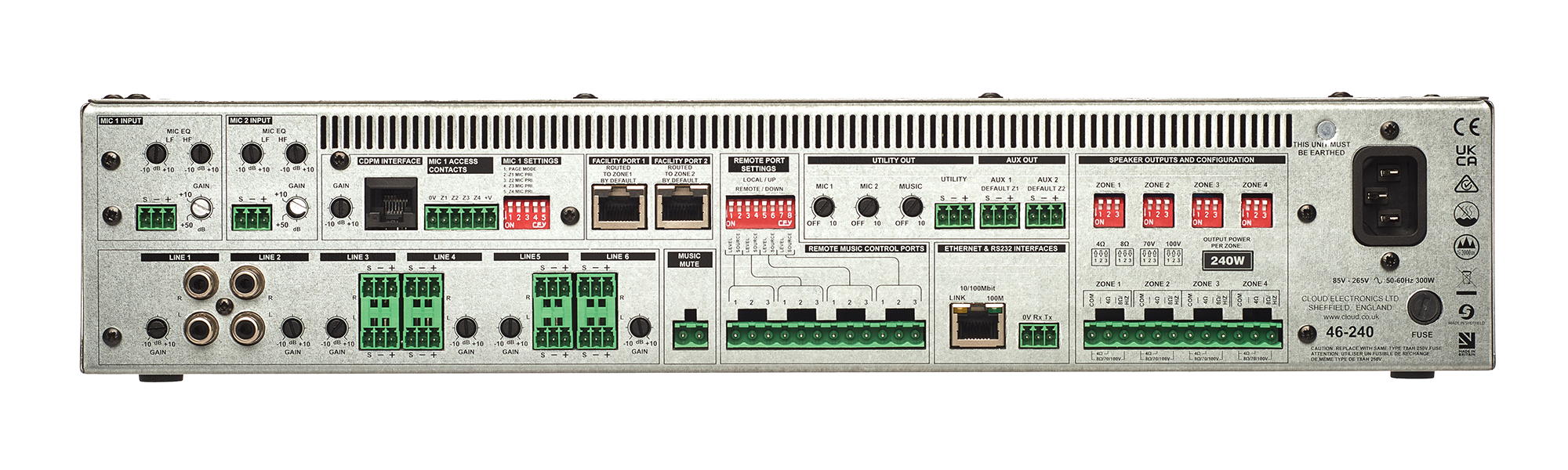

The Cloud 46-120MK2 & 46-240 are versatile four-zone, rack-mounting (2U) audio mixer amplifiers. Designed and built to Cloud's respected standards, the 46 Series of mixer amplifiers are durable, robust and feature rich. It is ideal for any application where a powerful and versatile multi-zone mixer amplifier is required such as pubs, restaurants, bars, clubs and other entertainment locations, and also leisure and fitness centres, shops, offices, hotels, etc.

Product Details

4 x 120W or 4 x 240W Class-D Output per zone (4O/8O/70V/100V).
Power Sharing on 4x120W Model in 70/100V modes.
Limiters on each Zone plus Thermal/Short Protection.
6 Stereo Line-Inputs (4 Balanced).
2 Microphone Inputs with Priority Option.
Utility Output with Mic & Music Gain Control.
Remote Music Level and Source Selection
2 x Facility Inputs for Zone1 (Z1&Z3 or ALL) & Zone2 (Z2&Z4).
Ethernet & RS232 Port.
2 Aux Outputs, Zone assignable (Z1 + Z2).
Auto Stand-By Mode Function.
Digital Paging Interface for Digital PM Paging Microphones.
Remote Music Mute (NO or NC operation)for Fire Alarm Interface.
Efficient, Universal Power Supply.

Line inputs

20 Hz to 20 kHz ±1 dB

195 mV (-12 dBu) to 2.0 V (+8 dBu)

>10 kOhm

12 dB

< -90 dB; (22 kHz bandwidth)

HF: ±10 dB / 10 kHz; LF: ±10dB / 50 Hz

Microphone inputs

100 Hz -3 dB (HP filter) to 20 kHz ±1 dB

10 dB to 50 dB

3.3 kOhm (balanced)

18 dB

< -126 dBu

HF: ±10 dB / 5 kHz LF: ±10 dB / 100 Hz

Outputs

240 W / 100V

20 Hz to 20 kHz, ±1 dB

< 0.05% / 1 kHz

20.5 Ohm / 70 V, 33 Ohm / 100 V

20 Hz to 20 kHz, ±1 dB / 65 Hz (filter

Limiter with fixed threshold, DC overcurrent and overtemperature protection. Internal and external 20 mm cartridge fuses

Fan

General

Universal. 85 to 265 VAC, 45 to 65 Hz

9.7 W (stand-by), 309.90 W (max)

482.6 mm (19") x 88 mm (2U) x 407 mm

7.1 kg

Related Products

Cloud Electronics

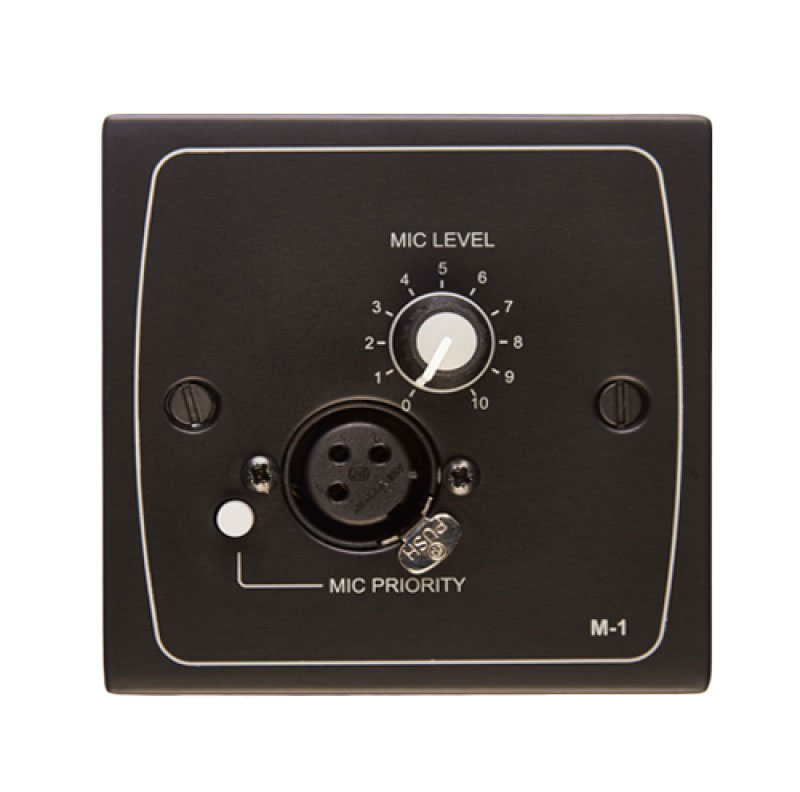

M-1

Remote Mic Input Module

+2 Variants

Cloud Electronics

M-1

The M-1 is an Active Microphone Input Plate allowing for easy connection of a single Microphone within a remote Zone. The M-1 works with any Cloud product supporting a FACILITY PORT connector(Z-Series (MK2, MK3, MK4), 46-120-Series, 46-50, 46-80, MPA120MKll, MPA240MKll & select MA40/MA80 Mini Amps). Can be used with FPA-1 Adaptor if Facility Port connector is not available. The M-1 is a cut-down derivative of the LM-2 Mic/Line Active Input Plate and is regularly used for presentations in seminar and conference suites, hotel ballrooms, multipurpose hospitality application, outdoor events, health and fitness application or lecturers in a classroom situation. With a working range of 1 km via CAT5/6 cable, it provides balanced Mic source from almost anywhere.

Color: Black

Color

Cloud Electronics

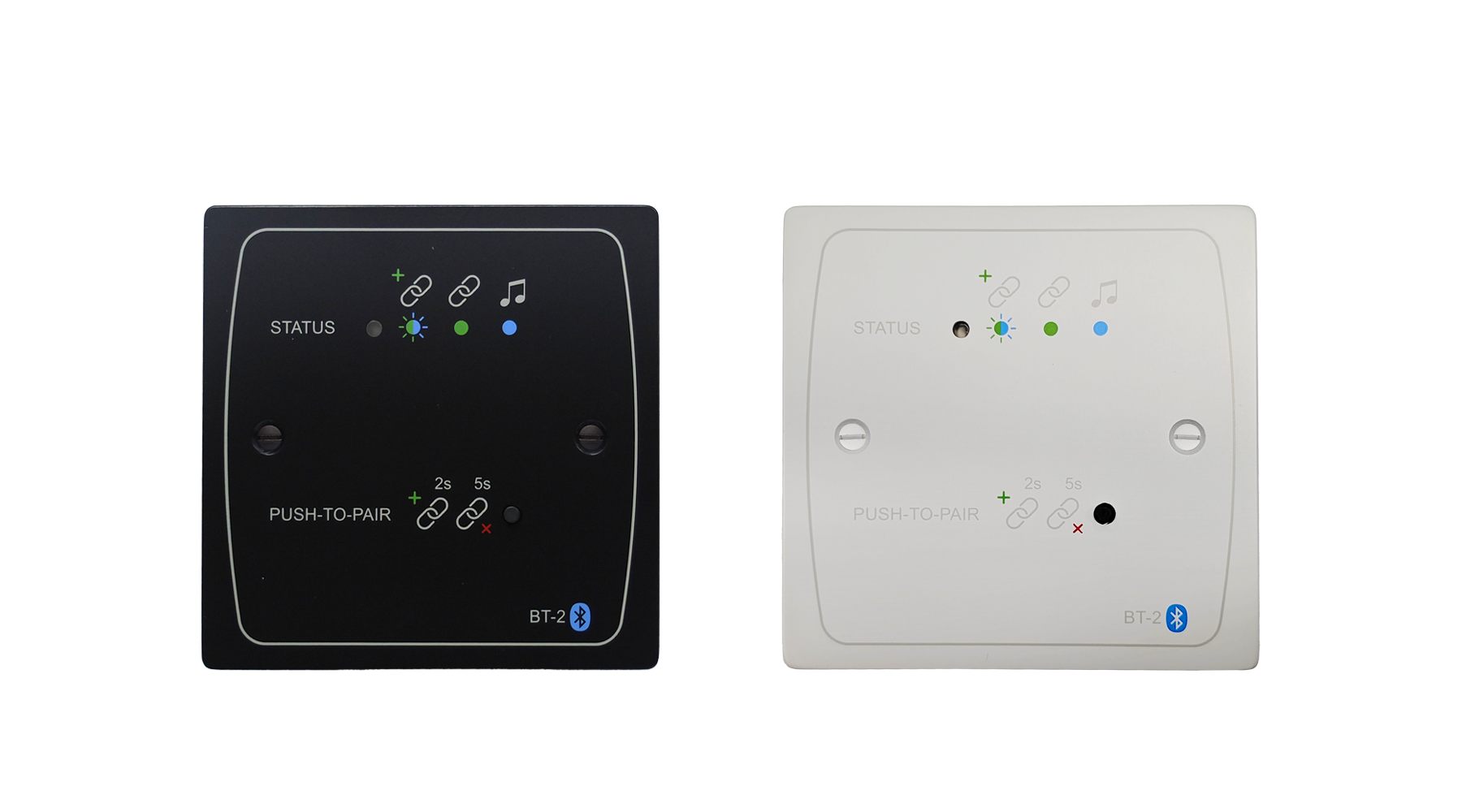

BT-2F

Bluetooth wall-mounting remote input module for Cloud Devices with FacilityPort

+2 Variants

Cloud Electronics

BT-2F

BT-2F is a wall-mounting remote input module for use with Cloud products fitted with an RJ45 Facility Port. The BT-2 enables compatible portable devices such as laptops, tablets and smartphones to stream audio wirelessly into the installed zone. The BT-2 is exceptionally simple to install; the rear RJ45 connector is wired to one of the host unit’s Facility Ports with a single screened Cat 5 cable using standard shielded RJ45 connectors at each end. The Cat 5 cable carries DC power as well as balanced audio. The BT-2 will route a mono sum (L+R) of the streamed audio to the host unit and is compatible with the following Cloud products which are fitted with RJ45 Facility Ports: Z4MK4 & Z8MK4 Zone Mixers 46-120MK2 & 46-240 Zone Mixing Amplifiers MA40F, MA40T and MA40E Mini Amplifiers MA80FT and MA80E Mini Amplifiers 46-80 and 46-80T Zone Mixing Amplifiers MPA120MK2 & MPA240MK2 24-120 & 24-240 Zone Mixing Amplifiers If you do not wish the BT-2F to function as a single-zone priority input, you can use an FPA-1 adaptor to configure it as a global line input. This provides additional flexibility, allowing it to serve as a priority line input across multiple zones, depending on the headend functionality. For products not equipped with a Facility Port connector, an FPA-1 adaptor can be used per zone.

Color: Black

Color

productBadge.normal

Cloud Electronics

L-1

Active Remote Line Input Module

+2 Variants

productBadge.normal

Cloud Electronics

L-1

The L-1 is an Active Line Input Plate allowing for easy connection of a single Line Input within a remote Zone. The L-1 works with any Cloud product supporting a FACILITY PORT connector (Z-Series (MK2, MK3, MK4), 46-120-Series, 46-50, 46-80, MPA120MKll, MPA240MKll & select MA40/MA80 Mini Amps). Can be used with FPA-1 Adaptor if Facility Port connector is not available. The L-1 is a cut-down derivative of the LM-2 Mic/Line Active Input Plate and is regularly used for presentations in seminar and conference suites, hotel ballrooms, multipurpose hospitality application, outdoor events, health and fitness application or lecturers in a classroom situation. With a working range of 1 km via CAT5/6 cable, it provides balanced Line source from almost anywhere.

Color: Black

Color

productBadge.normal

Cloud Electronics

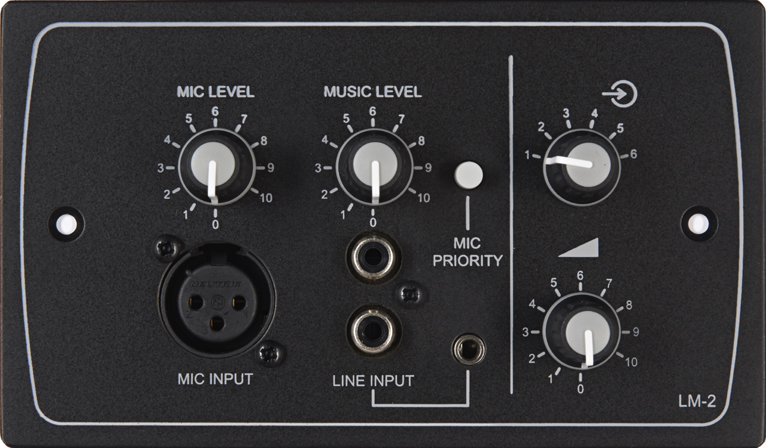

LM-2D
