CS-CSUB8
Art.-Nr.: CS-CSUB8B
Color: Black
Request now Project consulting

Cloud Electronics is a solely-owned British company based in Sheffield that designs, engineers and manufactures high- quality audio mixers, zoners, multi-channel amplifiers, and headphone distribution systems including the DCM-1 Digitally Controlled Mixer and the renowned VTX series of amplifiers. The company’s commercial audio products are designed with installation applications in mind and all are built and tested to the most exacting professional standards, to ensure outstanding reliability and consistent performance. Cloud Electronics products are distributed worldwide under the “Cloud” Brand.

Overview

100 V / 8” 100 W In-Ceiling Subwoofer

The Cloud CS-CSUB8 is an 8 inch in-ceiling subwoofer featuring deep bass and exceptional musical performance. Using premium drivers and electronics, the CS-CSUB8 offers excellent low frequency reinforcement. The 8.0 inch woofer incorporates a large magnet structure, a treated paper cone, and a butyl rubber surround for lasting, low distortion performance. The included 100 W transformer provides plenty of power for even high SPL applications.

The CS-CSUB8 incorporates several innovative features that make it a truly remarkable speaker. The ZeroEdge™ grille is magnetically attached for easy installation, and features a completely seamless transition from grille to ceiling. The entire CS-C series of speakers uses the same diameter back can which simplifies installation, and inventory management with only one size hole to cut, one size grille to install, and one size tile bridge to bring to the job site.

Product Details

  • 8” in-ceiling subwoofer
  • Frequency response 74 - 200 Hz.
  • Premium drivers and electronics for exceptional sound quality and intelligibility

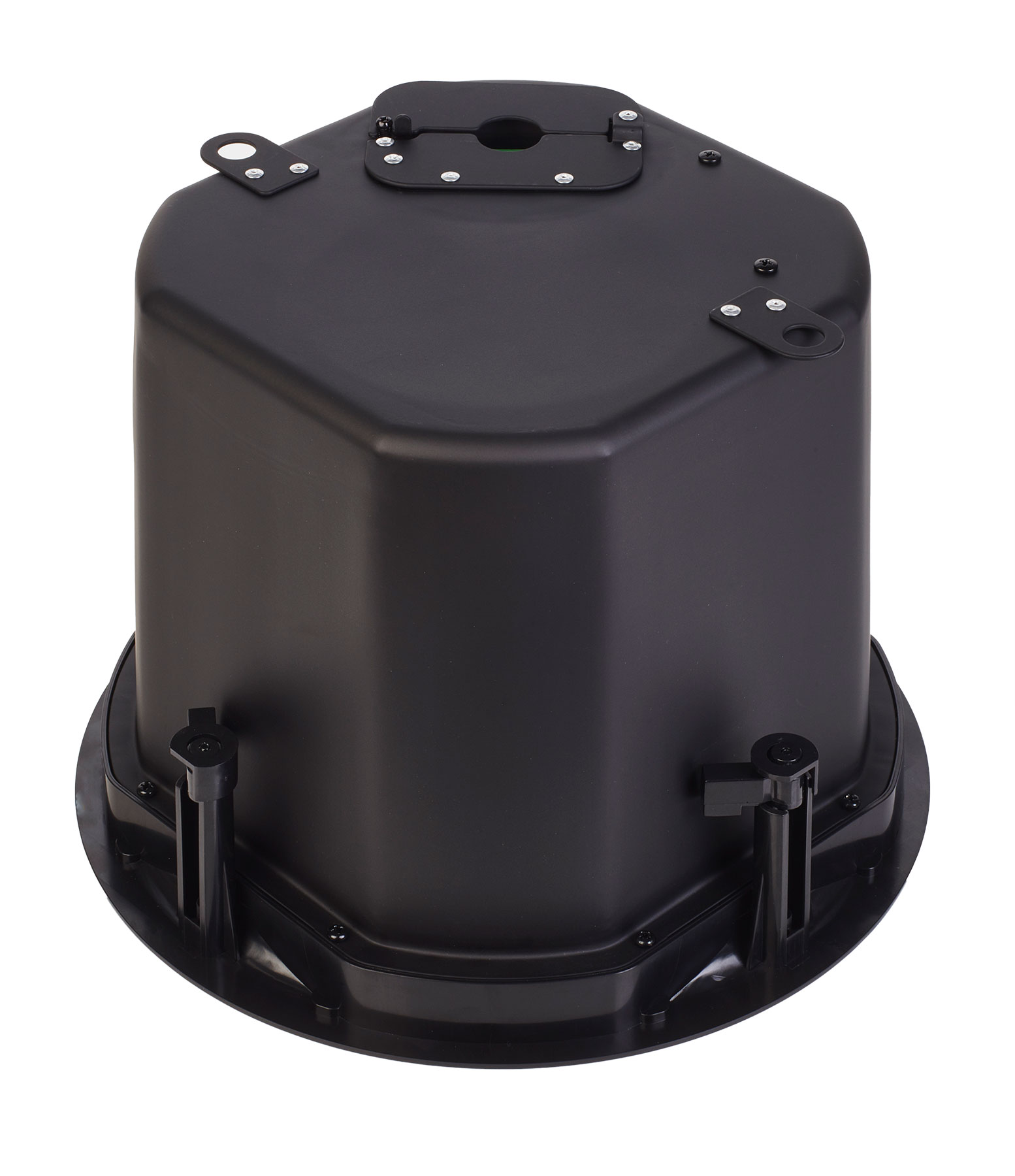

  • Deep steel backcan design

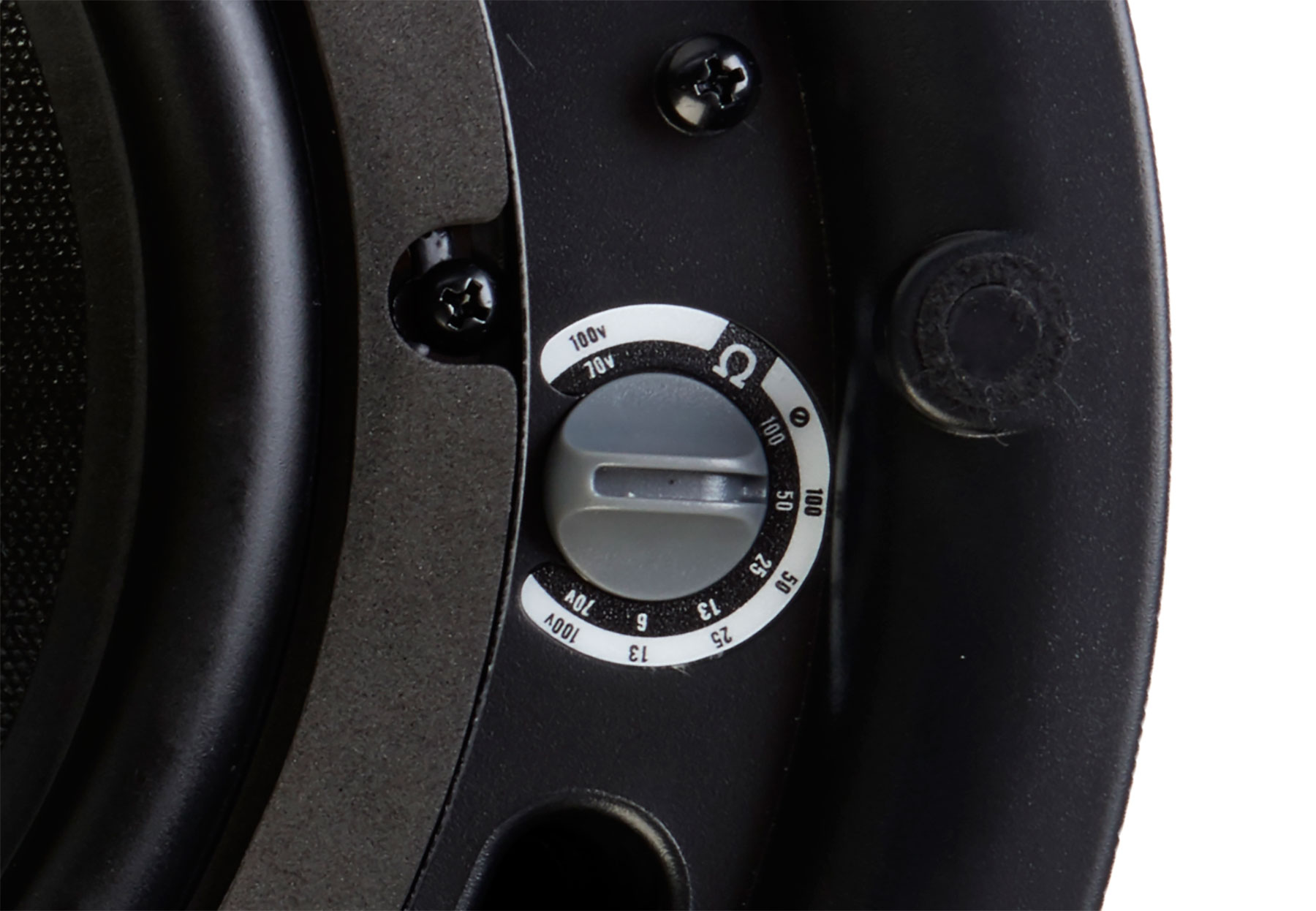

  • Accessible high-impedance or low impedance switch settings.
  • Magnetic ZeroEdge™ grille with removable badge for discrete use.
  • 100, 50W, 25W, 13W @ 100 V or 100W @4Ω
  • 8 Woofer
  • Nominal SPL: 87dB@1mt Max SPL: 107db@1mt.
  • Optional tile bridge.

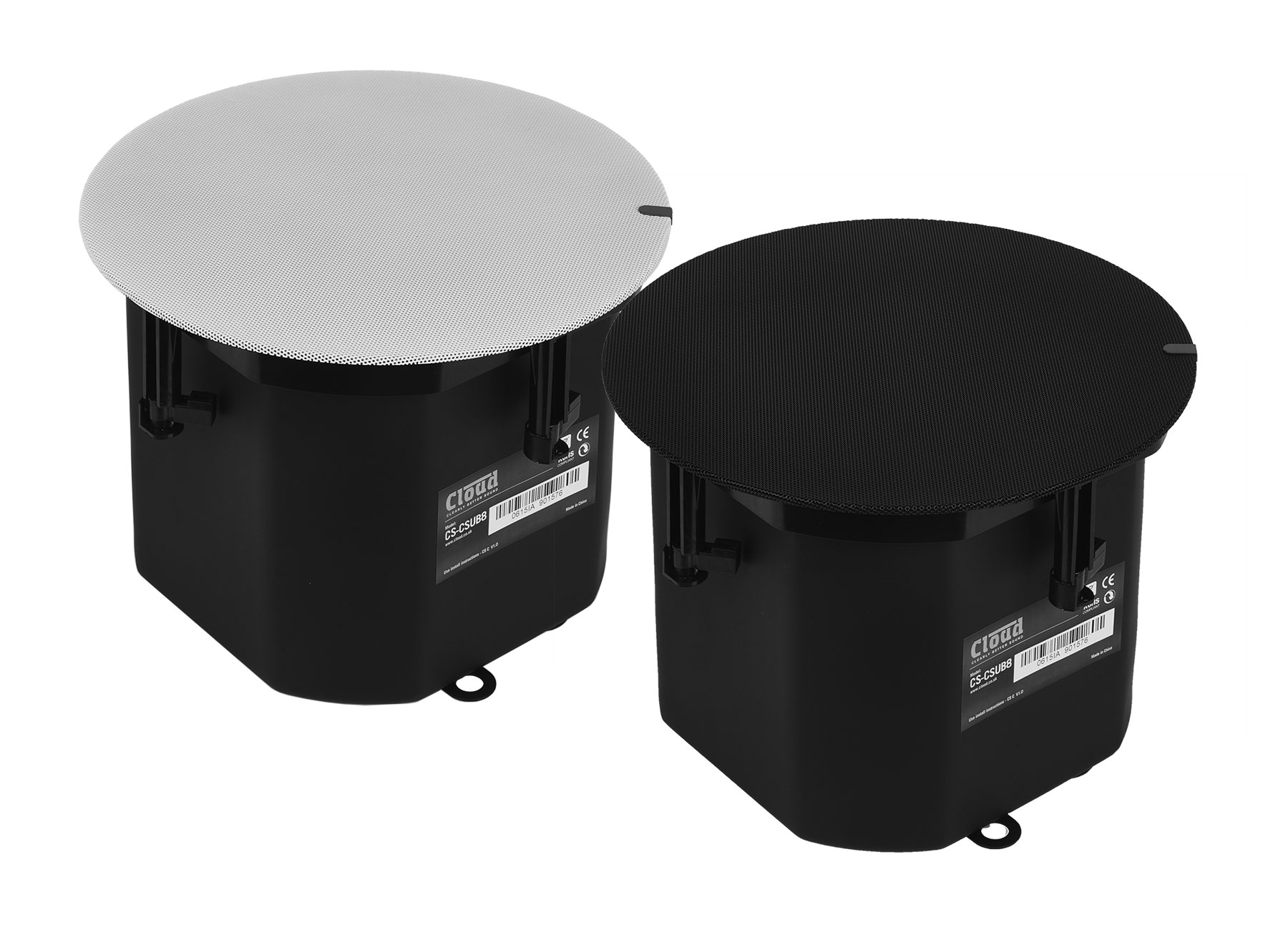

  • Grill colors: black, white
Frequency response
74 - 200 Hz
Impedance
4 ohm
Sensitivity (1 W/1 m)
87 dB
Power handling
100 W
SPL (max)
107 dB
Transformer taps (100 V)
100, 50, 25, 13 W + (70 V) 7 W
Woofer
8 inch treated paper with rubber surround
Input
4 pin Euroblock
Included accessories
Input cover plate, male Euroblock
Dimensions (D x H)
289,3 x 213 mm, Cutout 264 mm
Weight
3,7 kg
