CS-S10T | Black | CS-S10TB

CS-S10T

Art.-Nr.: CS-S10TB

Color: Black

Cloud Electronics is a solely-owned British company based in Sheffield that designs, engineers and manufactures high- quality audio mixers, zoners, multi-channel amplifiers, and headphone distribution systems including the DCM-1 Digitally Controlled Mixer and the renowned VTX series of amplifiers. The company’s commercial audio products are designed with installation applications in mind and all are built and tested to the most exacting professional standards, to ensure outstanding reliability and consistent performance. Cloud Electronics products are distributed worldwide under the “Cloud” Brand.

Overview

10" Passive 100V Surface Speaker Black or White

The Cloud CS-S10T is the Hi-Z 70/100V version of the CS-S Series of high quality 2-way loudspeakers for internal or external fixed installation in leisure and hospitality venues. They are an excellent choice to produce a “front of house” sound when higher levels and better quality musical reproduction is needed than can be achieved with typical small background music speakers.

Cloud Electronics innovative 10-inch surface mount speakers are a unique product perfect for numerous applications. The chassis is made of LLDPE (Linear low-density polyethylene) making it robust, lightweight and fully recyclable and ideal for outdoor as well as indoor use.

There are 4 variants of the CS-S10T in two colours:
CS-S10 - 8Ω Passive
CS-S10T - 70/100v
CS-S10A - Active
CS-S10AD - Active Dante

Product Details

10" Woofer (Paper Treated with Cloth Treated Surround)
1" Exit Compression Drive
Dual Concentric Design
100v - 100W/50W/25W/OFF or 8ohm
8Ω Impedance - 250w Continues Power / 375w Peak Power
93 dB Sensitivity (1w/1mt) / 118.5 dB Max SPL
Integrated 1.375" Pole Mount cup and flat ends
M6 Mounting Points for 3rd Party Brackets
Safety Cable fixing point for Carbine Hooks
Optional U-Bracket (CS-BRK810) Black or White, Powder Coated Steel
Optional IP66 Plate (CS-IP66) Black or White, Powder Coated Aluminium

75 Hz - 20 kHz (-3 dB), 60 Hz - 20 kHz (-10 dB)

118,5 dB

93 dB

200 W

100 W, 50 W, 25 W

95°

1" compression driver

10" coaxial driver made of coated paper with fabric surround

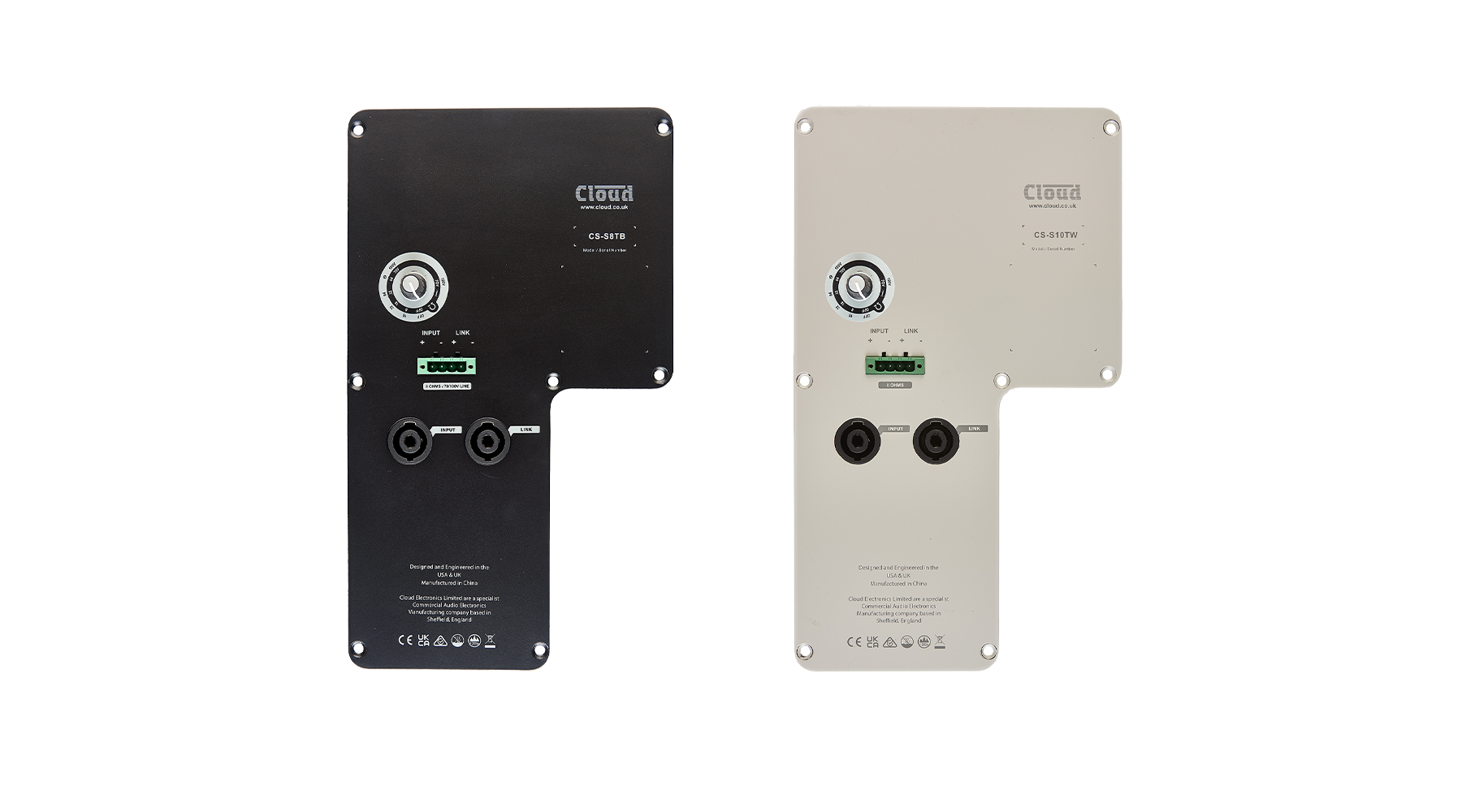

Neutrik® Speakon, 4-pin Euroblock

Euroblock connector

429 x 318 x 280 mm

11.37 kg

Black RAL 9011, White RAL 9003
