E6LX-176 | 4935-01335-00

productBadge.normal

E6LX-176

Art.-Nr.: 4935-01335-00

Request now

Rental Pool

VENUE is a revolutionary line of digital live sound systems that deliver amazing sound quality, reliability, flexibility, and ease-of-use. Designed with direct input from leading mix engineers, VENUE brings innovation and intuitive workflows to live mixing, answering the complexities of today’s live sound applications while empowering efficiency and creativity. From studiograde plug-in processing support and seamless Pro Tools® integration to customizable options that fit a variety of interface needs, VENUE is shaping the future of live sound, and is the choice for concert tours, clubs, houses of worship, theaters, and broadcast events.

Overview

Engine

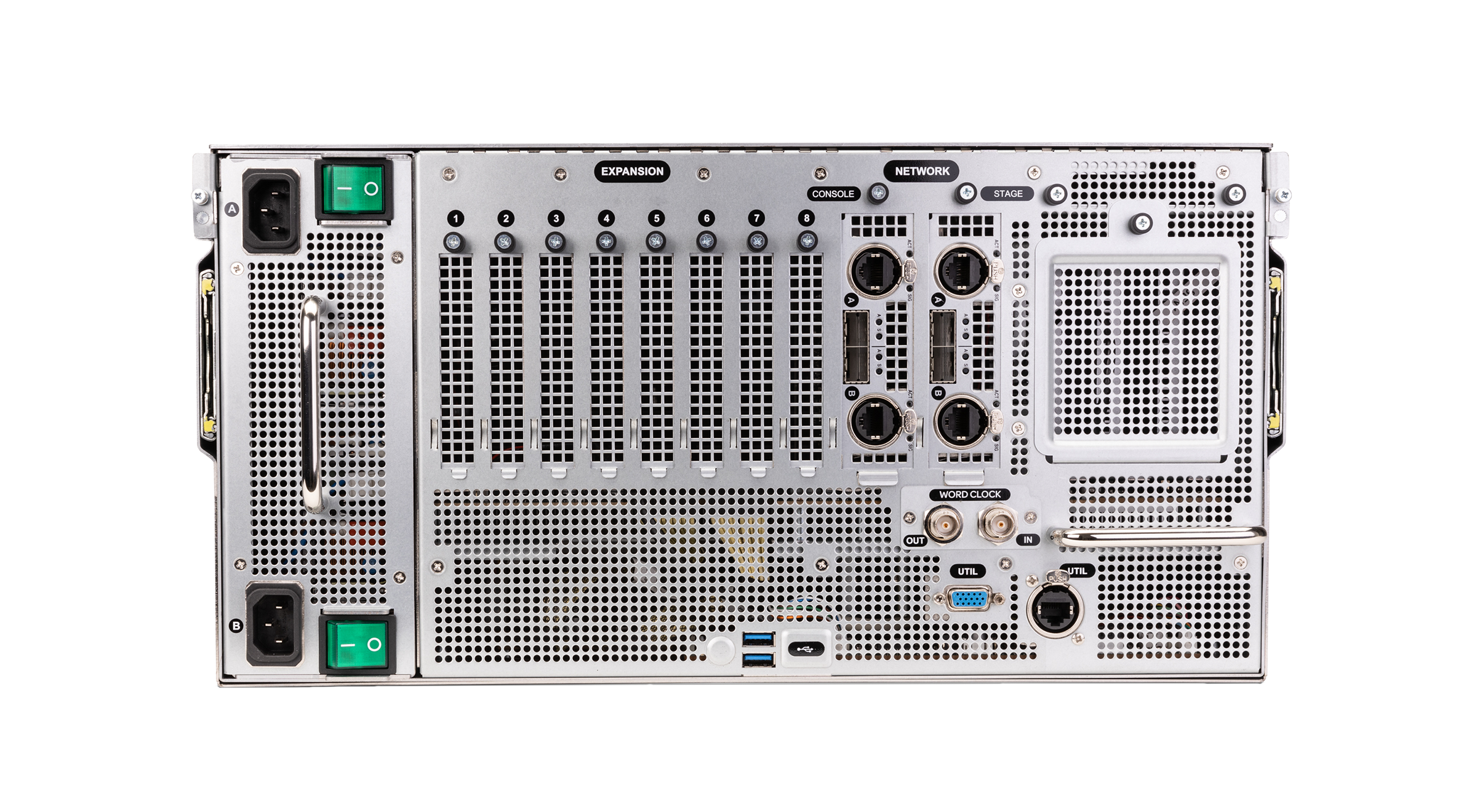

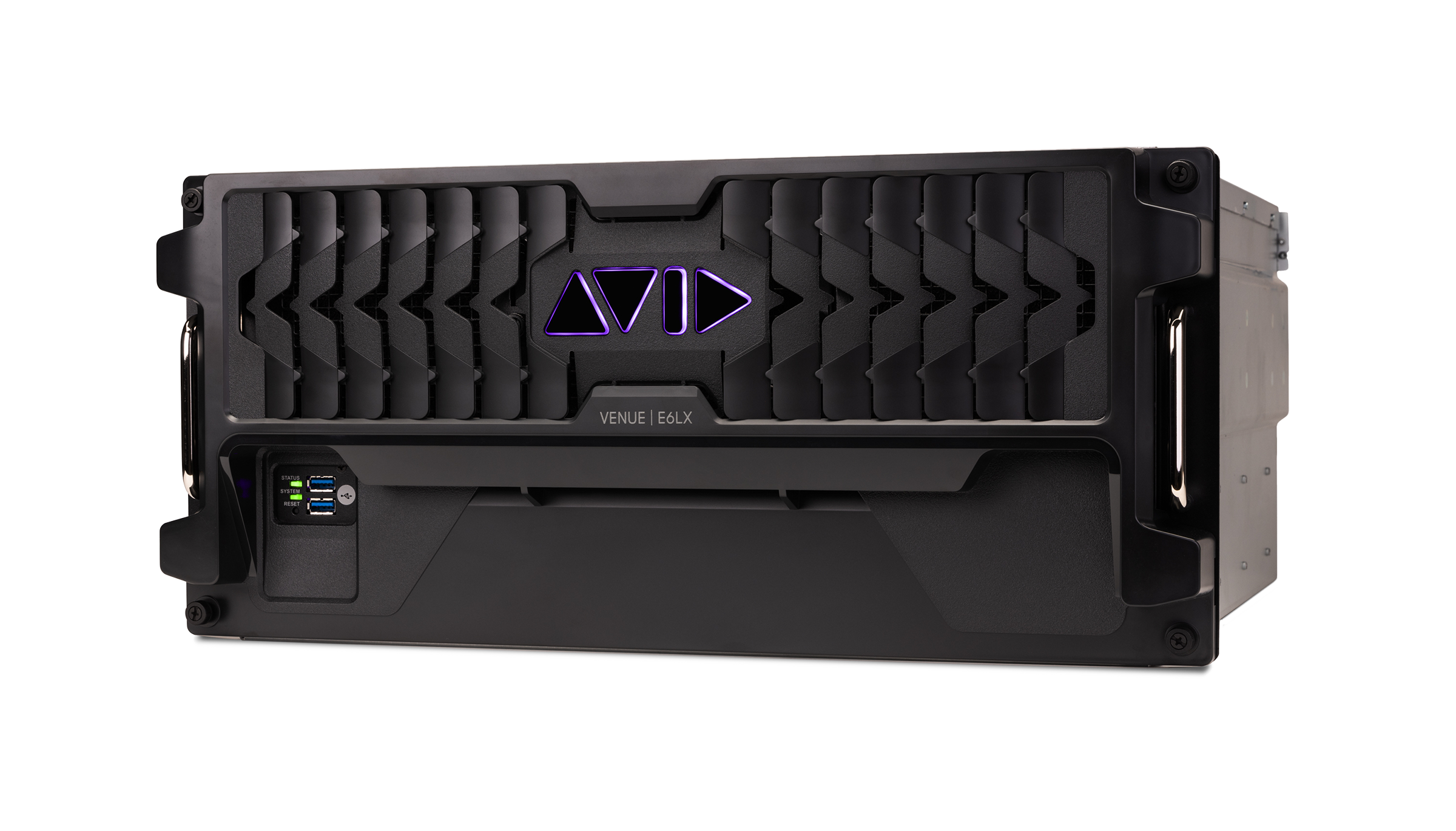

E6LX-176 digital audio engine as the central signal and control element. The audio engine manages all processing, audio and data traffic and serves as a coupling point between the control surface and the stageracks.

Product Details

5U rackmount engine, 176 input channels, 96 mix busses + LCR, 96 kHz
2x Ethernet AVB-192 cards pre-installed, redundant power supplies
Incl. 3 years Avid Advantage Elite Live Support
E6L Gen. 3
Largest number of manageable option cards in the S6L system

96 kHz

176

96 + LCR

32 x 32

2 x with independent control

31-band

1 x HDX-192 DSP card (expandable up to 4)

64-bit AX DSP

400

Record/playback of up to 128 tracks via Ethernet AVB

HEAT, HPF, LPF, 4-band PEQ, expander/gate, compressor/limiter, delay, 4 plug-in inserts, hardware insert

7-band PEQ, compressor/limiter, delay, 4 plug-in inserts, hardware insert

2 x 2 either copper (etherCON) or fibre (SFP); redundant ring topology; supports Luminex GigaCore AVB switches for redundant star configuration (VENUE 7: 26i, 10; VENUE 8: 30i, 18t)

BNC, 75 Ohm coaxial

5 USB 2.0 ports (2 front, 2 rear, 1 internal)

8 PCIe

Dual redundant, interal

483 mm x 218 mm x 537 mm

28,6 kg
