It is what we experience through the senses that makes life meaningful. In fact, it can be said that through the qualities in speech and music we experience, we become familiar with the higher values of life. This is just one of the reasons why at AUDAC you will find a passion for sound. Each speaker, audio matrix or amplifier solution we develop expresses that same inspiration and quality that exceeds users’ expectations, making it no coincidence our success results from exploring new methods and ideas beyond conventional boundaries.

Overview

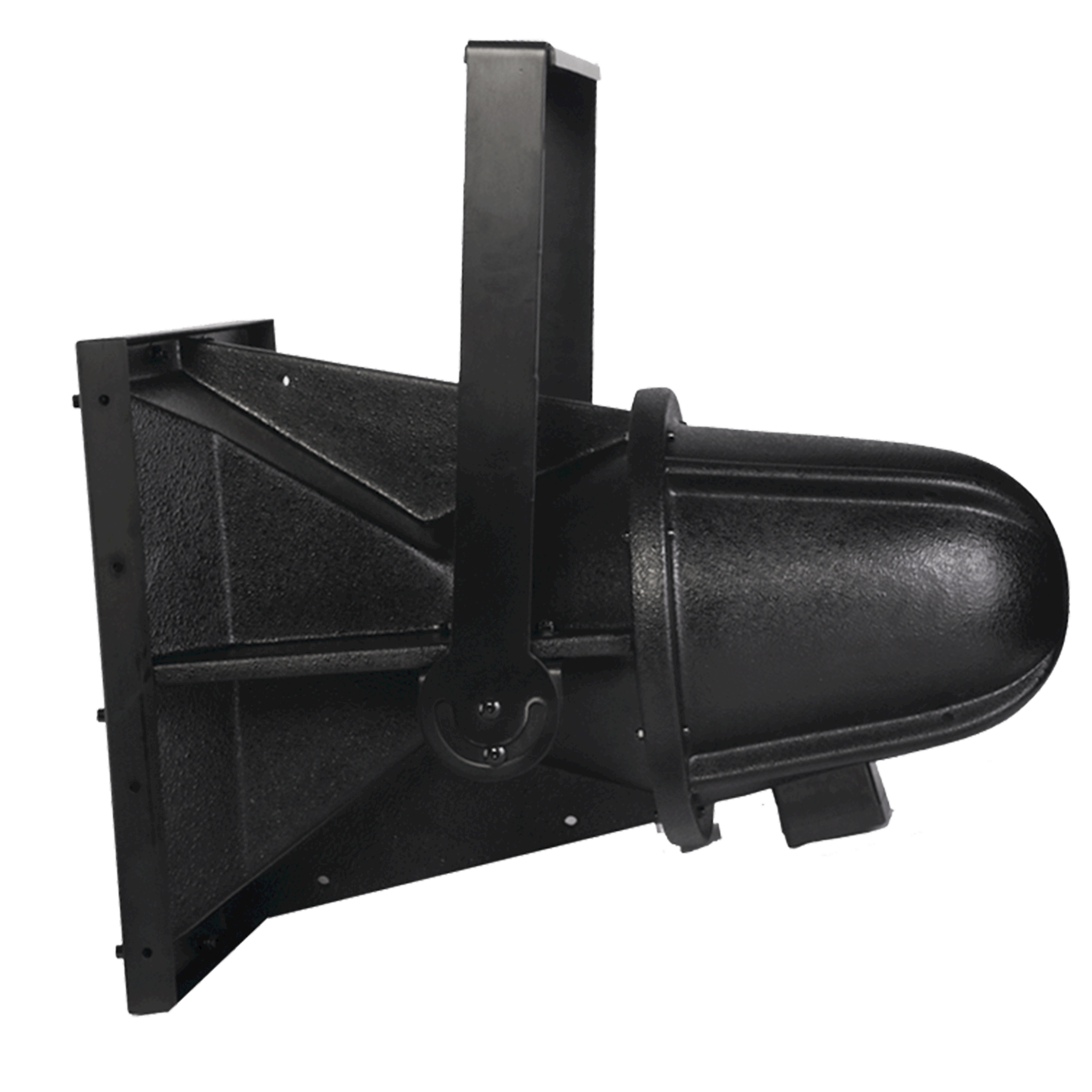

2-way horn speaker 12", 8 ohms

The AUDAC HS212T is a full-range loudspeaker system engineered to provide long throw, full range sound projection in a variety of fixed in- and outdoor applications. Its wide, smooth frequency response and high efficiency ensure high-fidelity music reproduction along with superb projection of clear, intelligible speech at very low distortion. The HS212T features a 1,8" HF driver with an 12" LF loudspeaker combination for the best sound reproduction and has a very special coverage pattern of 40° horizontally and vertically. HS212 is available with 8 ohms low impdance or with an 100 V Transformer (HS212T). The HS212T contains the possibility to choose from power tapping for: - 240 Watt, 120 Watt, 60 Watt @ 100V - 8 Ohm impedance. The construction of the HS212 is made of polyester with textured EDPM black coating and a perforated aluminum grill front finish. Behind the aluminum grill, there’s an acoustic foam assembled, which prevents rain coming into the speaker. Due to an Ingress Protection rating (IP) of 54 (HS212) and 65 (HS212T), this speaker is suitable for any environment where humidity or moisture are present. At the rear, you’ll find cable clamps to select the line transformator as desired (HS212T) or two speakon connectors (HS212). The cable clamps are shielded to obstruct moisture and humidity.

Product Details

Ingress protection IP54 (HS212), IP65 (HS212T)
12" high output woofer, 1.8" Compression driver
Available with 8 ohms or a multi-tapping 100V line transformer
Multi-Layer glass composite material with textured EPDM black coating
Weatherproof speakON connector (HS212)
Barrier terminal block in waterproof connection box (HS212T)
Color: black

2-way horn speaker

700 W

350 W

8 Ω

240 W / 42 Ω, 120 W / 83 Ω, 60 W / 167 Ω

95 dB

125 dB

80 Hz - 18 kHz

65 Hz - 20 kHz

1.5 kHz

Passive built-in

Horizontal 40°, Vertical: 40°

IP54 (HS212), IP65 (HS212T)

2 x heavy-duty SpeakON NLT4MPBAG (linkthrough)(HS208), Barrier terminal block in waterproof connection box (HS208T)

HF: 1.8" Compression driver, MF/LF: 12"

508 x 508 x 732 mm (W x H x D)

30.8 kg

Multi-Layer glass composite material with textured EPDM black coating

Powdercoated aluminium with lining

Mounting bracket fixing holes

Accessories

productBadge.normal

AUDAC

MBK212MK2/B

Mounting bracket for HS212MK2 and HS212T

productBadge.normal

AUDAC

MBK212MK2/B

The MBK2xx mounting brackets are especially designed for mounting the HS series 2-Way Horn speakers. Using these mounting brackets, these horn speakers can be mounted on any ceiling, pole or other position, while aiming the loudspeakers into the desired direction. They are constructed of steel with a thickness of 4 mm containing a zinc-plated finish preventing oxidation, while the U-shaped profile of the base increases the stability of the speakers. The bracket comes with the necessary parts, such as bolts, nuts, washers and speaker attachments ensuring safe and secure mounting.
