The MBK2xx mounting brackets are especially designed for mounting the HS series 2-Way Horn speakers. Using these mounting brackets, these horn speakers can be mounted on any ceiling, pole or other position, while aiming the loudspeakers into the desired direction. They are constructed of steel with a thickness of 4 mm containing a zinc-plated finish preventing oxidation, while the U-shaped profile of the base increases the stability of the speakers. The bracket comes with the necessary parts, such as bolts, nuts, washers and speaker attachments ensuring safe and secure mounting.
Product Details
Mounting bracket for HS series
Rough zinc plated steel construktion
Dimensions(W x H x D)
328 x 447.5 x 108 mm (MBK208), 423 x 567.5 x 108 mm (MBK212)

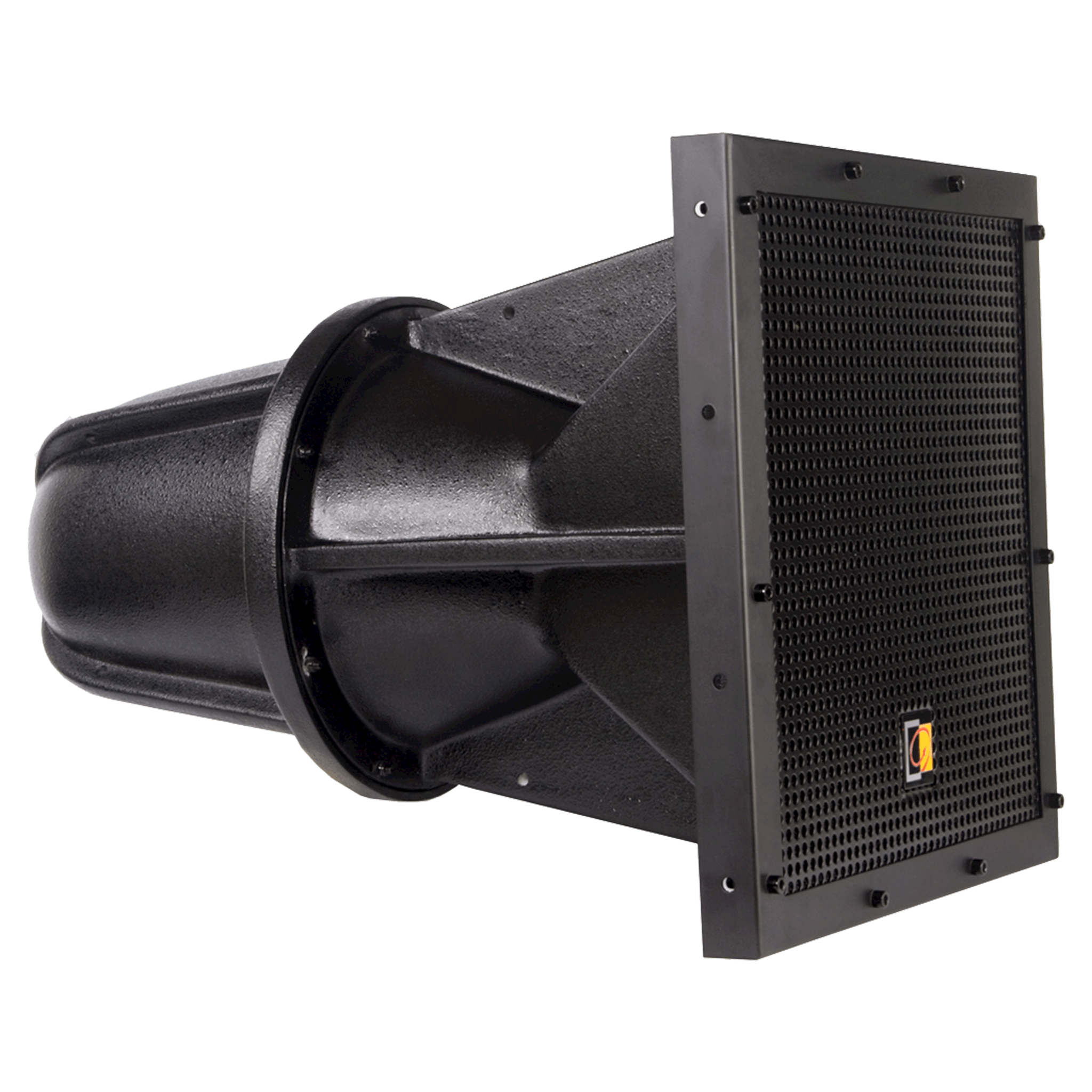

The AUDAC HS212T is a full-range loudspeaker system engineered to provide long throw, full range sound projection in a variety of fixed in- and outdoor applications. Its wide, smooth frequency response and high efficiency ensure high-fidelity music reproduction along with superb projection of clear, intelligible speech at very low distortion. The HS212T features a 1,8" HF driver with an 12" LF loudspeaker combination for the best sound reproduction and has a very special coverage pattern of 40° horizontally and vertically. HS212 is available with 8 ohms low impdance or with an 100 V Transformer (HS212T). The HS212T contains the possibility to choose from power tapping for: - 240 Watt, 120 Watt, 60 Watt @ 100V - 8 Ohm impedance. The construction of the HS212 is made of polyester with textured EDPM black coating and a perforated aluminum grill front finish. Behind the aluminum grill, there’s an acoustic foam assembled, which prevents rain coming into the speaker. Due to an Ingress Protection rating (IP) of 54 (HS212) and 65 (HS212T), this speaker is suitable for any environment where humidity or moisture are present. At the rear, you’ll find cable clamps to select the line transformator as desired (HS212T) or two speakon connectors (HS212). The cable clamps are shielded to obstruct moisture and humidity.
The AUDAC HS212T is a full-range loudspeaker system engineered to provide long throw, full range sound projection in a variety of fixed in- and outdoor applications. Its wide, smooth frequency response and high efficiency ensure high-fidelity music reproduction along with superb projection of clear, intelligible speech at very low distortion. The HS212T features a 1,8" HF driver with an 12" LF loudspeaker combination for the best sound reproduction and has a very special coverage pattern of 40° horizontally and vertically. HS212 is available with 8 ohms low impdance or with an 100 V Transformer (HS212T). The HS212T contains the possibility to choose from power tapping for: - 240 Watt, 120 Watt, 60 Watt @ 100V - 8 Ohm impedance. The construction of the HS212 is made of polyester with textured EDPM black coating and a perforated aluminum grill front finish. Behind the aluminum grill, there’s an acoustic foam assembled, which prevents rain coming into the speaker. Due to an Ingress Protection rating (IP) of 54 (HS212) and 65 (HS212T), this speaker is suitable for any environment where humidity or moisture are present. At the rear, you’ll find cable clamps to select the line transformator as desired (HS212T) or two speakon connectors (HS212). The cable clamps are shielded to obstruct moisture and humidity.

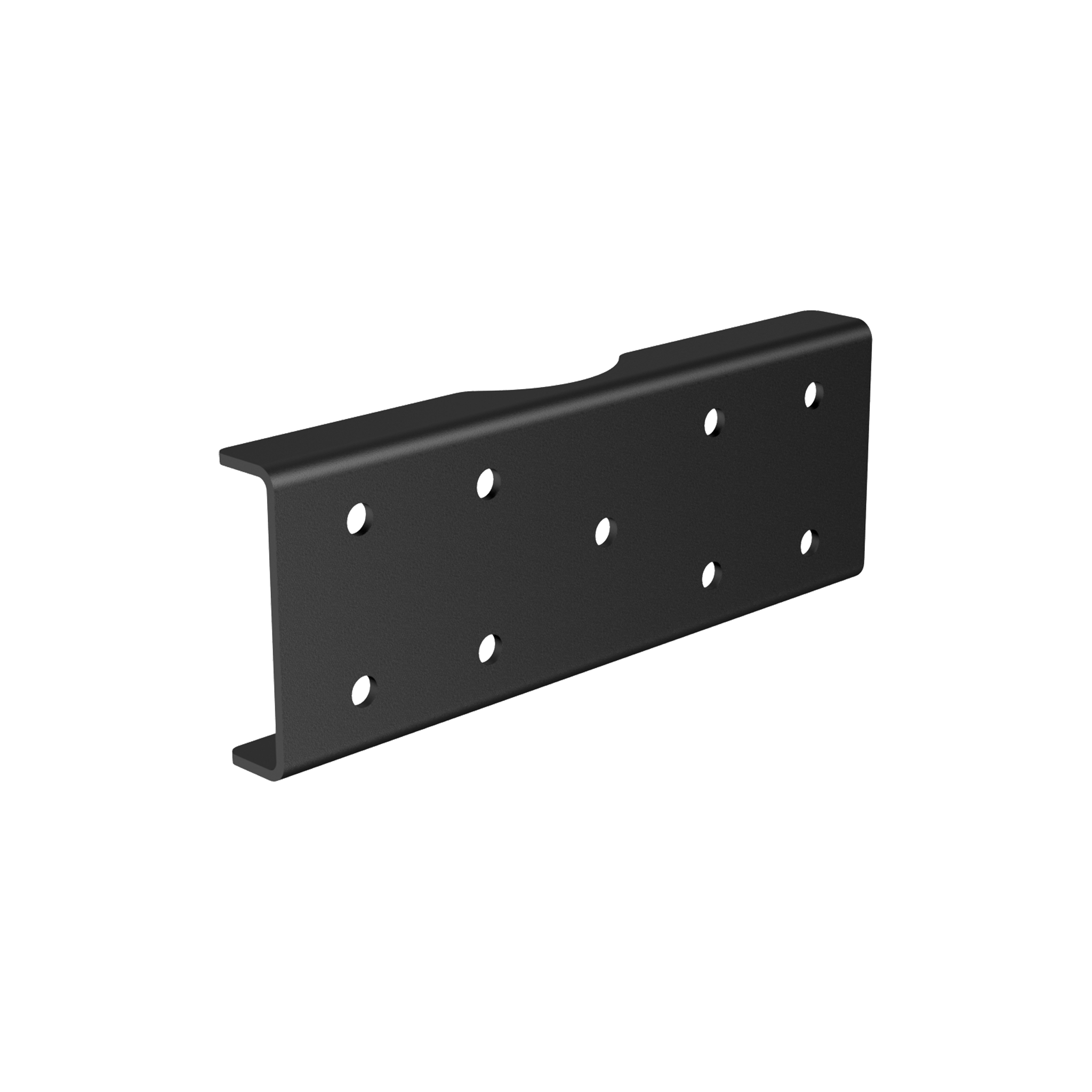

The MBK200PM is an optional accessory for the MBK2xxMK2 series brackets specifically designed for pole mount applications. The adapter gets mounted to the back of the MBK2xxMK2 bracket and provides a stable solution for pole diameters of up to Ø90mm. It is made of 4mm thick zinc plated steel with a structured black powder coating which gives it excellent corrosion and scratch resistance. All necessary bolts and nuts are included, including 2 stainless steel U-bolts.
