S6L-16C | 4935-00736-00

S6L-16C

Art.-Nr.: 4935-00736-00

Rental Pool

VENUE is a revolutionary line of digital live sound systems that deliver amazing sound quality, reliability, flexibility, and ease-of-use. Designed with direct input from leading mix engineers, VENUE brings innovation and intuitive workflows to live mixing, answering the complexities of today’s live sound applications while empowering efficiency and creativity. From studiograde plug-in processing support and seamless Pro Tools® integration to customizable options that fit a variety of interface needs, VENUE is shaping the future of live sound, and is the choice for concert tours, clubs, houses of worship, theaters, and broadcast events.

Overview

Surface

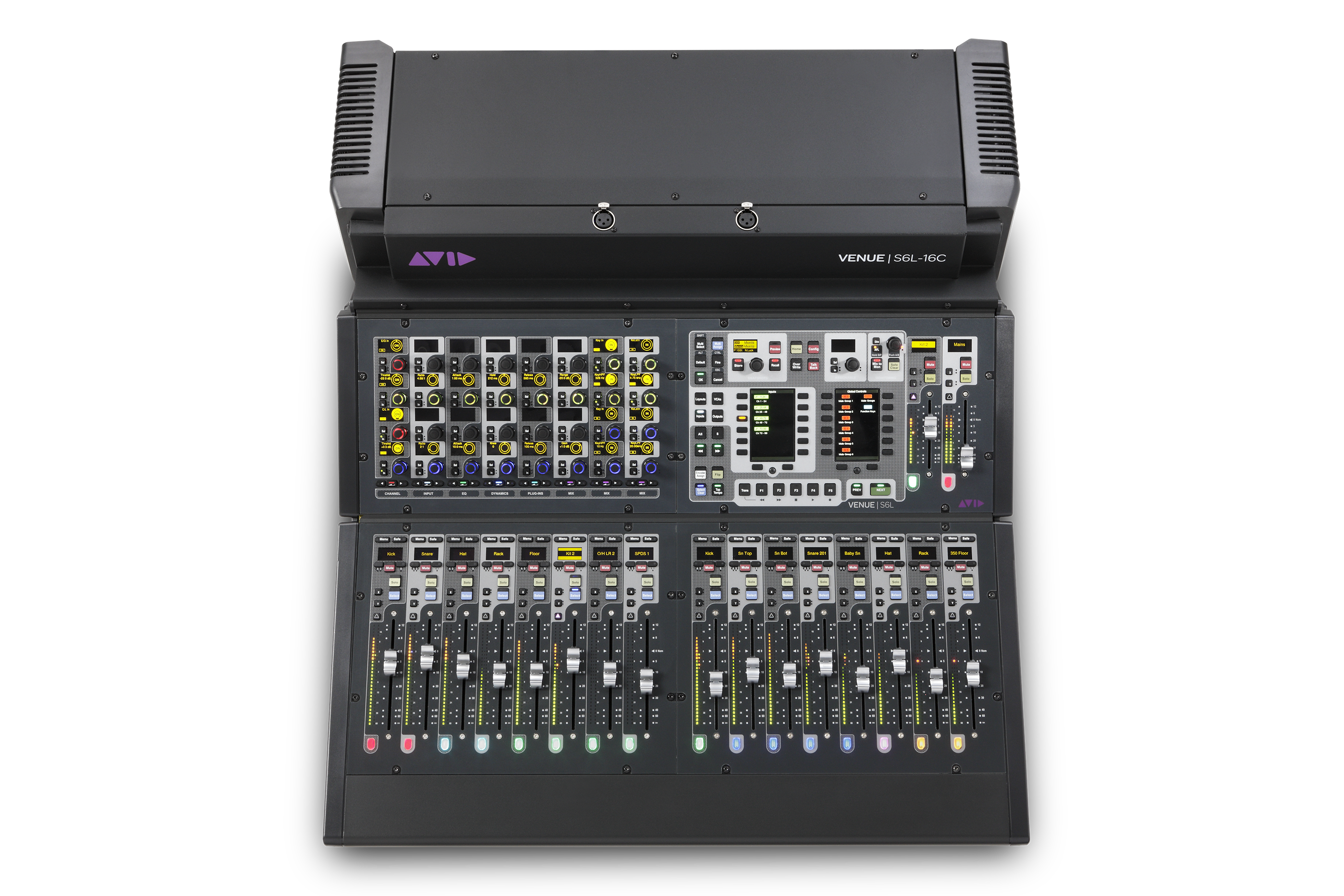

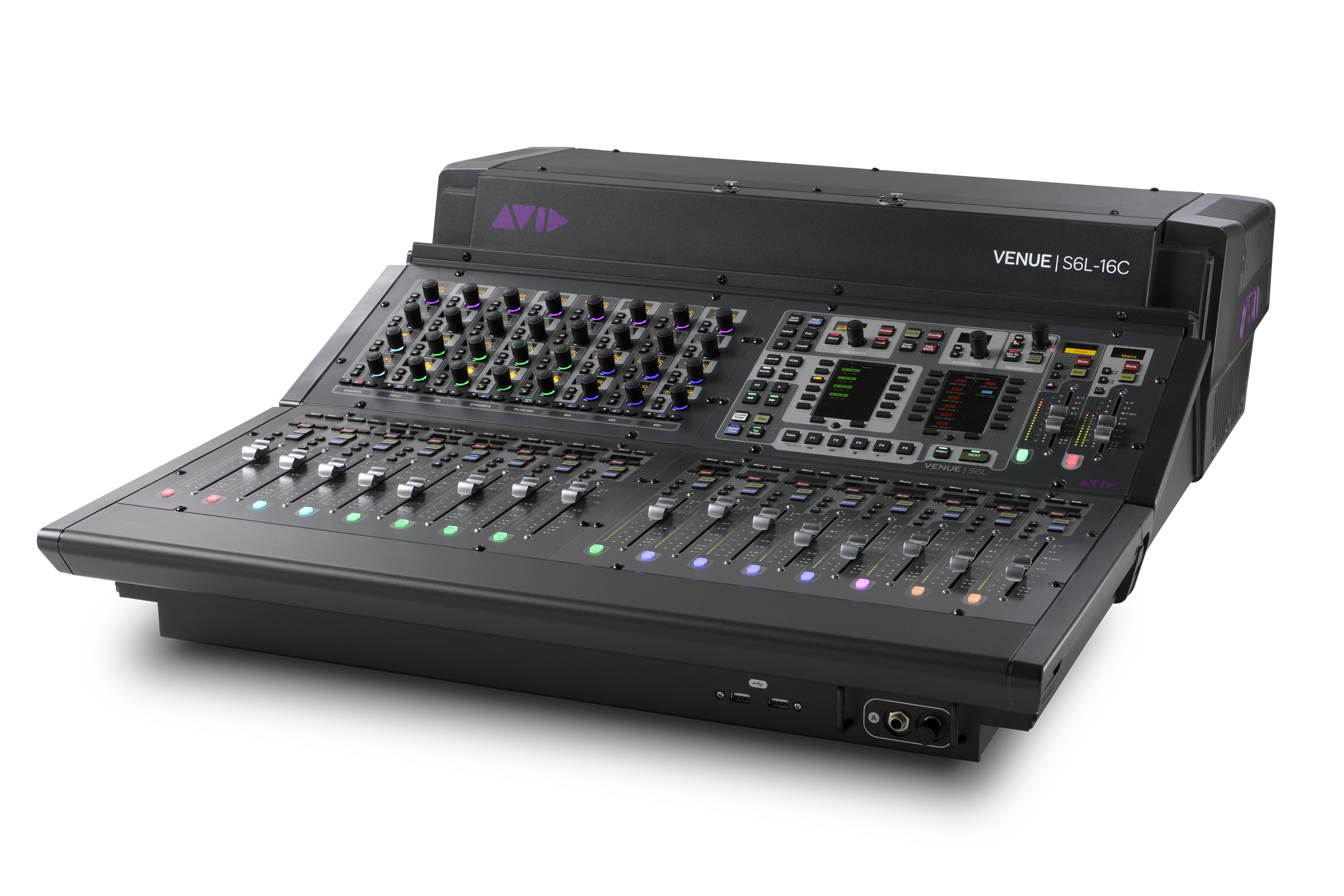

Digital control surface with 16+2 faders and Master Live Module (MLM). The user interface has 32 (1 x 32) rotary encoders (push encoders), each with a high-resolution OLED.

Product Details

16+2 faders, 32 assignable encoders, redundant power supplies
Includes 3 years Avid Advantage Elite Live Support
Smallest surface of the entire S6L product family
All the strengths of the S6L system in a small footprint
Ideal for productions where space is at a premium

16 + 2

1 x 32, incl. OLEDS and 3-colour function display

Graphic TFTs with soft keys; configurable "touch and turn" encoder; 2 configurable faders; monitor, layout and snapshot control; transport control and function keys.

30-segment/channel, with pre- and post-fader metering; nominal meter, expander/gate status and compressor/limiter gain reduction metering

1 x XLR mic/line

None

2x XLR

None

1 x 6.35 mm jack stereo (TRS)

2 x copper (etherCON), 2x either copper (etherCON) or fibre (SFP); redundant ring topology; supports Luminex GigaCore 26i and GigaCore 10 AVB switches for redundant star configuration

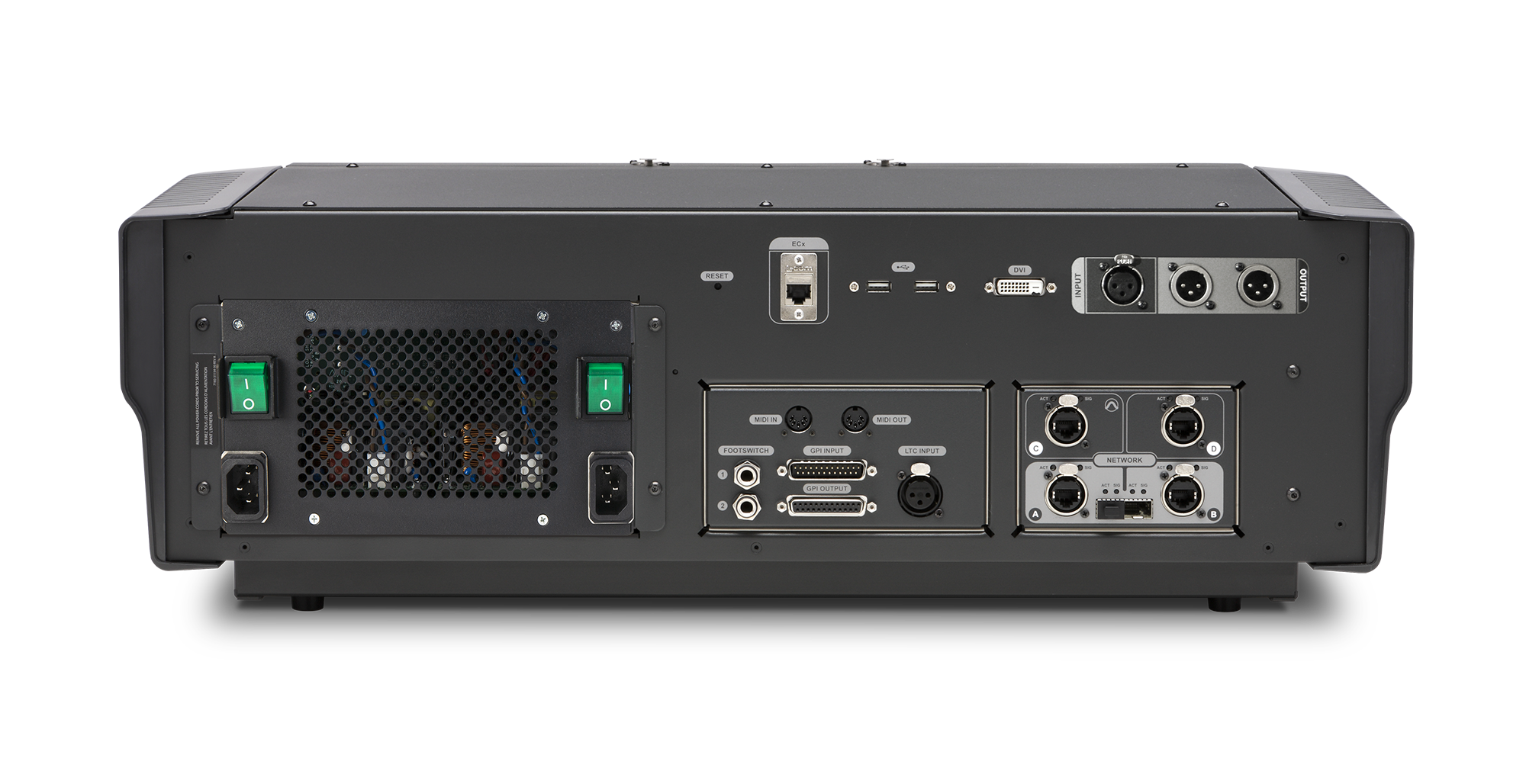

1 x DVI-D / 5 x USB 2.0 / 1 x ECx-Ethernet / 8 x GPIO / 2 x foot switch / LTC in / MIDI I/O

2 x redundant

671 x 91.2/205 x 787 mm

33 kg
