Overview

3-Way Active Loudspeaker

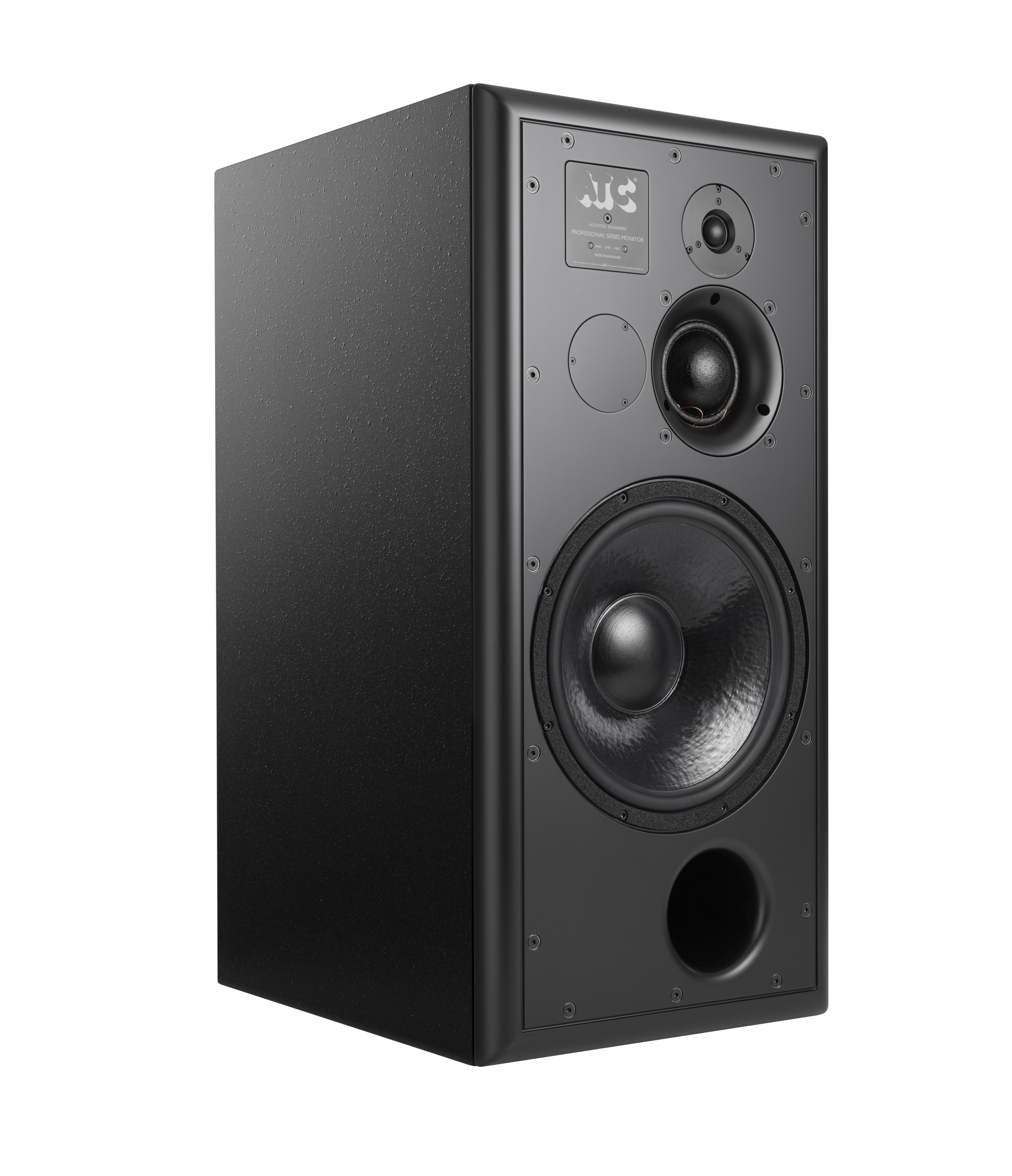

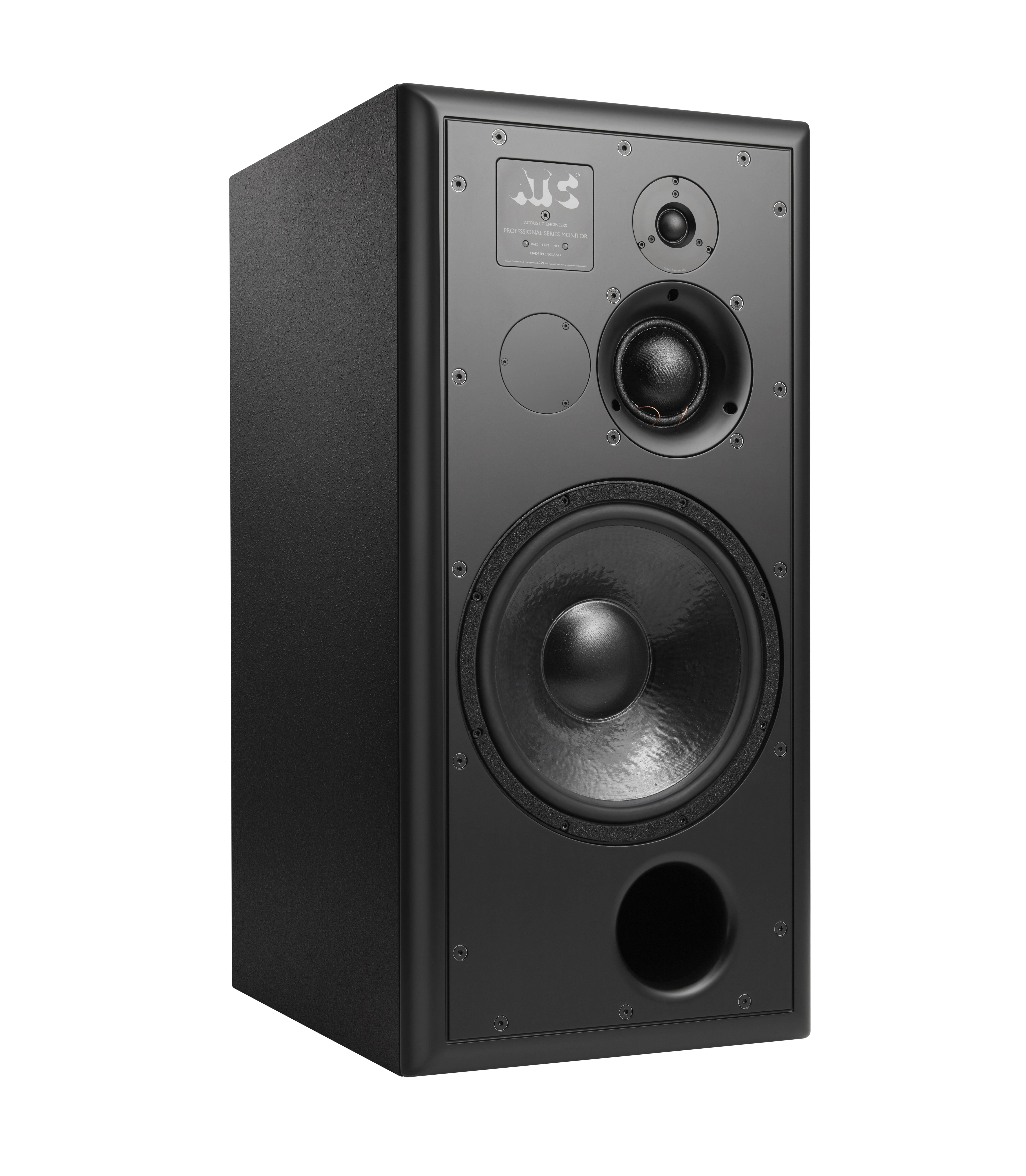

The SCM100A Pro is an active 3-way system suitable for larger rooms, based around the same mid range, tweeter and amplifier configuration as the SCM50A Pro but featuring a larger 314mm bass driver in a larger enclosure. This results in an increased maximum SPL capability of 115dB@1m and an extended low frequency response. 4th order active crossovers produce a highly linear amplitude response, both on and off-axis and contribute to exceptional stereo imaging over the largest possible listening area.

Product Details

  • ATC 25mm/1 Dual Suspension 'S-Spec' Tweeter.
  • Full SL spec 12/314mm bass driver
  • ATC 75mm Super Dome mid driver

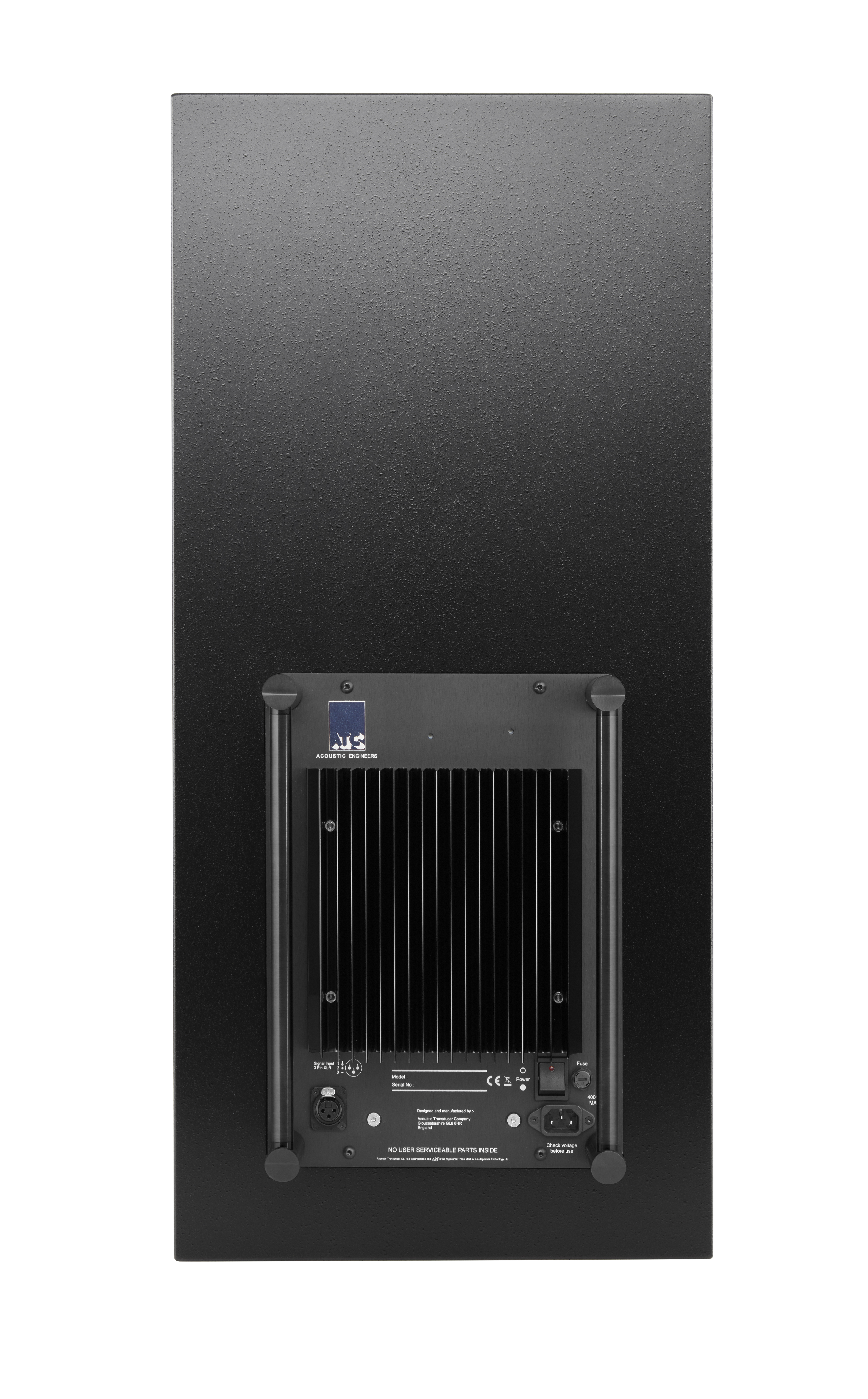

  • On board ATC grounded plane 350W Tri-amplifier
  • LF contour control
  • Clip indication
  • 6 year warranty
Drivers
HF 1" / 25 mm, Mid 3" / 75 mm, LF 12" / 314 mm
Amplitude Linearity (+/-2dB)
65Hz-17kHz
Cut-off Frequencies (-6dB, free-standing)
32Hz, 22kHz
Horizontal Dispersion
+/-80°, Coherent
Vertical Dispersion
+/-10°, Coherent
Max. Continuous SPL (1 metre)
115dB
Crossover Frequencies
380Hz, 3.5kHz
Input Connectors
XLR
Input Sensitivity
1V
Input Sensitivity Trim
+/-6dB
Input Impedance
Balanced > 10kOhms
Amplifier Output
Bass 200W, Mid 100W, High 50W
Filters
Even Order Critically Damped
Overload Protection
Active FET momentary gain reduction plus thermal tweeter protection
LF EQ
+6dB @ 40Hz

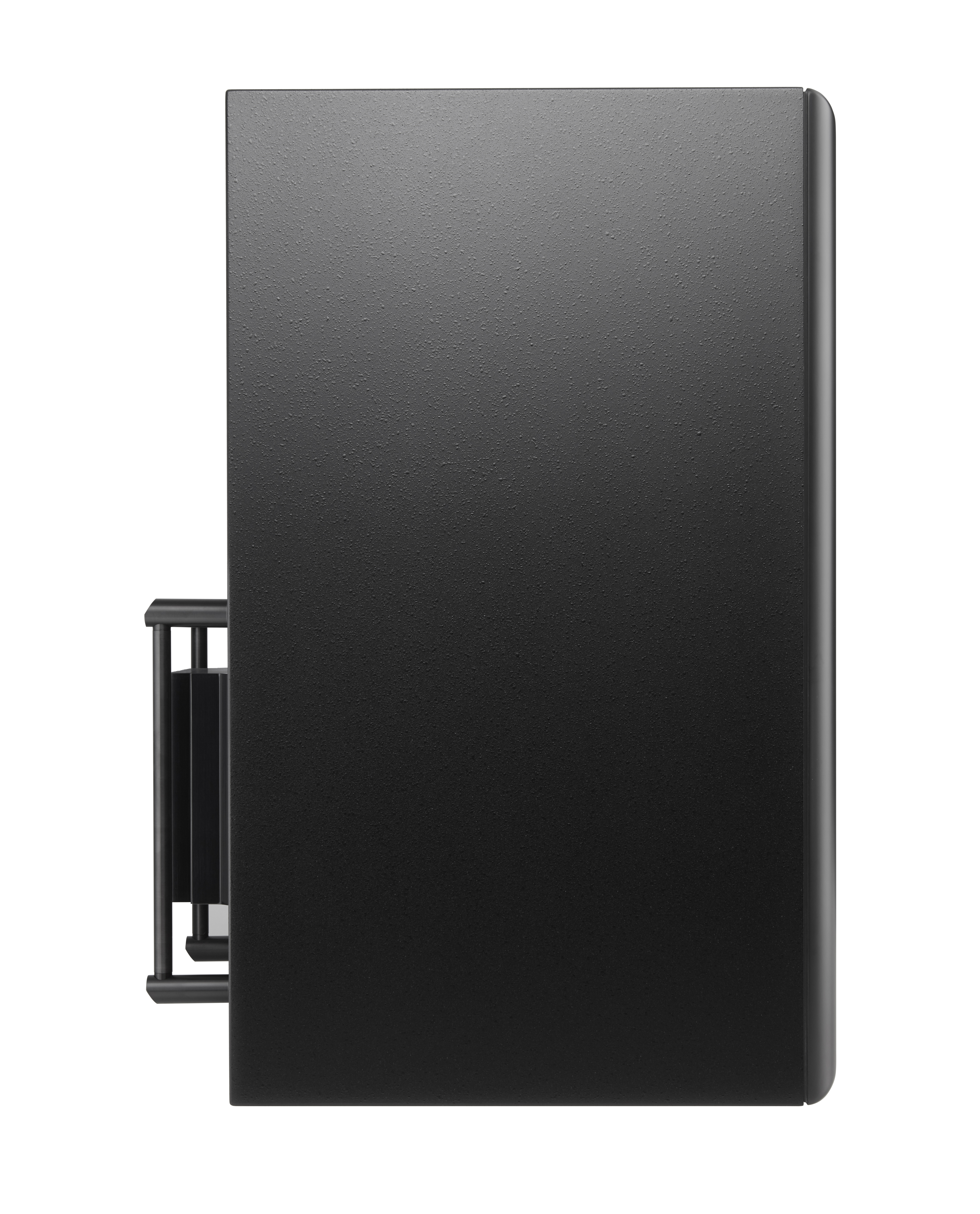

Dimensions (HxWxD)
832 x 398 x 581mm (32.8" x 15.7" x 22.9")
Weight
65kg / 143lbs
