SPR642

Art.-Nr.: SPR642

CAYMON manufactures a wide range of products for portable and installed applications, ranging from equipment and touring racks, microphone, music and speaker stands to brackets, flight cases, adaptors, soft bags and accessories.

Overview

19" rack cabinet - 42 units - 600mm W x 600mm D

The SPR642 is a professional 19” rack compliant to the ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. A cold rolled steel 2 mm thick frame and 1,2 mm thick plates provides a solid and stable construction making it suitable for heavy equipment, storing up to 42 units inside. The SPR642 comes fully assembled including 50 mm wheels for easy moving and adjustable feet for fixing and leveling once correctly positioned. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure an easy fitting of the equipment. Adjustable 19 “ profiles provide great flexibilty for installing equipment depending on its depth. Both front and rear doors are fitted with a standard keylock.

Product Details

Stores up to 42 units of 19” Equipment
Standard keylock for both doors
Integrated ventilation grid on top
50 mm Wheels + leveling feet included
Removable sides for easy installing & cabling
Punched square holes for use with snap-in cage nuts
Front and rear in depth adjustable 19” profiles (max 540 mm)
Tempered glass door with keylock
Reversible door position

600 x 1985 (2055) x 600 mm W x H (incl. feet) x D

85.0 kg

Black (RAL9004)

42 HE

540 mm

800 kg

400 kg

4 x Key for sidepanel lock, 1 x Allen key, 4 x Levelling feet, 4 x Key for front/back door, 20 x KS600, 20 x KM600

Alternatives

productBadge.normal

CAYMON

SPR632

19" rack cabinet - 32 units - 600mm W x 600mm D

productBadge.normal

CAYMON

SPR632

The SPR632 is a professional 19” rack compliant to the ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. A cold rolled steel 2 mm thick frame and 1,2 mm thick plates provides a solid and stable construction making it suitable for heavy equipment, storing up to 32 units inside. The SPR632 comes fully assembled including 50 mm wheels for easy moving and adjustable feet for fixing and leveling once correctly positioned. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure an easy fitting of the equipment. Adjustable 19 “ profiles provide great flexibilty for installing equipment depending on its depth. Both front and rear doors are fitted with a standard keylock.

productBadge.normal

CAYMON

SPR627

19" rack cabinet - 27 units - 600mm W x 600mm D

productBadge.normal

CAYMON

SPR627

The SPR627 is a professional 19” rack compliant to the ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. A cold rolled steel 2 mm thick frame and 1,2 mm thick plates provides a solid and stable construction making it suitable for heavy equipment, storing up to 27 units inside. The SPR627 comes fully assembled including 50 mm wheels for easy moving and adjustable feet for fixing and leveling once correctly positioned. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure an easy fitting of the equipment. Adjustable 19 “ profiles provide great flexibilty for installing equipment depending on its depth. Both front and rear doors are fitted with a standard keylock.

productBadge.normal

CAYMON

SPR1042

19" rack cabinet - 42 units - 600mm W x 1000mm D

productBadge.normal

CAYMON

SPR1042

The SPR1042 is a professional 19” rack compliant to the ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. A cold rolled steel 2 mm thick frame and 1,2 mm thick plates provides a solid and stable construction making it suitable for heavy equipment, storing up to 42 units inside. The SPR1042 comes fully assembled including 50 mm wheels for easy moving and adjustable feet for fixing and leveling once correctly positioned. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure an easy fitting of the equipment. Adjustable 19 “ profiles provide great flexibilty for installing equipment depending on its depth. Both front and rear doors are fitted with a standard keylock.

productBadge.normal

CAYMON

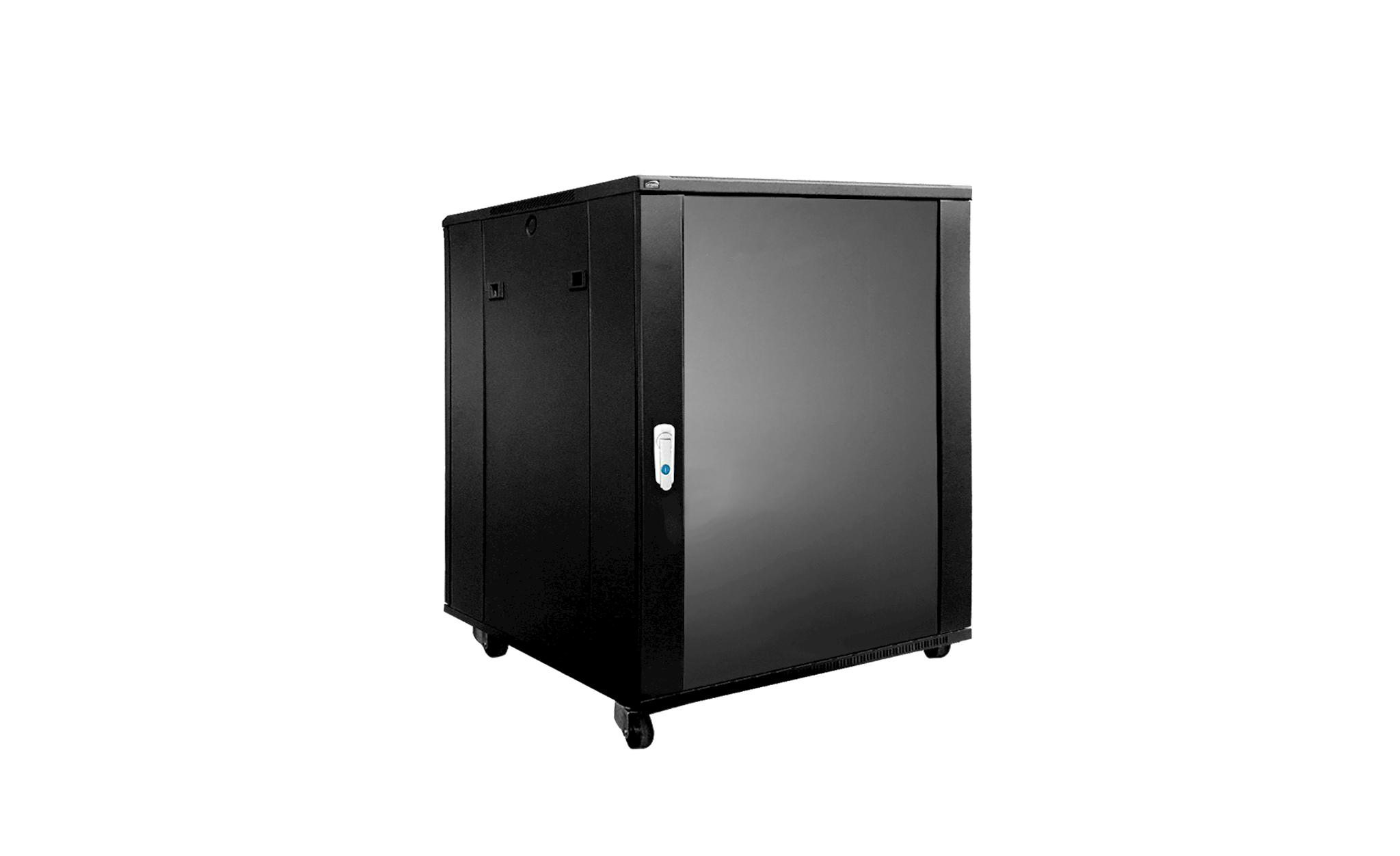

SPR612

19" rack cabinet - 12 units - 600mm W x 600mm D

productBadge.normal

CAYMON

SPR612

The SPR612 is a professional 19” rack compliant to the ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. A cold rolled steel 2 mm thick frame and 1,2 mm thick plates provides a solid and stable construction making it suitable for heavy equipment, storing up to 12 units inside. The SPR612 comes fully assembled including 50 mm wheels for easy moving and adjustable feet for fixing and leveling once correctly positioned. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure an easy fitting of the equipment. Adjustable 19 “ profiles provide great flexibilty for installing equipment depending on its depth. Both front and rear doors are fitted with a standard keylock.

productBadge.normal

CAYMON

SPR618

19" rack cabinet - 18 units - 600mm W x 600mm D

productBadge.normal

CAYMON

SPR618

The SPR618 is a professional 19” rack compliant to the ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. A cold rolled steel 2 mm thick frame and 1,2 mm thick plates provides a solid and stable construction making it suitable for heavy equipment, storing up to 18 units inside. The SPR618 comes fully assembled including 50 mm wheels for easy moving and adjustable feet for fixing and leveling once correctly positioned. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure an easy fitting of the equipment. Adjustable 19 “ profiles provide great flexibilty for installing equipment depending on its depth. Both front and rear doors are fitted with a standard keylock.

productBadge.normal

CAYMON

SPR842

19" rack cabinet - 42 units - 600mm W x 800mm D

productBadge.normal

CAYMON

SPR842

The SPR842 is a professional 19” rack compliant to the ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. A cold rolled steel 2 mm thick frame and 1,2 mm thick plates provides a solid and stable construction making it suitable for heavy equipment, storing up to 42 units inside. The SPR842 comes fully assembled including 50 mm wheels for easy moving and adjustable feet for fixing and leveling once correctly positioned. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure an easy fitting of the equipment. Adjustable 19 “ profiles provide great flexibilty for installing equipment depending on its depth. Both front and rear doors are fitted with a standard keylock.

productBadge.normal

CAYMON

SPR832

19" rack cabinet - 32 units - 600mm W x 800mm D

productBadge.normal

CAYMON

SPR832

The SPR832 is a professional 19” rack compliant to the ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. A cold rolled steel 2 mm thick frame and 1,2 mm thick plates provides a solid and stable construction making it suitable for heavy equipment, storing up to 32 units inside. The SPR832 comes fully assembled including 50 mm wheels for easy moving and adjustable feet for fixing and leveling once correctly positioned. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure an easy fitting of the equipment. Adjustable 19 “ profiles provide great flexibilty for installing equipment depending on its depth. Both front and rear doors are fitted with a standard keylock.

Accessories

productBadge.normal

CAYMON

ALR30

Adjustable 19" l-rail set - 281 to 430 mm depth

+1 Variants

productBadge.normal

CAYMON

ALR30

An adjustable (281 to 430 mm depth) 19” L-rail set made of 1,5mm and 3mm thick cold rolled steel finished with a black structured powder coating. The in-depth adjustable L-rails provide extra support when mounting heavy equipment. Universally usable but especially suited to use in combination with OPR series.

Color: Black

Color

productBadge.normal

CAYMON

KM600

M6 cage nut for 0.5 - 2.0 mm plate thickness

productBadge.normal

CAYMON

KM600

M6 cage nuts for plate thickness 0.5 - 2.0 mm. Sold by 100 pcs / bag. For use with steel snap-in rack profiles, as used in metal 19" racks such as SPR, WPR, HPR, PR2xx series,...

productBadge.normal

CAYMON

SPR60LR

19" l-rail set for SPR600 and OPR3xxA series

productBadge.normal

CAYMON

SPR60LR

A 19” L-Rail set made of 1,2 mm thick cold rolled steel with a black structural powder coating. The rail provides extra support when mounting heavy equipment and the mounting distance can be adjusted to your needs. For use with SPR600 and OPR3xxA series only.

productBadge.normal

CAYMON

SPR10CSS

Rack interconnection slot set - 4 pieces

productBadge.normal

CAYMON

SPR10CSS

The SPR10CSS rack interconnection slot set connects 2 racks without the use of any bolts or nuts.Every rack is provided with fixing holes whereto the SPR1CSS can be connected. This results in a good firm connection with a nice and clean look.For use with WPR & SPR racks only.

productBadge.normal

CAYMON

SS160/B

Sliding shelf for 19" rack cabinet

productBadge.normal

CAYMON

SS160/B

A 19” sliding shelf made of steel with a thickness of 1,2 mm with a black structural powder coating. The shelf can be used to store equipment which doesn’t contain a standard 19” mounting fixture or equipment that needs to be accessed frequently. The SS1xx series sliding shelves come equipped with improved rails for an even larger extension. These smooth sliding shelves provides easy access and secure storage for your custom equipment.

productBadge.normal

CAYMON

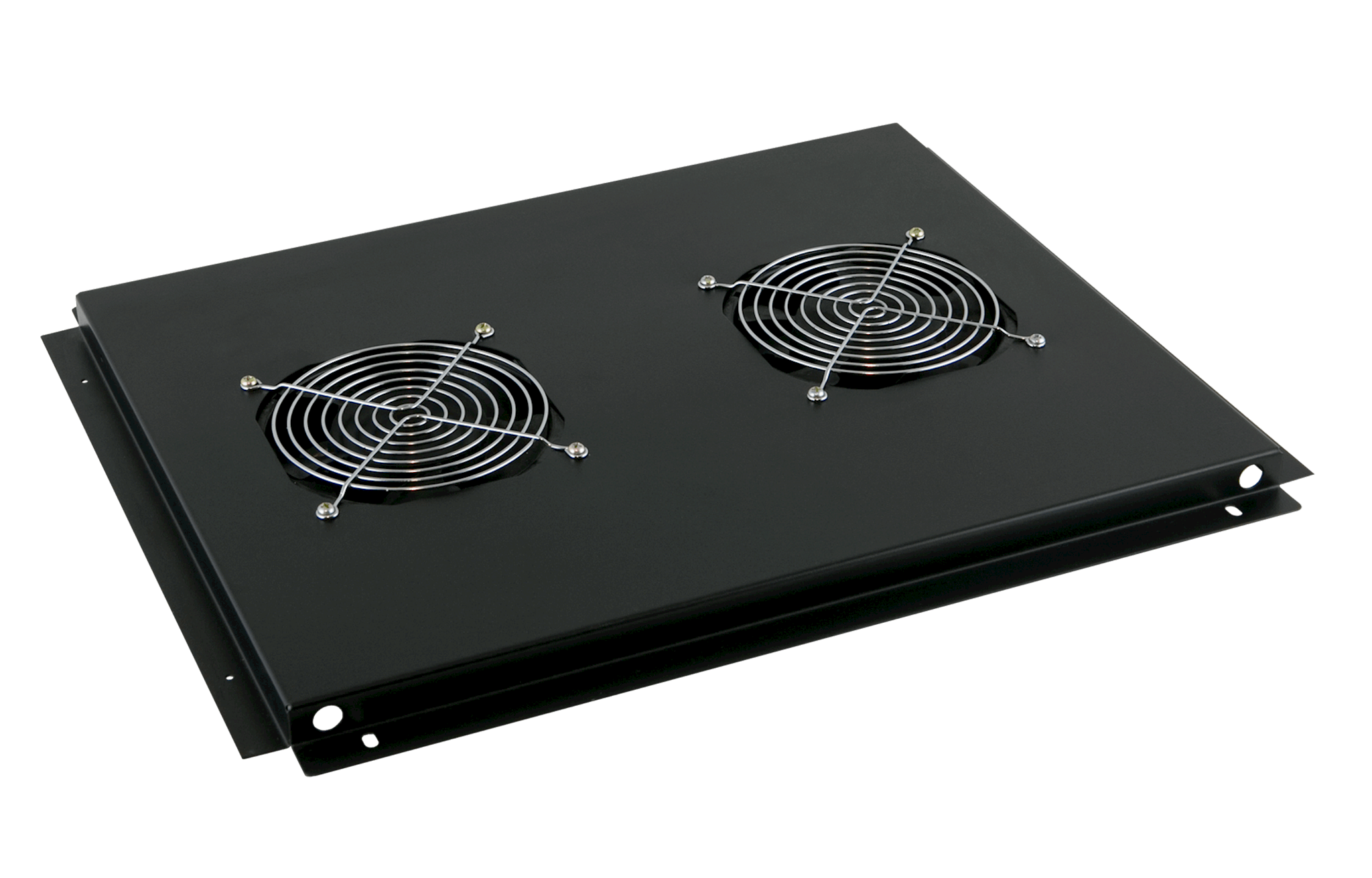

SPR60RF

19" cooling roof fan unit - for SPR600 series

productBadge.normal

CAYMON

SPR60RF

A 19” cooling roof fan unit made out of black (RAL9004) powder coated aluminum which is used to improve the air circulation and help remove hot air from the rack. The fan runs at medium speed and needs to be fed with 240VAC at 50/60Hz. For use with SPR600 series only.

productBadge.normal

CAYMON

SPR10DC

Dust cover brush for cable entry

productBadge.normal

CAYMON

SPR10DC

The SPR10DC is a dust cover brush which is meant to be used for covering the cable inlets which are provided in the SPR, WPR & HPR Racks. When the racks are installed in industrial environments, through time dust and dirt will enter the racks through all small gaps and openings. In the longer term, this can have a negative influence on the performance of the equipment which is installed in the racks. The SPR10DC offers a solution for covering the cable inlet holes while still having a great flexibility for running the cables. The cable inlet will be nicely closed while the 40 mm long hairs will bend and nicely fit around the passing cables providing an optimal coverage reducing dust and dirt entering the cabinet. The assembly shall be done by clamping the SPR10DC on the edge of the cable inlet’s opening.

productBadge.normal

CAYMON

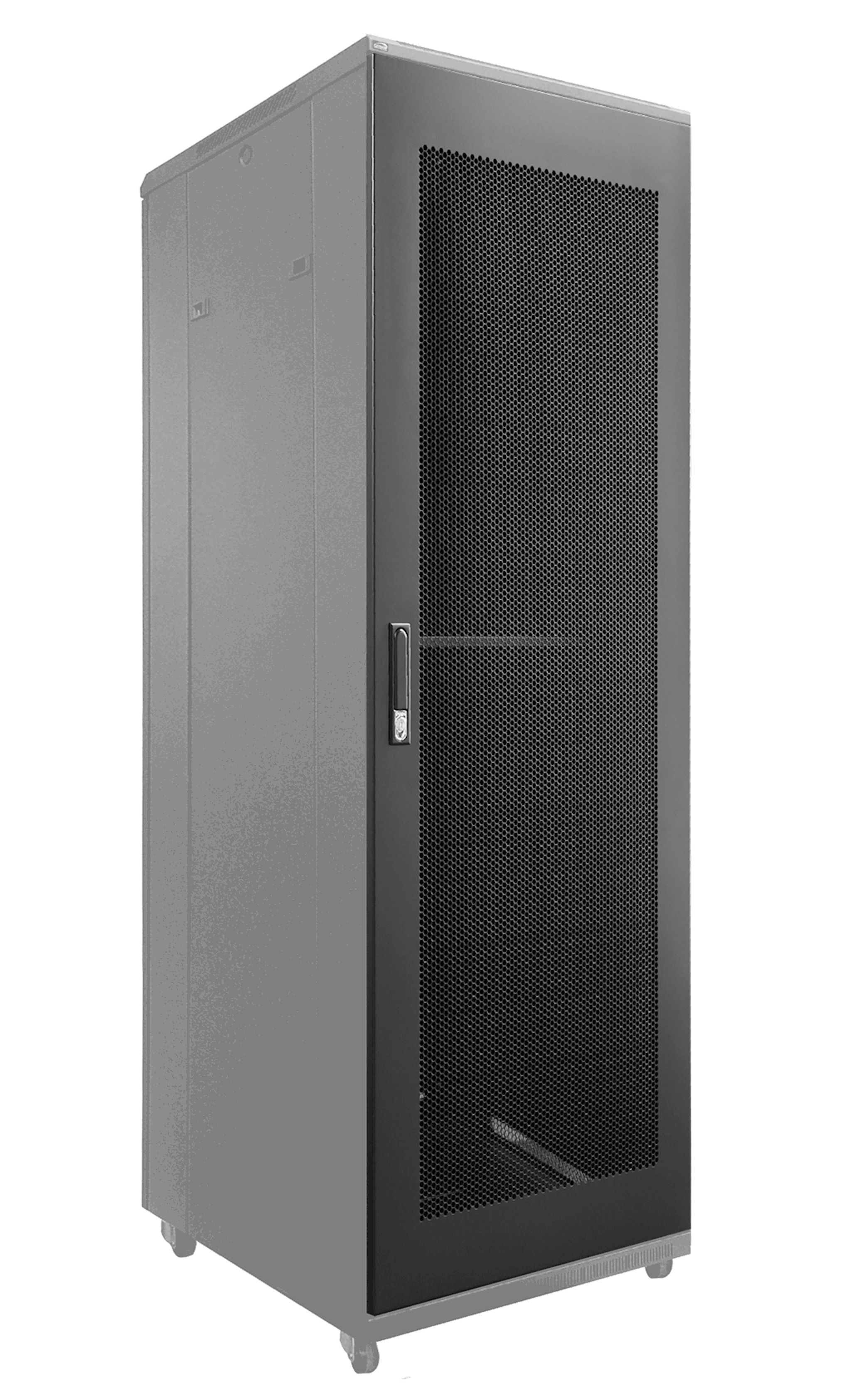

SPR42GL

Perforated grill door for 42HE SPR rack cabinet

productBadge.normal

CAYMON

SPR42GL

The SPR42GL is a perforated steel grill door, which replaces the standard included tempered glass door for SPR series 19” rack cabinets with a height of 42 U. The mesh perforation with hexagonal pattern provides an optimal air flow through the cabinet. The swing handle with cilinder lock safely locks the equipment inside.

productBadge.normal

CAYMON

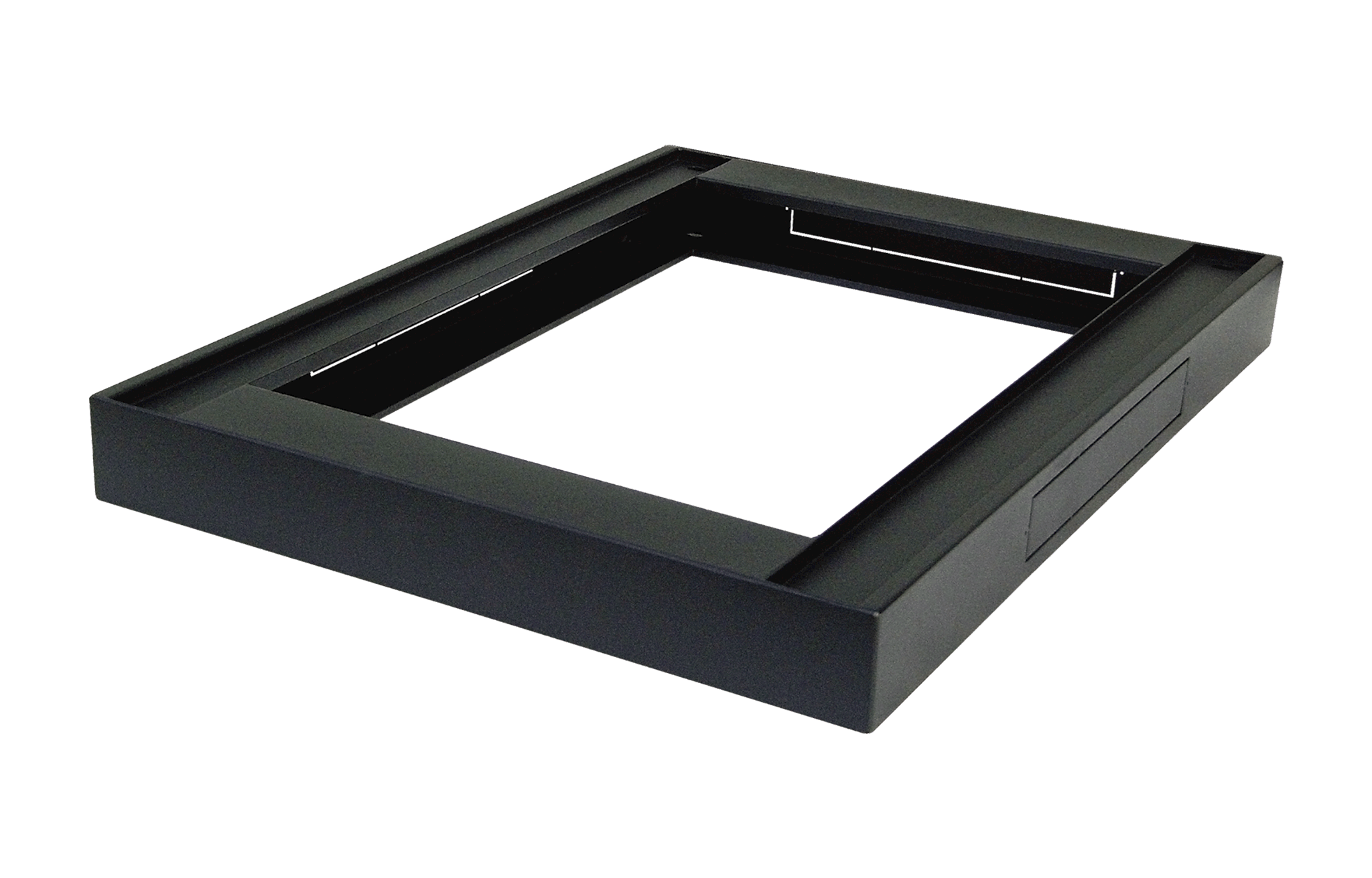

SPR60PT
