NIO222
Art.-Nr.: NIO222
Request now
Project consulting B2B-Login

It is what we experience through the senses that makes life meaningful. In fact, it can be said that through the qualities in speech and music we experience, we become familiar with the higher values of life. This is just one of the reasons why at AUDAC you will find a passion for sound. Each speaker, audio matrix or amplifier solution we develop expresses that same inspiration and quality that exceeds users’ expectations, making it no coincidence our success results from exploring new methods and ideas beyond conventional boundaries.

Overview

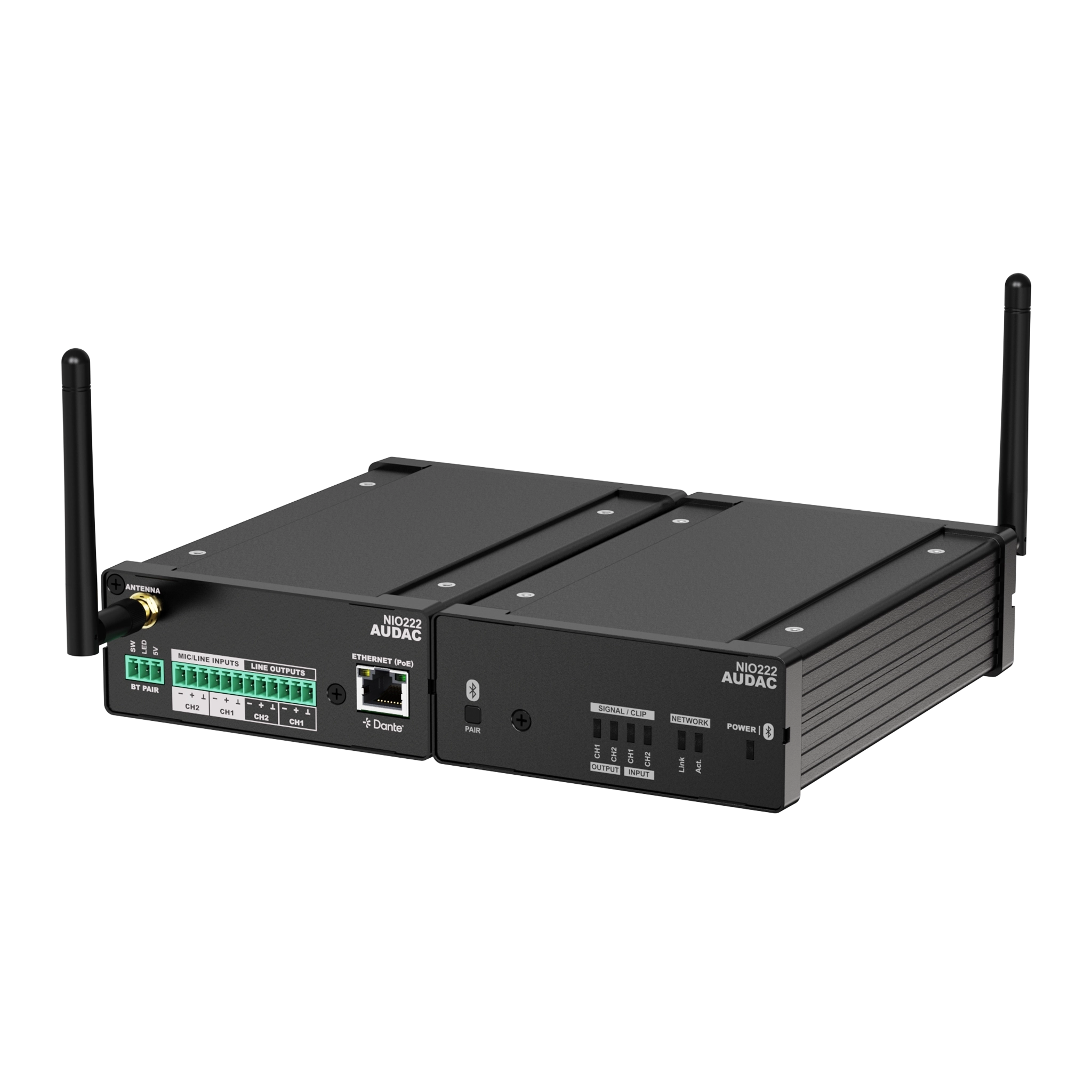

Dante audio mixer - 2x microphone / line input, 2x line output

NIO series are Dante™/AES67 network I/O mixing breakout boxes featuring terminal block input and output audio and Bluetooth connections. The audio inputs can be switched between line-level and microphone-level audio signals and phantom power (+48 V DC) can be applied to the input connectors for powering condenser microphones.

Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™. The IP-based communication makes it future-proof while also being backwards compatible with many existing products.

The NIO series is compatible with any PoE network-based installation thanks to the limited PoE power consumption. The networked I/O expanders are compatible with MBS1xx setup box installation accessories which allow them to be mounted under a desk, in a closet, on the wall, on top of a dropped ceiling or a 19” equipment rack.

Product Details

  • All-in-one mixing and DSP
  • 4 x 4 channels Dante™ & AES67
  • 2 x balanced microphone/line inputs
  • 2 x balanced line outputs
  • Integrated Bluetooth receiver (version 4.2)
  • Compatible with detachable antenna BAE100
  • S-box™ housing
Audio inputs
2x microphone/line, Bluetooth (version 4.2), 4x Dante™
Audio outputs
2x line, 4x Dante™
Power supply
PoE (802.3af)
Power consumption
3.75 W
Dimensions (W x H x D)
108 x 44 x 165 mm
Weight
0.48 kg

Related Products

productBadge.normal
NIO240
AUDAC
NIO240
Dante audio mixer - 4 x microphone / line input
Go to product
productBadge.normal
NIO240
AUDAC
NIO240
NIO series are Dante™/AES67 network I/O mixing breakout boxes featuring terminal block input and output audio and Bluetooth connections. The audio inputs can be switched between line-level and microphone-level audio signals and phantom power (+48 V DC) can be applied to the input connectors for powering condenser microphones. Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™. The IP-based communication makes it future-proof while also being backwards compatible with many existing products. The NIO series is compatible with any PoE network-based installation thanks to the limited PoE power consumption. The networked I/O expanders are compatible with MBS1xx setup box installation accessories which allow them to be mounted under a desk, in a closet, on the wall, on top of a dropped ceiling or a 19” equipment rack.

Go to product
productBadge.normal
NIO204
AUDAC
NIO204
Dante audio mixer - BT input + 4 x line outputs
Go to product
productBadge.normal
NIO204
AUDAC
NIO204
NIO series are Dante™/AES67 network I/O mixing breakout boxes featuring terminal block input and output audio and Bluetooth connections. The audio inputs can be switched between line-level and microphone-level audio signals and phantom power (+48 V DC) can be applied to the input connectors for powering condenser microphones. Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™. The IP-based communication makes it future-proof while also being backwards compatible with many existing products. The NIO series is compatible with any PoE network-based installation thanks to the limited PoE power consumption. The networked I/O expanders are compatible with MBS1xx setup box installation accessories which allow them to be mounted under a desk, in a closet, on the wall, on top of a dropped ceiling or a 19” equipment rack.

Go to product

Alternatives

productBadge.normal
NWP220
AUDAC
NWP220

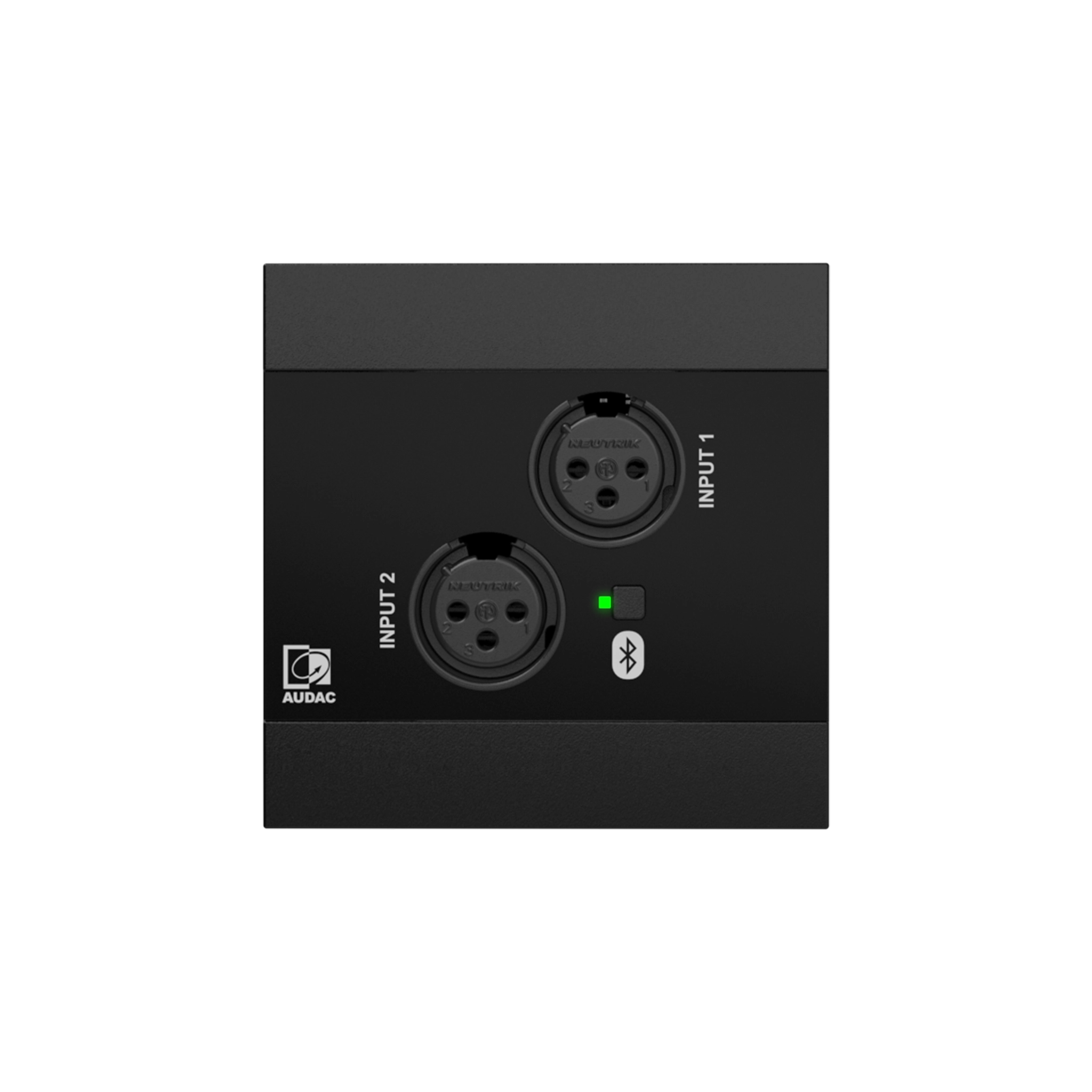

Networked audio input panel - 2 x XLR + BT
+2 Variants
Go to product
productBadge.normal
NWP220
AUDAC
NWP220
The NWP220 is a Dante™/AES67 networked audio input panel, featuring two XLR input connectors and an integrated Bluetooth receiver, which can be used to transmit audio signals in a Dante™ audio network. The audio inputs can be switched between line-level and microphone-level audio signals and phantom power (+48 V DC) can be applied to the XLR input connectors for powering condenser microphones. Various further integrated functions such as integrated equalizing, automatic level control and other device settings can be configured through the AUDAC Touch™ app. The front panel is finished with high-grade materials such as hardened glass makes them blend into any environment. These wall panels are compatible with standard EU-style in-wall boxes, these wall panels are the ideal solution for solid and hollow walls. The IP-based communication makes it future-proof while also being backwards compatible with many existing products. In contrast, the limited PoE power consumption makes it compatible with any PoE network-based installation.

Color: Black
Color
Go to product
productBadge.normal
NWP300
AUDAC
NWP300

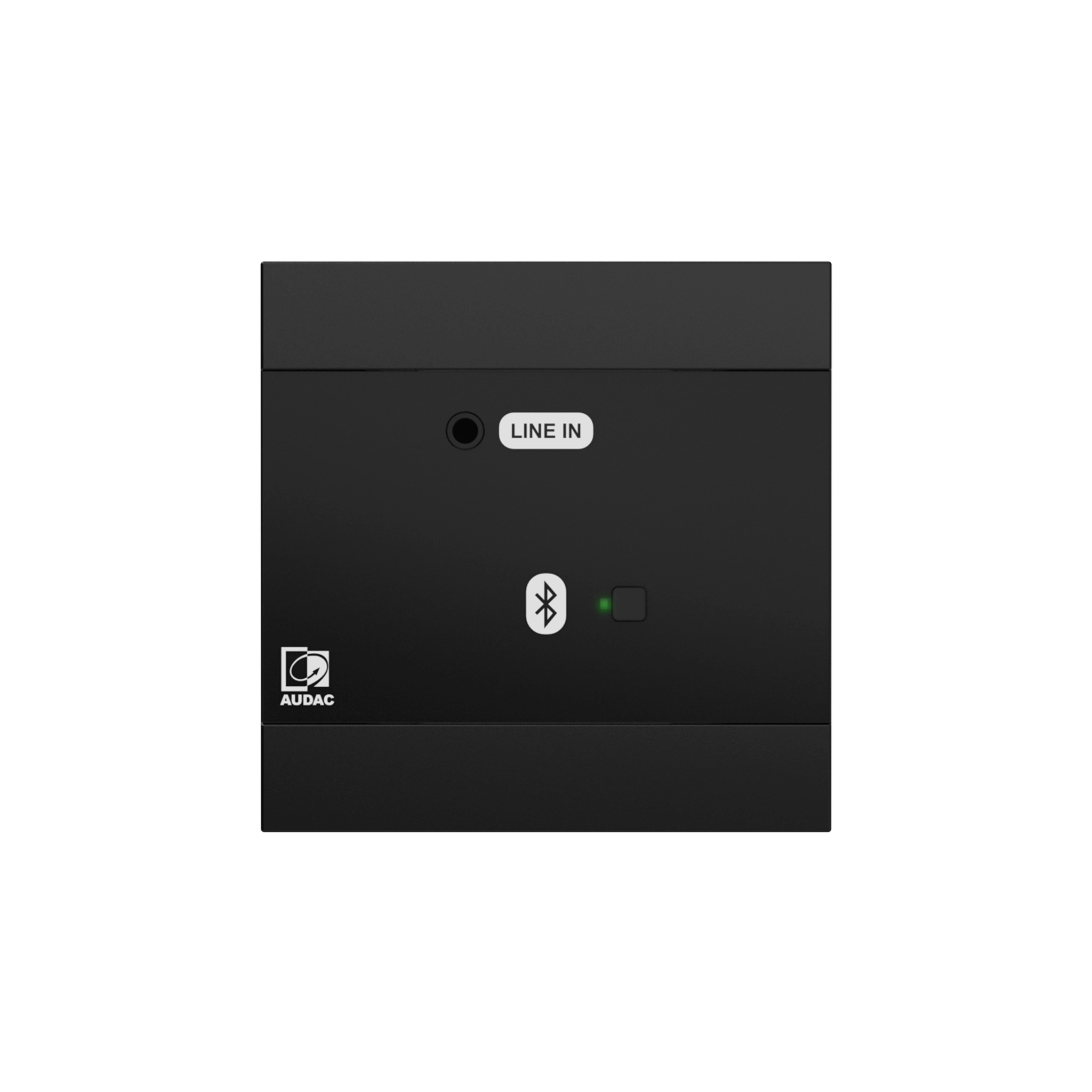

Network Audio Wall Panel - 3.5mm jack + BT
+2 Variants
Go to product
productBadge.normal
NWP300
AUDAC
NWP300
The NWP300 is a Dante™/AES67 networked audio input panel, featuring a 3.5 mm jack stereo input connection and an integrated Bluetooth receiver which can transmit audio signals in a Dante™ audio network. Various further integrated functions such as integrated equalizing, automatic level control and other device settings can be configured through the AUDAC Touch™ app. The front panel is finished with high-grade materials such as hardened glass makes them blend into any environment. These wall panels are compatible with standard EU-style in-wall boxes, these wall panels are the ideal solution for solid and hollow walls. The IP-based communication makes it future-proof while also being backwards compatible with many existing products. In contrast, the limited PoE power consumption makes it compatible with any PoE network-based installation.

Color: Black
Color
Go to product
productBadge.normal
NWP400
AUDAC
NWP400
Networked audio input panel - USB Type-C + 3.5 mm jack
+2 Variants
Go to product
productBadge.normal
NWP400
AUDAC
NWP400
The NWP400 is a Dante™/AES67 networked audio input panel, featuring a USB Type-C audio input and an integrated Bluetooth receiver, which can be used to transmit a stereo audio signal in a Dante™ audio network. This can be used for connecting e.g. laptops or other portable devices as an audio source to a Dante™ audio network. Various further integrated functions such as integrated equalizing, automatic level control and other device settings can be configured through the AUDAC Touch™ app. The front panel is finished with high-grade materials such as hardened glass making them blend into any environment. These wall panels are compatible with standard EU style in wall boxes, these wall panels are the ideal solution for solid and hollow walls. The IP-based communication makes it future-proof while also being backwards compatible with many existing products. In contrast, the limited PoE power consumption makes it compatible with any PoE network-based installation.

Color: Black
Color
Go to product
productBadge.normal
NWP320
AUDAC
NWP320

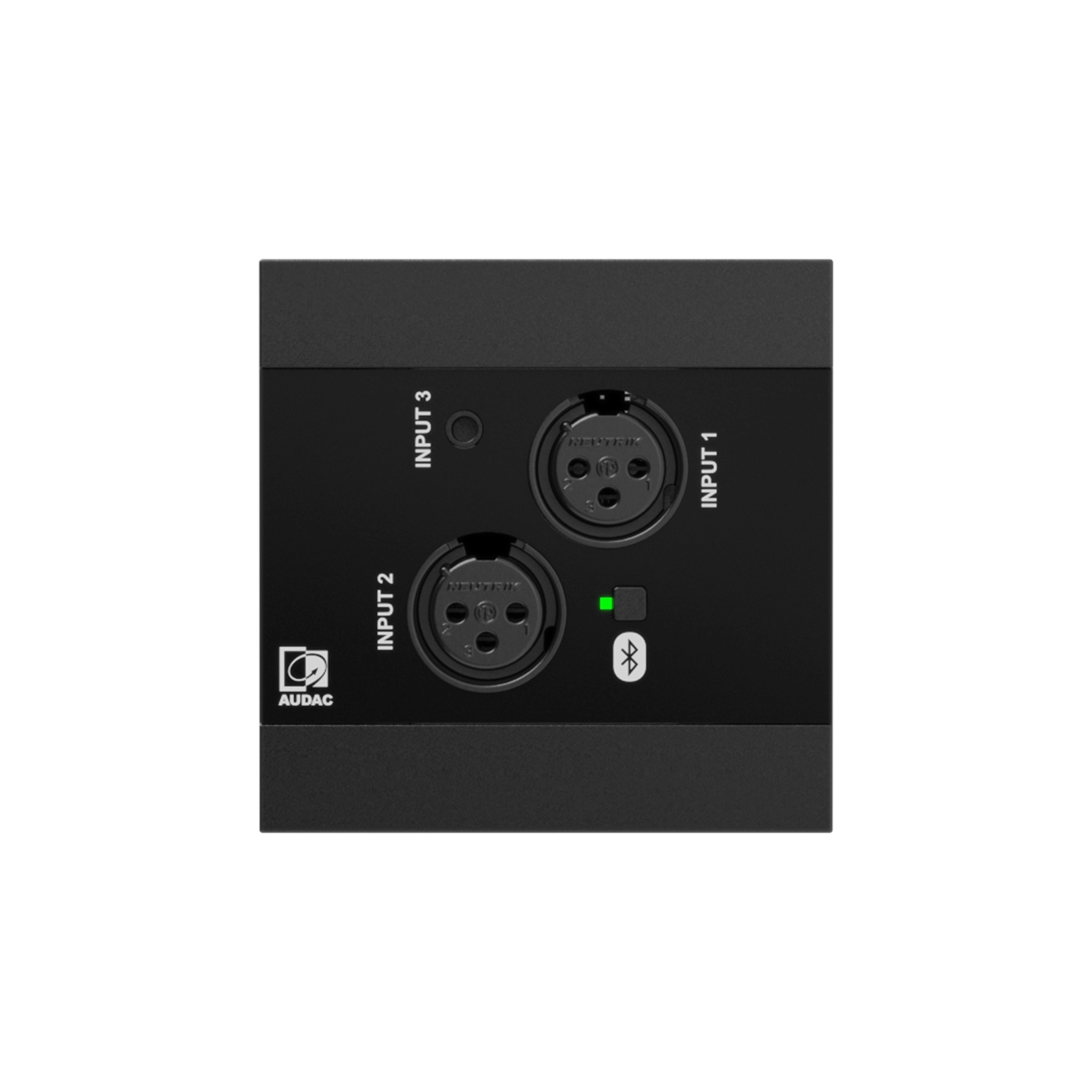

Networked audio input panel - 2 x XLR + 3.5 mm jack + BT
+2 Variants
Go to product
productBadge.normal
NWP320
AUDAC
NWP320
The NWP320 is a Dante™/AES67 networked audio input panel, featuring two XLR connectors, a 3.5 mm jack stereo input connection and an integrated Bluetooth receiver which can transmit audio signals in a Dante™ audio network. The audio inputs can be switched between line-level and microphone-level audio signals and phantom power (+48 V DC) can be applied to the XLR input connectors for powering condenser microphones. Various further integrated functions such as integrated equalizing, automatic level control and other device settings can be configured through the AUDAC Touch™ app. The front panel is finished with high-grade materials such as hardened glass makes them blend into any environment. These wall panels are compatible with standard EU-style in-wall boxes, these wall panels are the ideal solution for solid and hollow walls. The IP-based communication makes it future-proof while also being backwards compatible with many existing products. In contrast, the limited PoE power consumption makes it compatible with any PoE network-based installation.

Color: Black
Color
Go to product
productBadge.normal
NWP222
AUDAC
NWP222

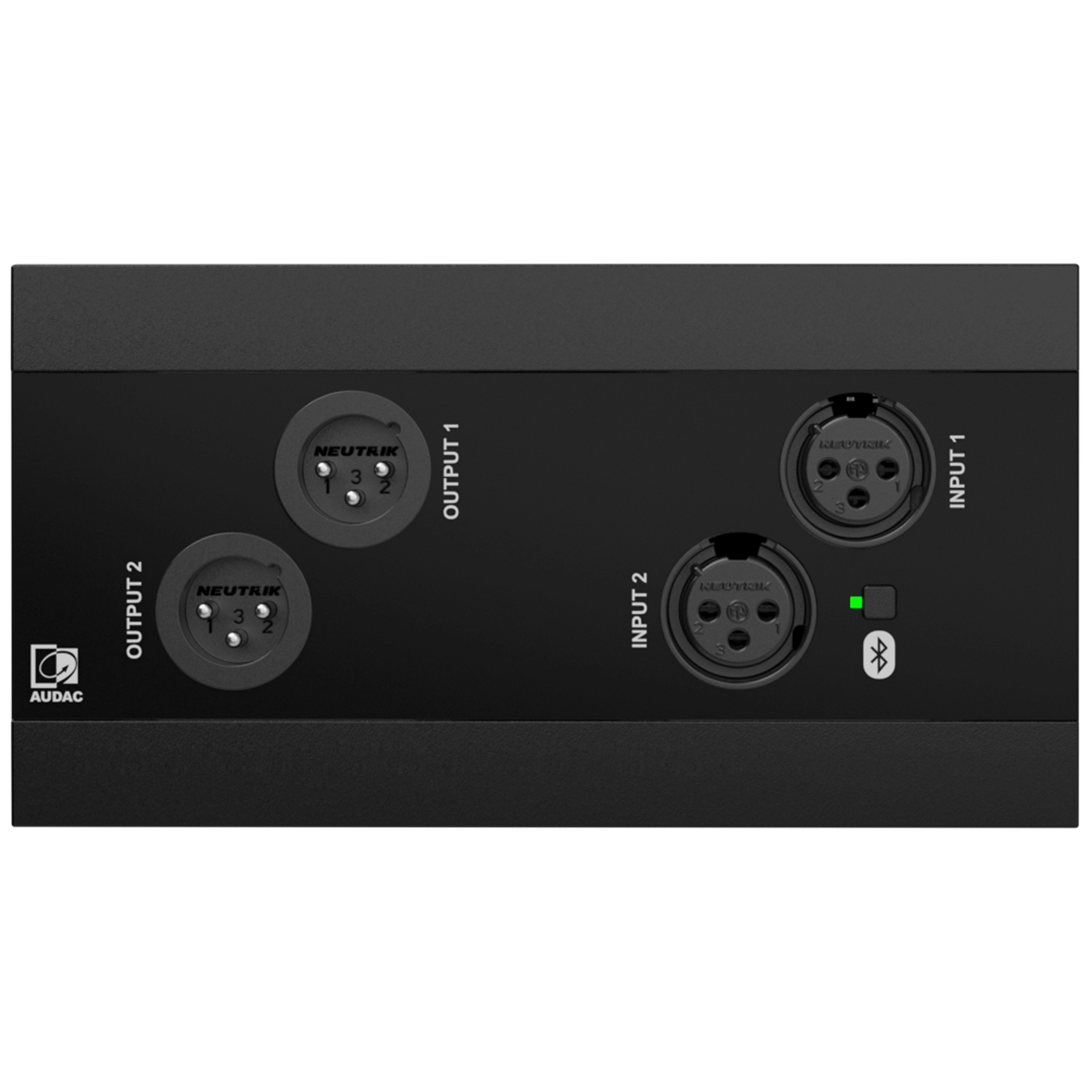

Network Audio Wall Panel - 4 x XLR + BT (4 CH)
