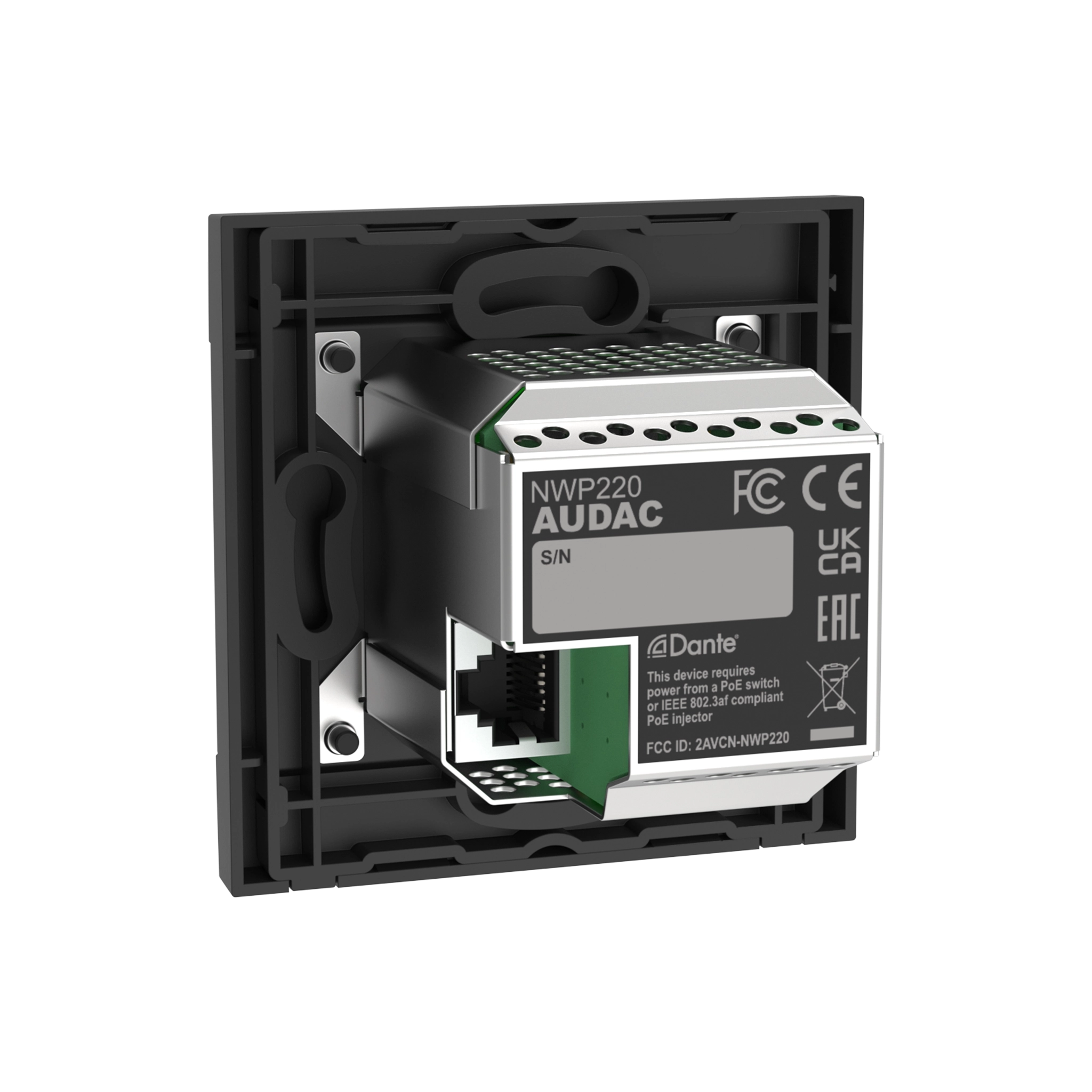

NWP220
Art.-Nr.: NWP220/B
Color: Black
Request now
Project consulting B2B-Login

It is what we experience through the senses that makes life meaningful. In fact, it can be said that through the qualities in speech and music we experience, we become familiar with the higher values of life. This is just one of the reasons why at AUDAC you will find a passion for sound. Each speaker, audio matrix or amplifier solution we develop expresses that same inspiration and quality that exceeds users’ expectations, making it no coincidence our success results from exploring new methods and ideas beyond conventional boundaries.

Overview

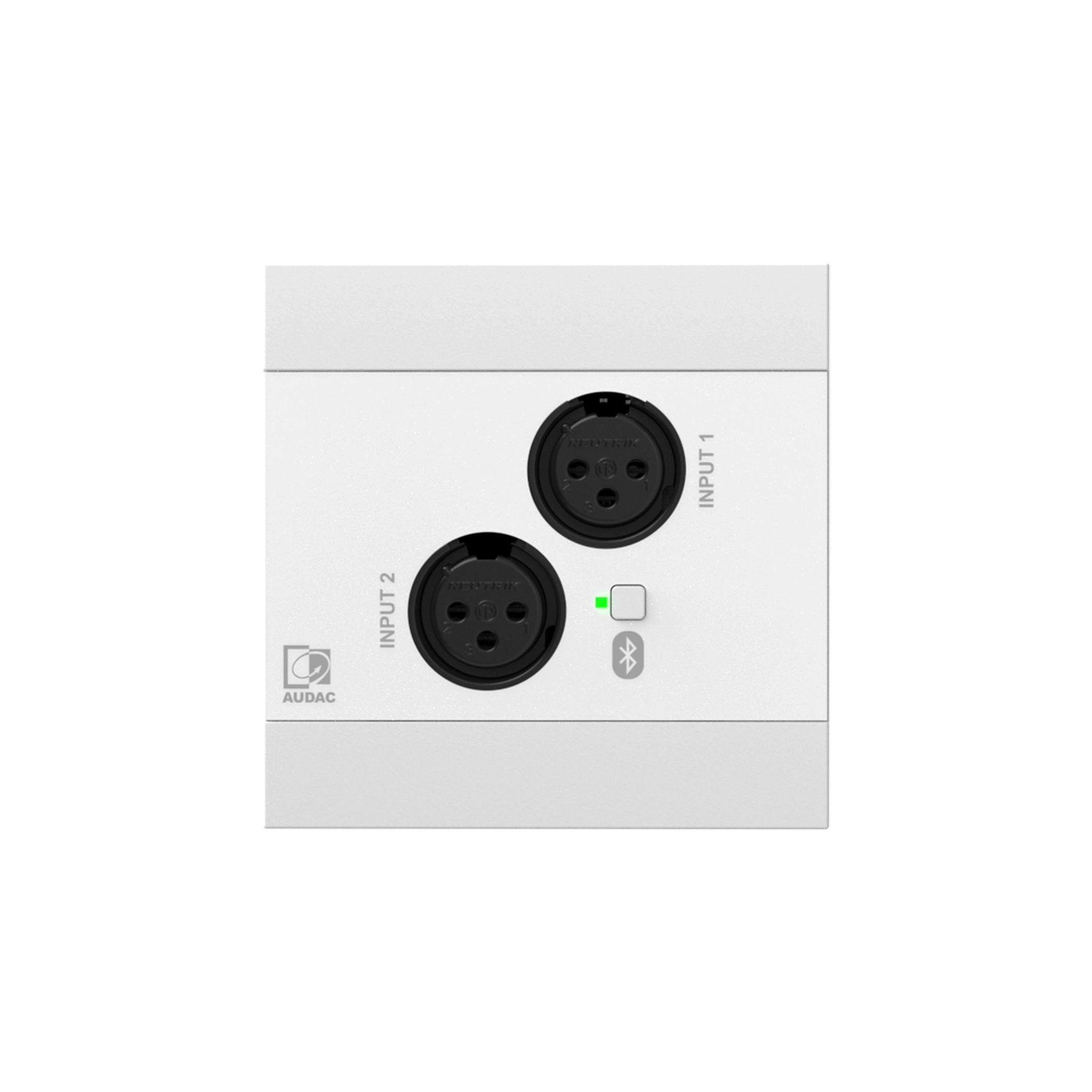

Networked audio input panel - 2 x XLR + BT

The NWP220 is a Dante™/AES67 networked audio input panel, featuring two XLR input connectors and an integrated Bluetooth receiver, which can be used to transmit audio signals in a Dante™ audio network. The audio inputs can be switched between line-level and microphone-level audio signals and phantom power (+48 V DC) can be applied to the XLR input connectors for powering condenser microphones.

Various further integrated functions such as integrated equalizing, automatic level control and other device settings can be configured through the AUDAC Touch™ app.

The front panel is finished with high-grade materials such as hardened glass makes them blend into any environment. These wall panels are compatible with standard EU-style in-wall boxes, these wall panels are the ideal solution for solid and hollow walls.

The IP-based communication makes it future-proof while also being backwards compatible with many existing products. In contrast, the limited PoE power consumption makes it compatible with any PoE network-based installation.

Product Details

  • Integrated Bluetooth receiver
  • 4-channel Dante™/AES67
  • Internal mixing & DSP processing
  • 2 x XLR inputs
Audio inputs
2x XLR, Bluetooth, 4x Dante™
Audio outputs
4x Dante™
Power supply
PoE (802.3af-2003)
Dimension (W x H x D)
80 x 80 x 55,4 mm
Weight
0,12 kg
