NWP300
Art.-Nr.: NWP300/B
Color: Black
Request now
Project consulting B2B-Login

It is what we experience through the senses that makes life meaningful. In fact, it can be said that through the qualities in speech and music we experience, we become familiar with the higher values of life. This is just one of the reasons why at AUDAC you will find a passion for sound. Each speaker, audio matrix or amplifier solution we develop expresses that same inspiration and quality that exceeds users’ expectations, making it no coincidence our success results from exploring new methods and ideas beyond conventional boundaries.

Overview

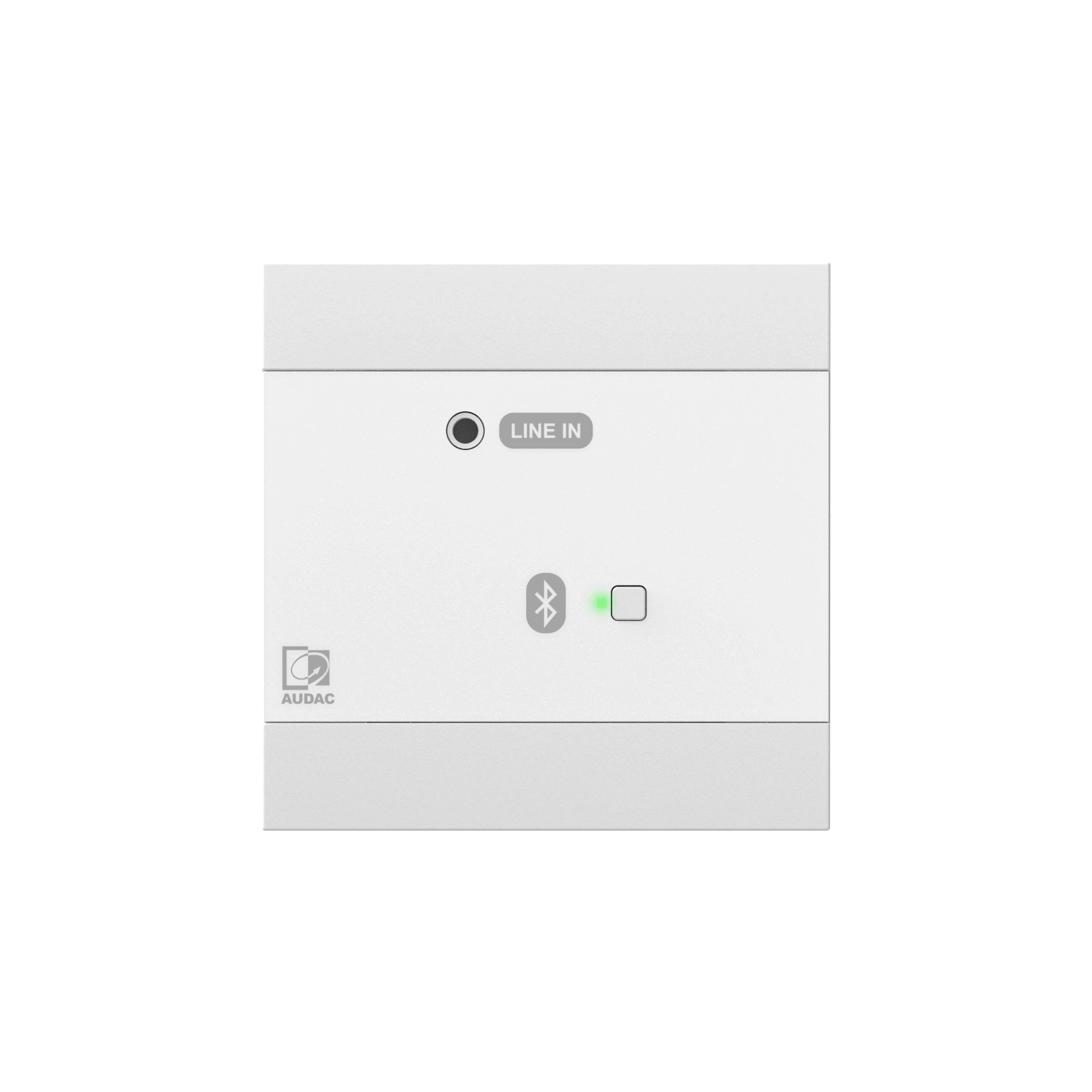

Network Audio Wall Panel - 3.5mm jack + BT

The NWP300 is a Dante™/AES67 networked audio input panel, featuring a 3.5 mm jack stereo input connection and an integrated Bluetooth receiver which can transmit audio signals in a Dante™ audio network.

Various further integrated functions such as integrated equalizing, automatic level control and other device settings can be configured through the AUDAC Touch™ app.

The front panel is finished with high-grade materials such as hardened glass makes them blend into any environment. These wall panels are compatible with standard EU-style in-wall boxes, these wall panels are the ideal solution for solid and hollow walls.

The IP-based communication makes it future-proof while also being backwards compatible with many existing products. In contrast, the limited PoE power consumption makes it compatible with any PoE network-based installation.

Product Details

  • Integrated Bluetooth receiver
  • 4-channel Dante™/AES67
  • Internal mixing and DSP processing
  • 1x 3.5mm stereo jack input
Audio inputs
1x 3.5mm stereo jack, Bluetooth, 4x Dante™
Audio outputs
4x Dante™
Power supply
PoE (802.3af-2003)
Dimension (W x H x D)
80 x 80 x 55,4 mm
Weight
0,12 kg
