NWP400
Art.-Nr.: NWP400/B
Color: Black
Request now
Project consulting B2B-Login

It is what we experience through the senses that makes life meaningful. In fact, it can be said that through the qualities in speech and music we experience, we become familiar with the higher values of life. This is just one of the reasons why at AUDAC you will find a passion for sound. Each speaker, audio matrix or amplifier solution we develop expresses that same inspiration and quality that exceeds users’ expectations, making it no coincidence our success results from exploring new methods and ideas beyond conventional boundaries.

Overview

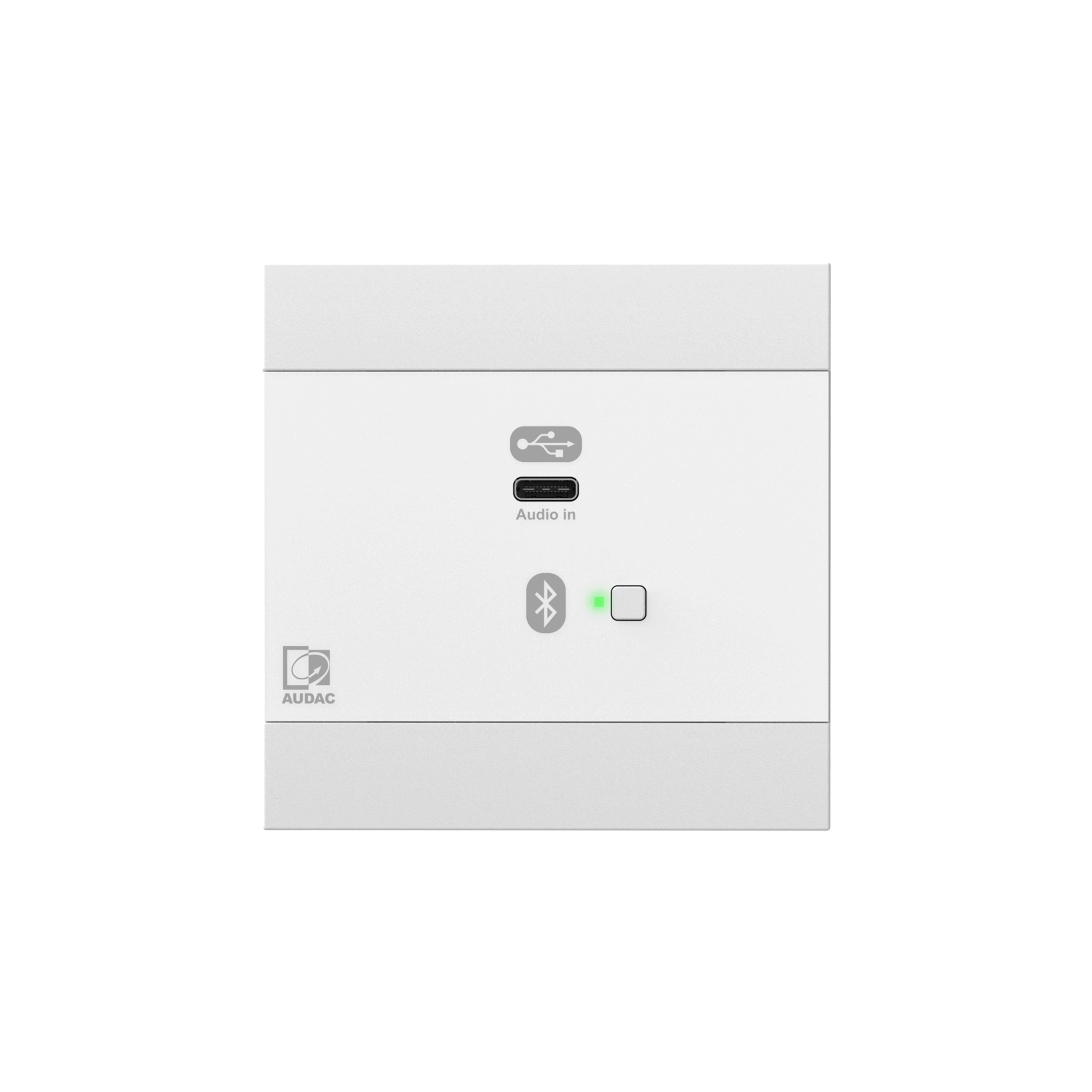

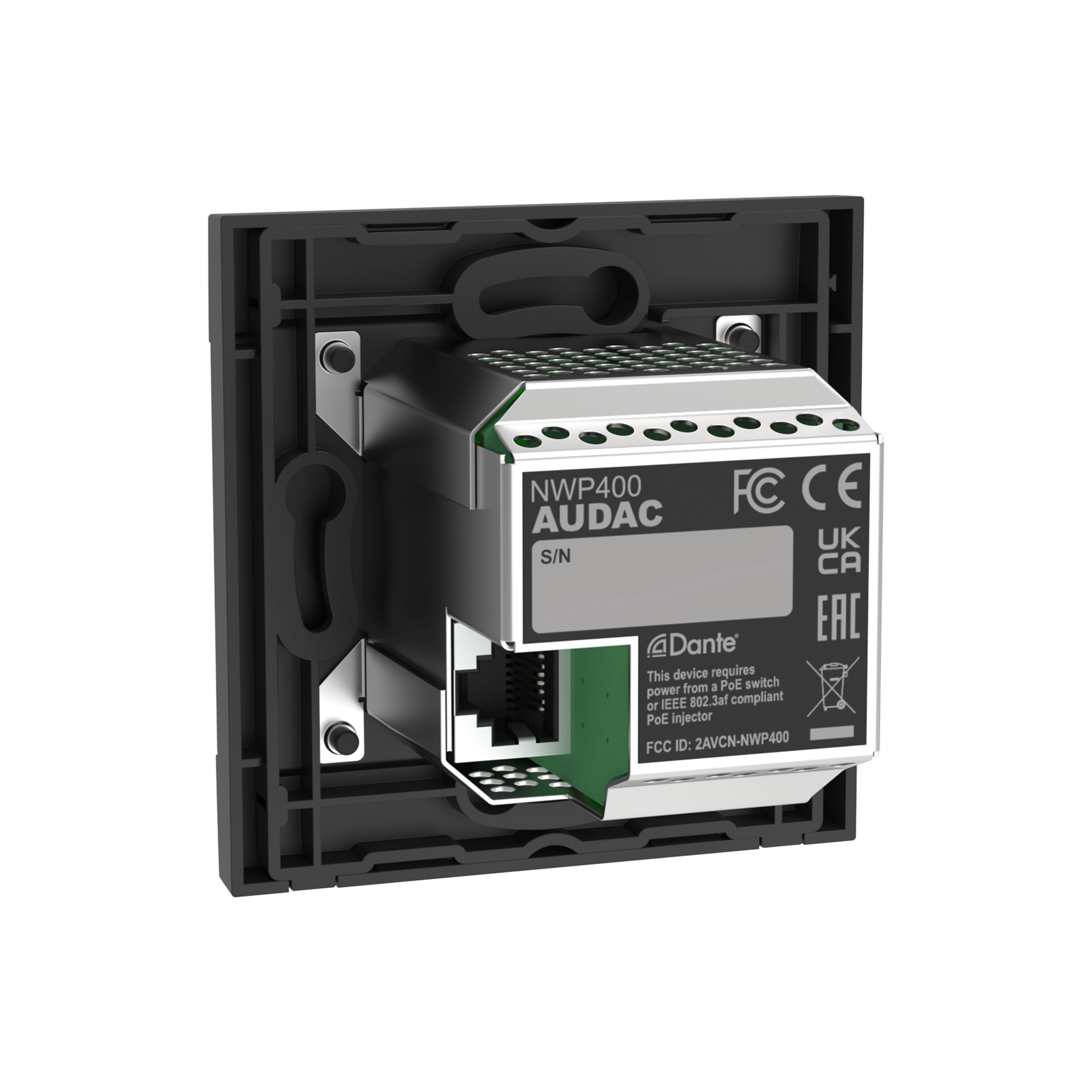

Networked audio input panel - USB Type-C + 3.5 mm jack

The NWP400 is a Dante™/AES67 networked audio input panel, featuring a USB Type-C audio input and an integrated Bluetooth receiver, which can be used to transmit a stereo audio signal in a Dante™ audio network. This can be used for connecting e.g. laptops or other portable devices as an audio source to a Dante™ audio network.

Various further integrated functions such as integrated equalizing, automatic level control and other device settings can be configured through the AUDAC Touch™ app.

The front panel is finished with high-grade materials such as hardened glass making them blend into any environment. These wall panels are compatible with standard EU style in wall boxes, these wall panels are the ideal solution for solid and hollow walls.

The IP-based communication makes it future-proof while also being backwards compatible with many existing products. In contrast, the limited PoE power consumption makes it compatible with any PoE network-based installation.

Product Details

  • Integrated Bluetooth receiver
  • 4-channel Dante™/AES67
  • Internal mixing and DSP processing
  • USB-C audio interface as input
Audio Inputs
USB-C Audio Interface, Bluetooth, 4x Dante™
Audio outputs
4x Dante™
Power supply
PoE (802.3af-2003)
Dimension (W x H x D)
80 x 80 x 55,4 mm
Weight
0,12 kg
